• Model NO.：DW20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Certification：Ce, ISO, FDA
• Voltage：AC220V,50Hz
• Laser Power：10W 20W
• Laser Type：Fiber Laser
• Cooling Way：Air Cooling
• Minimum Line Width：0.01mm
• Minimum Character：0.15mm
• Repeatability Accuracy：±0.002mm
• Operating Temperature：5-40ºC
• Machine Warranty：2 Years for Machine
• Transport Package：Plywood Box, Free of Fumigation
• Specification：Machine can be customized
• Trademark：Dwin
• Origin：Jinan City, China
• HS Code：8656100009
• Production Capacity：500 Sets Every Year

Basic Info.

Model NO. DW20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Certification Ce, ISO, FDA Voltage AC220V/50Hz Laser Power 10W 20W Laser Type Fiber Laser Cooling Way Air Cooling Minimum Line Width 0.01mm Minimum Character 0.15mm Repeatability Accuracy ±0.002mm Operating Temperature 5-40ºC Machine Warranty 2 Years for Machine Transport Package Plywood Box, Free of Fumigation Specification Machine can be customized Trademark Dwin Origin Jinan City, China HS Code 8656100009 Production Capacity 500 Sets Every Year

Product Description

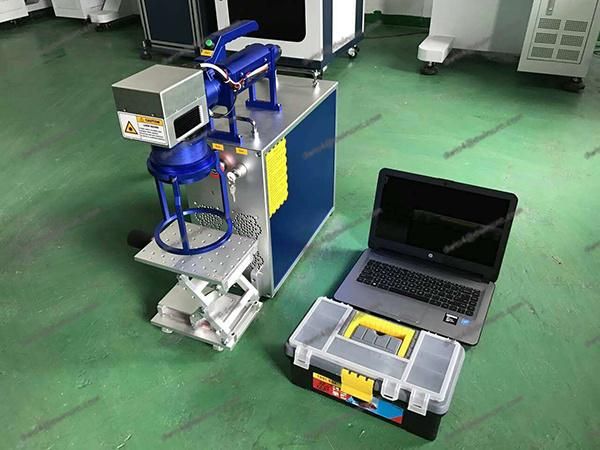

20W Handheld steel fiber Laser Marking Machinery DW20



Features of fiber laser marking machine for metals
1. Fmous-brand semi-conductor module, beam quality good, and laser power is stabile, life time over 10k hours.
2. Sharp laser beam, high speed and precise marking, beam stable and reliable, low processing costs.
3. Software: with red preview, mirror marking, graphical alignment, hierarchical set parameters functions.
4. With professional constant temperature water cooling system, 24-hour continuous working is reliable. Be applicable to production lines.
5. Under WINDOWS interface, compatible with files outputted from software such as CORELDRAW,
AUTOCAD,   PHOTOSHOPetc. Support PLT, AI, DXF, BMP and others, directly using SHX, TTF font.
6. Rotary equiment optional 8,no consumable 9.make mark on metal with perfect sign. cable laser marking machine

Technical Data:

No.	Description	Parameter
1	Marking area	110*110mm(option:150*150mm,200*200mm,300*300mm)
2	Laser power	10W (20w/30w/50w,etc for option)
3	Marking speed	≤8000mm/S
4	Max.Marking Depth	≤0.4mm
5	Laser Wavelength	1064nm
6	Marking lines	1-10 marking lines(in the marking area)
7	Minimum line width	0.01mm
8	Minimum character	0.15mm
9	Resolution ratio	0.01mm
10	Repeatability accuracy	±0.002mm
11	Operating temperature	5-40ºC
12	Unit Power	≤500W
13	Graphic format supported	BMP,JGP,PNG,DXF, etc.
14	Supply Voltage	110V/50HZ/10A(option:220V)

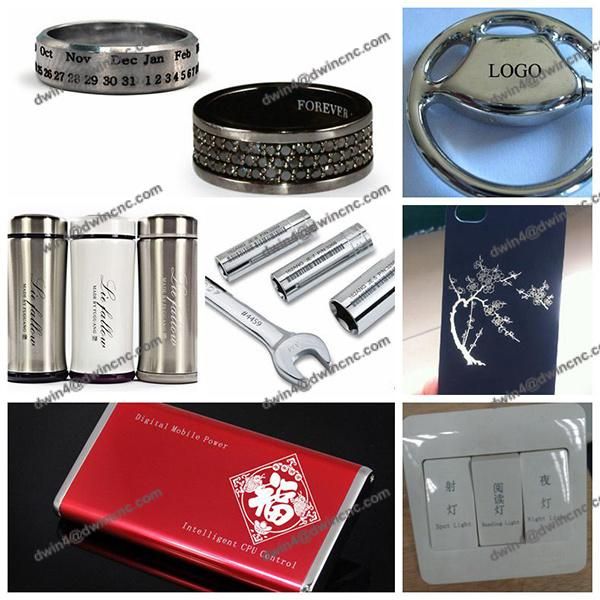

Machine Application
Any metal and nonmetal materials,flexible paper label/industrial plastic/rubbers/powder-coating/electroplate materials and so on. Automotive vechile/automobile part/motorcycle parts/sanitary ware/telecom apparatus/electronic parts/plastic key button/integrated circuit(IC) and so on.
