• Model NO.：MAN-20
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box

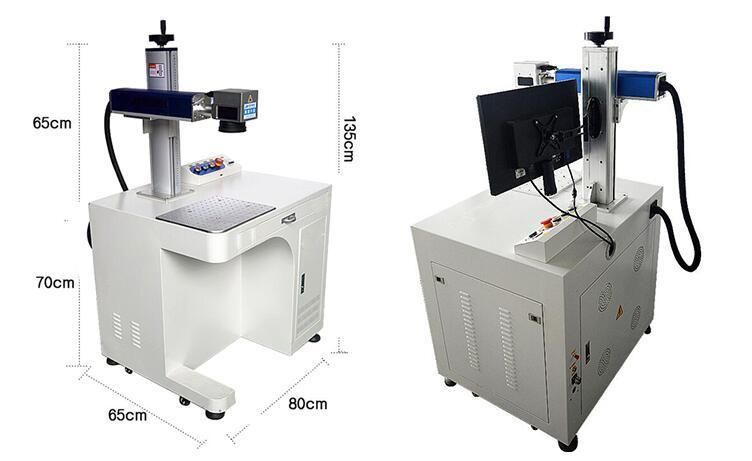

• Specification：900*800*1150mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 900*800*1150mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

Ear Tag Vin Number Desktop Fiber Laser Marking Machine Price

 PRODUCTION :



Description:

Characters:

1. High electro-optic conversion efficiency

2. Low power consumption, stability laser output

3. High quality beam, consumable free, small machine dimension

4. Smaller output laser beam ,finer marking line. Suitable high precision marking

5. Long life, laser generator life over 100,000 hours.

6. Red light preview, how the marking position before lasering.

7. Up and Down Lifter laser head (desktop model) andup and down worktable( Portalble model),easy to marking engraving different workpiece.

8. Rotary attachment optional,can engrave and mark inside and outside ring jewellery.

9. High temperature resistance,  good for marking,medical equipment etc that requires sterilization

10.The durable & fine marking quality, widely use injewelry, mobile phones, and other high value items.

Application scope:

1.  Metal field: SUS product, hardware industry, clock industry, gold & silver jewelry, mould and all metal material

2.  Non-metal field: PVC industry, PCB circuit board, ABS shell, chip industry, plastic marking, ceramics products and so on.

3.  Surface treatment oil paint or printing ink, anodizing oxidation, electroplate and electrophoresis for engraving logo or oxygen conductive treatment.

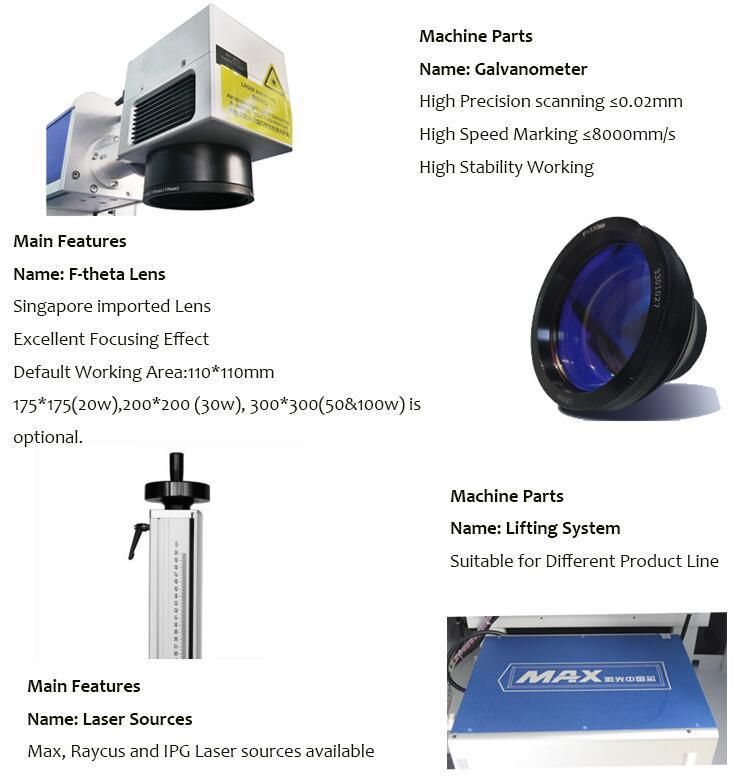

IMAGES DETAILS :



 TECHNICAL  PARAMETER :


Laser power	Fiber 10W/20W/30W/50W air cooling
Working area	100*100mm
Laser Wavelength	1064nm
Response time	0.5ms
Frequency of pulse	20-100KHz
Max marking depth	≤0.4mm
Marking speed	≤7000mm/s
Marking lines	1-10 lines(in the marking area)
Minimum line width	0.1mm
Minimum character	0.15mm
Repeatability accuracy	±0.002mm
Resolution ratio	0.1mm
Marking content	Text,pattern,date,bar code,etc
Operation system	Microsoft Windows XP or Windows 2000
Control software	EZCAD control software or laser2.1 marking control software
Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
Unit power	≤1.2KW
Operation temperature	5°C-40°C
Relative moisture	≤ 90%,no fog
Supply Voltage	220V/50Hz/10A

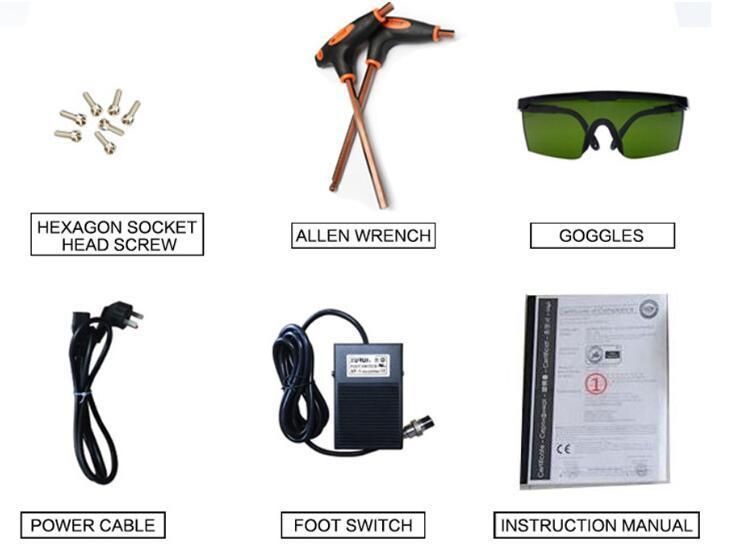

Standard  Laser Parts :

Optional  Laser Parts :

1. 3d Work table:

The table is made by anodized aluminium alloy, light weight and stainless. Itsupport CO2,Fiber,YAG and UV platform.

It apply tovarious industry :laser marking on moving workpiece,visual postitioning,edge cutting for embroidery and other industries.

2. Rotating worktable: Rtating worktable can achieve multi-station marking of surface.

3. Rotary fixture :

The rotary is mainly apply to the surface of curved and cylinder marking. drived by high precision step motors,

can be used to mark cylinder items, like rings, Yeti cups, pens and etc.
 SAMPLE SHOW :

Applicable Industry:

gold & silver jewellery, sanitary ware, food packing, tobacco products, medicine packing, medical apparatus

and instruments, watches & glassware,  auto accessories, electronic hardware.

Applicable Materials:

gold & silver, stainless steel, ceram, plactic, glass, stone, leather, cloth, bamboo and so on.

Applicaion Show:

auto accessories marking, tobacco products marking, beer bottle marking,ring marking, electronic products marking.



PACKAGING &  SHIPPING :



ABOUT US   :

-What is your certificate of the fiber laser marking machine?

1.CE certificate

2.FDA for American Clients

3. SGS certificate

What is your services of the fiber laser marking machine?

1. 3 years guarantee of the whole machine (except for laser tube) and we give lifetime maintenance free of charge.

2. Free training to make sure you master the operating of machine at our factory.

3. 24 hours online services through TM, Skype, Email or on the phone.

4. Engineers available for overseas training and after-sale services. Our technical will come to your workshop

if the problems can not be fixed through internet or phone communications.

5. Contact me at any time if you have any questions about the machine.

6. Friendly English version manual and operation video CD disk.
