• Model NO.：HSGP-4KB
• Laser Classification：Semiconductor Laser
• Engraving Method：Vector Engraving
• Laser：Semiconductor Diode
• Laser Wavelength：532nm
• Laser Frequecny：4kHz
• Laser Power：3W
• Max Pulse Energy：1.2mj
• Max Engrave Speed Points：≤240000dots,Minute
• Resolution：800dpi-1200dpi
• Focus Length：100mm
• Focus Diameter：0.02mm
• Cooling：Air Cooling
• Transport Package：Wooden Case
• Specification：CE, FCC, FDA, SGS, TUV
• Trademark：Holy Laser
• Origin：Zhejiang, China
• HS Code：8456100090
• Production Capacity：50 Sets,Per Month

Basic Info.

Model NO. HSGP-4KB Laser Classification Semiconductor Laser Engraving Method Vector Engraving Laser Semiconductor Diode Laser Wavelength 532nm Laser Frequecny 4kHz Laser Power 3W Max Pulse Energy 1.2mj Max Engrave Speed Points ≤240000dots/Minute Resolution 800dpi-1200dpi Focus Length 100mm Focus Diameter 0.02mm Cooling Air Cooling Transport Package Wooden Case Specification CE, FCC, FDA, SGS, TUV Trademark Holy Laser Origin Zhejiang, China HS Code 8456100090 Production Capacity 50 Sets/Per Month

Product Description

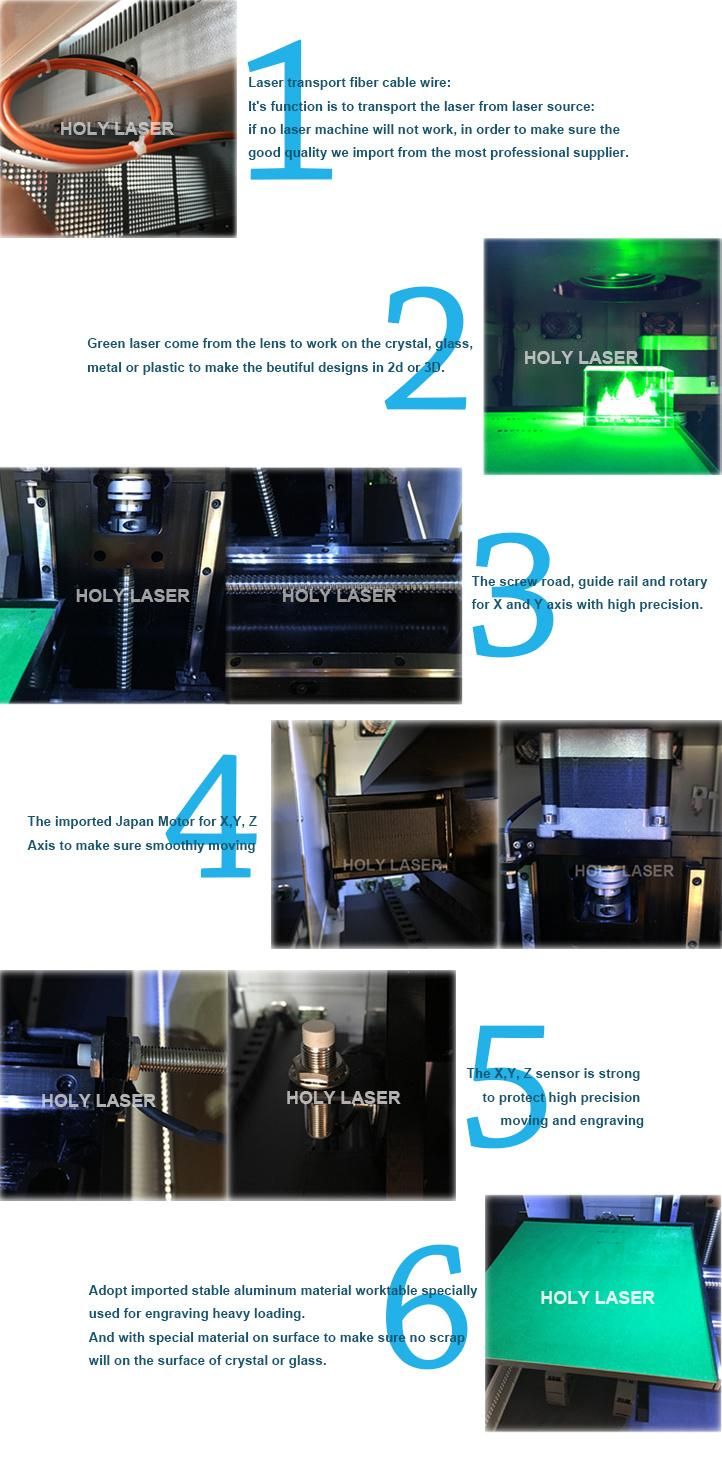

Features of High-frequency 3D Crystal Laser Engraving Machine:
    The HSGP series 3D laser engraving machine (also known as laser engraving inner machine or crystal laser engraving machine) is self-developed by Holy laser with imported laser and self-design software which can meet common and special needs of users. The operation of hardware and software is efficient and stable and the engraving effect is amazing

Application Industry High-frequency 3D Crystal Laser Engraving Machine:
    Our 3D crystal laser engraving machine is widely used in 2D&3D crystal photo engraving, personalized crystal engraving gifts, high finesse crystal product processing, high-grade glass products, etc

Application Material:
 Can be used for engraving inside of crystal cube, common glass, transparent acrylic, and also can marking on surface of hard plastic

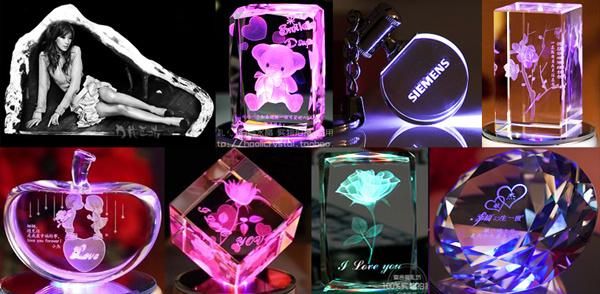

Sample Pictures:


Technical Parameter:

model no	HSGP-4KB
laser	semiconductor diode
laser wavelength	532nm
laser frequency	4000HZ
max pulse energy	1.2mj
laser power	3w
Q-mode	acoutto-optic-Q
pulse width	7ns
beam quality	M2<1.5
max engraving speed	≤240,000dots/min
max marking scope	300x400x130mm
resolution	800-1200dpi
focal length	100mm
focus diameter	0.02mm
cooling	air cooling
application materials	crystal, glass, acrylic, hrad plastic
device input power	AC220V±10% 50-60HZ

Certification


Packing and delivery:
Packing: Packed in wooden case with waterproof felt inside, keeping machine safe
Delivery: 3-5 days upon receipt of your payment


After-sale service:
One year warranty for product quality
Free training for machines installation and operation
Free design of machine as you required
Lifelong maintenance and spare parts supply
Free marking samples as you required

Factory Profile:
We are the manufacturer with 17 years' history on researching and producing all kinds of Lasers
Cooperated with the Zhejiang University and update new technology in-time
Key enterprise supported by the government of Yiwu City
