• Model NO.：HSGP-4KB
• Laser Classification：Semiconductor Laser
• Engraving Method：Vector Engraving
• Laser：Semiconductor Diode
• Laser Wavelength：532nm
• Laser Frequecny：4kHz
• Laser Power：3W
• Max Pulse Energy：1.2mj
• Max Engrave Speed Points：≤240000dots,Minute
• Resolution：800dpi-1200dpi
• Focus Length：100mm
• Focus Diameter：0.02mm
• Cooling：Air Cooling
• Transport Package：Wooden Case
• Specification：CE, FCC, FDA, SGS, TUV
• Trademark：Holy Laser
• Origin：Zhejiang, China
• HS Code：8456100090
• Production Capacity：50 Sets,Per Month

Model NO.

HSGP-5KB

HSGP-4KB

HSGP-3KC

HSGP-3KD

Laser pumping

Semiconductor Diode

Laser wavelength

532nm

Laser frequency

5000HZ

4000HZ

3000HZ

3000HZ

Max.pulse energy

1.2mj

Laser power

3W

Q-mode

Acousto-optic-Q

Pulse width

7ns

Beam quality

M2<1.5

Max. engrave speed points

≤300000dots/min

≤240000dots/min

≤180000dots/min

≤180000dots/min

Max. engraving scope

300*400*130mm

300*400*130mm

300*400*130mm

150*200*80mm

Laser head

One

Resolution

800DPI-1200DPI

Focal length

≥100mm

Focus diameter

0.02mm

Cooling

Air Cooling

Application materials

Crystal Glass Etc.

Device input power

AC220V±10% 50-60HZ

Packing and delivery:

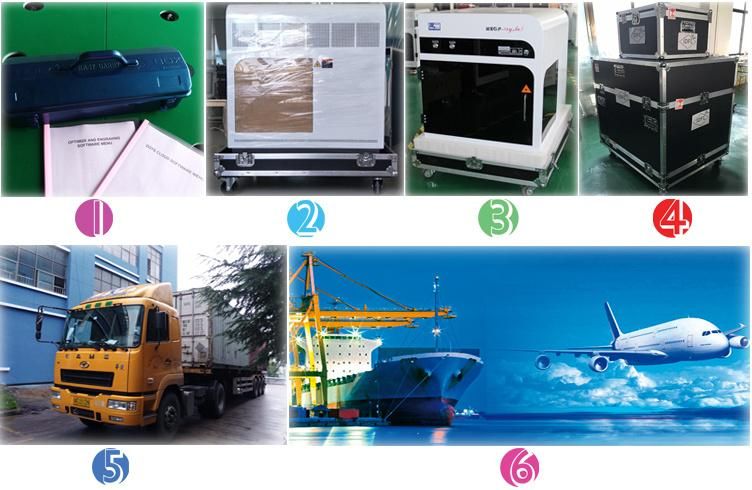

Packing: Packed in wooden case with waterproof felt inside, keeping machine safe
Delivery: 3-5 days upon receipt of your payment


After-sale service:
? Two years warranty for product quality
? Free training for machines installation and operation
? Free design of machine as you required
? Lifelong maintenance and spare parts supply
? Free marking samples as you required

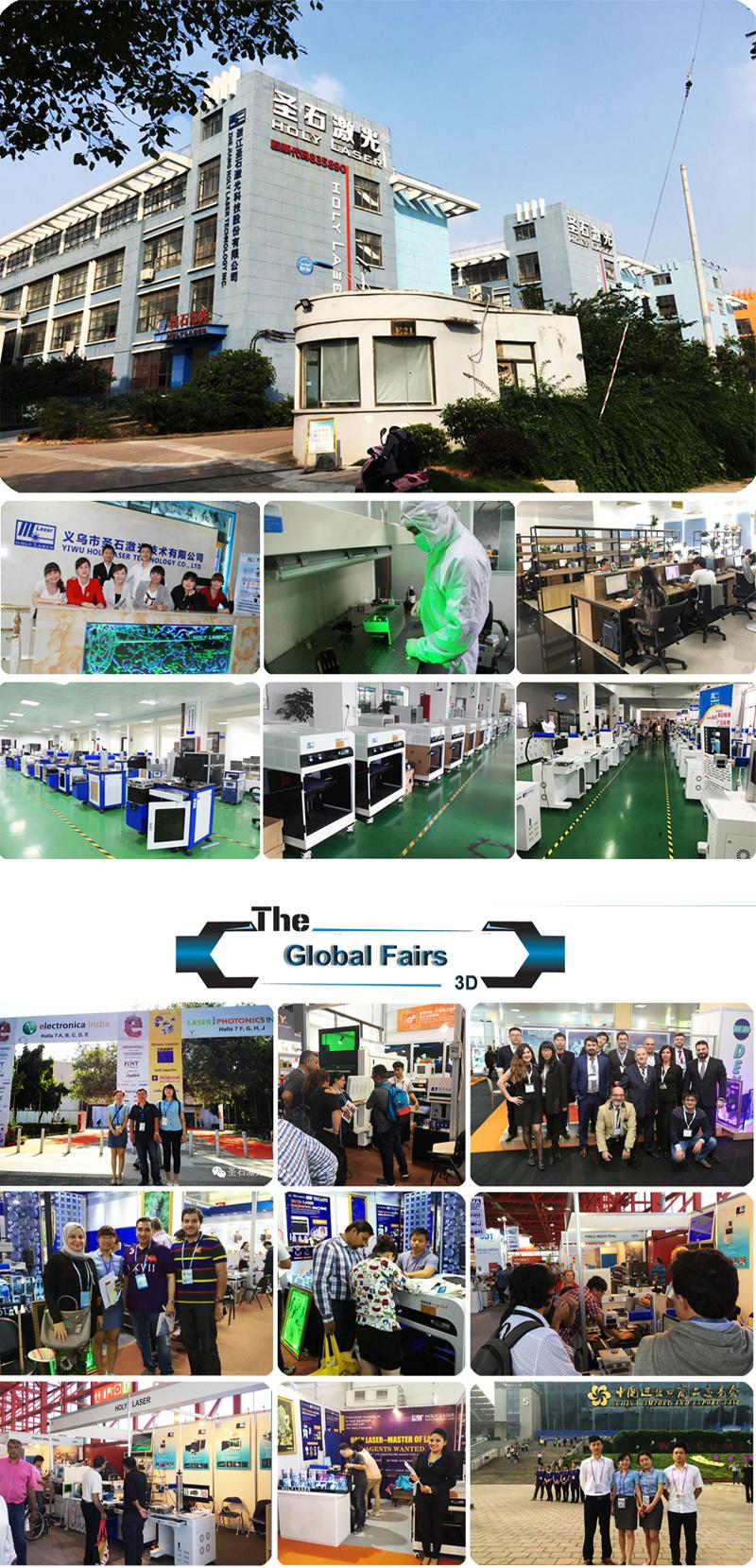

Factory Profile:
? We are the manufacturer with 17 years' history on researching and producing all kinds of Lasers
? Cooperated with the Zhejiang University and update new technology in-time
? Key enterprise supported by the government of Yiwu City


For more detailed information, please feel to contact with me or check our website: http://holylaser.en.made-in-china.com
