• Model NO.：HSGQ-500W-300150
• Laser Technology：Laser Control Fault Cutting
• Laser Power：500W,800W
• Laser Wavelength：1080mm
• Working Size：3000*1500mm
• Lasing Midium：Yvo4
• Min Line Width：Less 0.15mm
• Max Travel Speed：60m,Min
• X Axis Route：3000mm
• Y Axis Route：1500mm
• Z Axis Route：120mm
• Carbon Steel Cutting Thickness：6mm,8mm
• Transport Package：Continer
• Specification：FCC, SGS, FDA, CE, TUV
• Trademark：HOLY LASER
• Origin：Yiwu, Zhejiang, China
• HS Code：8456100090
• Production Capacity：500sets,Year

Laser Power
500W/800W/1000W/2000W
Laser Source
MAX/IPG/Rayco/SPI(It's option)
Laser Type
Fiber Laser
Laser Technology
Germany Technology
XYZ Working area
1500*3000 mm*130mm
Max. Cutting Thickness (Carbon Steel)
6 -8mm
Max. Cutting Speed
0-45 Meters / Min (up to materials)
Laser wavelength
1080nm
Minimum line width
≤0.15mm
Location precision
≤±0.05mm
Re-location precision
±0.02mm
Max. moving speed
60m/min
Supporting Format
PLT, DXF, BMP, AI
Power demand
380V/50Hz
Cooling Way
Water Cooling
Worktable max. load
1000KGS
Transmission Method
Ball Screw Transmission
Table-driven system
Japanese Imported Panasonic Servo Motor & Driving System
Focus Method
Following and Automatic Adjust Focus
Control Method
Offline Movement Control
Control software
Cypcut  Laser Cutting Software

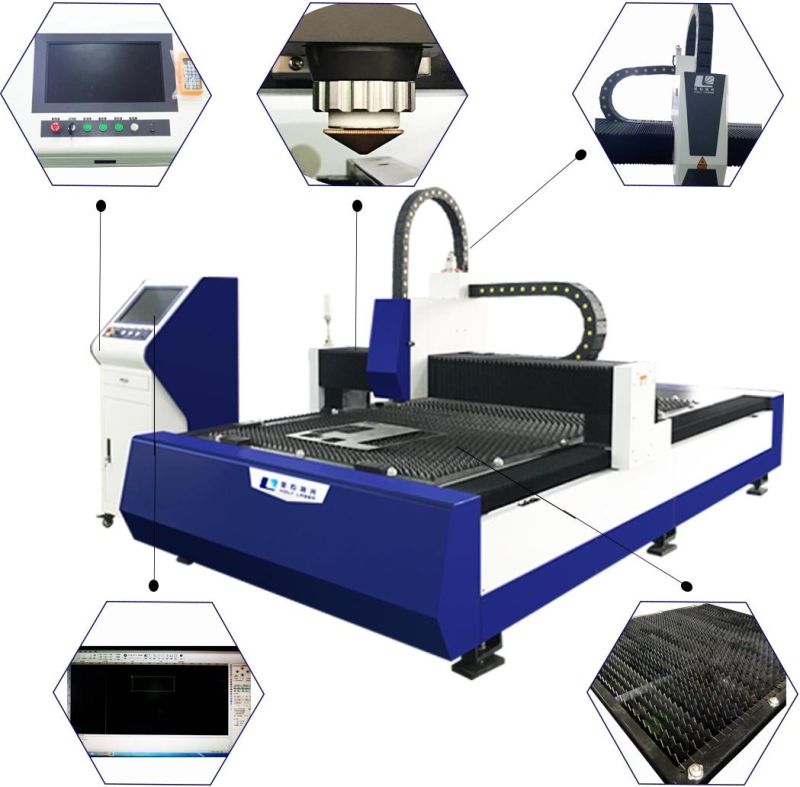

Fiber laser machine collocates with the advanced laser generator which emits laser beam with high energy density. The laser beam is focused on the surface of workpiece as an ultrafine focus facula and causes the irradiated area instantly melted and vaporized. The CNC system automatically controls the laser cutter to achieve the cutting mission.

The laser equipment is constituted with the advanced laser technology, CNC technology and mechanical technology. It's applicable to processing metal sheets such as stainless steel, carbon steel, copper, aluminum and metal pipes. It has been widely used in plate processing, machinery manufacturing, and precision processing, etc.

Advantages of Fiber Laser Cutting Machine:

 1) Excellent beam quality:  Smaller focus diameter and high work efficiency, high quality.
 2) High cutting speed: Cutting speed is more than 45m/min
 3) Stable running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
 4)  High efficiency for photoelectric conversion:  Compare with CO2 laser cutting machine, fiber laser cutting machine has three times photoelectric conversion efficiency
 5) Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine. Fiber line transmission no need reflect lens, save maintenance cost;
 6) Easy operations: fiber line transmission, no adjustment of optical path;
 7) Super flexible optical effects:  Compact design, easy to flexible manufacturing requirements
 8)Dual drive:different the traditional one drive machine,dual drive power is more large,speed is more fast and high procession
Applied materials of Fiber Laser Cutting Machine:
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and  many kinds of metal materials cutting and so on.
Applied Industries of Fiber Laser Cutting Machine:
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.


 supplier info:
1.supported by YIWU Government
 2. Cooperated with Zhejiang University,update for technology
 3.we are  the manufacturer,our price are more competitive
 4. with 16 years history on reseraching and producing all kind of laser machine
 5. Our company welcomes AGENTS all over the world



certification
we have independent rights to export and import,andpassed the CE ,FCC ,SGS, TUV and FDA certification.



market and exhibition
Our laser machine have exported to Germony,USA,Britain,France,Italy, South Korea,Japan,  India,and so on more than 70 countries and regions, in the market enjoy a high revalution
