• Model NO.：FLC1390
• Structure Type：Gantry Type
• Laser Classification：Gaseous Laser
• Laser Technology：Laser Control Fault Cutting
• Laser Type：CO2
• Working Area：1300*900mm
• Laser Power：90W,100W,130W,150W
• Controller：DSP
• Max Cutting Speed：30000mm,Min
• Max Engraving Speed：60000mm,Min
• Transport Package：Plywood
• Specification：1390
• Trademark：FLYING
• Origin：China
• HS Code：8456100090
• Production Capacity：300PC,Month

Specifications:Model FLC1390Laser-type10.6um CO2 glass laser tube w/ water-coolingLaser power90w/100wWorking area1300 x900mmMax Engraving speed:0-64, 000mm/minMax cutting speed0-30, 000mm/minLaser output control  1-100% software setting  Location precision  Less than 0.01mmHighest scanning precision  2500DPI  Operating temperature  0 - 45  Operating humidity  5- 95% non-condensingMinimum shaping character English 1.0 x 1.0mm  Graphic format supportedHPGL, BMP, JPEG, PLT, DST, DXF, and AI ...Driving system  Stepper(Optional: Servo)Cooling mode  Water-cooling and protection system  Auxiliary equipments  Exhaust-fans, air-exhaust pipe, air pump, chillerController DSPCompatible Software CorelDraw, AutoCAD, Photoshop, TAJIMASlope Engraving   Can be easily designed within the "Grade Engrave" function.Color separation   Uses color property to set function, speed, and laser power



Features:
Adopting the most advanced DSP control technology, it is the pioneer to faster continuously curing-out and shortcut processing pathway optimizing function, accordingly increase greatly the efficiency. It automatically equalize the diminishing of light during the whole operating to ensure the same cutting effect in different area. High-speed cutting control software and buffer function in high-speed movement can improve production efficiency. The new software provides the direct output of original pictures, completely fit the graph formats such as CAD, CAM of CAD, Coreldraw software, to meet the practical design requirements of the end users.


Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration and frame fabrication and etc.

Applicable Materials:
Non-metal materials such as double color boards, acrylic, glass, wood planks, mdf, plastc, rubber, foam, garments, paper, leather, marble, granite and tiles, and etc...

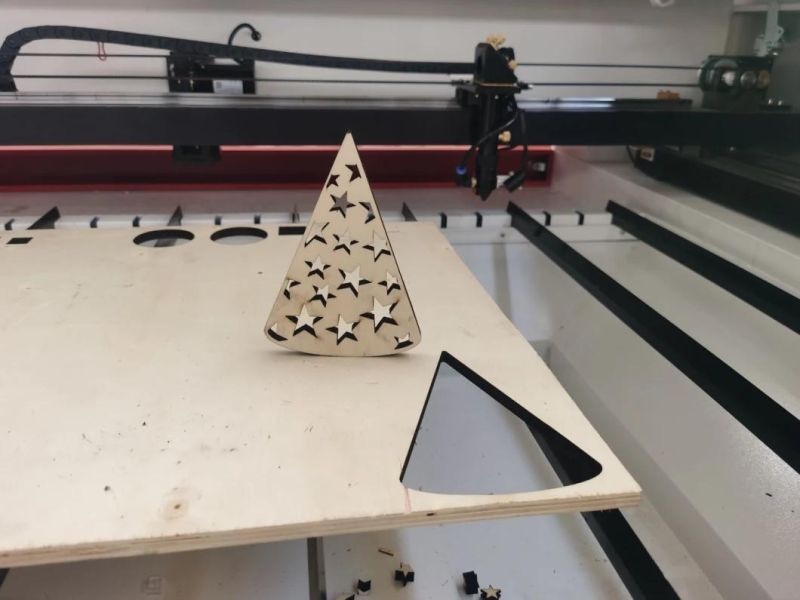

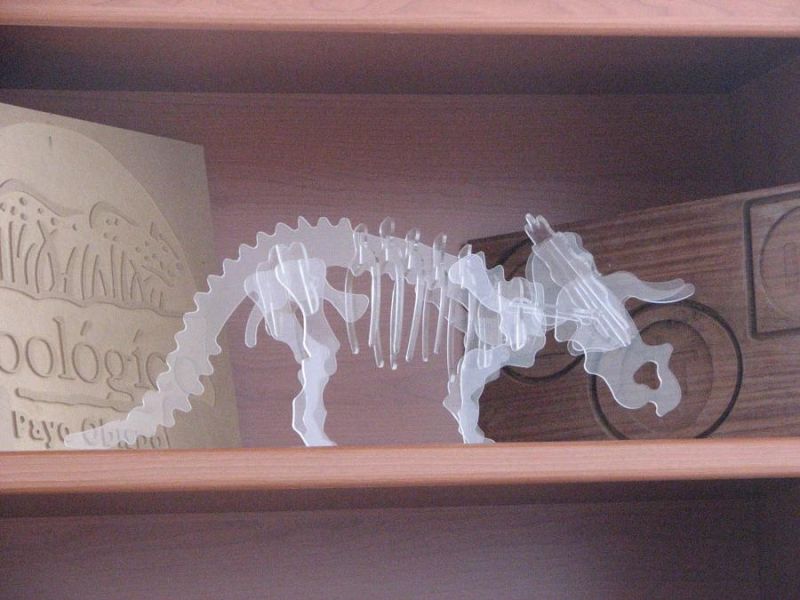

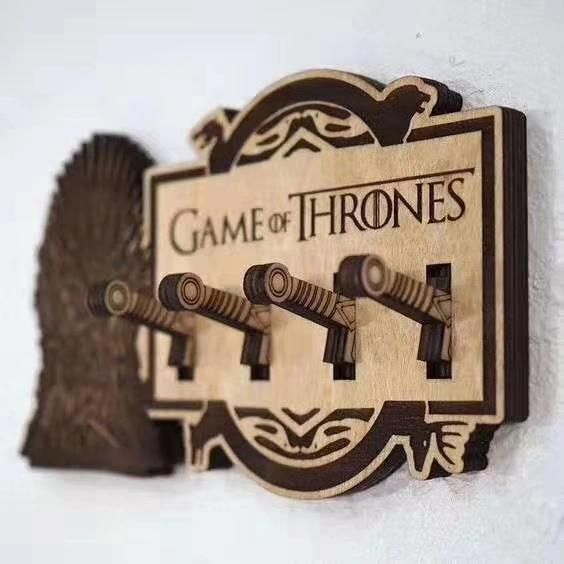

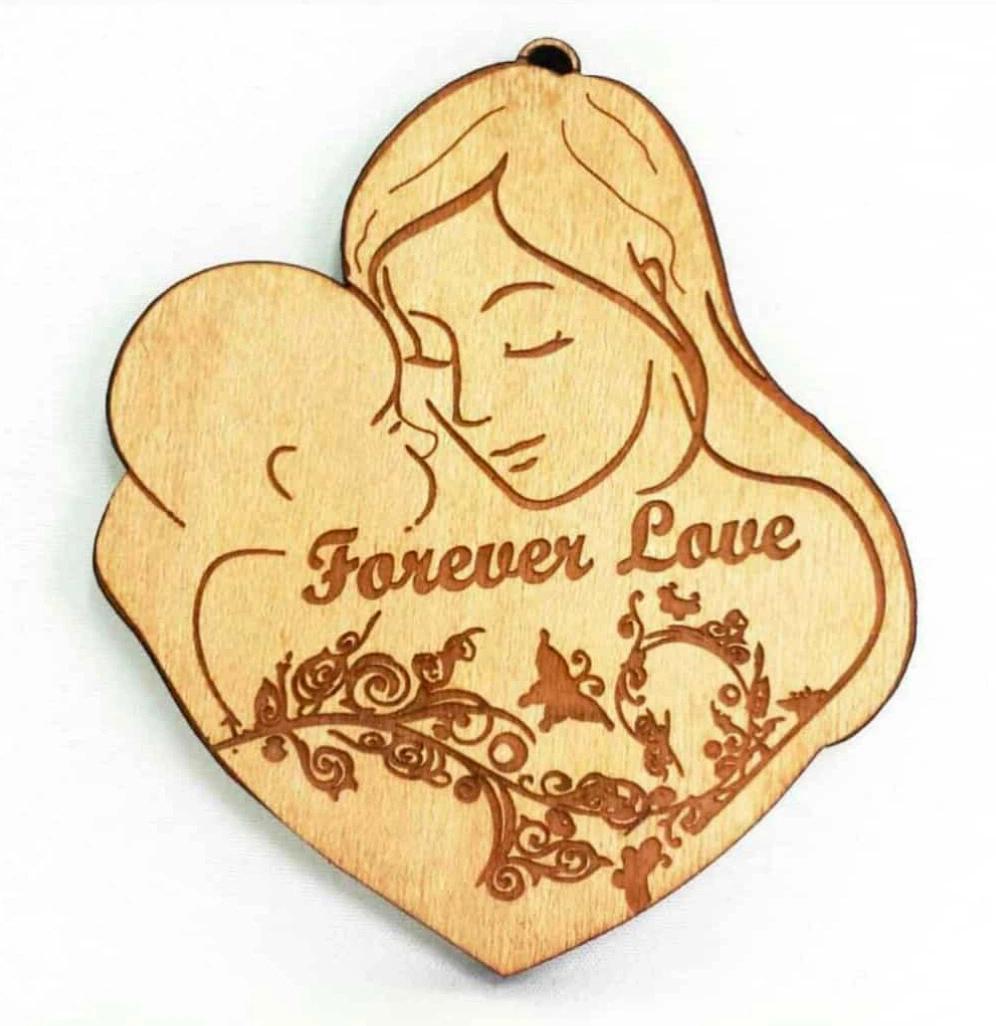

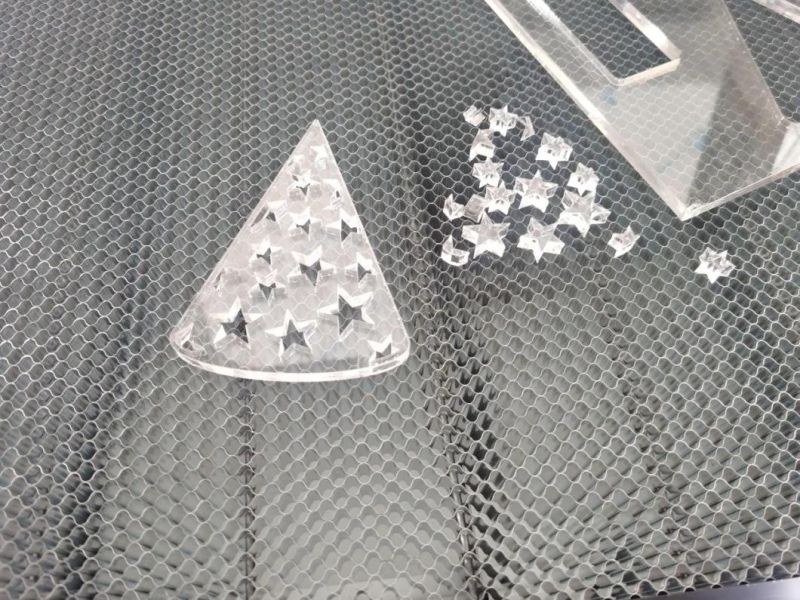

Sample Photos:
