• Model NO.：FLC9060
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Nonmetal
• Structure Type：Gantry Type
• Laser Classification：Gaseous Laser
• Laser Technology：Laser Control Fault Cutting
• Working Area：900*600mm
• Control：CNC
• Laser Type：CO2
• Laser Power：60 W-150W
• Transport Package：Wood
• Specification：9060
• Trademark：Flying
• Origin：China
• HS Code：8156100090
• Production Capacity：100PC,Month
• Package size per unit product：168.00cm * 116.00cm * 128.00cm
• Gross weight per unit product：300.000kg

Basic Info.

Model NO. FLC9060 Cooling System Water Cooling Technical Class Continuous Wave Laser Applicable Material Nonmetal Structure Type Gantry Type Laser Classification Gaseous Laser Laser Technology Laser Control Fault Cutting Working Area 900*600mm Control CNC Laser Type CO2 Laser Power 60 W-150W Transport Package Wood Specification 9060 Trademark Flying Origin China HS Code 8156100090 Production Capacity 100PC/Month

Packaging & Delivery

Package size per unit product 168.00cm * 116.00cm * 128.00cm Gross weight per unit product 300.000kg

Product Description

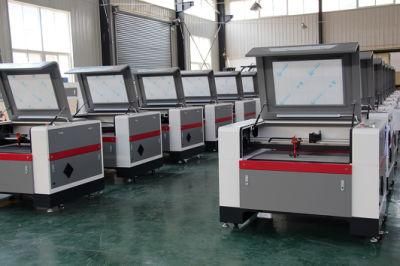

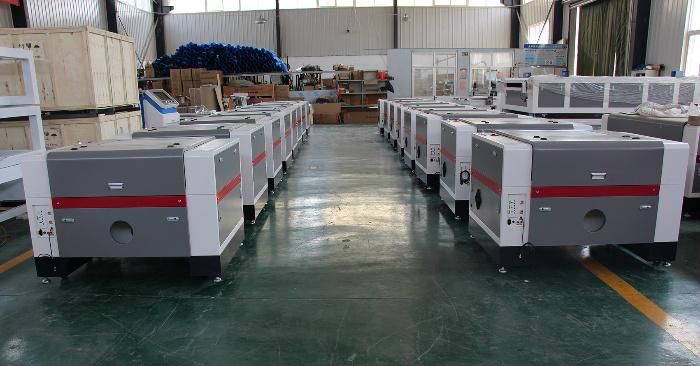

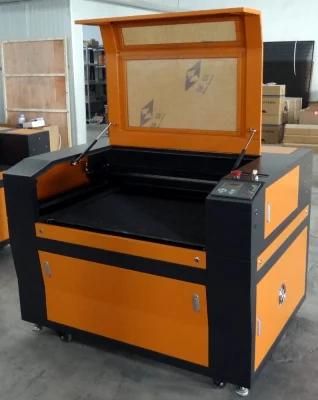

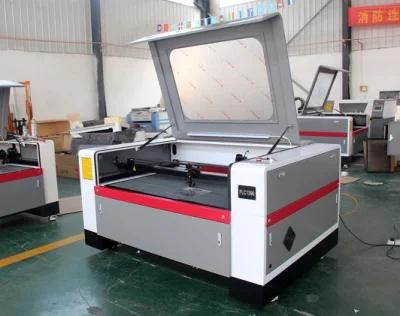

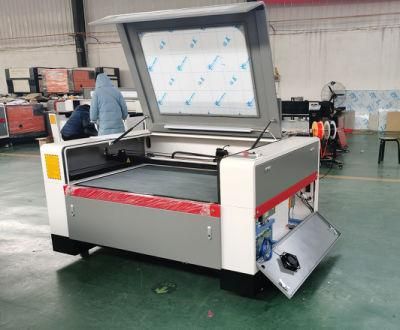

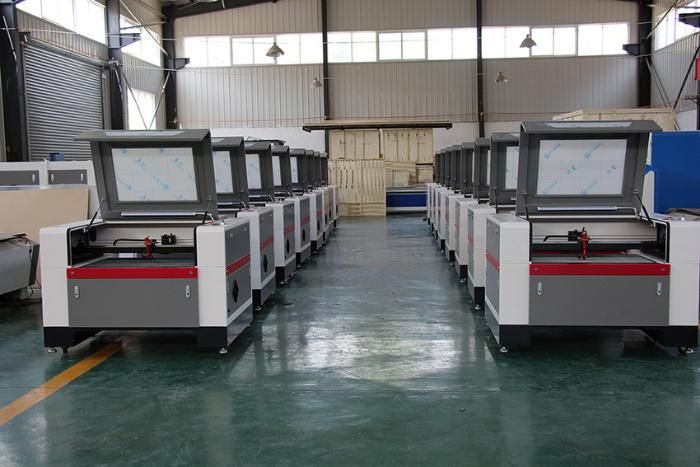

Professional wood CO2 Laser Engraving Cutting Machine FLC9060



Features:
    This machine adopts imported linear guide and DSP control system. The machine has stable performance and applicable for different industries.  It is the ideal choice for non-metal processing industry. Equipped with three-phase motors and drivers, belt can move in faster cutting speed and higher precision.

 Specifications:

Model	FLC9060
Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	60W-150W
Working area	900*600mm
Max Engraving speed:	0-64, 000mm/min
Max cutting speed	0-30, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, JPEG, BMP, PLT, DST, DXF, and AI ...
Driving system	Stepper(Optional: Servo)
Cooling mode	Water-cooling and protection system
Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, chiller
Controller	DSP
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser power

Applicable materials:
wood, organic glass, plastic, garments, paper, leather, foam, rubber, tile, and other nonmetal materials.

Applicable industries:
advertisement, arts and crafts,shoes,toys, computerized embroidery and clipping, garments,model and
construction industry.

Extra Features:
1) Materials can extend through the front and rear doors to allow for a larger work product.
2) Red-DOT pointer to help you see the expected laser beam position.
3) Fully enclosed laser case yields a class I (user friendly) laser product.
4) Wifi receiver is more convenient for the operator to transmit the files to the machine.
5) Top-brand laser tube have perfect laser beam, and much longer lifespan (more than 10000 working hours).
6) The Y-axis transmission structure adopts the intermediate design, and the force on both sides is more balanced; the deceleration design greatly enhances the output torque and the power is more powerful; the design of the coupling makes the verticality of the horizontal and vertical axes more perfect and precise.


Samples Shown:
