• Model NO.：FLC1390
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Nonmetal
• Structure Type：Gantry Type
• Laser Classification：Gaseous Laser
• Laser Technology：Laser Control Fault Cutting
• Engraving Machine Type：Laser Engraving Machine
• Control：CNC
• Current：AC
• Laser Type：CO2
• Usage：Acrylic, Wood, Leather, Foam, Paper, Garments, etc
• Working Size：1300*900mm
• Laser Power：60W,80W,100W,130W
• Max Cutting Speed：30000mm,Min
• Max Engraving Speed：60000mm,Min
• Open Cover Protection：Yes
• Transport Package：Plywood
• Specification：1390
• Trademark：flying
• Origin：China
• HS Code：8456100090
• Production Capacity：100PC,Month
• Package size per unit product：195.00cm * 148.00cm * 130.00cm
• Gross weight per unit product：350.000kg

Basic Info.

Model NO. FLC1390 Cooling System Water Cooling Technical Class Continuous Wave Laser Applicable Material Nonmetal Structure Type Gantry Type Laser Classification Gaseous Laser Laser Technology Laser Control Fault Cutting Engraving Machine Type Laser Engraving Machine Control CNC Current AC Laser Type CO2 Usage Acrylic, Wood, Leather, Foam, Paper, Garments, etc Working Size 1300*900mm Laser Power 60W/80W/100W/130W Max Cutting Speed 30000mm/Min Max Engraving Speed 60000mm/Min Open Cover Protection Yes Transport Package Plywood Specification 1390 Trademark flying Origin China HS Code 8456100090 Production Capacity 100PC/Month

Packaging & Delivery

Package size per unit product 195.00cm * 148.00cm * 130.00cm Gross weight per unit product 350.000kg

Product Description

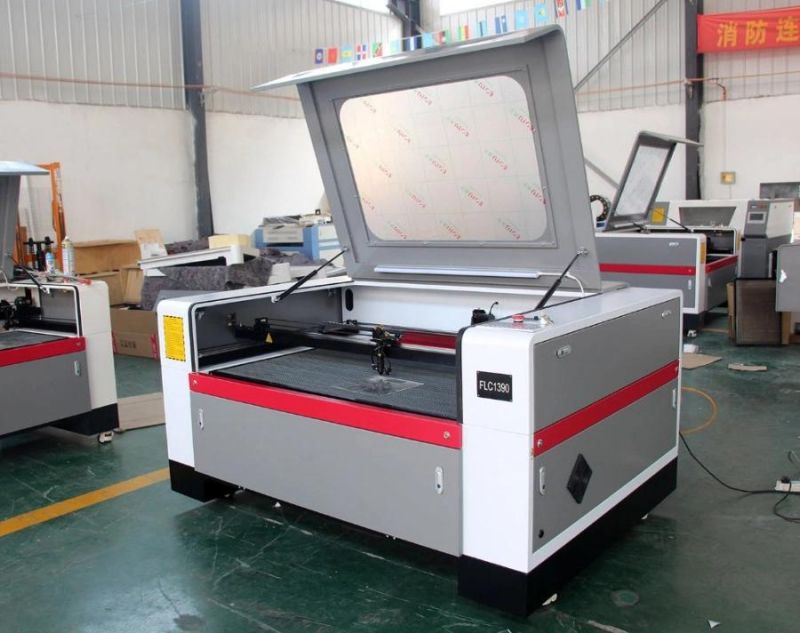

China leading manufacturer for cnc laser engraving cutting machine


Specifications:

Model	FLC1390
Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	60W-300W
Working area	1300*900mm or customsized
Max Engraving speed:	0-60, 000mm/min
Max cutting speed	0-36, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, BMP, PLT, DST, DXF, and AI ...
Driving system	Stepper(Optional: Servo)
Cooling mode	Water-cooling and protection system
Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, chiller
Controller	DSP RUIDA or TROCE
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser power

Features:
  This cnc laser machine can both engrave and cut, it can be applied to many kinds of materials, and has many advantages, such as smooth cutting edges, free from polishing, less noise, less dust, faster processing speed, higher precision, less waste and higher efficiency. It is the best option for upgrading traditional equipments in various industries. Adding auto focus system, and oxygen assistance device, it can also cut metal well such as stainless steel and carbon steel.

Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc.

Applicable Materials:
Non-metal materials such as double color boards, acrylic, glass, wood planks, bamboo, rubber, plastic, foam, garments, paper, leather, marble, granite, tiles. stainless steel, carbon steel and etc...


Extra Features:
1) Materials can extend through the front and rear doors to allow for a larger work product.
2) Red-DOT pointer to help you see the expected laser beam position.
3) Fully enclosed laser case yields a class I (user friendly) laser product.
4) Wifi receiver is more convenient for the operator to transmit the files to the machine.
5) Top-brand laser tube have perfect laser beam, and much longer lifespan (more than 10000 working hours).
6) The Y-axis transmission structure adopts the intermediate design, and the force on both sides is more balanced; the deceleration design greatly enhances the output torque and the power is more powerful; the design of the coupling makes the verticality of the horizontal and vertical axes more perfect and precise.
8) New advantaged laser power souce with voltage regulator functions.


Samples Show:
