High Speed CO2 Laser Marking Machine for Leather Cutting and Engraving
Dongguan Synutar Intelligent Equipment Co., Ltd.- After-sales Service:24 Hours X 7days Online Service
- Warranty:12 Months Warranty
- Cooling System:Water Cooling
- Technical Class:Continuous Wave Laser
- Automatic Grade:Automatic
- Applicable Material:Nonmetal
Base Info
- Model NO.:SY-CD100,CD150,CD250,CD350
- Type:Oscillating Mirror
- Laser Classification:Gaseous Laser
- Engraving Method:Vector Engraving
- Machine Model:Sy-CD100,CD150,CD250,CD350
- Max Output Capacity:100W,150W,250W,350W
- Nominal Peak Power:More Than 450W
- Mode Quality:M2<1.2
- Wavelength:10.6um
- Marking Format:Pattern, Word, Bar Code, Qr Code, Date, Serial
- Marking Character Types:Pattern, Words, Vector Diagram & Bitmap
- Marking Area:400X400 ~ 800X800(mm X mm) Adjustable
- Marking Depth:0-5mm (According to The Materials)
- Marking Speed:<7000mm,S
- Min Line Width:0.3mm According to The Materials
- Min. Character:0.4mm
- Transport Package:by Plywood
- Trademark:SYNUTAR
- Origin:China
- HS Code:8456110090
- Production Capacity:300sets,Year
Description
Basic Info.
Model NO. SY-CD100/CD150/CD250/CD350 Type Oscillating Mirror Laser Classification Gaseous Laser Engraving Method Vector Engraving Machine Model Sy-CD100/CD150/CD250/CD350 Max Output Capacity 100W/150W/250W/350W Nominal Peak Power More Than 450W Mode Quality M2<1.2 Wavelength 10.6um Marking Format Pattern, Word, Bar Code, Qr Code, Date, Serial Marking Character Types Pattern, Words, Vector Diagram & Bitmap Marking Area 400X400 ~ 800X800(mm X mm) Adjustable Marking Depth 0-5mm (According to The Materials) Marking Speed <7000mm/S Min Line Width 0.3mm According to The Materials Min. Character 0.4mm Transport Package by Plywood Trademark SYNUTAR Origin China HS Code 8456110090 Production Capacity 300sets/YearProduct Description
High Speed CO2 Laser Marking Machine for Leather Cutting and EngravingApplicable Industries3-Axis Dynamic CO2 Laser Marking Machine is widely suitable for many industries, such as Heat Transfer film (paillette, TPU materials, Reflectivetransfer film, etc.), leather, wooden box, paper card, clothes denim, illuminator,Mobile communications, mould, precision machinery, IT Digital shell, Militaryaviation components, handicrafts, Advertisement decoration, etc.
Machine Features1. The three dimension focus system make the machine has bigger working area and finer optical spot diameter. The maximum marking area of the customized system can reach 2meters X 2meters.
2. It has smaller focusing spot and higher energy density which are suitable for finer cutting, punching and engraving.
3. The Fully closed free-maintenance laser optical system is ready to use after installation without adjustment.
4. High precision and high speed marking/cutting performance ensure smooth sharp cutting edge. The processing result is more average, without too high or too low energy injected in partial area.
5/The system is designed with external double-circulation industrial cooling water system, which is convenient for users to choose according to the place of use and conducive to the protection of work environment. The whole machine runs more stable and has lower power consumption.
Strict multi-protection control design is applicable to a wide range of ambient temperatures ensuring the continuous reliable work of the laser marking system.
The application system under Windows interface can be compatible with the file formats of AutoCAD, CorelDraw and other software, such as PLT, DXF, etc
Technical parameters
Machine Model | SY-CD100/CD150/CD250/CD350 |
Max Output Capacity | 100W/150W/250W/350W |
Nominal Peak Power | ≥450W |
Mode Quality | M2<1.2 |
Duty Cycle Limit | ≤70% |
Laser Type | CO2 |
Laser Wavelength | 10.6μm |
Marking Format | Pattern, Word , Bar code, QR code, Date, Serial Number |
Marking Character Types | Pattern ,words, vector diagram & bitmap |
Marking Area | 400X400 ~ 800X800(mm X mm) Adjustable |
Marking Depth | 0-5mm (According to the materials) |
Marking Speed | <7000mm/s |
MinLine Width | 0.3mmAccordingtothematerials |
Min. Character | 0.4mm |
Repeat Positioning Accuracy | <0.01mm |
Total Power | <6KW |
Power Supply | AC220V/50Hz/30A |
Cooling Way | Constant temperature water cooling unit |
Working Temperature | 15-30ºC |
Working Humidity | <75 No condensation |
Working Environment | clean, without dust, without vibration |

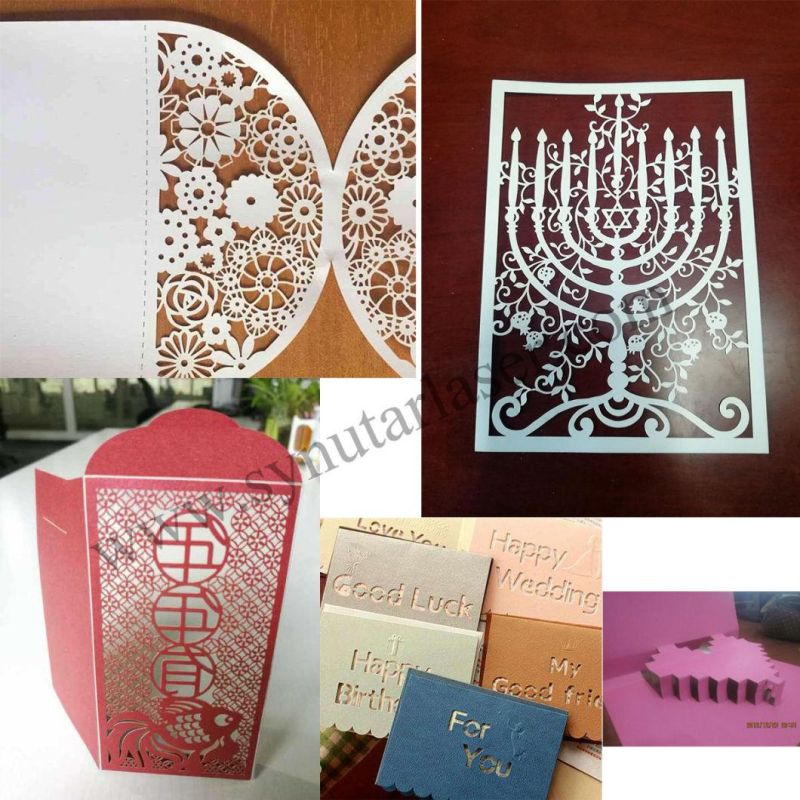

Sample Photos
