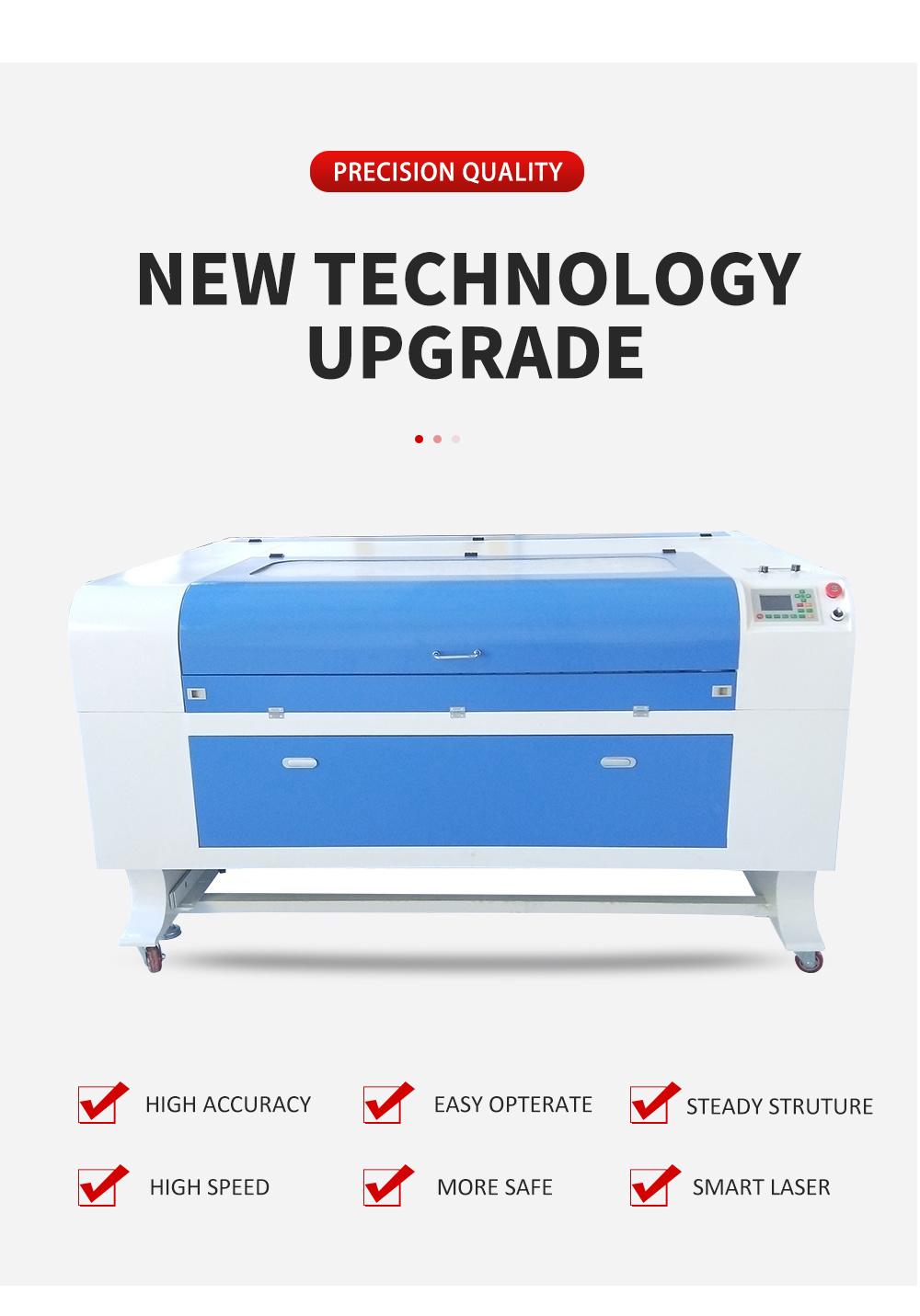

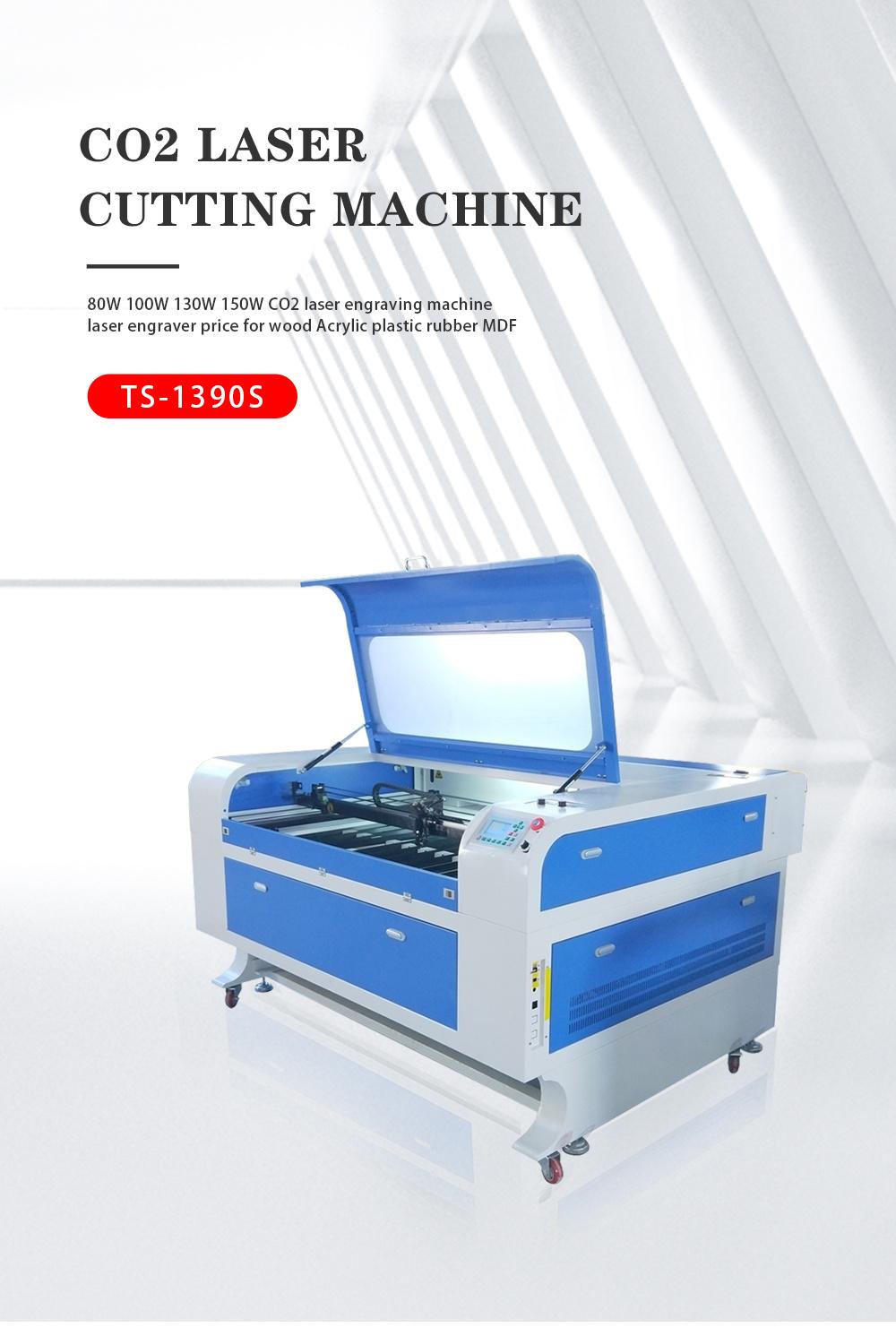

2021 New Product 100W 130W 150W Ruida 6445g 1390 CO2 Laser Cutting Machine for Wood MDF Acrylic
Jinan Laser Max Machinery Tech Co., Ltd.- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
Base Info
- Model NO.：1390
- Applicable Material：Nonmetal
- Structure Type：Desktop
- Laser Classification：CO2
- Laser Technology：CO2 Laser Cutting
- Transport Package：Standard Plywood Case for Export

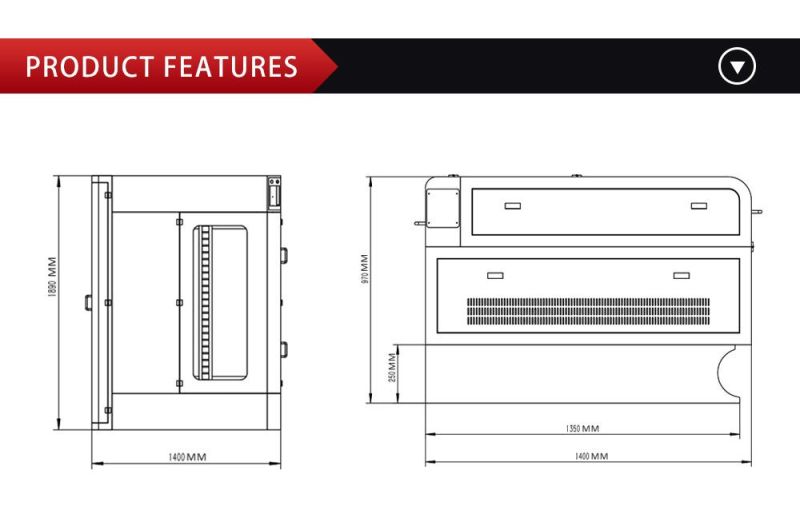

- Specification：209*160*134cm
- Trademark：Laser Max
- Origin：Jinan, China
- HS Code：8456110090
- Production Capacity：100set,Month
Description
Basic Info.
Model NO. 1390 Applicable Material Nonmetal Structure Type Desktop Laser Classification CO2 Laser Technology CO2 Laser Cutting Transport Package Standard Plywood Case for Export Specification 209*160*134cm Trademark Laser Max Origin Jinan, China HS Code 8456110090 Production Capacity 100set/MonthProduct Description
2021 New product 100w 130w 150w Ruida 6445g 1390 co2 laser cutting machine for wood MDF acrylic

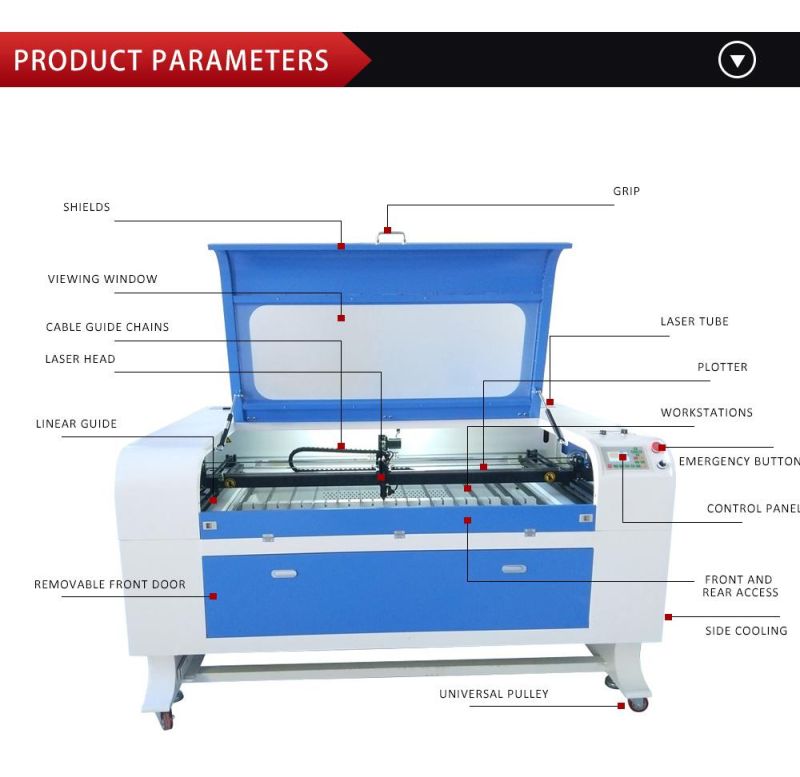

Main feature:
1.Heavy body more steady difficult deformation and protect rust.
2.Support U-download data,support off-line.
3.Front to rear design,support long materials pass.
4.Emergency stop.(turn off the machine immediately when there is an accident)
5.Aluminum srip shape platform can bear heavier materials.Such as acrylic,wood,mdf,etc nonmetal materials.Honeycomb platform suitable for leather,cloth,frabic,paper,etc light materials.
| Model | Laser Cutter TS1390 |
| Working Table Size | 1300mmm *900mm |

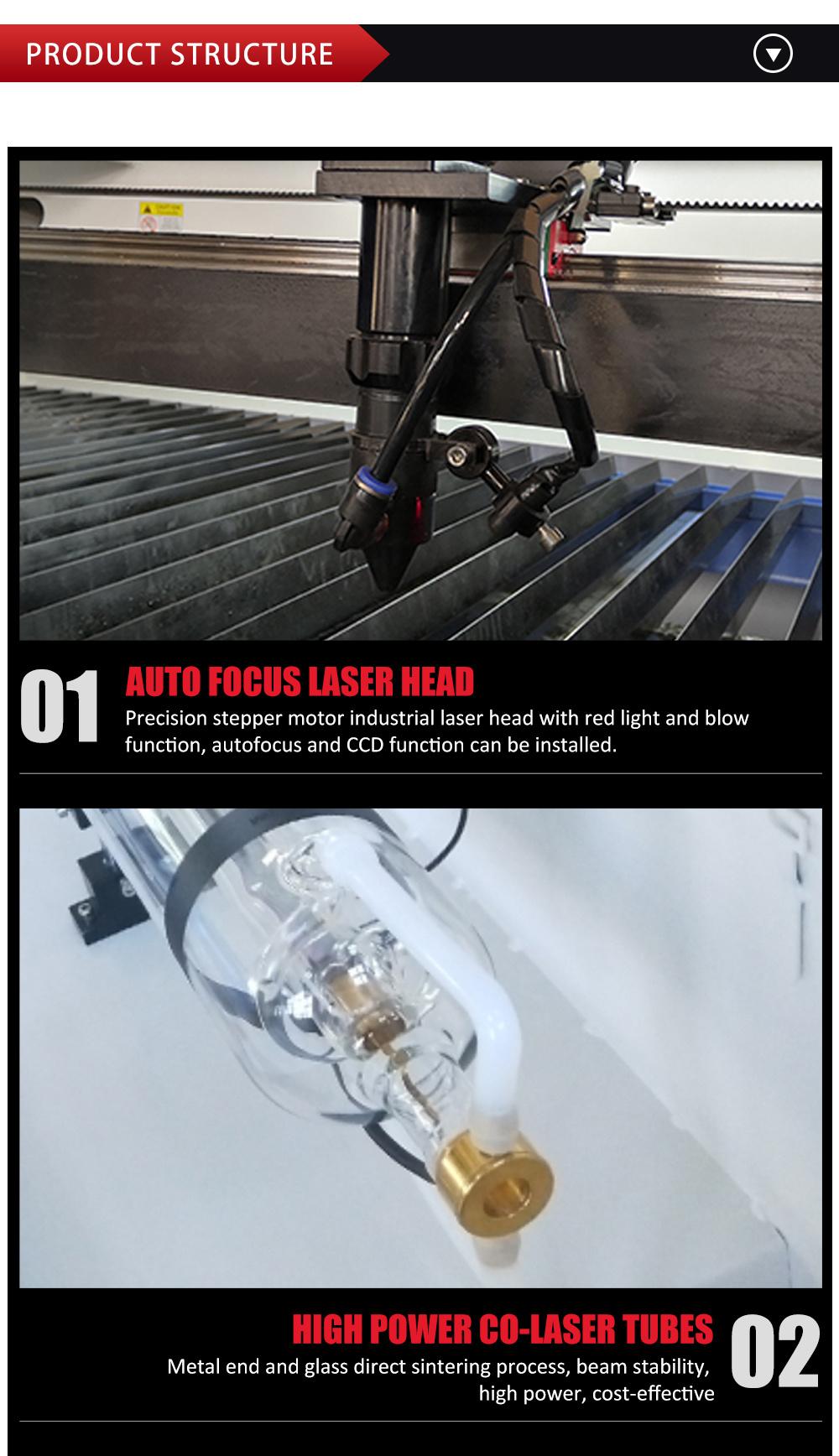

| Laser Tube brand | EFR or Reci can choose |
| Warranty of Laser tube | Global Warranty |

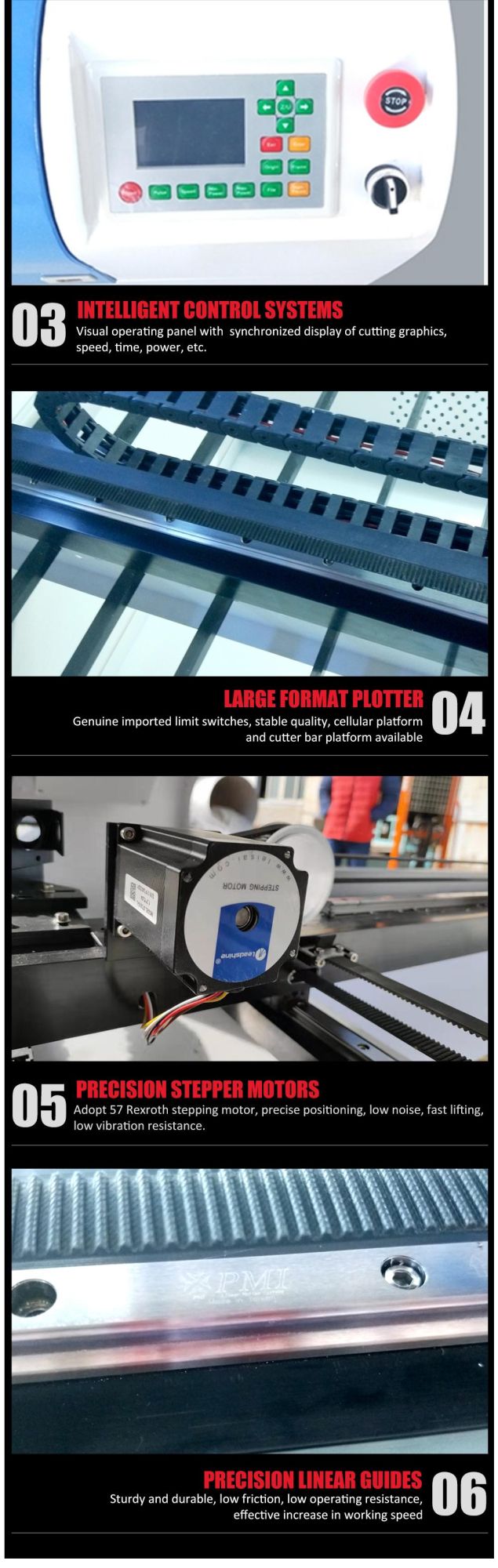

| Control System | Ruida 6442S (English/Russian/Spanish/France/ Portuguese) |
| Working Table | Honeycomb+Cutting blade table |
| Long material pass through front and back | Support |
| X axis | Linear Square linear guides |
| Y axis | Linear double square linear guides |
| Z axis adjust height | 180 mm |
| Cutting Speed | 0-100mm/s |
| Engraving Speed | 0-800mm/s |
| Resolution | ±0.05mm/1000DPI |
| Minimum Letter | English 1.5×1.5mm (Chinese Characters 2*2mm) |
| Support Files | BMP,HPGL,PLT,DST and AI |
| Interface | USB2.0 |
| Software | RD works |
| Computer system | Windows XP/win7/ win8/win10 |
| Motor | Lead shine Step Motor |
| Driver | Lead shine |
| Power Voltage | AC 110 or 220V±10%,50-60Hz |
| Power cable | European Type/China Type/America Type/UK Type |
| Working Environment | 0-45ºC(temperature) 5-95%(humidity) |
| Power consumption | <2000W (Total) |
| Position system | Red-light pointer |
| Cooling way | Water cooling and protection system |
| Gross Weight | 450KG |
| Package | Standard plywood case for export |
| Warranty | All life free tech support, one year warranty, except consumables |
| Free accessories | Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable |

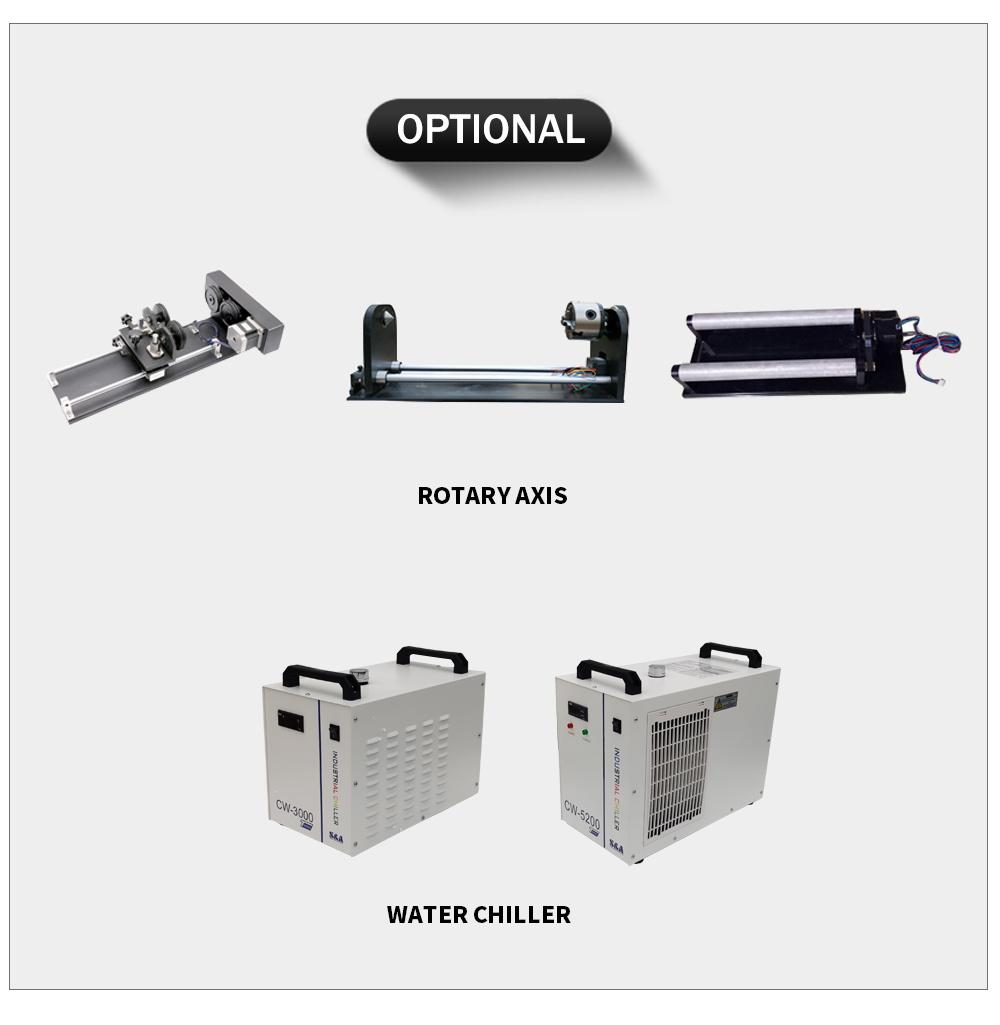

| Optional parts | Spare focus lens Spare reflecting mirror Spare rotary for cylinder materials Industrial Water Chiller |
Sample:
