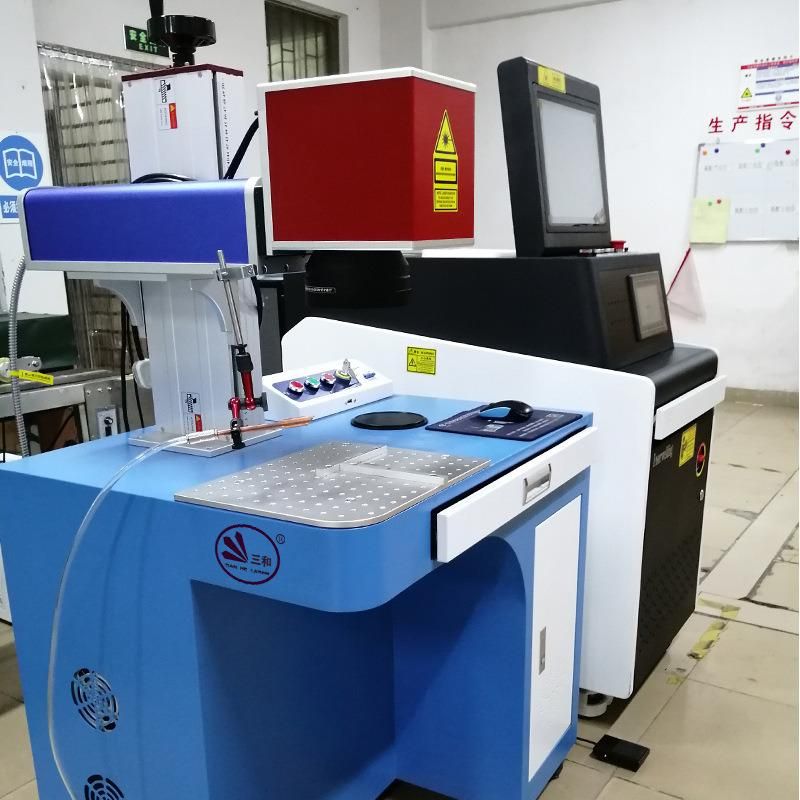

• Model NO.：3HE-QCW-75W
• Technical Class：Qcw
• Control：Automatic
• Power Density：Deep Fusion Welding
• Laser Classification：Qcw Laser
• Type：Qcw Laser
• Power：75W
• Spot Diameter：0.05-1.0mm
• Fiber Core：20um
• Xyz：400*300*300
• Power Consumption：2kw
• AC：220V
• System：DSP
• Computer：DELL
• Head：L
• Rotation：D80 mm
• Cooling：Air Cooling
• Transport Package：Plywood
• Specification：1100*1000*1500
• Trademark：Sanhe
• Origin：China
• HS Code：8515809090
• Production Capacity：8000,Year
• Package size per unit product：1100.00cm * 1000.00cm * 1500.00cm
• Gross weight per unit product：500.000kg

Basic Info.

Model NO. 3HE-QCW-75W Technical Class Qcw Control Automatic Power Density Deep Fusion Welding Laser Classification Qcw Laser Type Qcw Laser Power 75W Spot Diameter 0.05-1.0mm Fiber Core 20um Xyz 400*300*300 Power Consumption 2kw AC 220V System DSP Computer DELL Head L Rotation D80 mm Cooling Air Cooling Transport Package Plywood Specification 1100*1000*1500 Trademark Sanhe Origin China HS Code 8515809090 Production Capacity 8000/Year

Packaging & Delivery

Package size per unit product 1100.00cm * 1000.00cm * 1500.00cm Gross weight per unit product 500.000kg

Product Description

• Technical-parameters

Model	3HE-QCW-100W
Laser wavelength	1070nm
Output optical power	100W
Maximum pulse energy	10 J
Maximum peak power	1000W
Pulse width	0.05-50ms
Operating mode	pulse
Energy volatility	<1.5%
Fiber core	15-25um (optional)
Fiber output number	1 way
Aiming and positioning method cooling method	Laser diode red light indication Air-cooling
Device power	100W
Electricity requirements	AC220V,50/60Hz
Spot size	Minimum 0.05mm

• After sale services

12 months warranty for the whole machine(does not include non-machine quality reasons.).
After sales service response time: quick response within 8 working hours, after receive the repair call, our after sales engineer will reply as soon as possible.
In the warranty period, if it breaks down or some parts damaged(Except the human factors and the factors of force majeure),the seller should be responsible for repair for free, the parts need to be replaced will be provided from seller for free(Except the quick-wear part). If warranty period expired, the buyer only need to pay the actual maintenance cost.
