• Model NO.：WXT20I
• Laser Wavelength：Fiber Laser
• Laser Classification：Solid Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model No.：Wxt20I
• Voltage(V)：110,220
• Power(W)：500-800
• Noise(dB)：<52
• Rate of Flow：235
• Point：Desktop
• Transport Package：Cardboard
• Specification：Standard package
• Trademark：WEIEJET
• Origin：Guangzhou, China
• HS Code：8443321200
• Production Capacity：5000 PCS,Year

Basic Info.

Model NO. WXT20I Laser Wavelength Fiber Laser Laser Classification Solid Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model No. Wxt20I Voltage(V) 110/220 Power(W) 500-800 Noise(dB) <52 Rate of Flow 235 Point Desktop Transport Package Cardboard Specification Standard package Trademark WEIEJET Origin Guangzhou, China HS Code 8443321200 Production Capacity 5000 PCS/Year

Product Description

Company Brief Introduction

Guangzhou Tongyi Identification Technology Co., Ltd is a Chinese Company which locates in Guangzhou, China. Our company has engaged in coding machines and solutions since 2004, with more than 17 years of experience in coding solutions, cij printer, tij printer, portable printer, desktop laser engraving machine, fly laser marking machine and portable laser machine, printing consumables, spare parts, online printing conveyor belt, feeding conveyor belt are all available from ViiJET.

The laser Galvanometer is Germany Scanlab, it's good sealing,waterproof and dustproof. Weiejet marking software and control card USB interface can transfer fast andsteadily, it has analog and digital transmission capabilities, the software is simple and powerful.Light source optional: CO2, optical fiber, greenlight modePower optional: 10W, 20W, 30W, 50W

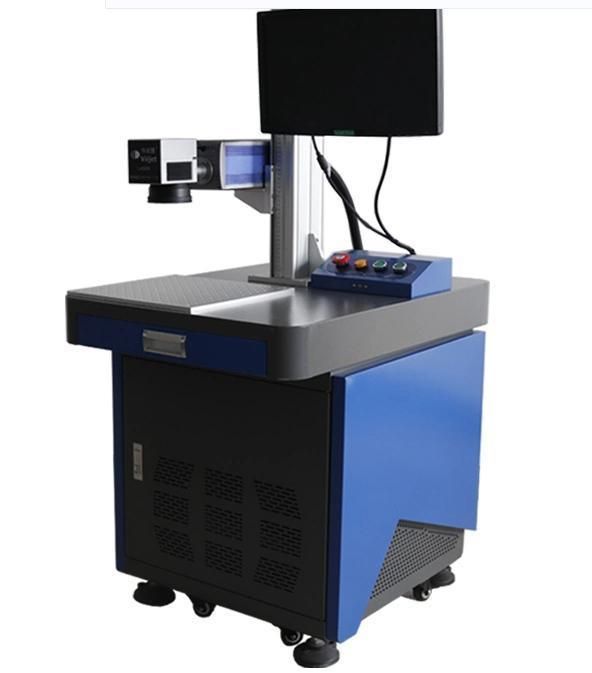

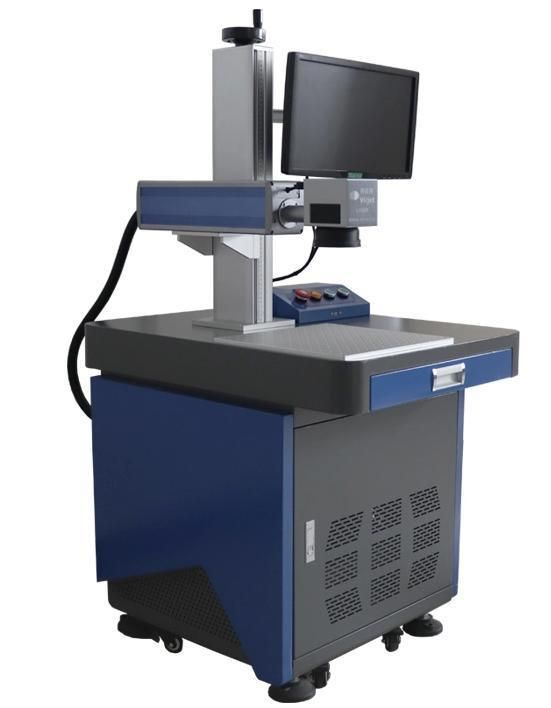

Production Pictures









Technical Parameters:


01	Model No.	WXT20I
02	Laser Power	20W
03	Optional Marking Area	50*50mm/110*110mm/175*175mm
04	Laser Wavelength	1064nm
05	Response Time	0.5ms
06	Frequency of pulse	20-100kHz
07	Marking depth	0.02-1mm
08	Marking speed	≤7000mm/S
09	Marking lines	No limited (in the marking area)
010	Minimum line width	0.1mm
011	Minimum character	0.15mm
012	Repeatability accuracy	±0.002mm
013	Resolution ratio	0.1mm
014	Marking content	Text, pattern, date, bar code, etc
015	Operation system	Microsoft Windows XP or Windows 2000
016	Control software	EZCAD control software
017	Graphic format supported	BMP, JPG, GIF, tga, PNG, TIF, ai, dxf, dst, plt, etc.
018	Operation temperature	5°C-40°C
019	Relative moisture	≤ 90%, no fog
020	Supply Voltage	220V/50Hz/60Hz

Advantages:

1. Great performance:
Identical marking quality on both metal and non metal materials with high speed.

2. Long lifetime:
Adopt advanced fiber generator, the life time could be up to 100, 000 hours.

3. Low consumption:
It is environment-protecting and energy-saving, power consumption is reduced by 3-10 times compared with YAG laser. Using cost is really reasonable.

4. Maintenance-free:
The machine is maintenance-free, there is almost no any parts need to change after long term using.

5. Easy operation:
The machine is very easy to operate, and even the fresh man can use it well following the instruction paper.


Services:

1.Installation Service
Installation Services are available with all machines. We dispatch technician to customer's factory for installation and preoperation of machines.

2.Training Service
Our technician is available to your factory and offer training of how to use our machines.
As well, you may send your technician to our company to learn how to operate machines.

3.Quality Guarantee
We guarantee the quality of machine (e. G. Processing speed and working performance is the same as the data of samples making).
We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for testing.
After making sure machine is working well, then shipments will be made.
Machine warranty is 2 years. We offer flexible extended warranties if needed.

Please advise us following information to recommend you most suitable machine:
1> What's kind of material do you want to mark? metal parts or non metal material?
2> What's the max working area do you need? we can provide you with 110*110mm, 175*175mm, and 220*220mm, 300*300mm, or customized as your demand.
3> What is the mostly used thickness and what is the maximum thickness?
4> What is the max dimension of your materials ?
5> After mark, what will be the metal used for? (application)
6> Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.

FAQ

Q: How to operate the machine? is training necessary?
A: The machine is mainly controlled by software. It's very easy, not complicated. Before shipment, we will make a simple operation manual with pictures and provide user manual of software. Generally speaking, an operator, who is not familiar with fiber laser printing machine before can still operate it very well. According to customers' requests, we can send our technician to customer' plant for machine training or customers can come to our plant for machine training if needed.

Q: In case machine exists the problem, how to do after sales service?
A: We provide two years machine warranty. During the two-year warranty, in case of machine exists the problem, we will provide parts required with free of charge by express. But as for the parts damaged by artificially, it does not fall on our warranty list. After the warranty, we still provide lifetime service.

Q: What's package?
A: We have 3 layers package. For the outside, we adopt Wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by the waterproof plastic bag.

Q: What's delivery time?
A: Generally speaking, lead time is 7 work days after receiving the payment.

Q:What's the Payment terms?
A:We accept T/T and L/C as our usual payment terms.

Q:What's the delivery terms?
A:We usually make delivery by air for sample order based on customers' requests, and we mostly make delivery by sea for formal order.

Q: Can we add a protection cover?
A: Yes, we can add a protection cover if you need. We can customize the design as customers' requests.

Q: What're consumables for fiber laser marking machine?
A: It does not need consumables. It's very economical and cost-effective.

Why choose us?







What is our Product Line?






How is our product quality?







What about the application of our machine in marking industry?

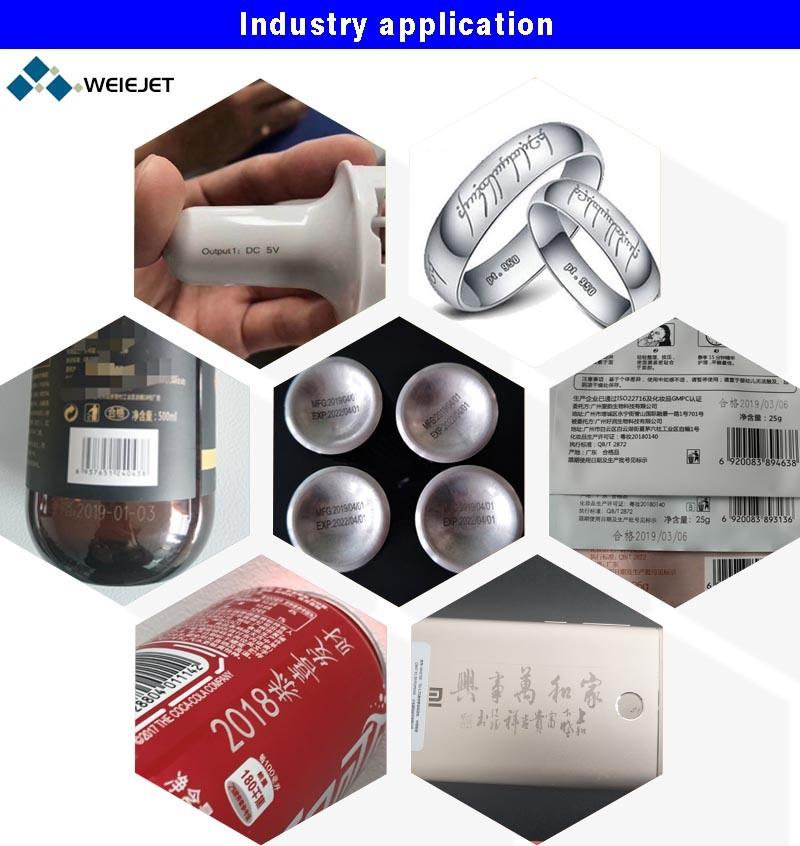

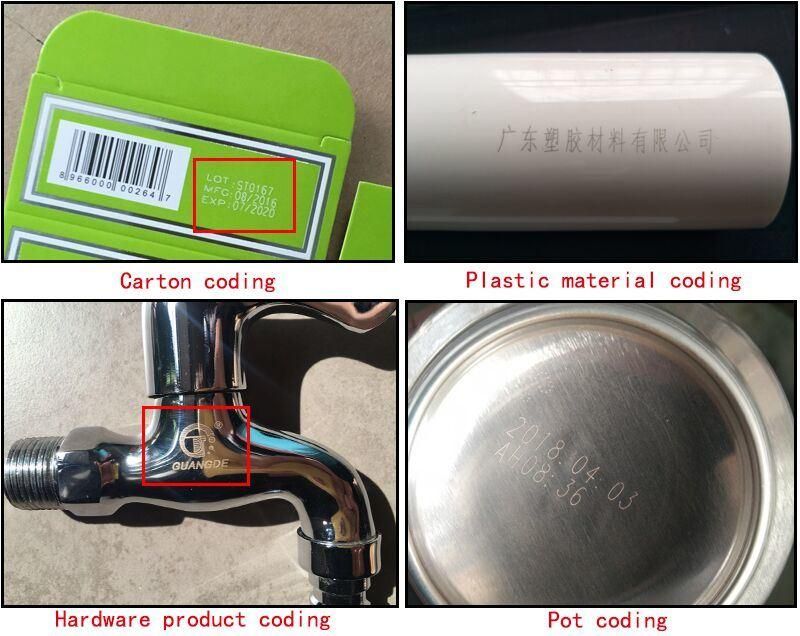

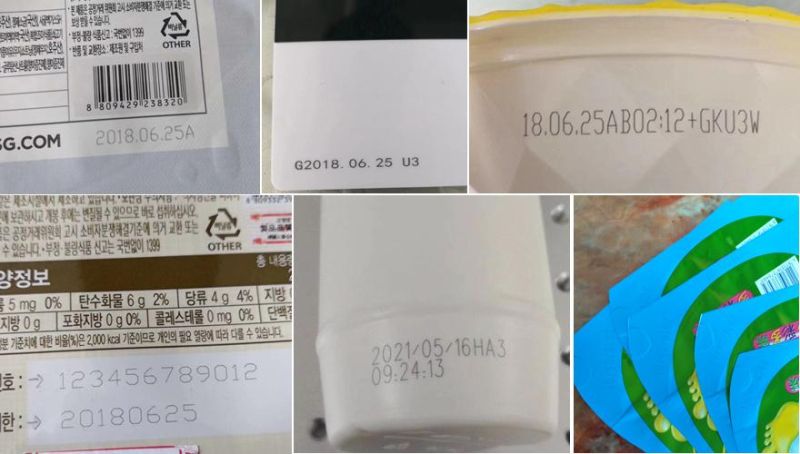

Product Application:





For more, please contact us directly.
Welcome to visit our factory!
