• Laser Wavelength：Fiber Laser
• Laser Classification：Free Electron Laser
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• World Unique 3D Fiber：Cylinder Marking
• Powerful：Curve Marking
• Transport Package：Wooden
• Specification：CE FDA
• Trademark：CKFB
• Origin：Guangzhou China
• HS Code：8456100090
• Production Capacity：50

Basic Info.

Laser Wavelength Fiber Laser Laser Classification Free Electron Laser Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking World Unique 3D Fiber Cylinder Marking Powerful Curve Marking Transport Package Wooden Specification CE FDA Trademark CKFB Origin Guangzhou China HS Code 8456100090 Production Capacity 50

Product Description

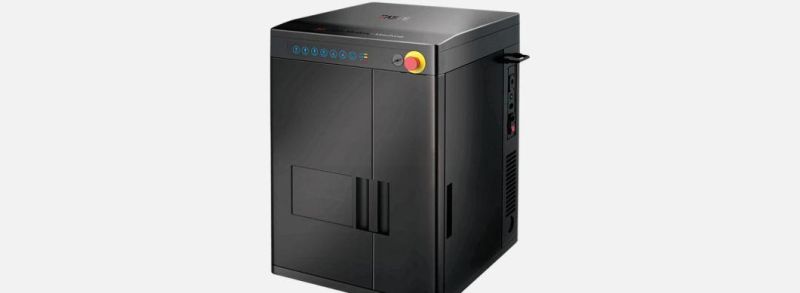

New 3Dlaser marking machine

3D fiber laser marking machine adopts European standard, which is safe, beautiful and compact, and can perfectly solve the problem of engraving irregular surfaces, such as curved surface, high and low surface, etc.



Ingenious design



Casting mold





ABS + PC material, sealed mold design to prevent dust from entering in order to extend the life span of

the machine.It is a light weight design, the weight of the machine less than 50KG.

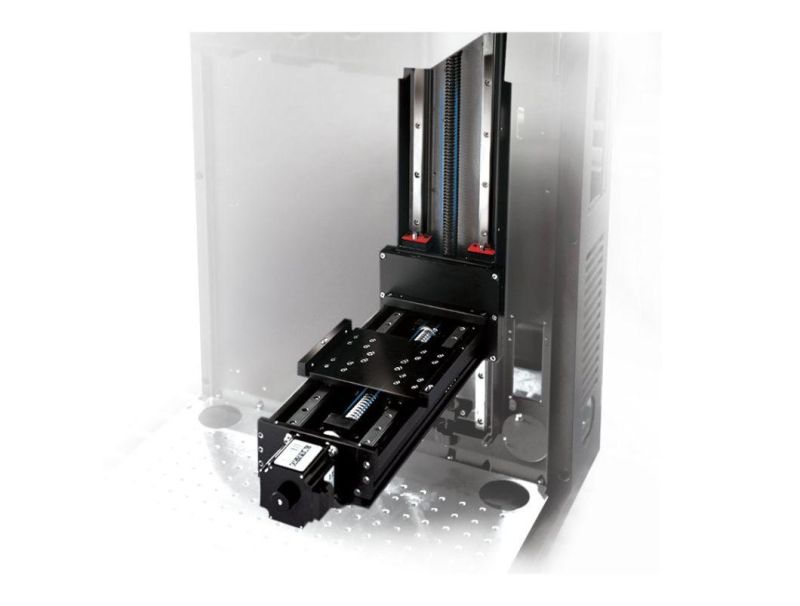

Motion control design





It adopt precise linear guide drive, with photoelectric sensor switch limit control, transmission

more efficient,more compatible, stable and durable.

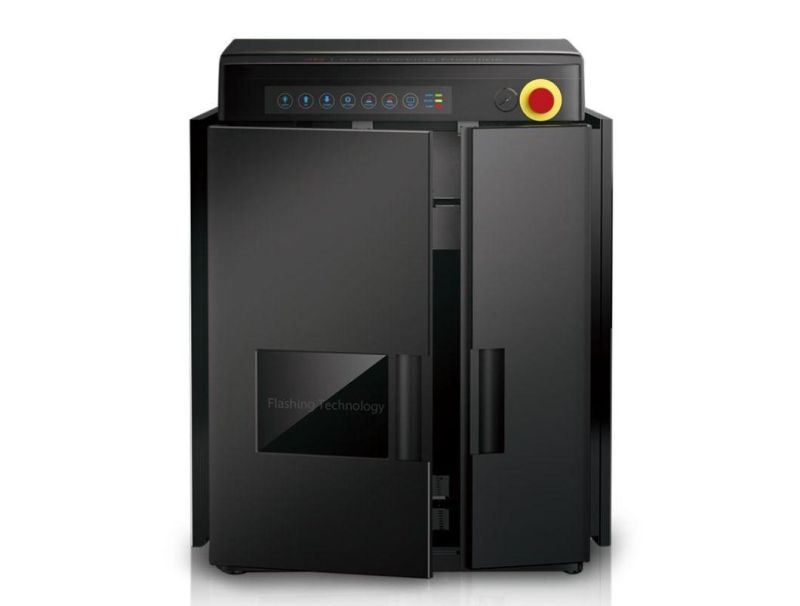

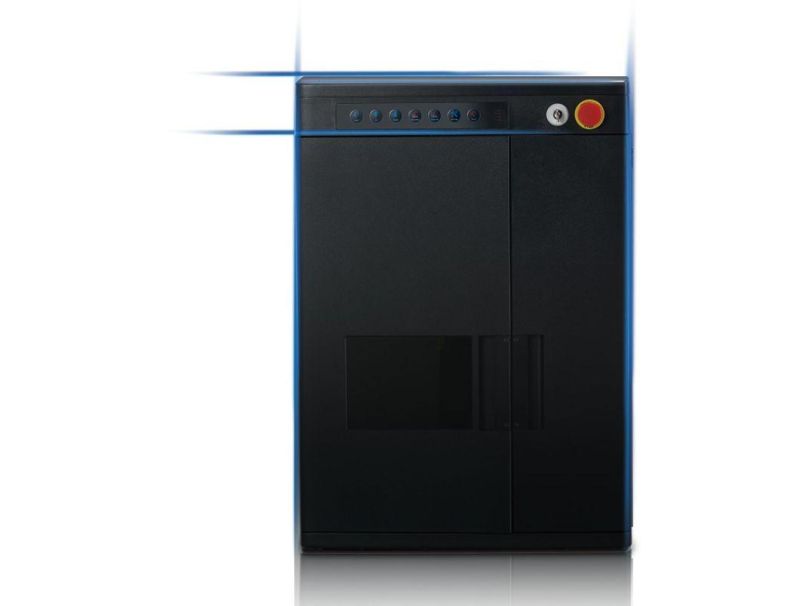

Removable door design







Asymmetrical double door design,larger left door, to achieve quick device replacement. The door can be

 removed quickly, which create a new pattern of  expanding functions to achieve greater processing space.



European standard design





Casting mold machine body, compact structure design and safety protection design make the whole machine

 more convenient to maintain, more safe and durable, it conforms to the European manufacturing standard,

with full details from design to manufacturing.



Intelligent

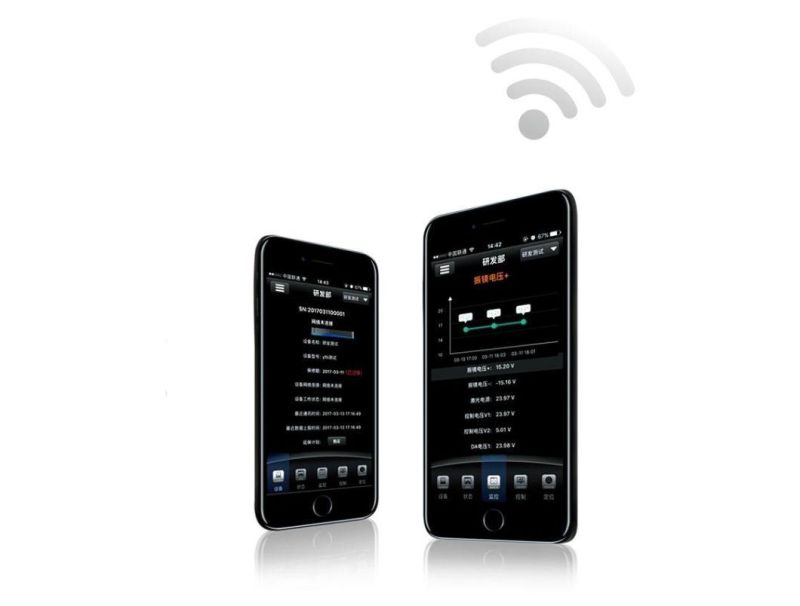

Running data monitoring functions





It is mainly made up of three functions: running data monitoring system developed based on the internet

 technology platform ; data acquisition and transmission. Data analysis and display . Openthe APP software

 in phone you can intuitively see the parameters of monitored equipment.

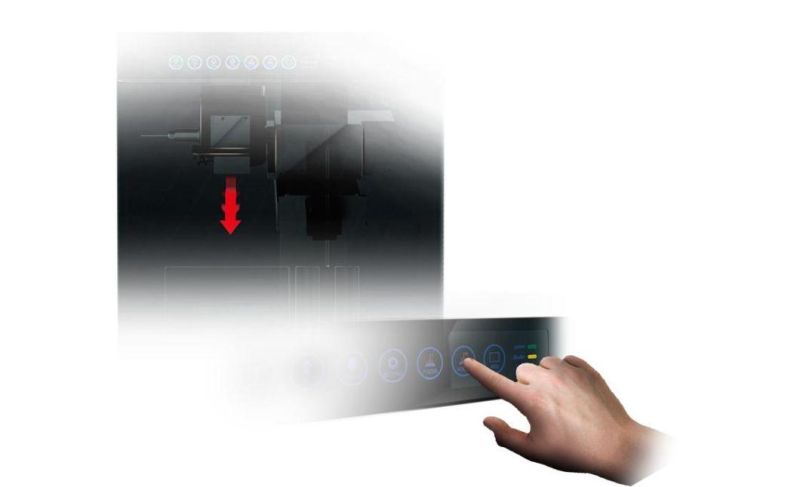

Auto focus on centre

Exclusive research, focusing control cards and algorithms equipped with high-precision CMOS sensor.

High-precision one-button auto focus function can be achieved. With security, process reminder, quick use,

 simple maintenance, and so on.





Motorized lift

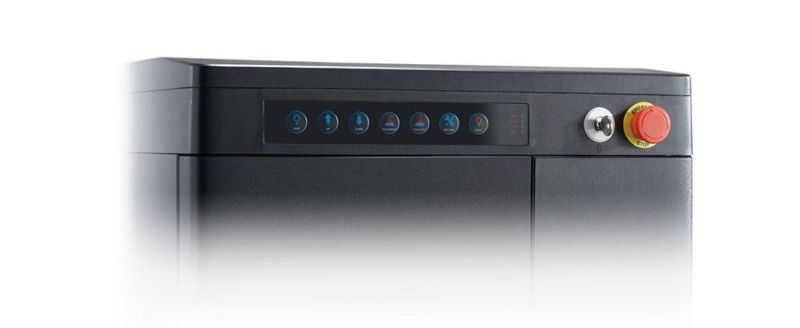

Built-film button,it can accurately perform the functions of red light positioning, servo motor

lifting and horizontal movment, auto focusing, LED lighting functions, etc.



Safety protection



24V low voltage





It adopts low voltage  DC24V to control the equipment start and stop, meet European standard of low voltage start-up requirement.

 Compatible input voltage is AC 85-265V, frequency is 50HZ / 60HZ.



Security shutter



It adops inductiive shut-off technology, if the operator open the door when the laser is working, the shutter will be immediately

 shut down to effectively reduce accidental injury  by fault operation.



Protective window



Professional protective window to watch the work of the laser at any time.







Core technology

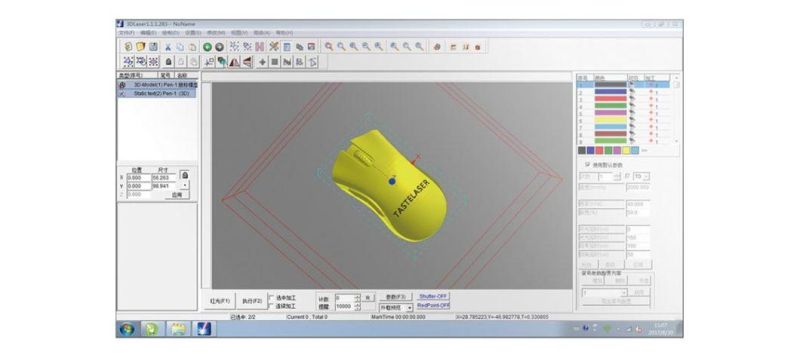

3D software

Import 3D model design and set parameter, then it can achieve precise control of 3D marking and relief engraving.

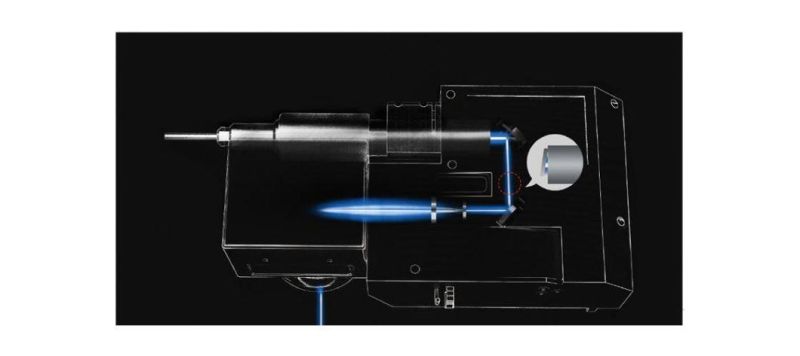

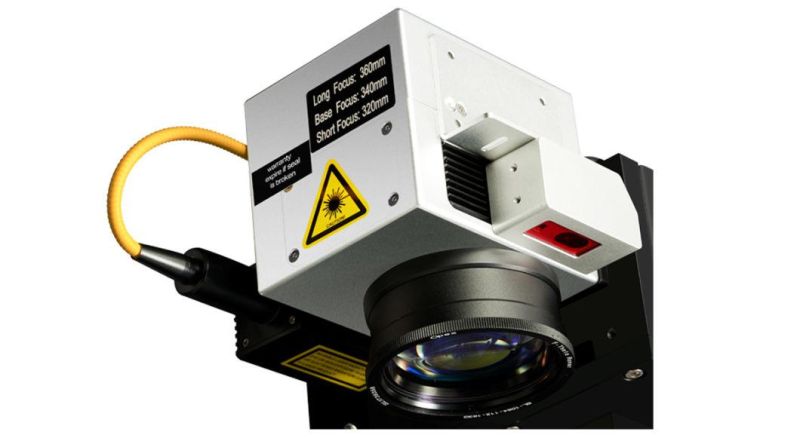

3-axis dynamic focusing system





Equipped with 3-axis optical system, through move z axis mirror forth and back,to achieve the change of focal distance variably.



Expanded function



Rotary



A wealth of optional accessories, according to user scenarios for fast fitting.Increase the rotating head,which can achieve 360° marking.





Disk rotation



It achieves multi-station marking by  disk rotation.
