• Model NO.：PEDB-460S
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Power：20W,30W,50W
• Power Supply：AC 220V 50Hz
• Model：Pedb-460s
• Minimum Character Height：0.2mm
• Motor：Stepper Motor , Servo Motor (Optional)
• Displacement Speed：100mm,S--300mm,S
• Transport Package：Compound Wooden Cases
• Specification：CE, ISO
• Trademark：Perfect Laser
• Origin：Wuhan, China
• HS Code：8456100090
• Production Capacity：500 Units, Month

Basic Info.

Model NO. PEDB-460S Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Power 20W/30W/50W Power Supply AC 220V 50Hz Model Pedb-460s Minimum Character Height 0.2mm Motor Stepper Motor / Servo Motor (Optional) Displacement Speed 100mm/S--300mm/S Transport Package Compound Wooden Cases Specification CE, ISO Trademark Perfect Laser Origin Wuhan, China HS Code 8456100090 Production Capacity 500 Units/ Month

Product Description

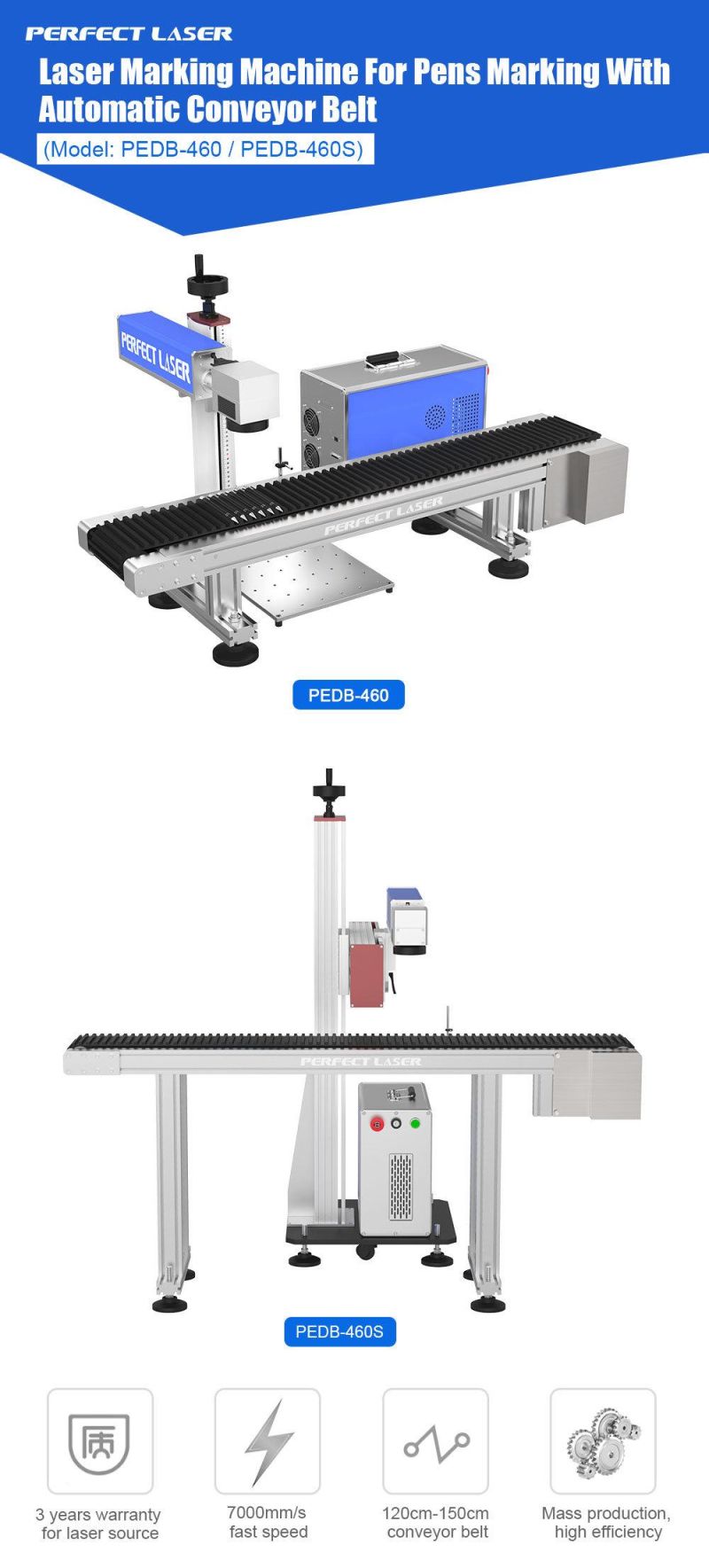

Floor-standing Type Pen Laser Marking Engraving Machine For Metal
(Model:PEDB-460S)
Contact: Emily

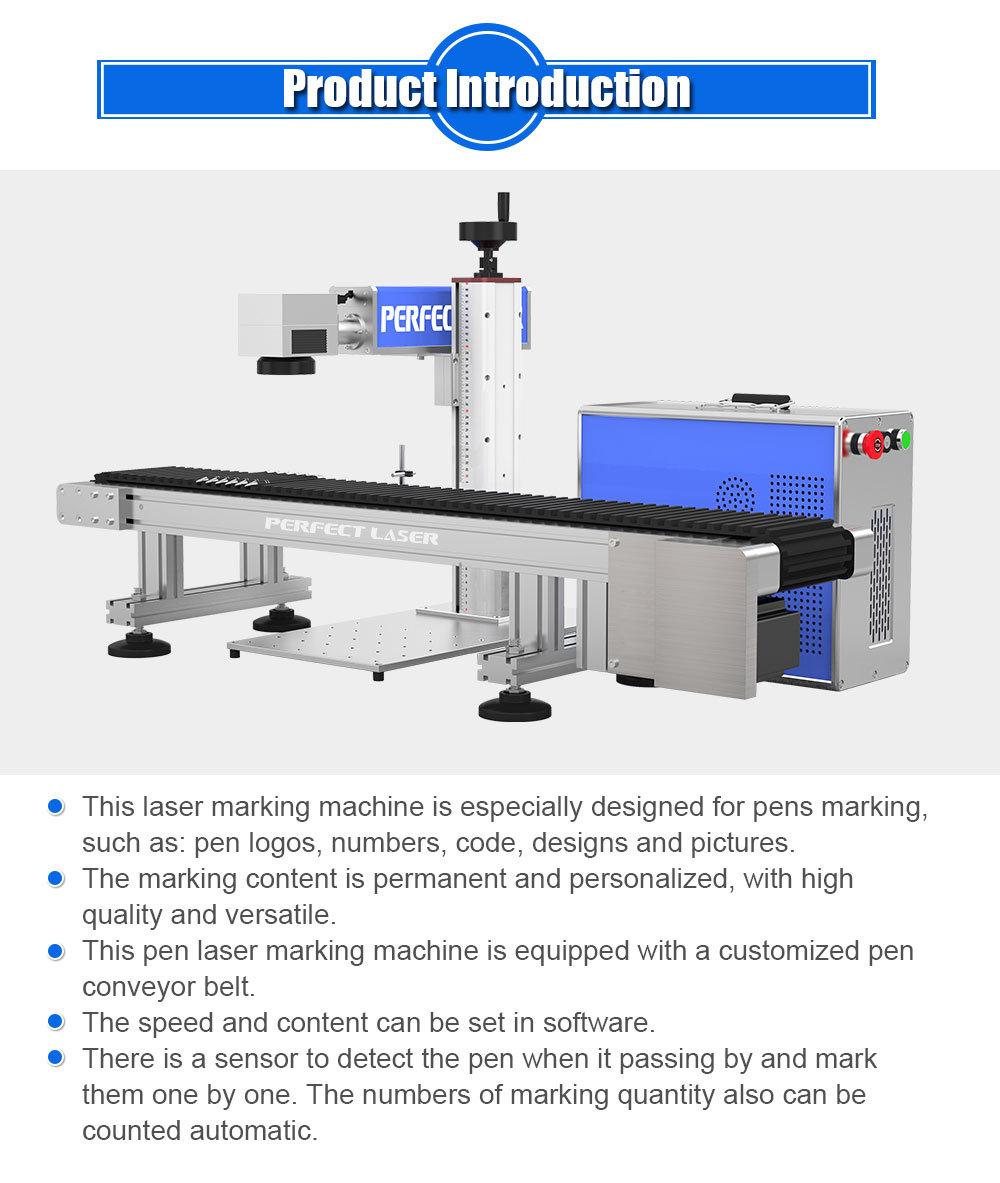

  Laser Marking Engraving Machine Introduction
Perfect Laser this laser engraving machine for metal is designed for pens that require marking, numbering, code, design and picture marking. And the content of the mark is permanent and personalized, with high quality versatility.

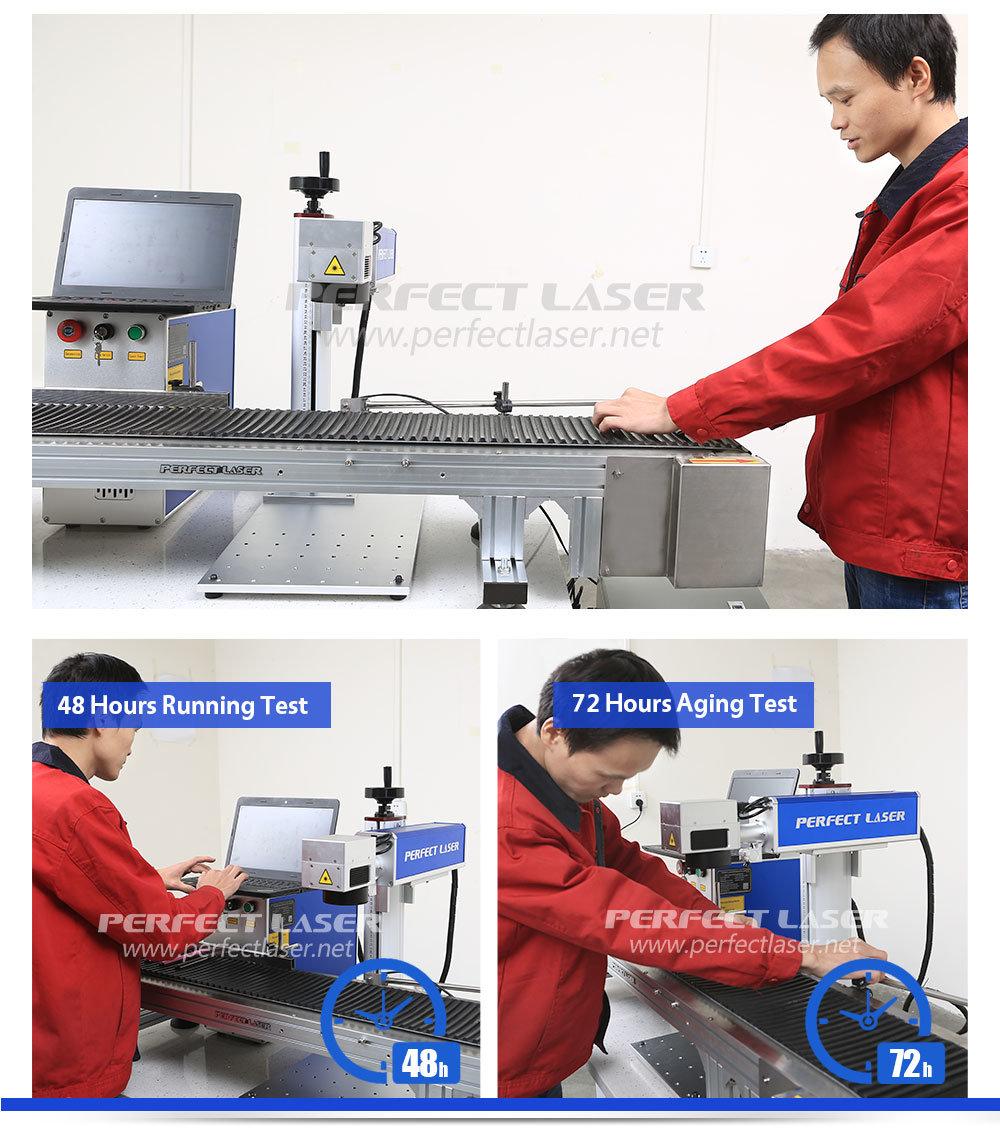

This laser engraving machine for metal is equipped with a customizable pen conveyor belt with sensors. When the pen passes, it will be sensed and then marked in turn. The number of markings can also be automatically counted, and the speed and content of this laser engraving machine for metal can be set via software.

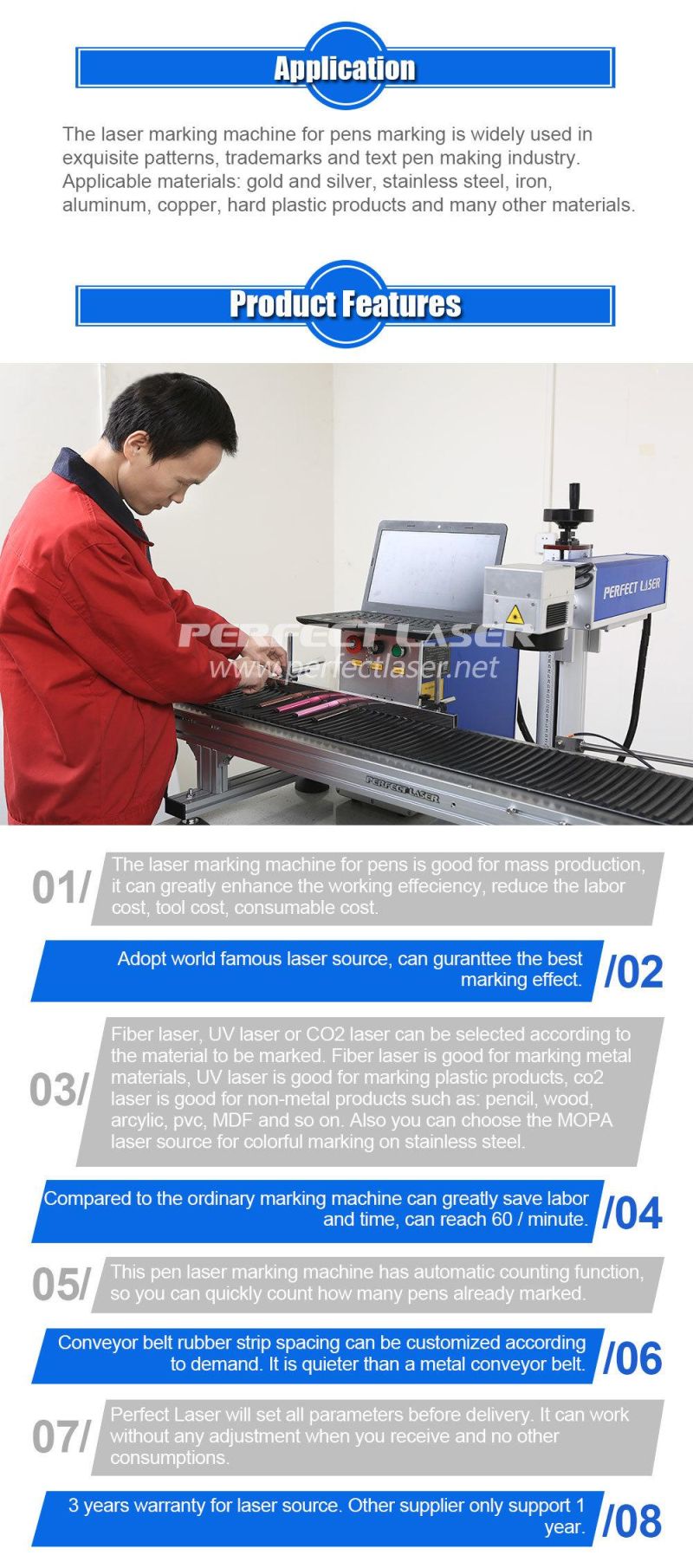

 Laser Marking Engraving Machine Features
1. The laser marking machine for metal is suitable for mass production, which can greatly improve work efficiency, reduce labor cost, reduce tool cost and reduce consumable cost.

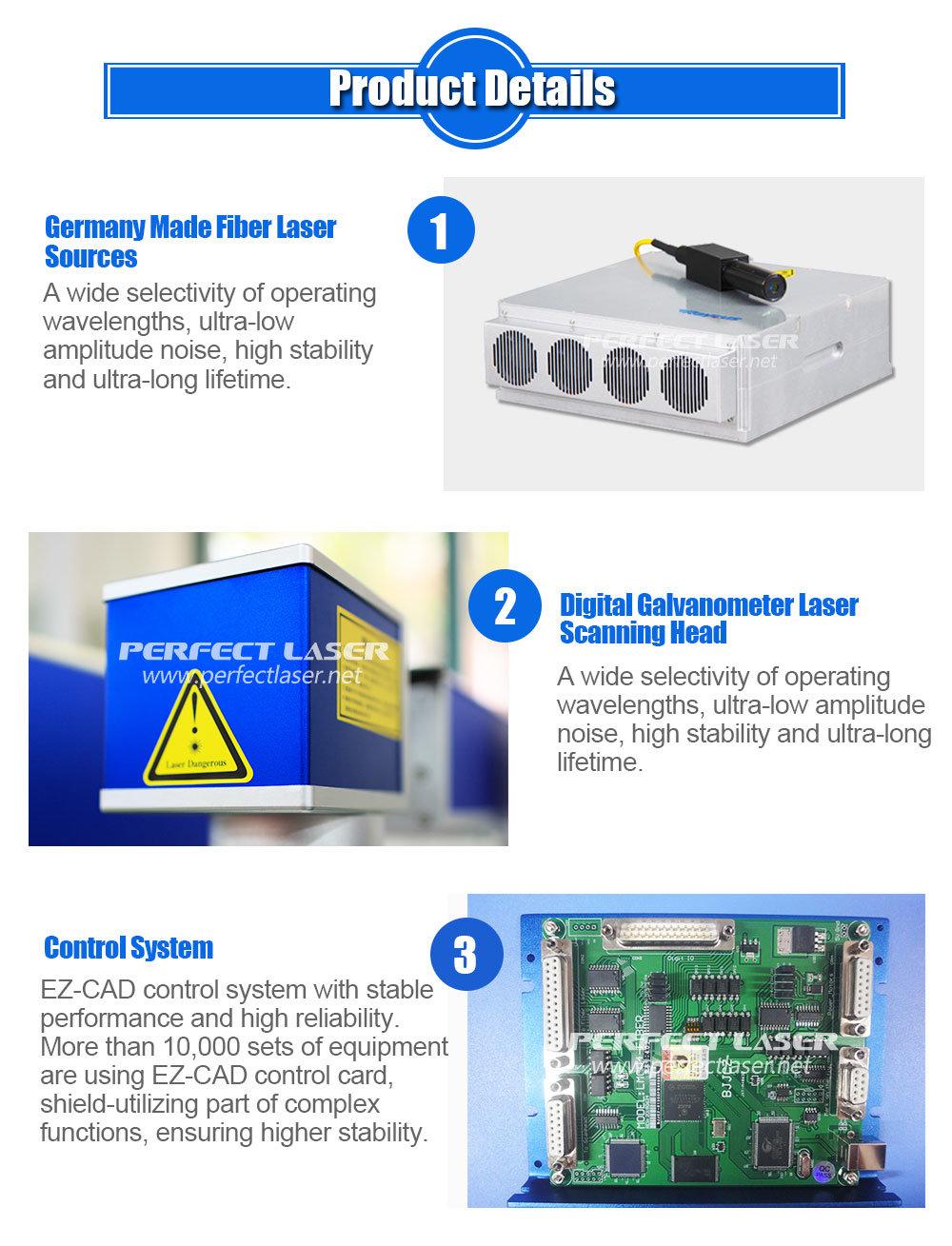

2. Adopt world famous laser source, can guranttee the best marking effect.
3. Fiber laser, UV laser or CO2 laser can be selected according to the material to be marked.Fiber laser is good for marking metal materials, UV laser is good for marking plastic products, co2 laser is good for non-metal products such as: pencil, wood, arcylic, pvc, MDF and so on.Also you can choose the MOPA laser source for colorful marking on stainless steel.
4. Compared with the ordinary marking machine, this laser marking machine for metal can save manpower and time, and can mark 60 pens per minute.
5. This laser marking machine for metal has an automatic counting function, so you can quickly calculate the number of marked items.
6. The spacing of the rubber strips of the conveyor belt can be customized according to the needs. It is quieter than a metal conveyor belt.
7. Perfect Laser will set all parameters before delivery. The laser marking engraving machinecan work without any adjustment when you receive and no other consumptions.
8. Perfect Laser supports 3 years warranty for laser source, when other supplier only support 1 year.
Laser Marking Engraving Machine Application

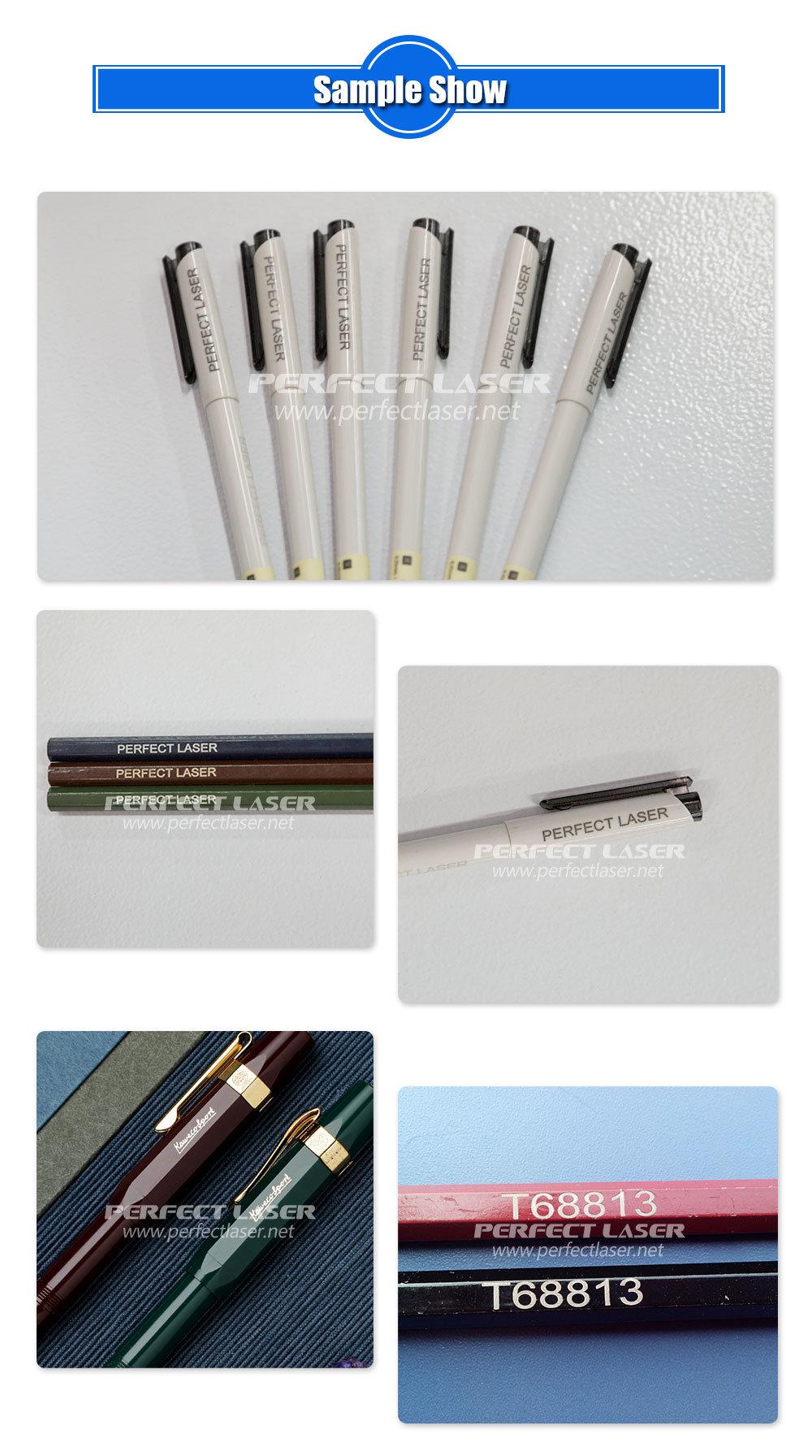

1. Applicable materials: The laser marking engraving machine is widely used in the fine pattern, trademark and text mark industry of the pen.
2. Applicable industries: The laser marking engraving machine is widely applied in gold and silver, stainless steel, iron, aluminum, copper, plastic products and other materials.






 Laser Marking Engraving Machine Technial Data

Product Name	Laser Marking Engraving Machine
Model	PEDB-460S
Power	20W/30W/50W
Marking Speed	≤7000mm/s
Conveyor Blet Demension	150cm x20cm
Marking Size	110x110mm (standard) customizable
Minimum character height	0.2mm
Marking repeatability	<24 μrad
Marking depth	0.5mm(depending on the machine)
Minimum line width	0.06mm(depending on the machine)
power supply	AC 220V 50Hz
Laser	Optional (depending on the material) 1. Fiber(metal) 2. UV(plastic) 3. CO2 laser source (for non-metal materials other than plastic) 4. Mopa laser source (for colorful marking on stainless steel)
Motor	Stepper motor / servo motor (optional)
Displacement positioning accuracy	0.05mm/0.02mm
Displacement repeat positioning accuracy	0.02mm/0.01mm
Displacement speed	100mm/s--300mm/s

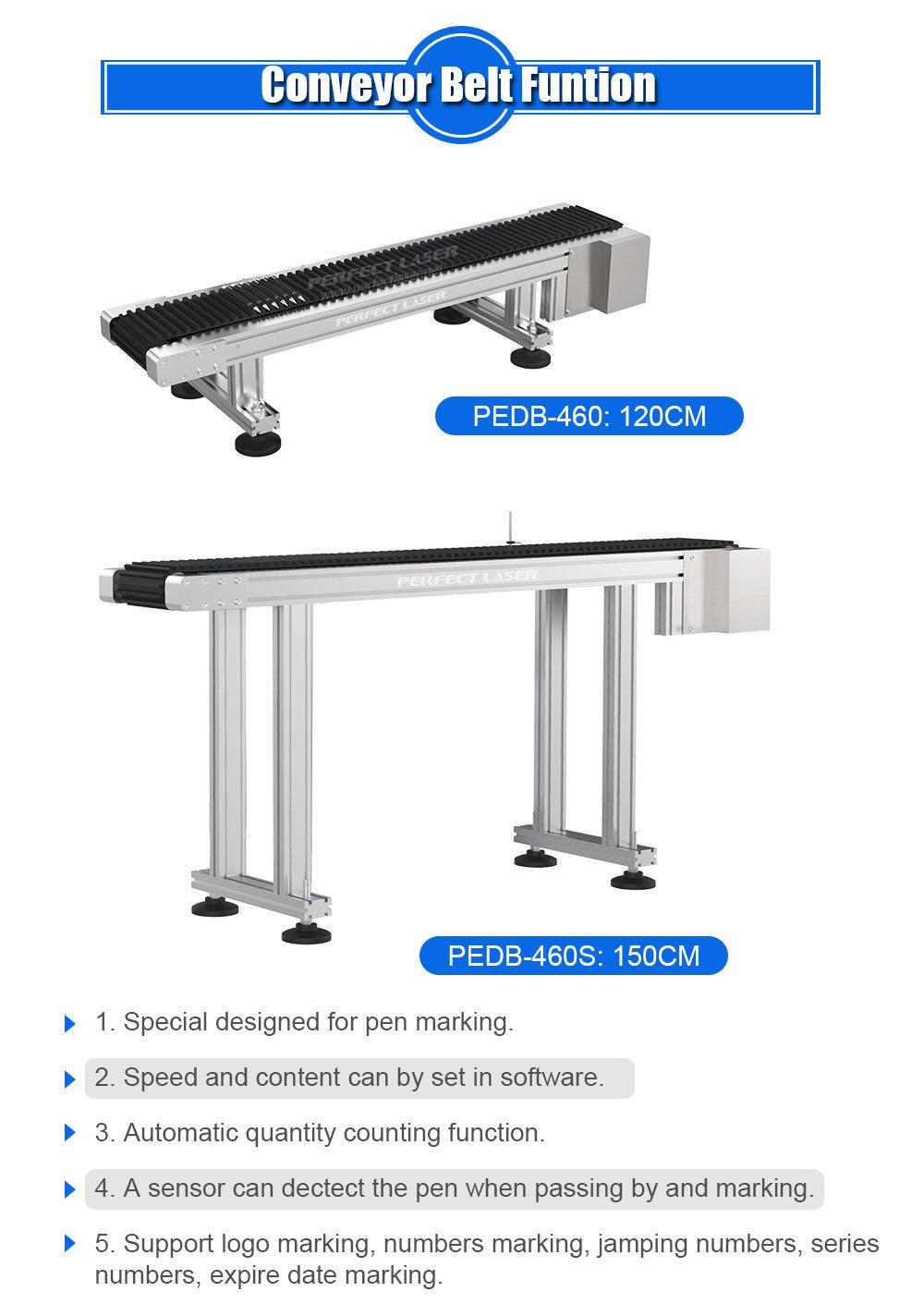

Conveyor Belt Funtion	1. Special designed for pen marking. 2. Speed and content can be set in software. 3. Automatic quantity counting function 4. A sensor can dectect the pen when passing by and marking. 5. Support logo marking, numbers marking, jamping numbers, series numbers, expire date marking.

Quality Guarantee Services and After-sale Services
1. The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination.

2. Except the damage artificially and laser crystal rod and laser lamp, we are responsible for offering the fittings free of charge during the guarantee period, while it is preferred you send the damaged fittings to us by courier with your charge for our testing, after confirming damage, we will send back the alternative fittings to you. After the guarantee of quality period, the parts required repairing or change, if any, shall be paid.

3. When you meet some complicated problem and online-support can not solve it, we can offer Door-Visiting Service. If our engineer to assemble or/and maintain or/and adjust the machine is/are required, we shall assist to deal with the visa formality and prepaid traveling expenses and accommodation to us during the business trip and the service period before their dispatch. And you can arrange for the translating person for the service engineer during their service period. Or you can send your engineer to China. We will offer long-term technical training to him for free.
