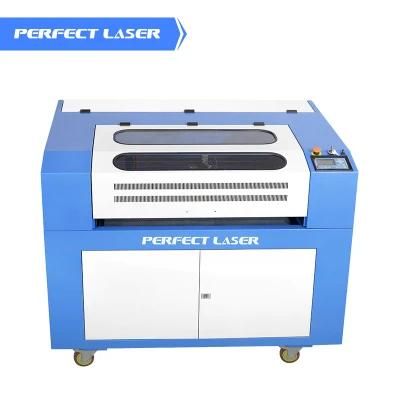

Non Metal CO2 Laser Engraving and Cutting Machine

Perfect Laser (Wuhan) Co., Ltd.
  • Application：Petroleum Machinery Manufacturing, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry
  • Cooling System：Water Cooling
  • Technical Class：Continuous Wave Laser
  • Applicable Material：Nonmetal
  • Structure Type：Gantry Type
  • Laser Classification：Free Electron Laser

Base Info

  • Model NO.：PEDK-13090
  • Laser Technology：Laser Control Fault Cutting
  • Laser Type：Hermetic and Detached CO2 Laser Tube
  • Control：CNC
  • Current：AC
  • Usage：Plastic
  • Engraving Machine Type：Laser Engraving Machine
  • Laser Power：60W , 80W , 100W , 130W , 150W
  • Engraving Speed：0-60000mm,S
  • Cutting Speed：0-10000mm,S
  • Cutting Thickness：0-25mm Acrylic (Others Determined by Materials)
  • Position System：Red DOT Laser Pointer
  • Transport Package：Export Wooden Packing
  • Specification：CE, ISO
  • Trademark：Perfect
  • Origin：China
  • Production Capacity：5000 Units, Month

Description

Working Area1300x900mm (4 feet*3 feet)Laser Power60w / 80w / 100w / 130w / 150wLaser TypeHermetic and Detached Co2 Laser TubeEngraving Speed0-60000mm/sCutting Speed0-10000mm/sCutting Thickness0-25mm acrylic (Others Determined by Materials)Repeat Location Accuracy+/-0.0125mmDriving ModeDC0.8A 24V Stepper MotorPosition SystemRed dot Laser PointerInterfaceUSB port transferVoltageAC220v/50hz or 110v/60hzMachine Power900wControlling SystemCNC Professional Control SystemSupport Graphics ModeBMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc.Cooling ModeCW-3000 Water Cooling (with Protection Function)Auxiliary DevicesExhaust Fan and Exhaust PipeCutting PlatformProfessional Thickening Strip or Honeycomb Work TablePower Control ModeLaser Energy Combining Movement Control SystemSoftwareProfessional Reader Laser Cutting SoftwareOperating Temperature0-45COperating Humidity5-95%PackingWooden BoxGuarantee Time12 Months for Machine, 3-10 Months for Laser TubeOperationVCD Training, Engineer Overseas AvailableMachine Size1970mm*1480mm*1250mmNon Metal CO2 Laser Engraving and Cutting Machine

Non Metal CO2 Laser Engraving and Cutting Machine

Working Video:
Acrylic, PVC board Laser Engraving machinehttp://youtu.be/6ey2lmpzMlI
Fabric Garment Cloth Laser Cutting Machinehttp://youtu.be/QqwQRKKiajQ
Leather Laser Engraving & Cutting Machinehttp://youtu.be/sbfxlLxZXl8
 Double Head with Galvanometer Scanning Headhttp://youtu.be/YoKDVL7vwBw
Wood Laser Cutting Machinehttp://youtu.be/UDzcYGRXOKE
Wood Laser Engraving Machinehttp://youtu.be/3Mp99xHgg9E


FAQ:
Please let us know following informations:
1.What kind of materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX. dimension of your materials ?
4. After cut, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
