• Model NO.：PE-F500-3015
• Laser Technology：Laser Fusion Cutting
• Function：Fiber Laser Cutting Machine
• Laser Power：300W,500W,700W,1000W,2000W,3000W
• Laser Source：Ipg , Maxphotonics,Nlight,Spi,Raycus
• Working Area：1500mmx3000mm
• Position Accuracy：0.03mm
• Transport Package：Export Sea-Worthy Packing
• Specification：ISO 9001 & CE & FDA
• Trademark：Perfect Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. PE-F500-3015 Laser Technology Laser Fusion Cutting Function Fiber Laser Cutting Machine Laser Power 300W/500W/700W/1000W/2000W/3000W Laser Source Ipg / Maxphotonics/Nlight/Spi/Raycus Working Area 1500mmx3000mm Position Accuracy 0.03mm Transport Package Export Sea-Worthy Packing Specification ISO 9001 & CE & FDA Trademark Perfect Laser Origin China HS Code 8456110090 Production Capacity 3000 Sets/Year

Product Description

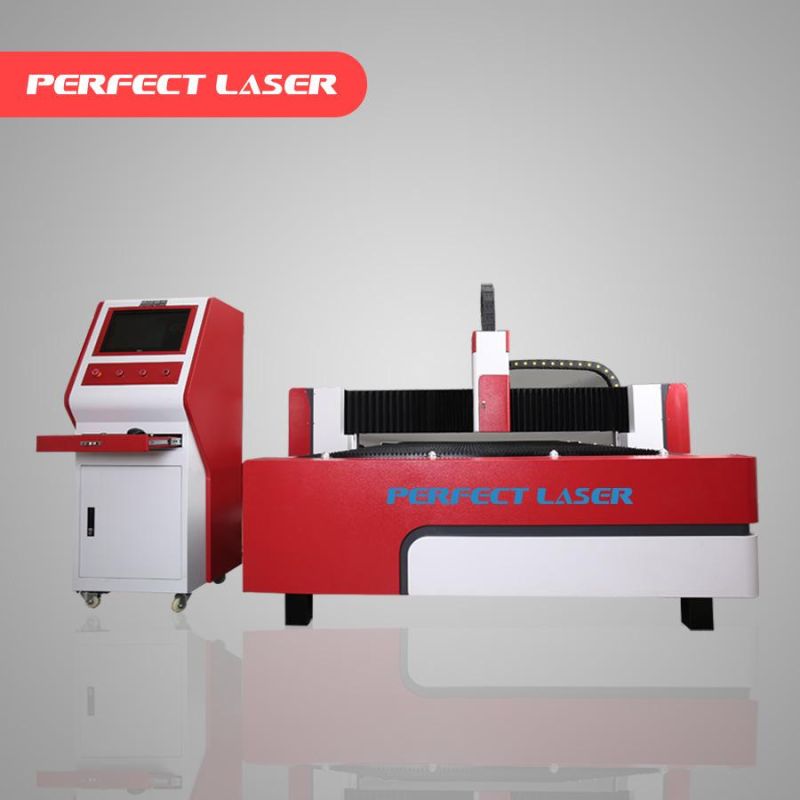

 500W 1000W 2000W Fiber Metal Laser Cutting Machine

Product Feature:
Adopting advanced fiber laser generator and ball screw moving system, it can cut and punch different kinds of metal material with high precision and high speed.
Since laser is transmitted by fiber, it is no need to maintenance or adjust the laser optical path. It greatly reduces the machines fault rate and prolongs the working life.
Large format cutting area meets the demands of various kinds of metal processing.

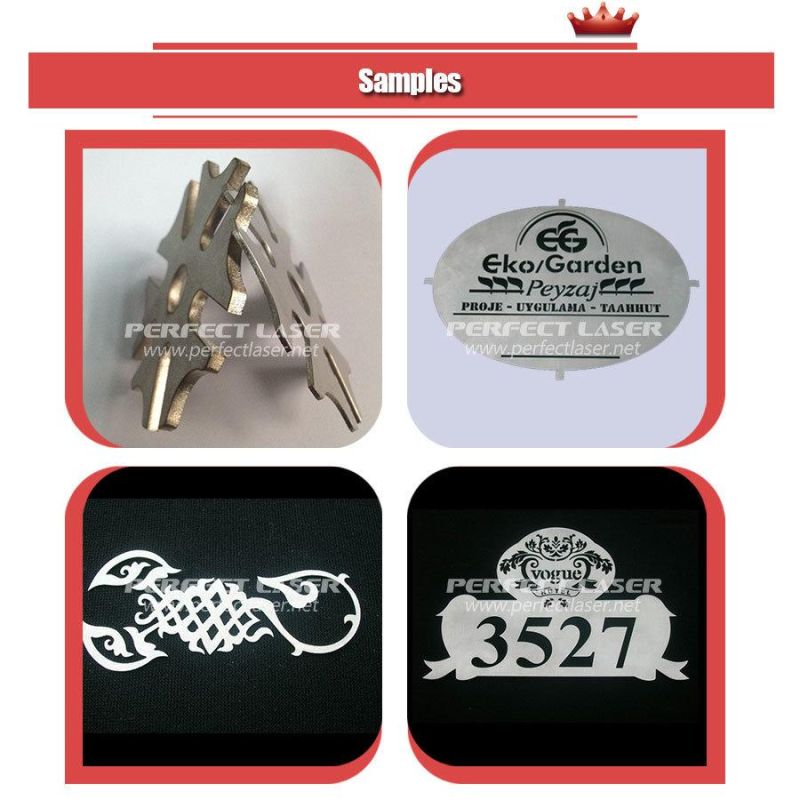

Applicable Materials:
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium, alloy, galvanized steel sheet, pickling board, aluminium zinc plate, copper and many kinds of metal materials cutting and so on.


Applications:
Applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

Advantages of Fiber Laser Cutting Machine
1. Excellent Laser Beam Quality: Fiber laser has smaller focus diameter and high work efficiency, high accuration and cutting quality.
2. High Cutting Speed: Cutting speed is more than 20m/min.
3. Stable Running: Adopting the top world import fiber lasers, stable performance, key parts can reach 100, 000 hours;
4. High Efficiency for Photoelectric Conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have 3 times photoelectric conversion efficiency.
5. Low Cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine.
6. Free of Maintenance: Fiber optical transmission, fiber line transmission, no need reflect lens, without optical adjustment, save maintenance cost.
7. Easy Operations: Fiber line transmission, no adjustment of optical path;
8. Super Flexible Optical Effects: Compact design, compact and easy to flexible manufacturing requirements

Model	PE-F500-3015 Fiber Laser Cutting Machine
Laser Power	500W/1000W/1500W/2000W/3000W/6000W

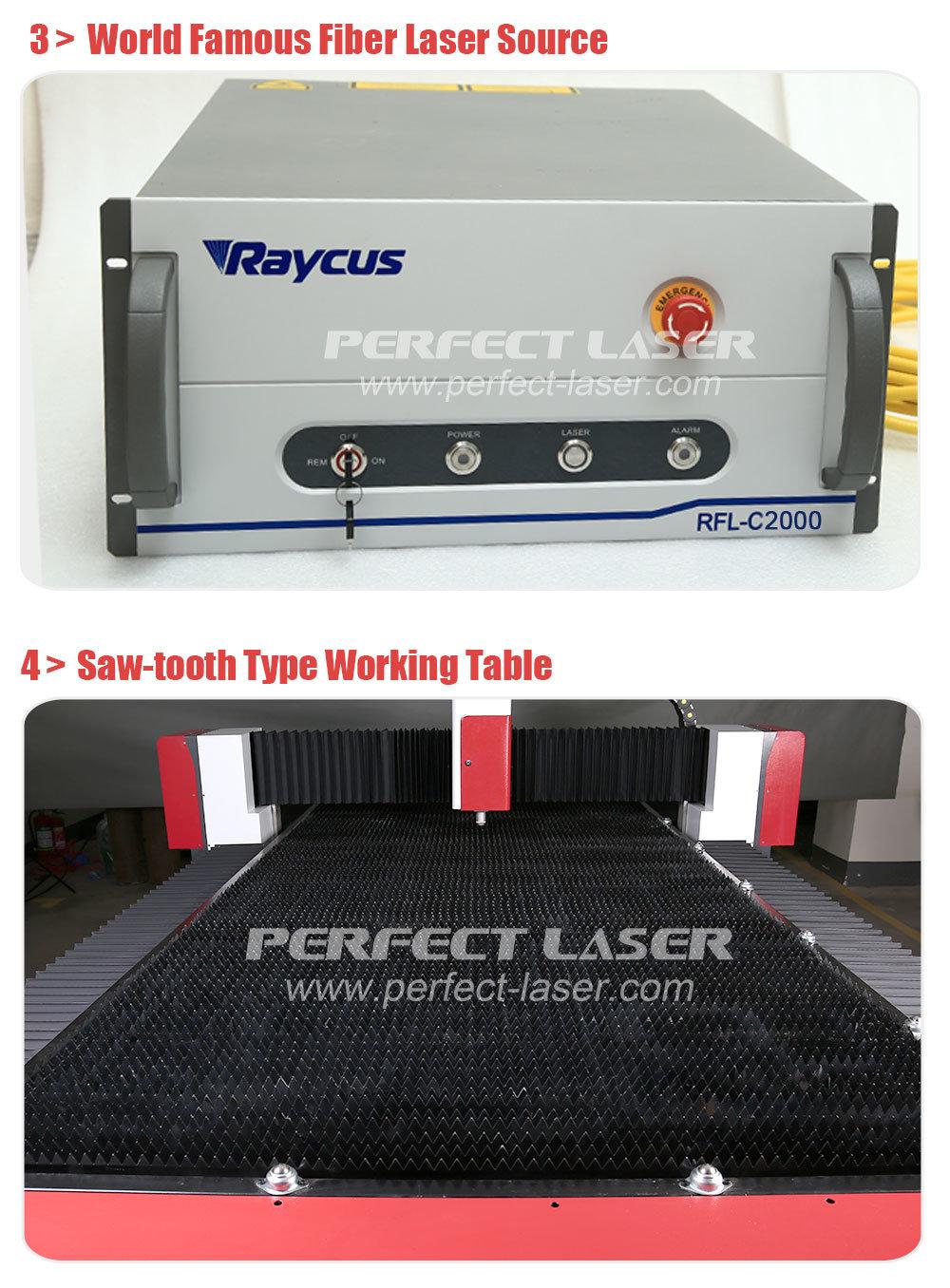

Laser Source	World Famous Germany Dlaser Fiber laser source
Laser Type	Imported Fiber Laser
Laser Technology	GermanyTechnology
XYZ Working area	1500*3000 mm*150mm
Max. Cutting Thickness (Carbon Steel)	1-5 mm
Max. Cutting Speed	0-12 Meters / Min (up to materials)
Max. Location speed	60m/min
Laser wavelength	1070nm
Minimum line width	≤0.1mm
Location precision	≤±0.05mm
Re-location precision	±0.02mm
Max. moving speed	100m/min
Supporting Format	PLT, DXF, BMP, AI
Power demand	380V/50Hz

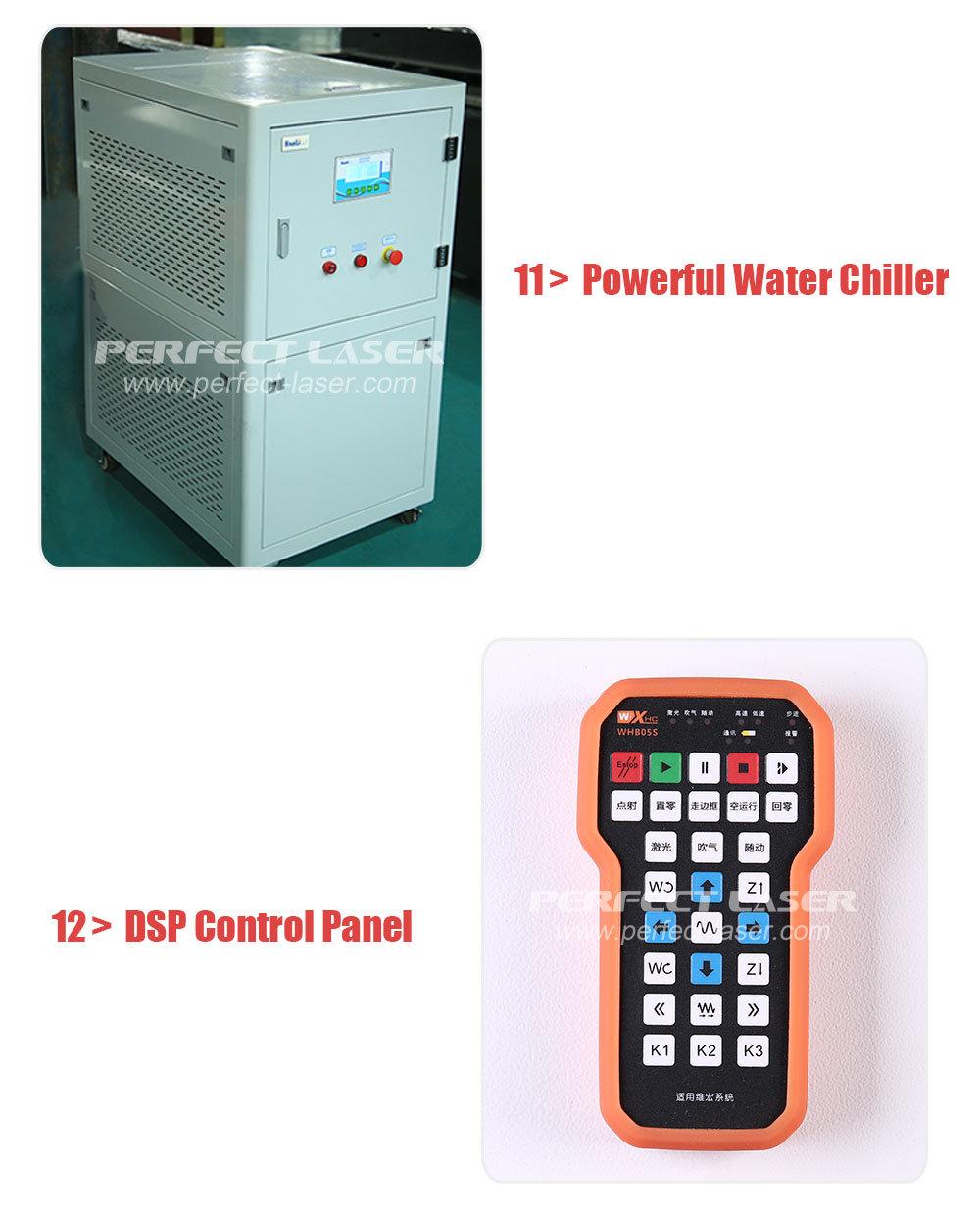

Cooling Way	Water Cooling
Worktable max. load	1000KGS
Transmission Method	Ball Screw Transmission

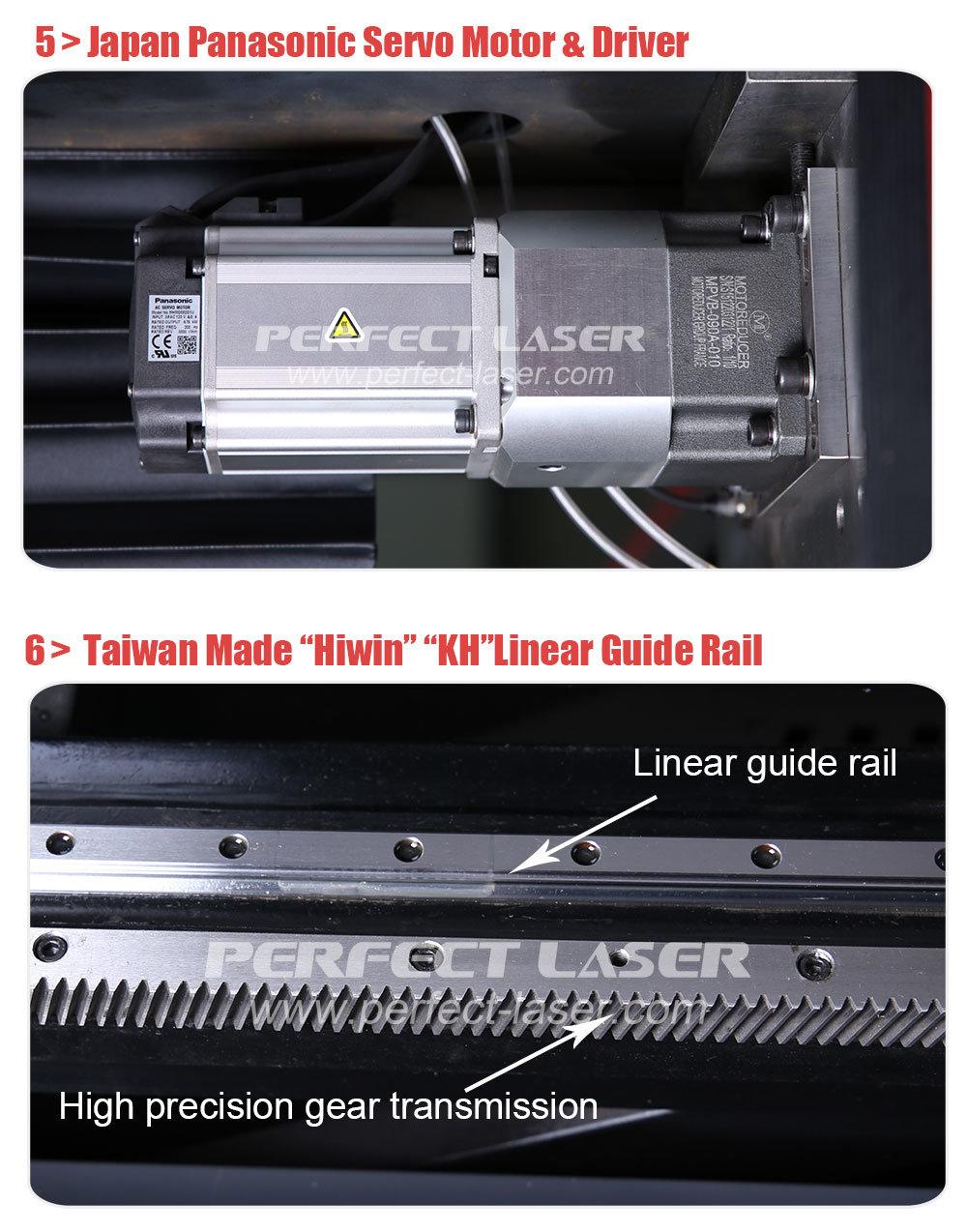

Table-driven system	Japanese Imported Panasonic Servo Motor & Driving System
Focus Method	Following and Automatic Adjust Focus
Control Method	Offline Movement Control
Control software	Perfect Laser Professional Laser Cutting Software

 --------------------------------------------------------------------------------------
