Laser Equipment

20W Optical Fiber Laser Marking Machine with Rotary Table

Shandong Man Machinery Equipment Co., Ltd.
  • Laser Visibility:Invisible
  • Applicable Material:Metal
  • Cooling System:Air Cooling
  • Technical Class:Pulse Laser
  • Laser Wavelength:Fiber Laser
  • Laser Classification:Semiconductor Laser

Base Info

  • Model NO.:MAN-20
  • Type:Optical Fiber Laser Marking Machine
  • Marking Method:Scanning Marking
  • Model:20W,30W
  • Marking Area:110mmx110mm;
  • Repeat Frequency:10kHz- 100kHz
  • Voltage:220V,50Hz
  • Markingspeed:7000mm
  • Marking Depth:0-0.5mm
  • Positioning Way:Red Light
  • Cooling Mode:Air Cooling
  • Software:Ezcad Software
  • Certification:Ce FDA
  • Transport Package:Wooden Box
  • Specification:860*360*760 mm
  • Trademark:CNMANLASER
  • Origin:Shandong
  • HS Code:8456110090
  • Production Capacity:500 Set,Month

Description

Free of condensed water021Laser Module Life>100000hours022Keywordsfiber laser marking machine

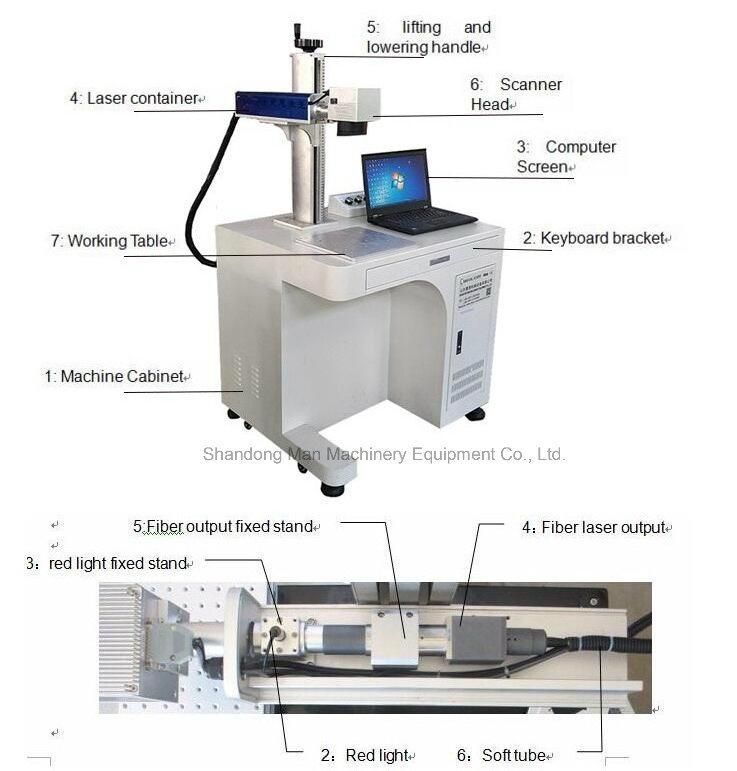

  DETAILS   IMAGES :

20W Optical Fiber Laser Marking Machine with Rotary Table

1) Excellent beam quality-

The laser spot and divergence angle of  laser machine is smaller than traditional marking machine, marking more precision.

2) Low use-cost:

high turnover ratio between electricity and laser, the whole machine power consumption is less than 500W, which is 1/10 of light

pumping source laser.

3) Maintenance-free Operation:

There is no need of any maintenance for laser, or to adjust /clean the lens.

4) Long working life:

using laser diode as pumping source, the working hours can reach as long as 100,000 hours.

5) New designed machine body:

Humanized design more suitable for work, can save more time, using fiber to realize laser transport and the structure is compact, which makes

possible to work under severe environment such as vibration, high-temperature.

6) High processing speed:

2-3 times faster than the traditional laser marking machine
.

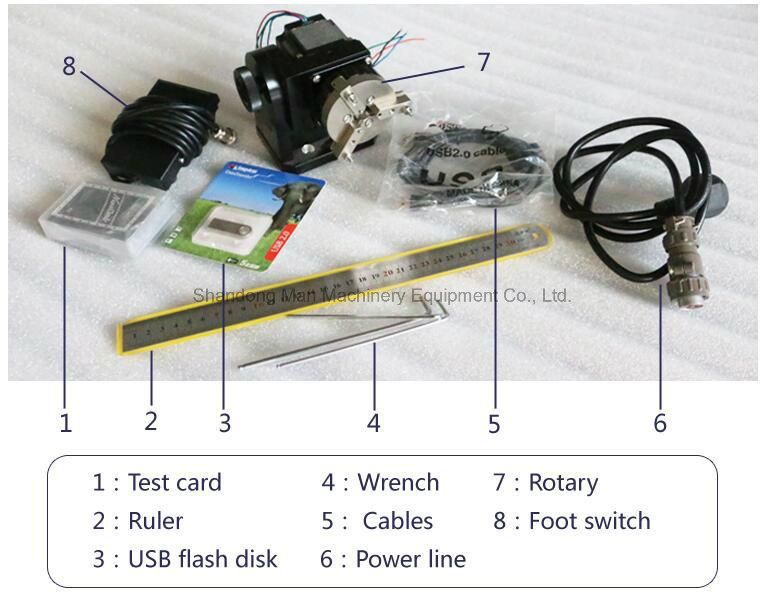

Optional  Laser Parts for laser machine :

20W Optical Fiber Laser Marking Machine with Rotary Table

SAMPLE SHOW :   Industry Materials:1)Sports Equipment1) Many type of metals 2)Precision & General EngineeringGold, copper, aluminum, stainless steel, chrome, Brass .3)Automotive2) Alloy and Metal oxides2) Alloy and Metal oxides4)Domestic Appliances
3)Some non-metallic materials5)Promotions & Giftware4) Silicon wafer, ceramics, plastic, rubber, epoxy resin, ABS, 6)Medical5) Printing ink Plating, Spraying, Coating film 7)Machine Cutting Toolsspecial surface treatment.

8)Electronic Devices


20W Optical Fiber Laser Marking Machine with Rotary Table

 PACKAGING &  SHIPPING :
 PackagingInner wrapping film and outer plywood case
 ShippingFOB, CIF, DDU etc., by sea, by train, by air, by express
 PaymentT/T, Alibaba trade assurance, L/C at sight, Western Union, Moneygram
 Delivery time:7-15 working days after deposit

20W Optical Fiber Laser Marking Machine with Rotary Table

  ABOUT  US :

Quality Guarantee

1.We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making).

We sign the agreement with detailed technical data.

2.We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test.

After making sure machine is the best performance, then make shipments.

3.Machine warranty is 2 years. We offer flexible extended warranties if needed.


Training Service

Our technician is available to your factory and offer training of how to use our machines.

As well, you may send your technician to our company to learn how to operate machines.


If you are interested, or would like to know more information and products,
please feel free to leave a message in the following blank space.
