• Model NO.：CKD-PLMA-20,30 V20.11
• Laser Classification：Gaseous Laser
• Type：CO2 Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Scope：Optional: 100*100,150*150,200*200mm
• Function：Marking, Engraving, Cutting
• Laser Source：30,50W
• Marking Software：Ezcad2
• Computer：Optional
• Transport Package：Wooden Box
• Specification：CE passed, Europe, Asia, America Standard
• Trademark：CKD LASER
• Origin：Shenzhen, China
• HS Code：8456110090
• Production Capacity：200 Set,Month

Basic Info.

Model NO. CKD-PLMA-20/30 V20.11 Laser Classification Gaseous Laser Type CO2 Laser Marking Machine Marking Method Scanning Marking Marking Scope Optional: 100*100/150*150/200*200mm Function Marking, Engraving, Cutting Laser Source 30/50W Marking Software Ezcad2 Computer Optional Transport Package Wooden Box Specification CE passed, Europe/ Asia/ America Standard Trademark CKD LASER Origin Shenzhen, China HS Code 8456110090 Production Capacity 200 Set/Month

Product Description

Application:

1.Material: good at metal, can mark on plastic, and other material with paintingor dark surface

2.Document format:

Bitmap of picture, such as .jpg and .png.

Vectorof .ai, .plt, .dxf, .dts, .svg, .cn, .g, .bot, .gbr and .gst.

3.Industry: gift shop, craft shop, tableware, drug, food, packing and so on.


Advantage:

1.Mini body with big marking scope: only 20kg, 35*24*54cm of the whole machine,support laser scan scope of 100*100mm/150*150mm/200*200mm.

2.E-focus: motorized up and down, three LED focus finder, speed of up or down isadjustable

3.Multi-function: support rotary marking (rotary is optional), logo print, seriesnumber/ QR/ bar code automatically generates, support circle marking, can cleanmetal surface and so on

4.More expanding options: bulti-in PC to make this machine to be convenientlyall-in-one, automatically focus of Z-axis (using software to commend the laserto go right focus)

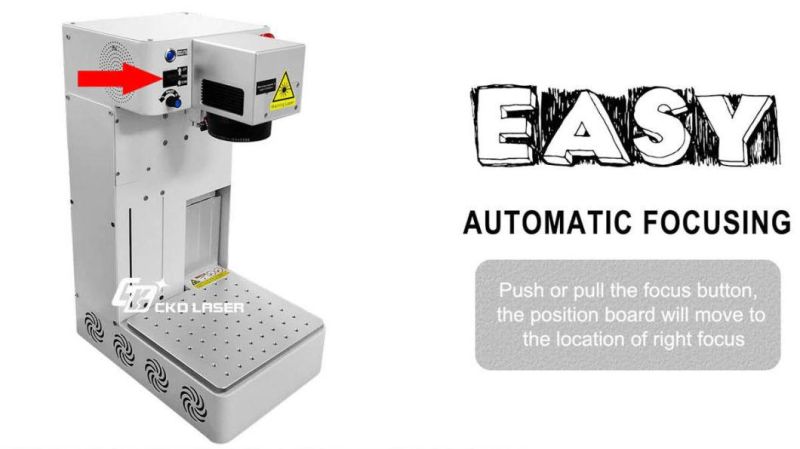

EASY: Automatically focusing by pushing or pulling the focus button, the positionboard will move the location of right focus

SMALL: Small like a cat, 35*24*54cm, 20Kg portable, still can scan large scope of200*200mm, easy to change work place, user-friendly.

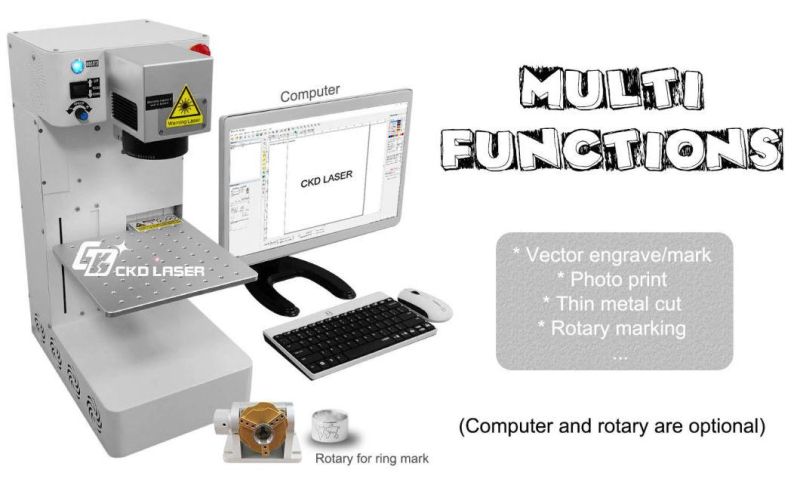

MUILTI-FUNCTION: Support vector engrave/mark/print/write, can mark real photo on metal, can cutthin metal under 0.3mm (if neglect time, ca n cut through 1mm for long time),support rotary marking like jewelry ring, bangle and so on.

Computerand rotary are optional.

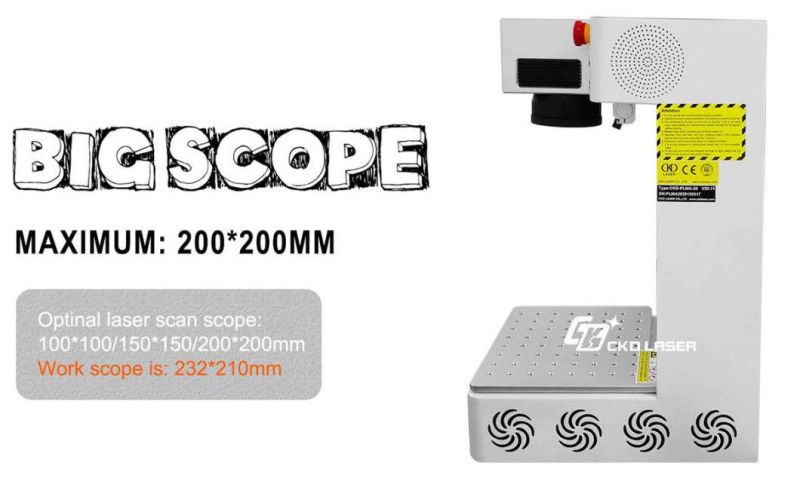

BIG LASERSCAN SCOPE: Maximum is 200*200mm

Optionallaser scan scope: 100*100/150*150/200*200mm (suggest 20W choose100*100/150*150mm,30W can choose 100*100/150*150/200*200mm) Work scope is 232*210mm, no limitedof length for long material.

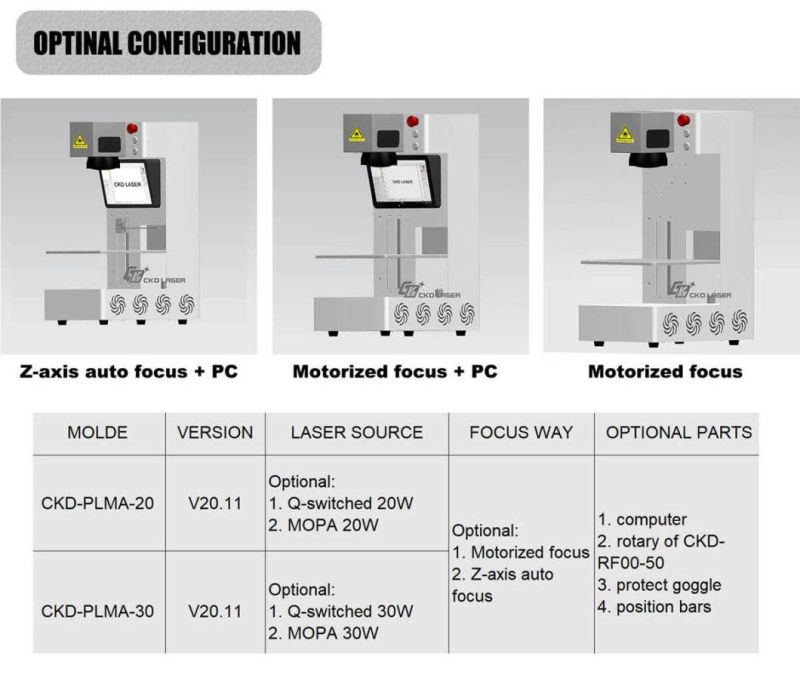

OPTIONALCONFIGURATION:

1. Z-axisauto focus + bulti-in computer (software focus, high configuration)

2.Motorized focus +built-in computer (Bulti-in computer is much faster and stable,all-in-one configuration)

3.Motorized focus (Can match any type of window computer if you have, softwaresupport Win7/8/10, standard configuration)



The defaultlaser source is Q-switched among above three configurations, users can choose MOPAlaser source to have more functions.



Aboutcolor marking: Q-switched laser source doesn't support color marking onstainless steel, MOPA laser source support color marking on stainless steel, canmark material more smoothly, can pealing paint face better.



APPLICATION SHOW:

PVCplastic ID card marking, buckle geometry figure marking, ring marking, colormarking (needs choose MOPA laser source)

STABLE: Anti-interference and stabilivolt, this machine can apply to 220V50Hz or 110V 60Hz , please tell us which electricity usage.

CONTACT US: Send your application details to below dialog, we will reply you promptly.
