• Model NO.：CKD-PLMA-20,30, V20.11
• Laser Classification：Solid Laser
• Type：YAG Laser Marking Machine
• Marking Method：Scanning Marking
• Function：Marking, Engraving and Cutting
• Material：Metal and Some Non-Metal
• Marking Scope：100*100mm
• Computer：Optional, with or Without
• Shipping Date：3-5 Work Days After Payment
• Transport Package：Wooden Box
• Specification：CE passed, Europe, Asia, America Standard
• Trademark：CKD LASER
• Origin：Shenzhen, China
• HS Code：8486204900
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. CKD-PLMA-20/30, V20.11 Laser Classification Solid Laser Type YAG Laser Marking Machine Marking Method Scanning Marking Function Marking, Engraving and Cutting Material Metal and Some Non-Metal Marking Scope 100*100mm Computer Optional, with or Without Shipping Date 3-5 Work Days After Payment Transport Package Wooden Box Specification CE passed, Europe/ Asia/ America Standard Trademark CKD LASER Origin Shenzhen, China HS Code 8486204900 Production Capacity 20 Sets/Month

Product Description

Application:

1.Material: good at metal, can mark on plastic, and other material with paintingor dark surface

2.Document format:

Bitmap of picture, such as .jpg and .png.

Vectorof .ai, .plt, .dxf, .dts, .svg, .cn, .g, .bot, .gbr and .gst.

3.Industry: gift shop, craft shop, tableware, drug, food, packing and so on.


Advantage:

1.Mini body with big marking scope: only 20kg, 35*24*54cm of the whole machine,support laser scan scope of 100*100mm/150*150mm/200*200mm.

2.E-focus: motorized up and down, three LED focus finder, speed of up or down isadjustable

3.Multi-function: support rotary marking (rotary is optional), logo print, seriesnumber/ QR/ bar code automatically generates, support circle marking, can cleanmetal surface and so on

4.More expanding options: bulti-in PC to make this machine to be convenientlyall-in-one, automatically focus of Z-axis (using software to commend the laserto go right focus)

EASY: Automatically focusing by pushing or pulling the focus button, the positionboard will move the location of right focus

SMALL: Small like a cat, 35*24*54cm, 20Kg portable, still can scan large scope of200*200mm, easy to change work place, user-friendly.





MUILTI-FUNCTION: Support vector engrave/mark/print/write, can mark real photo on metal, can cutthin metal under 0.3mm (if neglect time, ca n cut through 1mm for long time),support rotary marking like jewelry ring, bangle and so on.

Computerand rotary are optional.

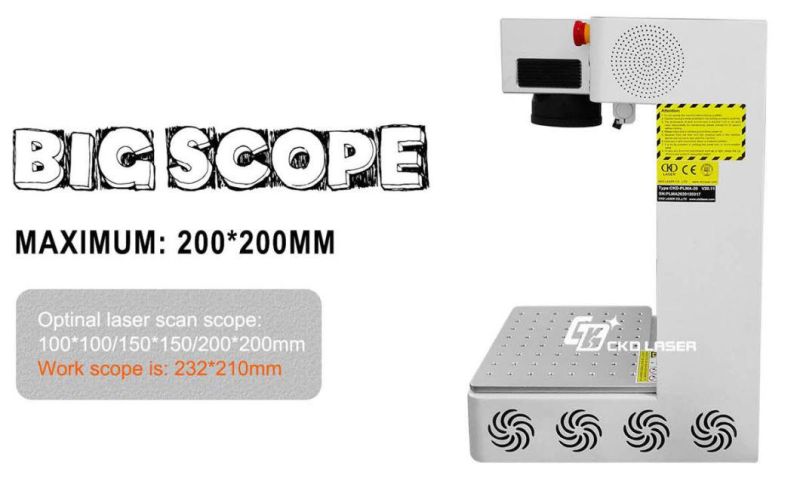

BIG LASERSCAN SCOPE: Maximum is 200*200mm

Optionallaser scan scope: 100*100/150*150/200*200mm (suggest 20W choose100*100/150*150mm,30W can choose 100*100/150*150/200*200mm) Work scope is 232*210mm, no limitedof length for long material.

OPTIONALCONFIGURATION:

1. Z-axisauto focus + bulti-in computer (software focus, high configuration)

2.Motorized focus +built-in computer (Bulti-in computer is much faster and stable,all-in-one configuration)

3.Motorized focus (Can match any type of window computer if you have, softwaresupport Win7/8/10, standard configuration)



The defaultlaser source is Q-switched among above three configurations, users can choose MOPAlaser source to have more functions.



Aboutcolor marking: Q-switched laser source doesn't support color marking onstainless steel, MOPA laser source support color marking on stainless steel, canmark material more smoothly, can pealing paint face better.



APPLICATION SHOW:

PVCplastic ID card marking, buckle geometry figure marking, ring marking, colormarking (needs choose MOPA laser source)

STABLE: Anti-interference and stabilivolt, this machine can apply to 220V50Hz or 110V 60Hz , please tell us which electricity usage.

CONTACT US: Send your application details to below dialog, we will reply you promptly.
