• Model NO.：MAN-20
• Type：CO2 Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：900*800*1150mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-20 Type CO2 Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 900*800*1150mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

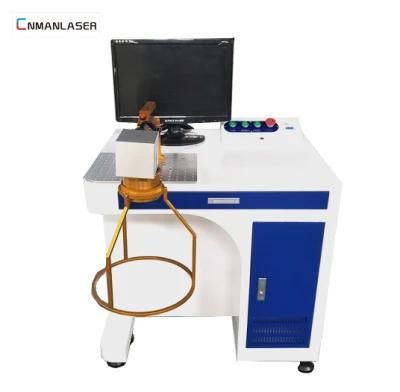

CO2 Portable Laser Marking Machine for Bottle Leather PU Wood






1. CO2 Laser Marking Machines equipped with the most advanced metal RF CO2 laser tube, can be refilled with CO2 gas,

no need to change consumables, exempt-maintenance and long life time.

2. With high-rate of photoelectric conversion and RF metal tube, the laser beam mode is much better than common machine

with glass laser tube, and the high accuracy marking effect is what common CO2 laser marker can not achieve.

3. Fast speed & no touch processing, the heat exchange is little, the material is not easy to distort.

4. With multifunctional marking software, the machine can be collocated with ital-controlled rotary accessory, automatic fixture,

and production line.

5. Can mark data, series number, bar code and graphics automatically.

6. User can share & communicate the data with other equipment and online.

TECHNICAL  PARAMETER :


Type	Laser Marking Machines
Material	Aluminum
Laser wavelength	1060nm
Laser power	10W or 20W or 30W optional
Laser Type	pulsed or continuous
Marking depth	0. 5mm as the material may
Marking line speed	≤7000mm / s
Minimum characters	0.15mm
The minimum line width	0.012mm
Repeatability	Standard 100mmX100mm
Operating Life	laser Run> 100,000 hours
Lifting heigh	lifting 550
Cooling system	Air cooling
Operating System	WinXP / Win7
Graphic Converter	CAD, CorelDRAW, CAXA
Environment	20 ° C-45 ° C, relative humidity 80%

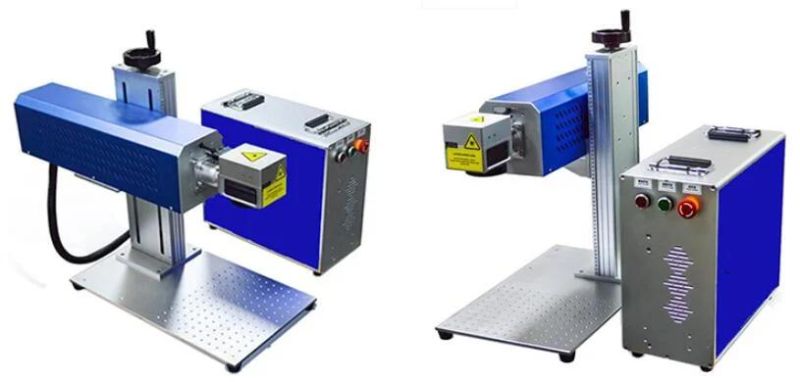

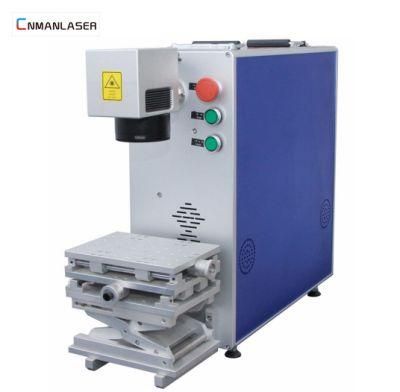

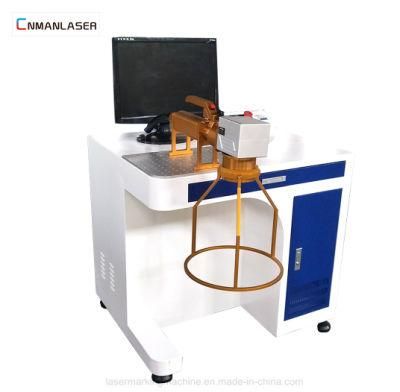

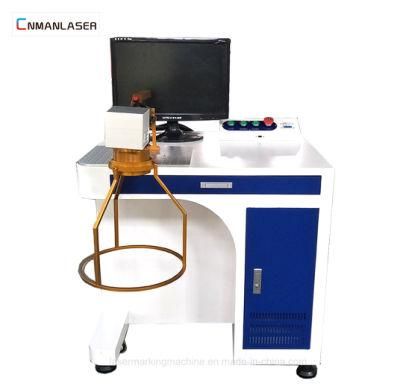

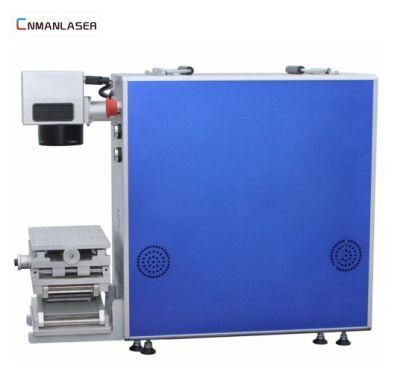

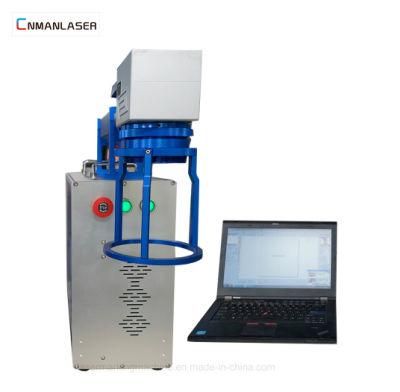

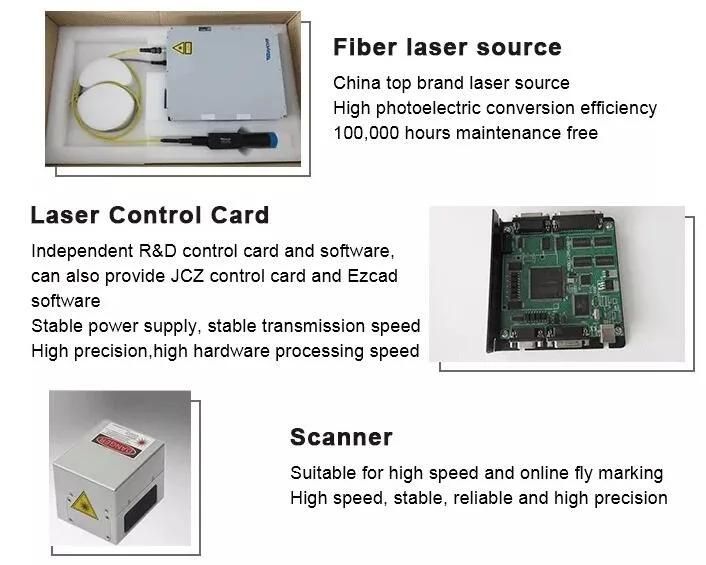

DETAILS   IMAGES :



APPLICATION :

Applicable Industries:

Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment,

printing, garments and leather industries, embroidery,interior decoration, frame fabrication and etc.

Applicable Materials:

Non-metal materials such as double color boards, acrylic, glass, wood planks, bamboo,rubber, plastic, garments,

paper, leather, marble, granite, tiles and etc...

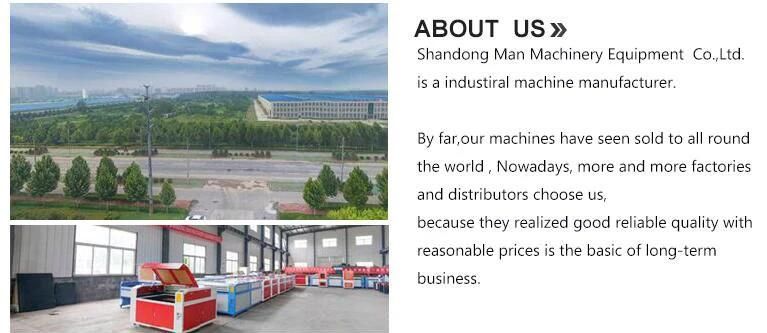

ABOUT US



Packaging and shipping

1.Durable wooden case or as per required.

2.The delivery lead time would be 5-7 working days after recieving the payment.

3.As for the wholsalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder

 Our service

1) Guarantee for 3 years .Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.

2) when receiving the your money, we will prepare machine for you,it will spend 2-3days, to get the shipping pictures for you.

3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.

4) Free installation and fully test before sending and free training for operators
