• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110*110mm
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Minimum Character：0.2mm
• Power Supply：AC220V±10%, 50Hz
• Certification：Ce FDA ISO
• Warranty：3 Years
• Transport Package：Wooden Box
• Specification：710*510*710mm
• Trademark：CNMANLASER
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Minimum Character 0.2mm Power Supply AC220V±10%, 50Hz Certification Ce FDA ISO Warranty 3 Years Transport Package Wooden Box Specification 710*510*710mm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 500 Set/Month

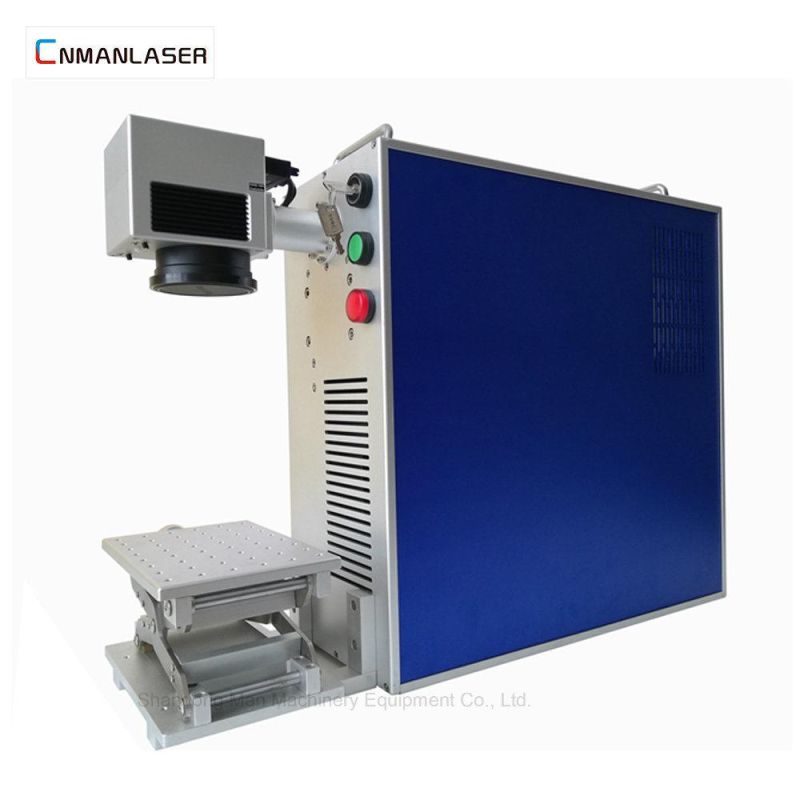

Product Description

portable laser marking machine 30W for logos production date

Production :



20w fiber laser marking machine

the most hot selling system by lowest price advantage. Especially on plastic and hard metals, it occurs perfect results.

automotive, packing, kitchenware equipment, hand tools sectors are main ways preferred on F 20

30w fiber laser marking machine

suitable for job shops and people who needs more power. One upper level then marking towards cutting.

Especially for cutting, this is the first machine fits your requirement to cut.

50w fiber laser marking machine

do deep engraving, micro cutting, marking and 3D engraving perfect. Mostly preferred by jewelry sector,

F 50 creates %40 more effective results according to its competitors. One of the fastest model in market.

Technical Parameter :


Laser power	20W
Laser Wavelength	1064nm
Light beam quality	<2
Repeating precision	±0.002
Marking range	110x110mm(customize)
Marking depth	0.01~1mm
Marking speed	7000mm/s
Minimum character	0.15mm
Minimum line width	0.01mm
Repeating frequency	20KHz~30KHz
Marking content	Graphics, text, bar codes, two-dimensional code,  date, batch number, serial number
Graphic format supported	bmp,png,ai,dxf,dst,plt
working voltage	220V±10%/50Hz/4A
Size	75*55*83cm
Gross Weight	50kg
Control interface	standard USB port
Working environment	Clean and dust free or dust less
Laser module life	100000~200000 hours

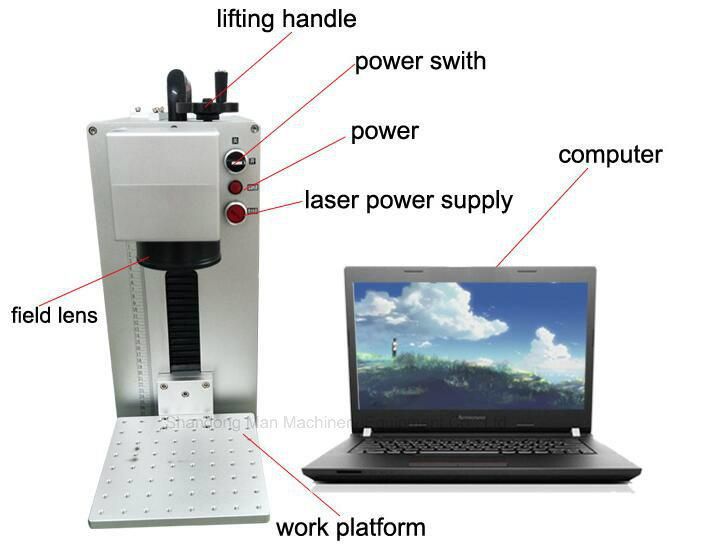

The Details Images :

1. It adopts IPG Fiber Laser or Fiber Laser, the transportation rate of electricity and optic is high,

the function is stable and can work for a longer time continuously.

2. Fiber Laser Marker has the appearance of new structures and control systems.

Using DMC1620 high-precision 16bit Control circuit, so the marking speed is faster.

3. Fiber Laser Marker has advantages of high efficiency, convenience, no consumable materials, innocuity, no pollution and so on.

4. Adopt all-new structure, exquisite appearance, centralized intelligent control system.

RF fiber maker support full-English operating interface. This machine is easy to learn and operate.

5.  fiber laser maker with selfclean system, it can eliminate the dust when it works, keep the fresh environment all the time.

6. It is applicable to static or flying marking on the surface of metallic or some non-metallic materials.

And the marking accuracy and precision is higher.

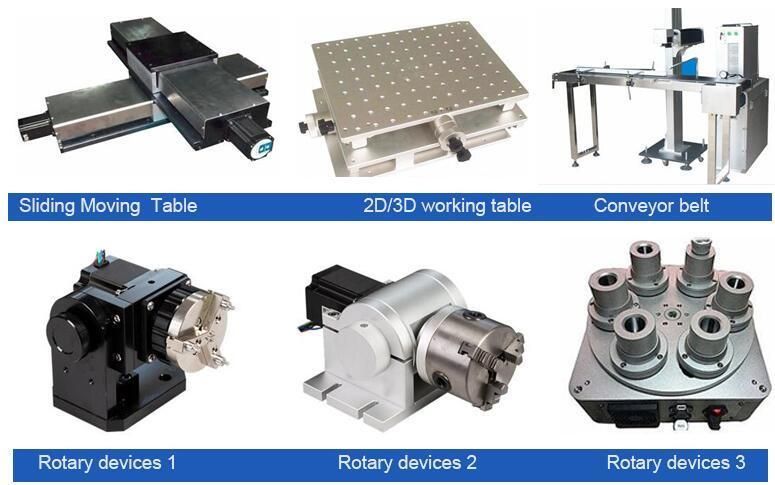

Standard  Laser Parts For Laser Machine :

Sample Show :

Applicable Materials:

Widely used in most metal materials, such as gold, sliver, brass, titanium, steel, ferrous metal, aluminum and others.

As well as non-metal materials, such as porcelain(tiles), leather, PVC, polycarbonate, etc.

Applicable Industries:

Electronics industry, electrical appliances, watches, jewelry, trademark, automotive, labeling regular phones, trinkets, souvenirs,

advertising products, products for the parties, and the aerospace industry, bearings, etc.



Packaing & Shipping :

Services    :

1.  24 hours Technical support by Email or Calling  .

 2.  English manual and CD video for machine using and maintaining.

 3.  Hardware: 3 years for machine, 6month for laser tube (without person damaged).

     Software: Whole life on update for free.

     Maintenance and technological support: Whole life.

would you like to confirm below questions:
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
1) What is your reuqested max working area, X:___mm, Y:___mm?

2) What mainly job you do ? Only engrave, cut or both ?

3) What kind of your materials, metal or non-metal, what are they?

 FAQ    :

1. What materials can I mark with this fiber marking machine ?

fiber laser marking machine can mark on most of metal materials, such as stainless steel, carbon steel, aluminum, brass.

Also it can mark on hard materials, such as ABS/PVC/PC.

2. If this is my first time to use the machine, how can I learn it ?

At first, we will provide detail user manuals for machine installation, software and machine operation.

Second, we will provide online technical support, via skype, whatsapp, email or tel.

3. If my machine has problem, how can I fix it ?

Our warranty for fiber laser marking machine is 3  years. If any quality problem, we will provide parts to you free of charge.

Also our engineers can help you to find where is the problem and provide you solution.
