• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110*110mm
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Minimum Character：0.2mm
• Power Supply：AC220V±10%, 50Hz
• Certification：Ce FDA ISO
• Warranty：3 Years
• Transport Package：Wooden Box
• Specification：710*510*710mm
• Trademark：CNMANLASER
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Minimum Character 0.2mm Power Supply AC220V±10%, 50Hz Certification Ce FDA ISO Warranty 3 Years Transport Package Wooden Box Specification 710*510*710mm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

fiber laser 20W making machine for serial number name plate

Production :




1. Excellent beam quality. Focusing Spot Diameter can be less than 20um.

2. Divergence angle is only 1/4 of pumped semiconductor laser. That is really good for to precision and fine marking.

3. Energy saving, Low Power consumption. Electro-optic conversion efficiency up to 30%, makes its power consumption no more than 500W.

4. Maintenance-free. No need Maintenance, No need adjust or clean Lens.

5. Long working life.  Working time can be up to 100,000.00 hours.

6. High Marking Speed.

Technical Parameter :


Laser power	20W
Laser Wavelength	1064nm
Light beam quality	<2
Repeating precision	±0.002
Marking range	110x110mm(customize)
Marking depth	0.01~1mm
Marking speed	7000mm/s
Minimum character	0.15mm
Minimum line width	0.01mm
Repeating frequency	20KHz~30KHz
Marking content	Graphics, text, bar codes, two-dimensional code,  date, batch number, serial number
Graphic format supported	bmp,png,ai,dxf,dst,plt
working voltage	220V±10%/50Hz/4A
Size	75*55*83cm
Gross Weight	50kg
Control interface	standard USB port
Working environment	Clean and dust free or dust less
Laser module life	100000~200000 hours

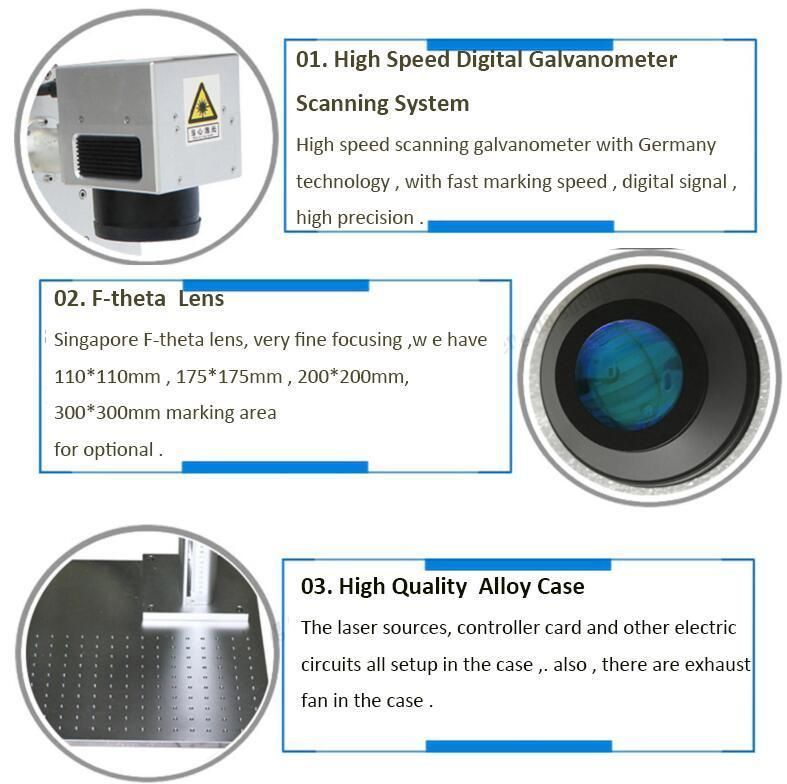

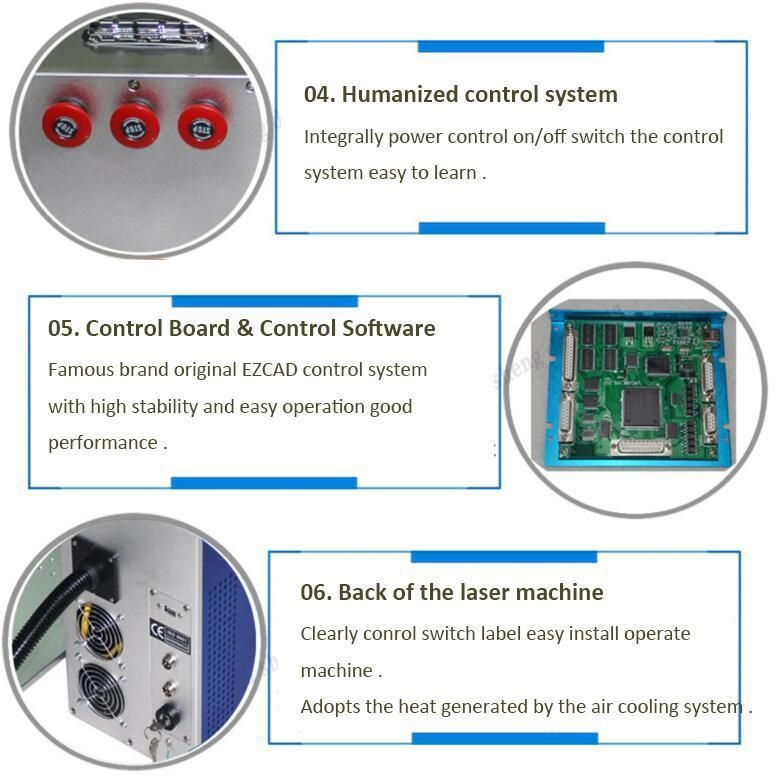

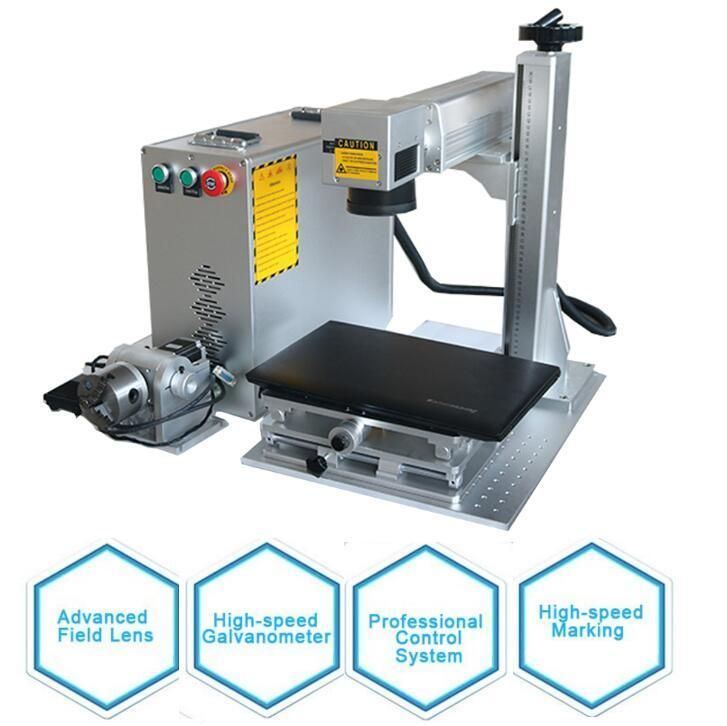

The Details Images :

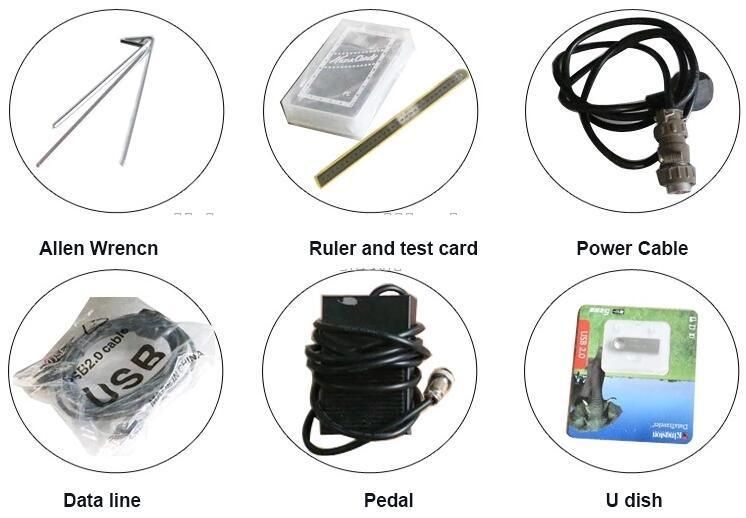

Standard  Laser Parts For Laser Machine :

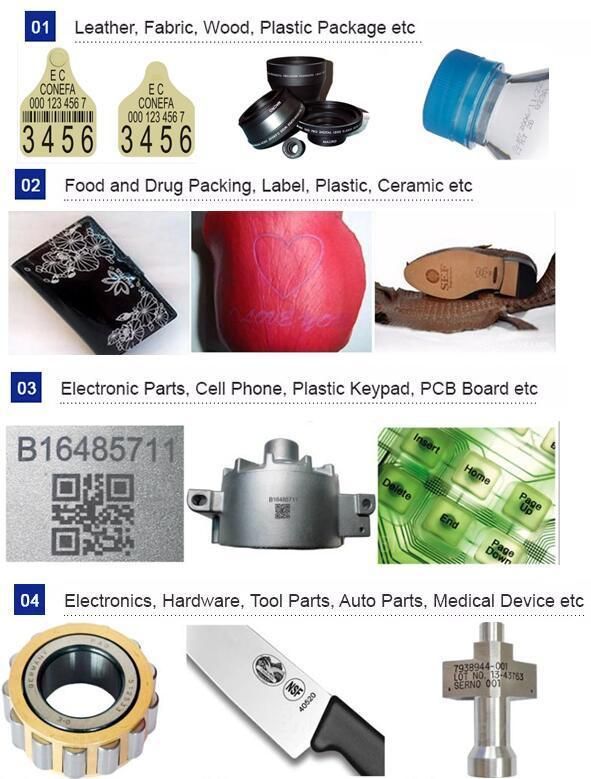

Sample Show :

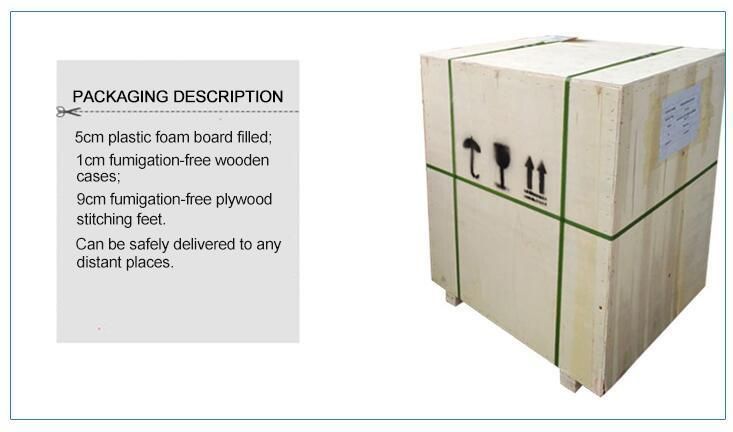

Packaing & Shipping :

Services    :

Free accessories:Software ,manual, book, cd videos, USBcontrol

1.Pre-sales service

A.   Free sample making

For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Try before you buy.

B.   Progressing Solution Design

According to customer's product processing requirement, we can design the unique solution that supports higher manufacturing efficiency

and better processing quality for customer.

2.After-sales service:

Training to install(3 options):

A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting,

and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting.

B. You can come to our factory for training.

C.If the problems cannot be solved on line our engineers also service machinery overseas.

For offer the most suitable machine with favorable price,

would you like to confirm below questions:
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
1) What is your reuqested max working area, X:___mm, Y:___mm?

2) What mainly job you do ? Only engrave, cut or both ?

3) What kind of your materials, metal or non-metal, what are they?

 FAQ    :

1. What materials can I mark with this fiber marking machine ?

fiber laser marking machine can mark on most of metal materials, such as stainless steel, carbon steel, aluminum, brass.

Also it can mark on hard materials, such as ABS/PVC/PC.

2. If this is my first time to use the machine, how can I learn it ?

At first, we will provide detail user manuals for machine installation, software and machine operation.

Second, we will provide online technical support, via skype, whatsapp, email or tel.

3. If my machine has problem, how can I fix it ?

Our warranty for fiber laser marking machine is 3  years. If any quality problem, we will provide parts to you free of charge.

Also our engineers can help you to find where is the problem and provide you solution.
