• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110*110mm
• Laser Power：10W ,20W ,30W
• Modulation Frequency：20 kHz -180 kHz
• Scanning Speed：7000mm,S
• Making Depth：0.01 mm -0.2mm
• Marking Line Width：0.01 mm -0.1mm
• Minimum Character：0.2mm
• Power Supply：AC220V±10%, 50Hz
• Certification：Ce FDA ISO
• Warranty：3 Years
• Transport Package：Wooden Box
• Specification：900*800*1150 mm
• Trademark：CNMANLASER
• Origin：China
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm Laser Power 10W /20W /30W Modulation Frequency 20 kHz -180 kHz Scanning Speed 7000mm/S Making Depth 0.01 mm -0.2mm Marking Line Width 0.01 mm -0.1mm Minimum Character 0.2mm Power Supply AC220V±10%, 50Hz Certification Ce FDA ISO Warranty 3 Years Transport Package Wooden Box Specification 900*800*1150 mm Trademark CNMANLASER Origin China HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

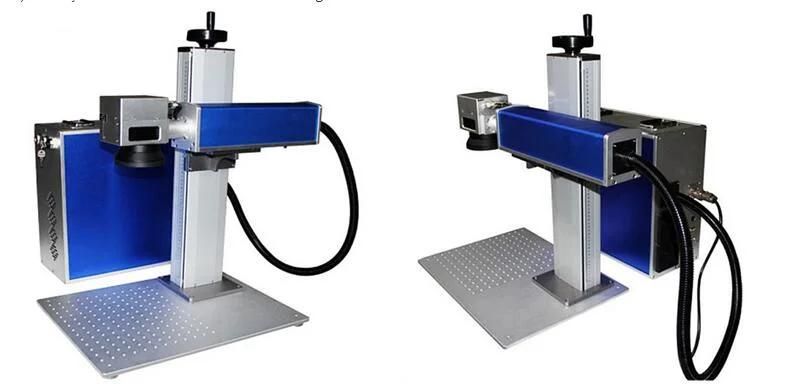

Table top laser marking machine With 600mm Manual Lift Column

Production :


1.Fiber laser, Basic model, high speed galvo scanner; IPG laser and Chinese Brand laser for option.

2.Maintenance Free, save equipment and worker cost;

3.Imported Galvonometer, Higher precision,faster speed;

4.Higher photoelectric conversion efficiency, Low power consumption;

5.Red light preview, more accurate and reduce positioning time;

6.Laptop with Powerful marking software;

7.User friendly software interface, easy operation;

8.Set and deal different layers graphic separately;

9.Support PLT,PCX,AL,DXF, BMP,JPG formats file;

10.Compatible AutoCAD,CorelDraw,Photoshop etc software Automatic serialization,date coding letter, symbol, pattern, figure, image,

bar code, 2D code auto arrangement and amendment.

Technical Parameter :


Model	MAN-30
Laser power	20W 30W 50W
Supports graphical format	PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Beam quality	m2 <2
Power stability	(8h) <± 1% rms
Pulse repetition frequency	20KHZ ---- 100KHZ
Power consumed	<800W
Minimum line width	30μm
Minimum character	0.15mm
Laser Wavelength	1064nm
Marking depth	0-0.5mm
Galvanometer Size	110 * 110mm (optional)
Repeatability accuracy	±0.002mm
Control software	EZCAD control software
Whole machine power	500w
Cooling way	Air cooling
Operating voltage	110/220V ± 10% /,50/60HZ
Engraving speed	0-7000mm/s
Packing	plywood wooden packaging

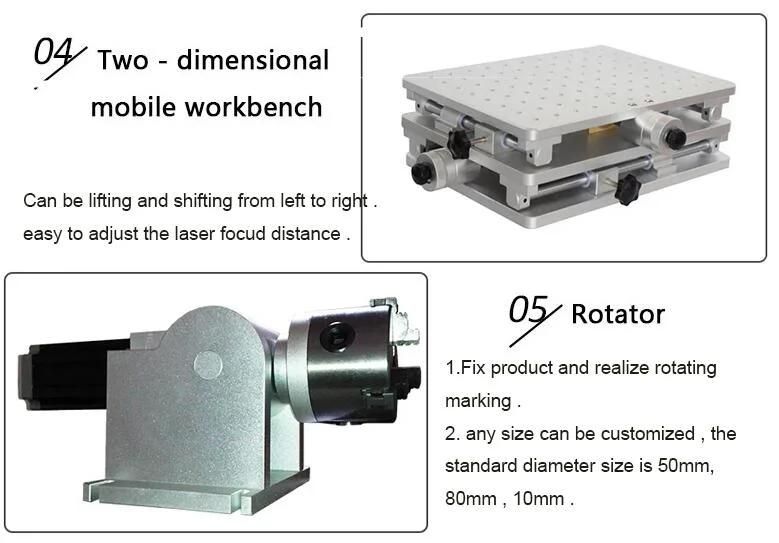

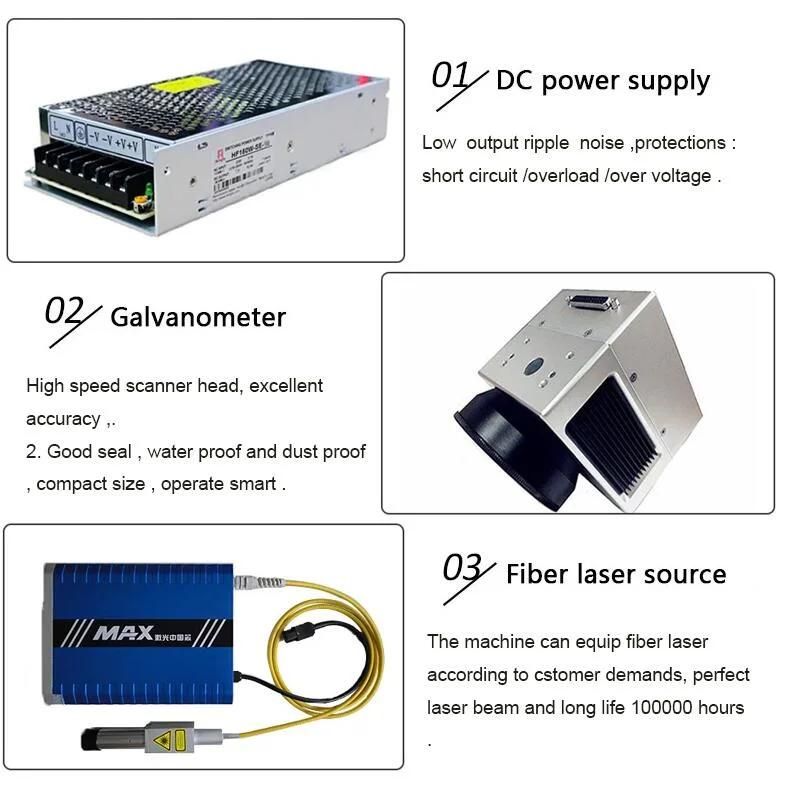

The Details Images :

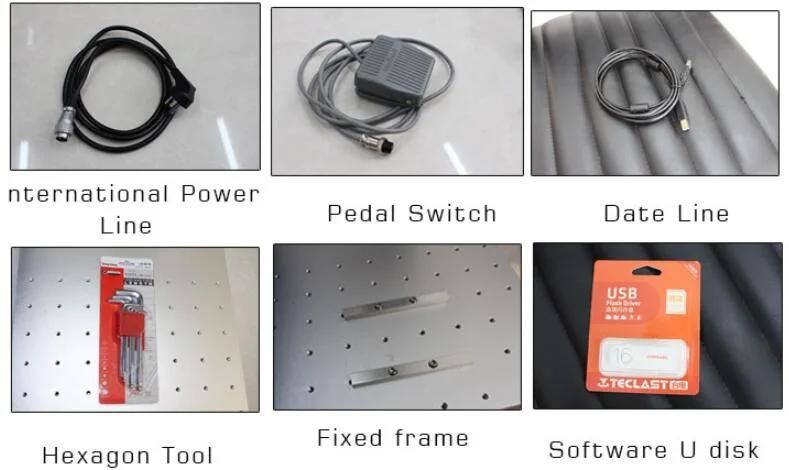

Standard  Laser Parts For Laser Machine :

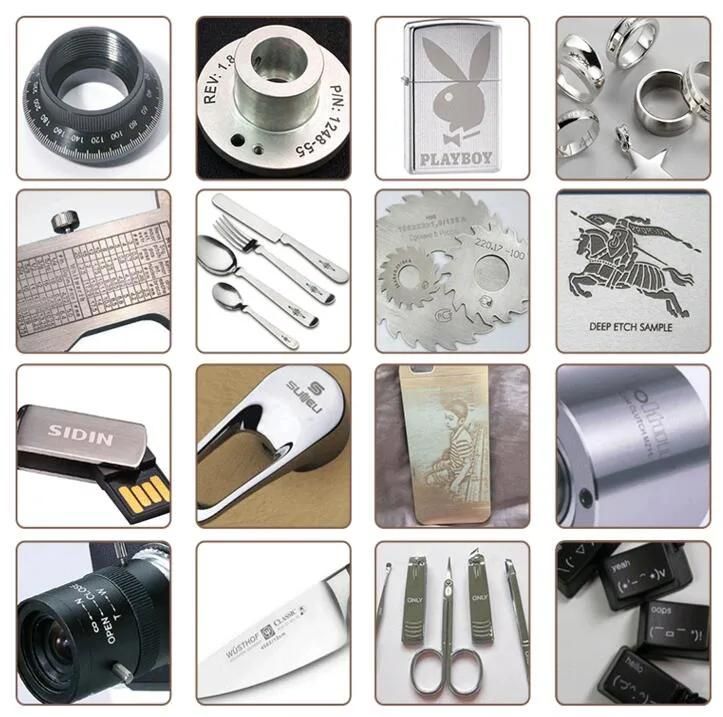

Sample Show :

1.Electrical Engineering and Electrical part and component

2.Mobile (Cover, battery, keyboard, IPhone Case)

3.Jewelry(Ring, pedeant, bracelet),eyeglass,clocks and craft

4.Building materials,PVC pipe

5.Car motor car spare part, Instrument and meters and cutting tool

6.plastic case,aviation and aerospace,

7.military product,hardware fitting and accessory,sanitary appliance

8.food and beverage ,Medicine package and medical instrument,solar Pv industry



Packaing & Shipping :

Services    :

ThreeYears Warranty

 1) 24 Hours online service.

 2) 24 months warranty for the whole machine except for wearing parts.

 3) Engineers available to service machinery overseas.

For offer the most suitable machine with favorable price,

would you like to confirm below questions:
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
1) What is your reuqested max working area, X:___mm, Y:___mm?

2) What mainly job you do ? Only engrave, cut or both ?

3) What kind of your materials, metal or non-metal, what are they?

 FAQ    :

Q:What delivery date ?

A:  Usually 5-20 working days after payment according to different order machine style and quantity.

Q:How to payment ?

A:  Alibaba Trade Assurance by Credit card, Cash in factory, TT,LC,DP ,West union ,Paypal etc.

Q: Do you supply overseas service ?

A: Yes, we do . We have strong after sales service team 10 engineers with different languages.

Q: How to Warranty time ?

A:  Usually 3 years for the machine .3-12 months for laser tubes and lens.

Q:  Can we use our own brand on our machine ?

A: Yes, of course , we supply OEM .

Q:  How about service after sales ?

A:   we supply 24 hours online service , and whole life technical server support any time.
