• Model NO.：MAN-30
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：20W,30W
• Marking Area：110mmx110mm;
• Repeat Frequency：10kHz- 100kHz
• Voltage：220V,50Hz
• Markingspeed：7000mm
• Marking Depth：0-0.5mm
• Positioning Way：Red Light
• Cooling Mode：Air Cooling
• Software：Ezcad Software
• Certification：Ce FDA
• Transport Package：Wooden Box
• Specification：800*900*1150 mm
• Trademark：CNMANLASER
• Origin：Shandong
• HS Code：8456110090
• Production Capacity：500 Set,Month

Basic Info.

Model NO. MAN-30 Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model 20W/30W Marking Area 110mmx110mm; Repeat Frequency 10kHz- 100kHz Voltage 220V/50Hz Markingspeed 7000mm Marking Depth 0-0.5mm Positioning Way Red Light Cooling Mode Air Cooling Software Ezcad Software Certification Ce FDA Transport Package Wooden Box Specification 800*900*1150 mm Trademark CNMANLASER Origin Shandong HS Code 8456110090 Production Capacity 500 Set/Month

Product Description

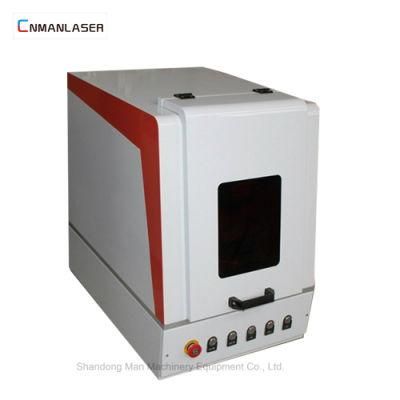

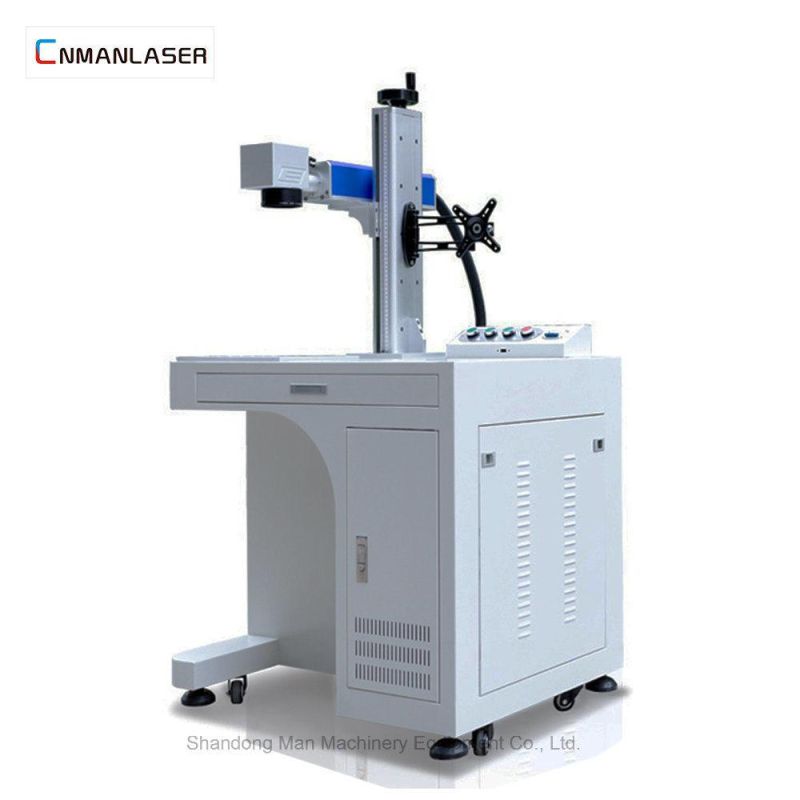

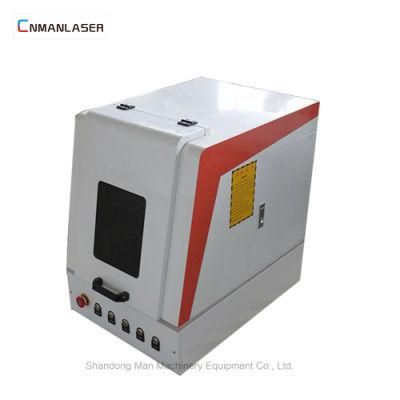

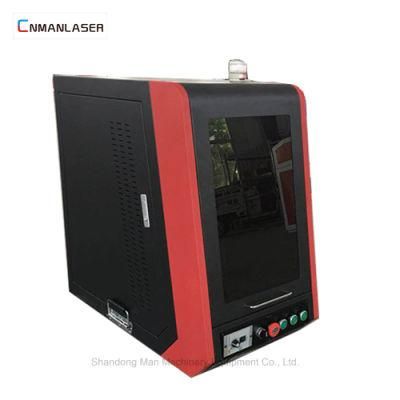

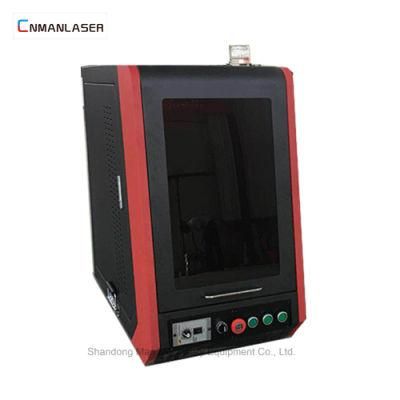

Optical Desktop  Laser Marking Machine for Buckles Watches Auto Parts



 PRODUCTION :



 TECHNICAL  PARAMETER :


Model	MAN-20/MAN-30
Laser power	20w(optional  30W 50W )
Working area	110*110mm,220*220mm,300*300mm Can be customized
Laser Wavelength	1064μm
Response time	0.5ms
Frequency of pulse	20KHz
Max marking depth	≤0.1mm
Marking speed	≤8000mm/S
Marking lines	1-10 lines(in the marking area)
Minimum line width	0.01mm
Marking content	Text,pattern,date,bar code,etc
Minimum character	0.3mm*0.3mm
Repeatability accuracy	±0.002mm
Resolution ratio	0.1mm
Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
Unit power	≤1.2KW
Operation system	Microsoft Windows XP or Windows 2000
Control software	China RF marking control software or  laser2.1 marking control software
Operation temperature	5°C-40°C
Relative moisture	≤ 90%,no fog
Supply Voltage	220V/50Hz/10A
Cooling method	Air cooling (100w: Water Cooling)

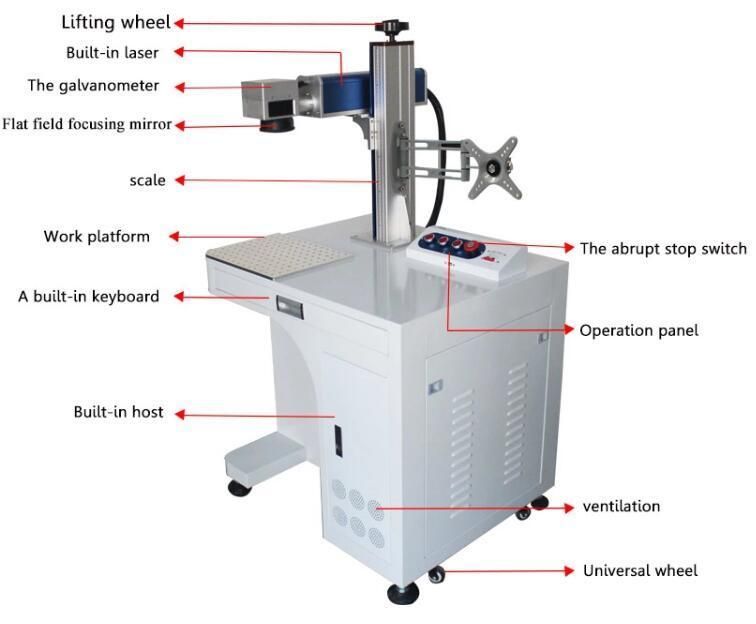

 DETAILS   IMAGES :



1. Field Lens

Equipped with automatic scanning system, friendly operation process. With 7000mm/s marking speed, ±0.001 mm repeat precision.


2. F-theta Scan Field Len

To provide precision laser focusing performance. Standard 110*110 marking area

3. Control Panel Box

Humanized control system, easy to learn, safe and convenient, dust proof design

With cooling hole, dust-proof and thermal design to protect the main control board.

Ensure laser source work beyond 100,000 hours.

4. Aluminum Work Table

 To configure the positioning hole for quick and easy positioning, position adjustable.

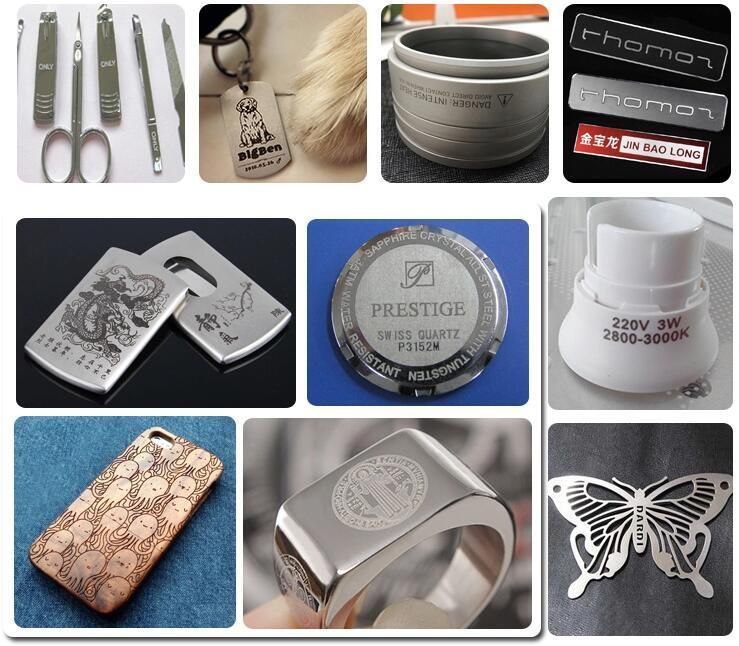

 SAMPLE SHOW :



 PACKAGING &  SHIPPING :

1. Standard plywood case, its compressive strength and bearing quality is better.

2. the board area is bit, the soil structure is good,  it is better in leakproofness and waterproof.

3.when importing, the plywood case is with fumigation-free, the procedure is simple.

4.Delivery Detail: within 20-25 days after received your payment




CERTIFICATION :


FAQ :


1) This is the first time I use this kind of machine, is it easy to operate?

There is an English manual also a guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

We provide 3 years  warranty, if you there is any problem when you receive CNC machine, just feel free to contact us.

3)What is your MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you?

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why i choose you ?

A. Because we are the manufacturer, we can keep the quality for you.

B. At the same quality grade, our products' price is better.

C. At the same products' price level, our service is better

D.Short delivery time 2-3 days after confirming the ordery.
