Protect Cover Mini Laser Marking Machine with FDA Ce Certificate

Shandong Man Machinery Equipment Co., Ltd.
  • Laser Visibility:Invisible
  • Applicable Material:Metal
  • Cooling System:Air Cooling
  • Technical Class:Pulse Laser
  • Laser Wavelength:Fiber Laser
  • Laser Classification:Semiconductor Laser

Base Info

  • Model NO.:MAN-20
  • Type:Optical Fiber Laser Marking Machine
  • Marking Method:Scanning Marking
  • Model:20W,30W
  • Marking Area:110mmx110mm;
  • Repeat Frequency:10kHz- 100kHz
  • Voltage:220V,50Hz
  • Markingspeed:7000mm
  • Marking Depth:0-0.5mm
  • Positioning Way:Red Light
  • Cooling Mode:Air Cooling
  • Software:Ezcad Software
  • Certification:Ce FDA
  • Transport Package:Wooden Box
  • Specification:860*360*760mm
  • Trademark:CNMANLASER
  • Origin:Shandong
  • HS Code:8456110090
  • Production Capacity:500 Set,Month

Description

Product name laser marking machine laser power    10W/20W/30w/50w/100wLaser Wavelength1064nmLight beam quality<2Repeating precision±0.002etching range110x110mm/ 200x200mm /300x300mm,etcetching depth0.01~1mmMarking speed7000mm/sMinimum character0.15mmMinimum line width0.01mmRepeating frequency20KHz~30KHzGraphic format supportedbmp,png,ai,dxf,dst,pltworking voltage220V±10%/50Hz/4AControl interfaceStandard USB portWorking environmentClean and dust free or dust lessLaser module life100000 hours

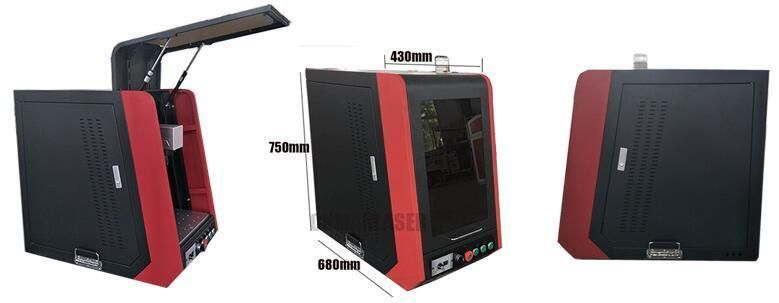

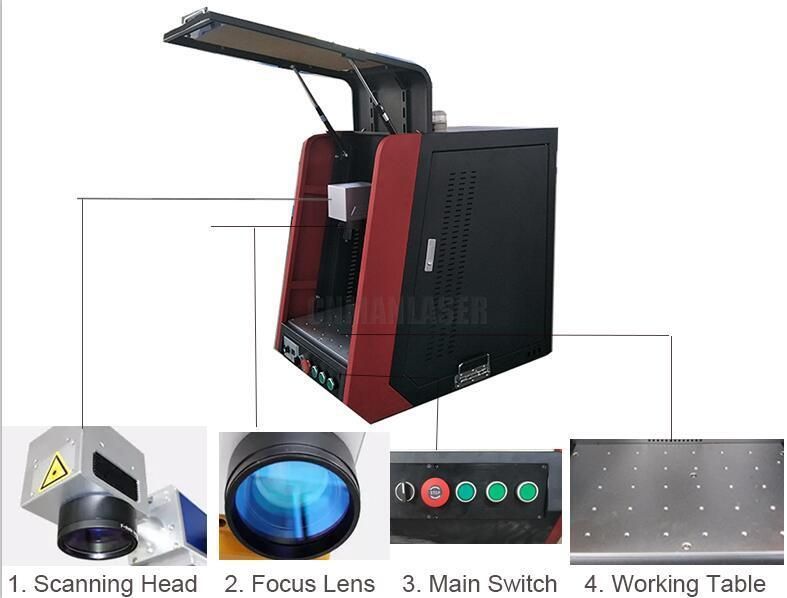

 DETAILS   IMAGES :

Protect Cover Mini Laser Marking Machine with FDA Ce Certificate

Protect Cover Mini Laser Marking Machine with FDA Ce Certificate


1. Small size and light weight

2. Excellent beam quality:

This series of fiber laser marking machines are much better than the traditional marking machine, condensation diameter is less than 20um,

divergence angle is 1/4 of the semiconductor pumping source laser, used in accurate marking

3. Low use-cost:

high turnover ratio between electricity and laser, the whole machine power consumption is less than 500W,

which is 1/10 of light pumping source laser

4. Maintenance-free Operation:

There is no need of any maintenance for laser, or to adjust /clean the lens

5. Fast marking speed, 2-3 times faster than the traditional marking machine.

6.Long working life:

using fiber laser as pumping source, the working hours can reach as long as 100,000 hours

7. Rotary worktable system is optional, thus, accomplish marking on cambered surface.

8. Air-cooling, no water chiller like YAG laser marker, easy transportation, also have the portable type.

9.This machine cannot be affected by bad environment and the temperature change.



Optional Laser Parts :

2D/3D worktable

2D worktable allow you to adjust table in X/Y direction.

3D worktable allow you to adjust table in X/Y/Z direction.


Rotary Attachment

you can mark cylindrical and round objects using rotary attachment.

allows you to mark rotating objects so that the laser always works in focus


F-theta Lens

you can choose different F-theta scan lens for different laser working area. 70mm x 70mm, 110mm x 110mm , 200 x 200mm, 300 x 300 mm

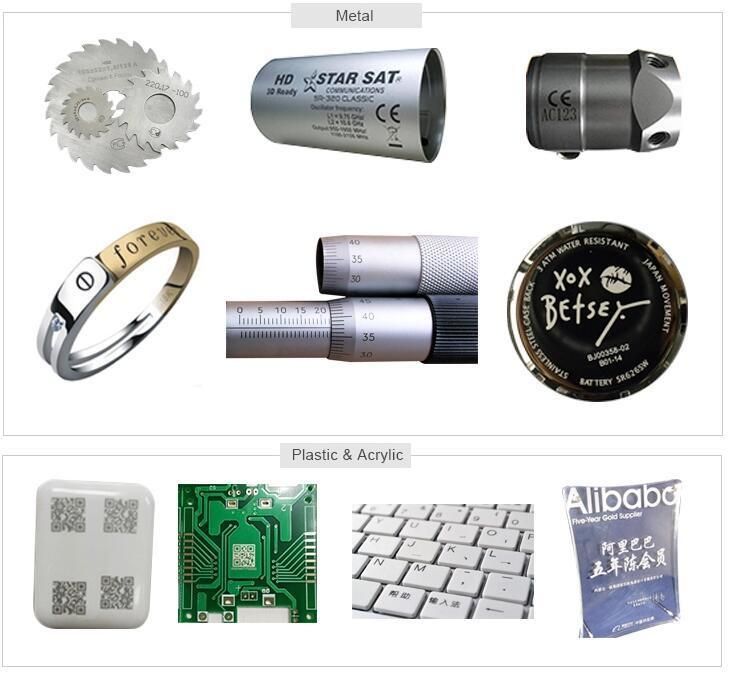

 SAMPLE SHOW :

Protect Cover Mini Laser Marking Machine with FDA Ce Certificate

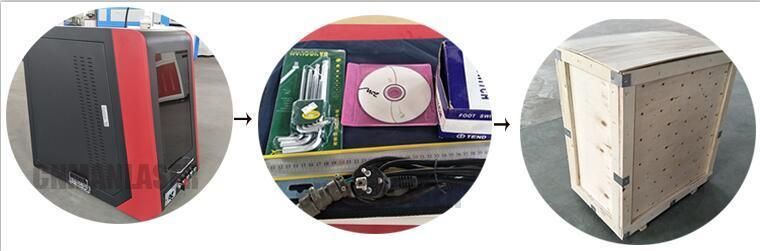

 PACKAGING &  SHIPPING :


Packaging

Inner wrapping film and outer plywood case

Shipping

FOB, CIF, DDU etc., by sea, by train, by air, by express

Payment

T/T, Alibaba trade assurance, L/C at sight, Western Union, Moneygram

Delivery time:

7-15 working days after deposit


Protect Cover Mini Laser Marking Machine with FDA Ce Certificate
CERTIFICATION :
Protect Cover Mini Laser Marking Machine with FDA Ce Certificate


FAQ :

1.How to get the most suitable machine and best price?

  Please tell us the material you want to working on?

How to working on it? Engraving?Cutting?

Or other?What's the MAX size of these material?( length? Width? Thickness?)

2.Do you have the manual of machine?

  Yes,we have

3.If we do not know how to use the machine,can you teach us?

  Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.

And if you are busy,we will have the special engineer to your country,but you need to pay some fee,like tickets, hotel and meal.

4.How about your after-sales service?

  We offer you 24 hours service phone,Skype or MSN.

5.How about your guarantee period?

   3  years.

6.How about the documents after shipment?

 We'll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and others as  required by clients.
