Metal Gifts 30W Mini Small CNC Fiber Laser Marking Machine

Shandong Man Machinery Equipment Co., Ltd.
  • Laser Visibility：Invisible
  • Applicable Material：Metal
  • Cooling System：Air Cooling
  • Technical Class：Pulse Laser
  • Laser Wavelength：Fiber Laser
  • Laser Classification：Semiconductor Laser

Base Info

  • Model NO.：MAN-30
  • Type：Optical Fiber Laser Marking Machine
  • Marking Method：Scanning Marking
  • Model：20W,30W
  • Marking Area：110mmx110mm;
  • Repeat Frequency：10kHz- 100kHz
  • Voltage：220V,50Hz
  • Markingspeed：7000mm
  • Marking Depth：0-0.5mm
  • Positioning Way：Red Light
  • Cooling Mode：Air Cooling
  • Software：Ezcad Software
  • Certification：Ce FDA
  • Transport Package：Wooden Box
  • Specification：860*360*760mm
  • Trademark：CNMANLASER
  • Origin：Shandong
  • HS Code：8456110090
  • Production Capacity：500 Set,Month

Description

TypeFiber laserPower20W 30W 50WLaser Wavelength1064nmMarking Area110*110mm,150mm*150mmMarking Depth≤1mmMarking Speed7000mm/secondMinimum Line Width0.01mmMinimum Character0.15mmRepeated Precision±0.002mmLife-span of Fiber Laser Module100 000hoursBeam QualityM2 <1.5Laser Wavelength  1064nm Output Power of Laser10%~100% continuously to be adjustedSystem Operation EnvironmentWindows XP / W7--32/64bits / W8--32/64bitsCooling ModeAir cooling--Built-inTemperature of Operation Environment15ºC~35ºCPower Input110/220V ± 10% /,50/60HZPower Requirement<500WCommunication InterfaceUSB2.0Machine Dimension/with package900*800*1150mmNet Weight/gross weight70kg/100kgOptional (Not free of charge)Rotary Device

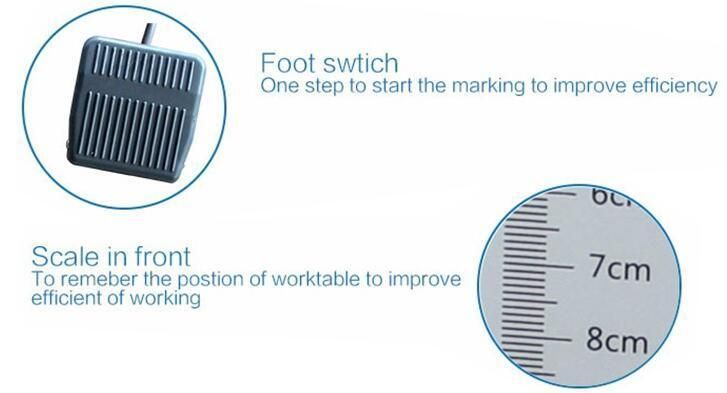

                          DETAILS   IMAGES :

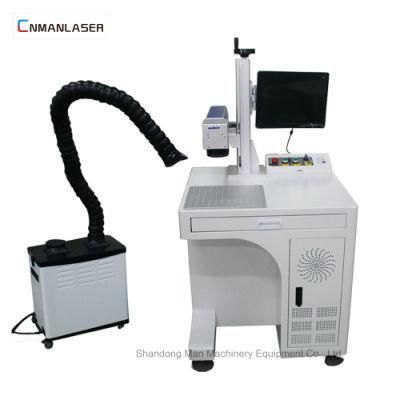

Metal Gifts 30W Mini Small CNC Fiber Laser Marking Machine
Metal Gifts 30W Mini Small CNC Fiber Laser Marking Machine

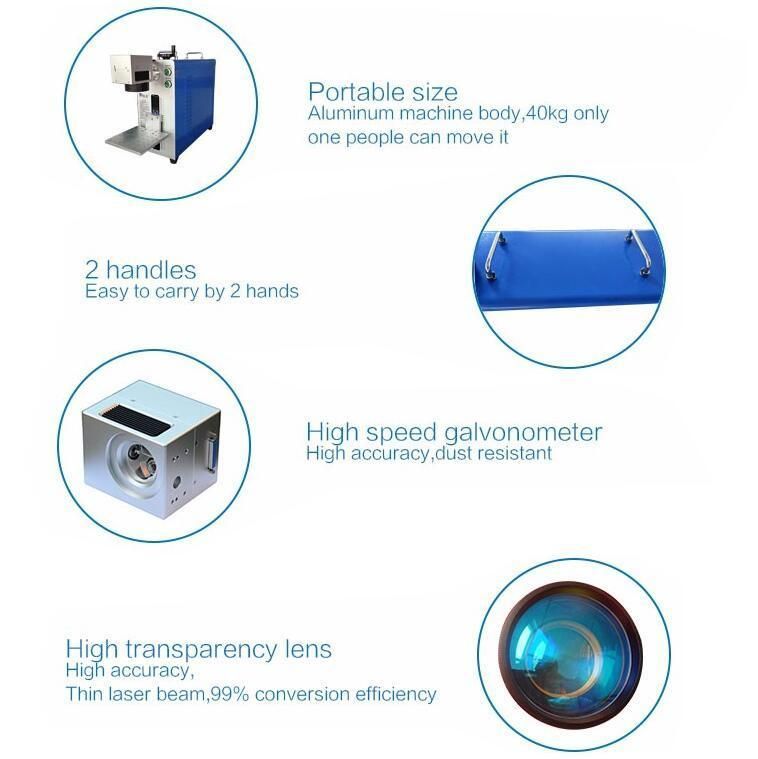

                                ADVANTAGE :

Advantage :

1. Laser power:Fiber 20w/30W/50W, different power have the different price

2. Working area:100*100mm/175*175mm /300*300mm ,etc...

3. Use for : metal and nonmetal mark

4. Working table : aluminum alloy table

5. Red point : clear the working path

6. Cooling system : air cooling

7.Marking head : galvanometer and field lens

8. Platform : up-down platform

9. Control system : PC

10. Control software : EZCAD

11.Warranty : 2 years and life long service

 I Computer & Software:

1. User friendly interface, easy operation.

2. Set and deal different layers graphic in separate.

3. Support PLT, PCX, AL, DXF, BMP, JPG formats file.

4. Compatible AutoCAD, CorelDraw, Photoshop, etc. software.

5. Automatic serialization, date coding letter, symbol, pattern, figure, image, bar code, 2D code auto arrangement and amendment.

                        SAMPLE SHOW :

Applicable materials:

It is suitable for label-creation of hardware and cutting tools,kitchen knives,plasticproducts,computer keyboards,integrated

circuits,packaging,bottles,glasses,sanitary appliance and so on.

Applicable industry:

This machine is widely used in mobile button , plastic transparent button , electronic parts , IC , tools , communication products , bathing products ,

tool accessories , glasses and watches , jewelry , button decoration for boxes and bags , cookers , stainless steel products and so on.
Metal Gifts 30W Mini Small CNC Fiber Laser Marking Machine

                PACKAGING &  SHIPPING :
 1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;3. Customers specifying freight forwarders or negotiable shipping methods!4. Delivery Time: 7 daysMetal Gifts 30W Mini Small CNC Fiber Laser Marking Machine

                                   SERVICES  :

After- sale services:

1). 24 hours technical support by Email or phone Calling.

2). English manual and video for machine using and maintaining.

3). Portable : 3 years on all parts (without person damaged).

                       Software: Whole life on update for free.

                     Maintenance and technological support: Whole life.

4). Engineers available to service machinery overseas.

                   Company Information :

Shandong Man Machinery Equipment  Co.,Ltd. is a industiral machine manufacture.

By far,our machines have seen sold to all round the world , Nowadays, more and more factories and distributors choose us,

because they realized good reliable quality with reasonable prices is the basic of long-term business.


Our products as below:

Fiber laser marking machine;

UV laser marking machine;

Co2 laser marking machine;

Laser Engraving Machine

 Laser Cutting Machine

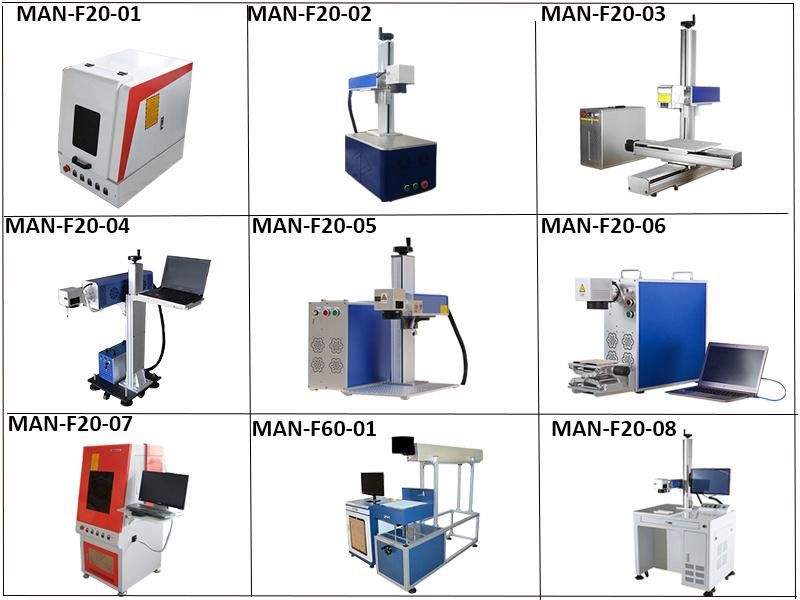

More Choose  :

Metal Gifts 30W Mini Small CNC Fiber Laser Marking Machine
