• Model NO.：DW20F
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Marking Area：110*110mm or Customized
• Marking Speed：≤8000mm,S
• Max.Marking Depth：≤0.4mm
• Marking Lines：1-10 Marking Lines
• Minimum Line Width：0.01mm
• Minimum Character：0.15mm
• Repeatability Accuracy：±0.002mm
• Operating Temperature：5-40ºC
• Machine Warranty：2 Years
• Machine Color：Can Be Customized
• Transport Package：Plywood Box, Free of Fumigation
• Specification：Machine can be customized
• Trademark：Dwin
• Origin：Jinan City, China
• HS Code：8656100009
• Production Capacity：500 Sets Every Year

Basic Info.

Model NO. DW20F Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Marking Area 110*110mm or Customized Marking Speed ≤8000mm/S Max.Marking Depth ≤0.4mm Marking Lines 1-10 Marking Lines Minimum Line Width 0.01mm Minimum Character 0.15mm Repeatability Accuracy ±0.002mm Operating Temperature 5-40ºC Machine Warranty 2 Years Machine Color Can Be Customized Transport Package Plywood Box, Free of Fumigation Specification Machine can be customized Trademark Dwin Origin Jinan City, China HS Code 8656100009 Production Capacity 500 Sets Every Year

Product Description

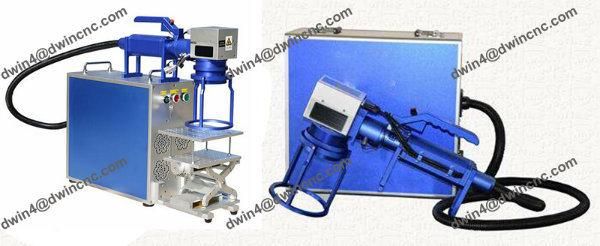

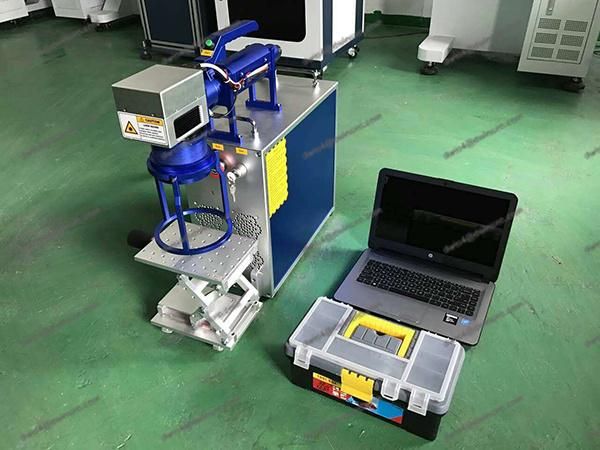

portable mini 20W Metal Fiber Laser wire Marking Machine price


Features of fiber laser marking machine for metals
1. Fmous-brand semi-conductor module, beam quality good, and laser power is stabile, life time over 10k hours.
2. Sharp laser beam, high speed and precise marking, beam stable and reliable, low processing costs.
3. Software: with red preview, mirror marking, graphical alignment, hierarchical set parameters functions.
4. With professional constant temperature water cooling system, 24-hour continuous working is reliable. Be applicable to production lines.
5. Under WINDOWS interface, compatible with files outputted from software such as CORELDRAW,
AUTOCAD,   PHOTOSHOPetc. Support PLT, AI, DXF, BMP and others, directly using SHX, TTF font.
6. Rotary equiment optional 8,no consumable 9.make mark on metal with perfect sign. cable laser marking machine
Technical Data:

No.	Description	Parameter
1	Marking area	110*110mm(option:150*150mm,200*200mm,300*300mm)
2	Laser power	10W (20w/30w/50w,etc for option)
3	Marking speed	≤8000mm/S
4	Max.Marking Depth	≤0.4mm
5	Laser Wavelength	1064nm
6	Marking lines	1-10 marking lines(in the marking area)
7	Minimum line width	0.01mm
8	Minimum character	0.15mm
9	Resolution ratio	0.01mm
10	Repeatability accuracy	±0.002mm
11	Operating temperature	5-40ºC
12	Unit Power	≤500W
13	Graphic format supported	BMP,JGP,PNG,DXF, etc.
14	Supply Voltage	110V/50HZ/10A(option:220V)

Machine samples
Any metal and nonmetal materials,flexible paper label/industrial plastic/rubbers/powder-coating/electroplate materials and so on. Automotive vechile/automobile part/motorcycle parts/sanitary ware/telecom apparatus/electronic parts/plastic key button/integrated circuit(IC) and so on.


 DWIN certificate
