• Model NO.：LS-YLP-20,30,50L
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Model：Ls-Ylp-20L
• Laser Power：20W;30W;50W;100W
• Power Consumption：<500W
• Wavelength：1064nm
• Engraving Range：Max 300*300mm(Customized)
• Engraving Depth：1.2mm
• Minimum Line Width：0.012mm
• Minimum Character：0.1mm
• Repeated Accuracy：+-0.003mm
• Life of Laser Module：100000hrs
• Beam Quanlity：M2<1.3
• Power Requirement：220V,Single Phase,50Hz,<4A
• Cooling Mode：Air Cooling
• Environment Humidity：20%-80%
• Focus Spot Diameter：<0.01mm
• Transport Package：Wooden Case
• Specification：980*800*1590
• Trademark：Lospeed or Customized
• Origin：China
• HS Code：8456100090
• Production Capacity：50 Sets , Month

Basic Info.

Model NO. LS-YLP-20/30/50L Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Model Ls-Ylp-20L Laser Power 20W;30W;50W;100W Power Consumption <500W Wavelength 1064nm Engraving Range Max 300*300mm(Customized) Engraving Depth 1.2mm Minimum Line Width 0.012mm Minimum Character 0.1mm Repeated Accuracy +-0.003mm Life of Laser Module 100000hrs Beam Quanlity M2<1.3 Power Requirement 220V/Single Phase/50Hz/<4A Cooling Mode Air Cooling Environment Humidity 20%-80% Focus Spot Diameter <0.01mm Transport Package Wooden Case Specification 980*800*1590 Trademark Lospeed or Customized Origin China HS Code 8456100090 Production Capacity 50 Sets / Month

Product Description

High Power Ipg Laser Marking Machine For Keyboard Marking, High Solution Fast Speed Laser Marking Machine With EU Standard Plug With CE Certificate




--- Laser Machine Description:
This is convenient LoSpeed laser marking machine with work table, muilt-function. Equipped with Raycus laser source, offer strong laser power and strong laser beam. Suit for marking all metal,especially for gold/silver copper cutting and engraving patterns, characters, and other graphics that
need to be etched.



--- Laser Machine Features:

1. The optical fiber laser marking machine uses the laser beam to mark the surface of various substances permanently.
2. 100000 Hours Long lifetime, No consumables, Free of Maintenance.
3. High Precision Reposition precision is 0.003mm
4. High Speed  High quality laser scanning system makes the marking speed up to 7000mm/s
5. Air Cooling Adopts air cooling,excellent cooling effect than the other cooling method
6. Long life time up to 70,000-100,000hours

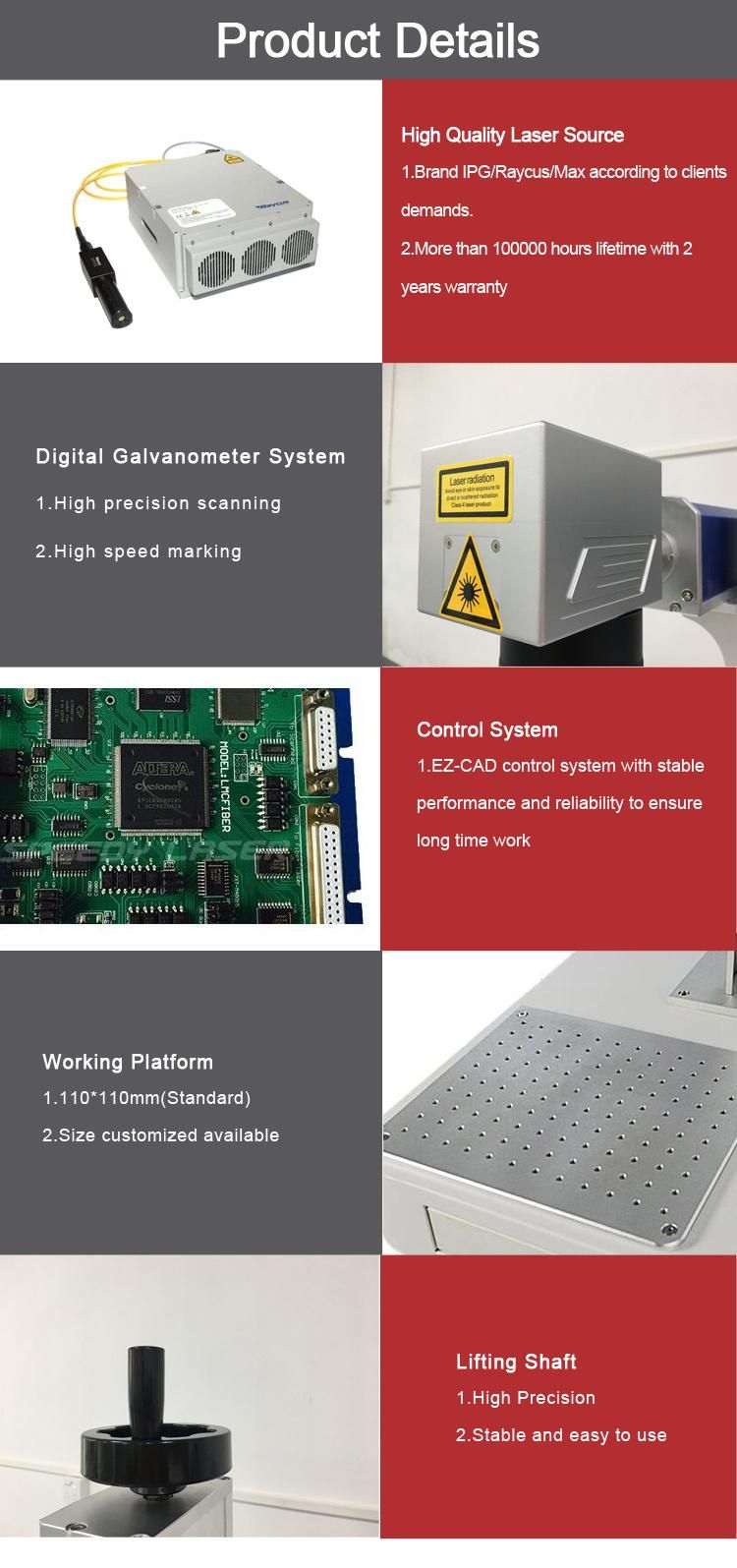

--- Machine Detail:



--- Laser Machine Working Video link:


Lospeed Fiber laser marking Machine LS-YLP-20L	https://hispeedlaser.en.made-in-china.com
Lospeed Fiber laser marking Machine LS-YLP-30L	https://hispeedlaser.en.made-in-china.com
Lospeed Fiber laser marking Machine LS-YLP-50L	https://hispeedlaser.en.made-in-china.com

--- The marking scope can be optional, the bigger marking scope the bigger lens and the higher focus length. LoSpeed technicians recommend the match as below:


Model	Laser Power (W)	Marking scope recommend (mm)	Focus length (mm)
LS-YLP-20L	20	70*70/100*100	100/160
LS-YLP-30L	30	70*70/100*100/150*150/200*200	100/160/210/290
LS-YLP-50L	50	70*70/100*100/150*150/200*200/220*220/300*300	100/160/210/290/330

--- LoSpeed Sample Show:



--- Free sample marking:
LoSpeed Laser Team offer free sample testing, you just need to send us your file and samples, and your requiremnt.
we will do marking here and make video to show you the effect. If need, we will send sample back to you for checking quality.

--- Customized machine design:
According to customer's application, LoSpeed Laser may revise our machine accordingly for customer's convenience and
high production efficiency.



--- Working Shop:





LoSpeed Regular training:





--- Our service:


1	Free Pre-Sales Consulting / Free Sample Marking
2	Strict Quality Control of Production
3	5-7 Days Quick Delivery
4	2 Year Quality Guarantee
5	12 hours Quick Feedback & After-Sales Service
6	Quick Back-up Parts Available & Technical Assistance
7	Free Training Service
8	Special Designing, Customized, OEM Order is accepted



1	What's the package?
	We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2	Will the package damaged during transportation?
	Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
3	How to install and run the machine?
	Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

If you are planning purchase laser marking machine from China, LoSpeed Laser is your best Option!
