• Model NO.：J1390
• Laser Classification：Solid Laser
• Engraving Method：Vector Engraving
• Transport Package：Exported Standard Packing with 5cm Foam by Wooden
• Specification：206cmx134cmx112cm
• Trademark：Refine
• Origin：China
• HS Code：8479
• Production Capacity：2000 Set,Sets Per Month

Basic Info.

Model NO. J1390 Laser Classification Solid Laser Engraving Method Vector Engraving Transport Package Exported Standard Packing with 5cm Foam by Wooden Specification 206cmx134cmx112cm Trademark Refine Origin China HS Code 8479 Production Capacity 2000 Set/Sets Per Month

Product Description

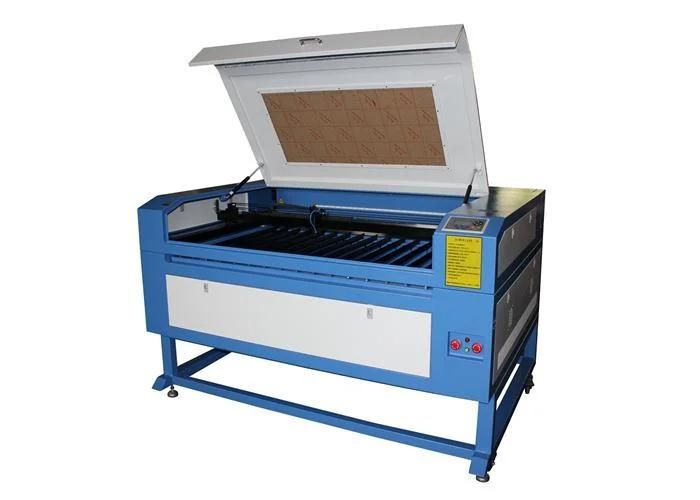

100w 1390mm Co2 laser cutter and engraving machine



Main Features:

1) Red dot positioning Synchronize with the laser, which make the operation more convenient.
2) Ensure the accuracy higher than similar models on the market.
3) Knives and cellular dual cutting platform can meet the cut requirement of a variety of products.
4) Wide range of applications: Advertising industry, Office industry, Packing industry, Gift industry, Decoration industry, Printing Industry.


Advantages of Laser REFINE brand
1.Offering the specification for the machine, one year warranty.
2.English software, user manual and operation video
3.24 hours technical support by email, calling, if you have any problems, we will within 12 hours to solve it.
4.During the warranty period, if any part is broken, we will provide for free.
5.Packing: Plywood case export standard package
6.Shipment time: Within 7 working days after receive the payment. in the meanwhile, we will report the production process in time.



Laser cutting and engraving machine for professional use.
Cut and engrave non-metallic materials with a maximum depth of 15mm
Works with materials in acrylic, leather, rubber for stamp, eva, mdf, glass, jeans, bamboo, porcelain etc.
Supports CAD and CorelDraw files.
It features an aluminum cutting table that reduces damage to the material due to laser reflection.
Cutting table with waste tank.
Safety alarm in case of overheating.
Large memory capacity making it possible to work offline Motorized up-down platform.


Specifications:
Cutting area: 1300x900mm
Laser Power: 80W / 100w
Power Supply: 80W / 100w
Laser System: Laserwork (RuiDa)
Reflective lens F25: Internal
Focus F20 Lens: Internal
Cooler: Professional Cooling Cw3000
Maximum processing speed: 30000mm / min.
Maximum scanning accuracy: 2500dpi
Memory capacity: 128mb
Position accuracy: 0.01mm
Supported image formats: HPGL / BMP / DXF / NC / DWG / PLT
Cutting thickness: 15mm
Measures Width: 190cm  Length: 150cm  Height: 115cm   Weight: 400Kg
Packing size: 206cmx134cmx112cm
Gross weight: 480kg
net weight:300kg




Model	J1390
Laser type	Hermetic C02 glass tube
Laser power	80w/100w/130w/150w
Support software	Qiancheng software support CAD output
Working area	1300*900mm
Working speed	0-1000mm/s
cutting depth	0-15mm(according to material)
Location precision	0.01mm
Power supply	AC220V/110V  50/60HZ
Min carving character	words 2*2mm/Number 1*1mm
Work environment	5-40ºC   5-95%
Cooling way	Water cooling

FAQ:

1.Q:Why should you choose us?
A:If you choose us, you will get best quality, best service, best price, best warranty.

2.Q:I'm not familiar with the machine.
A:You just need to tell us materials, working size and thickness. I will recommend you the right machine.

3.How to operate the machine
A:We will deliver English manual and video with the machine to you. If you still need our help, please contact us.

4.Q:How can I get the sample to check you quality ?
A:If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.

5.Q:Do the machine can be customized according my requirements?
A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.

6.Q:Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW are available.
