• Model NO.：FLC1390
• Laser Technology：Laser Control Fault Cutting
• Laser Power：80W-180W
• Drive Type：Stepper Drive
• Control：CNC
• Certification：Ce
• Laser Type：CO2
• Current：AC
• Condition：New
• Usage：Wood, Acrylic, Leather, Marble, Rubber, Plastic ..
• Working Area：1300*900mm
• Transport Package：Plywood
• Specification：CE
• Trademark：flying
• Origin：China
• HS Code：8456100090
• Production Capacity：50PC,Month

Basic Info.

Model NO. FLC1390 Laser Technology Laser Control Fault Cutting Laser Power 80W-180W Drive Type Stepper Drive Control CNC Certification Ce Laser Type CO2 Current AC Condition New Usage Wood, Acrylic, Leather, Marble, Rubber, Plastic .. Working Area 1300*900mm Transport Package Plywood Specification CE Trademark flying Origin China HS Code 8456100090 Production Capacity 50PC/Month

Product Description

China leading manufacturer for CNC CO2 laser cutter FLC1390
Features:
  This laser machine can be applied to many kinds of materials, and has many advantages, such as smooth cutting edges, free from polishing, less noise, less dust, faster processing speed, higher precision, less waste and higher efficiency. It is the best option for upgrading traditional equipments in various industries.


Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc.

Applicable Materials:
Non-metal materials such as double color boards, acrylic, glass, wood planks, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc...

Cutting Thickness

Materials	60w	80w	100w	130w	150w
Acrylic	8mm	15mm	15mm	20mm	20mm
Leather Cloth	One layer	Two layer	Two layer	Three layer	Three layer
Wood	5mm	8mm	10mm	15mm	15mm
Paper	3mm	6mm	8mm	8mm	8mm
Plastic	4mm	5mm	5mm	7mm	7mm
Rubber	2mm	2mm	2mm	2mm	2mm
PVC	3mm	6mm	8mm	8mm	8mm
MDF	3mm	6mm	8mm	10mm	10mm
Plywood	6mm	10mm	12mm	15mm	18mm

Extra Features:1) Materials can extend through the front and rear doors to allow for a larger work product.2) Following LED Work light to help see products during laser processing.3) Red-Dot pointer to help you see the expected laser beam position.4) AutoFocus touch sensor to easily set the right height for best engraving and cutting.5) Parts tray for removing small parts or scrap from under the workbed.6) Fully enclosed laser case yields a class I (user friendly) laser product.
Specifications:

Model	FLC1390
Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	80W-180W
Working area	1300 x900mm
Max Engraving speed:	0-64, 000mm/min
Max cutting speed	0-30, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, BMP, JPEG, PLT, DST, DXF, and AI ...
Driving system	Stepper(Optional: Servo)
Cooling mode	Water-cooling and protection system
Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, chiller
Controller	DSP
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser power

Partial Working Partners:

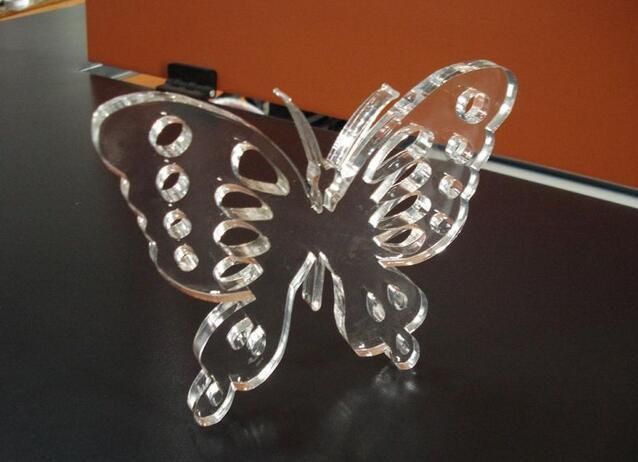

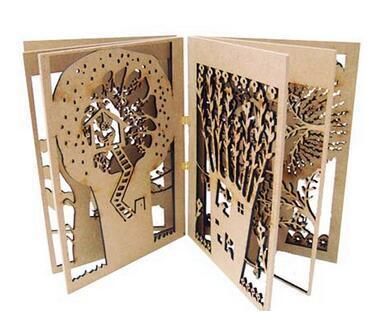

Samples Display:
