• Model NO.：FLC1325D
• Laser Technology：Laser Control Fault Cutting
• Laser Type：CO2
• Working Size：1300*2500mm
• Max Engraving Speed：60, 000mm,Min
• Max Cutting Speed：36, 000mm,Min
• Graphic Format Supported：Hpgl, JPEG, BMP, Plt, Dst, Dxf, and Ai ...
• Laser Power：60W-150W
• Transport Package：Plywood
• Specification：1325
• Trademark：flying
• Origin：China
• HS Code：8456100090
• Production Capacity：100PC,Month

Basic Info.

Model NO. FLC1325D Laser Technology Laser Control Fault Cutting Laser Type CO2 Working Size 1300*2500mm Max Engraving Speed 60, 000mm/Min Max Cutting Speed 36, 000mm/Min Graphic Format Supported Hpgl, JPEG, BMP, Plt, Dst, Dxf, and Ai ... Laser Power 60W-150W Transport Package Plywood Specification 1325 Trademark flying Origin China HS Code 8456100090 Production Capacity 100PC/Month

Product Description

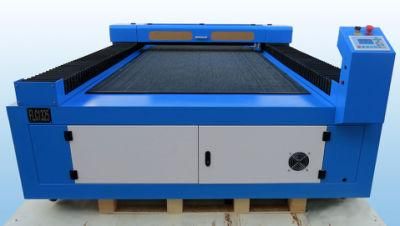

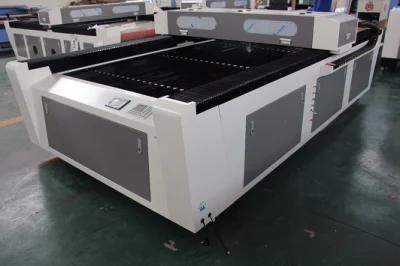

Big Area CNC Laser Double Heads Cutter Machine for Wood

Features:

    The working area of 1300×2500mm can meet the demands of engraving and cutting on large scale garments and cloth, leather, wood, arylic and paper industry. With dual laser heads, it is equal to two machines, which greatly improving the processing efficiency,especially for cutting of wood,acrylic,fabrics and flexible materials.

Applicable materials:

wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Applicable industries
advertisement, arts and crafts, shoes, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry.

Cutting Thickness in Main Materials:

Materials	60w	80w	100w	130w	150w
Acrylic	8mm	15mm	15mm	20mm	20mm
Leather Cloth	One layer	Two layer	Two layer	Three layer	Three layer
Wood	5mm	8mm	10mm	15mm	15mm
Paper	3mm	6mm	8mm	8mm	8mm
Plastic	4mm	5mm	5mm	7mm	7mm
Rubber	2mm	2mm	2mm	2mm	2mm
PVC	3mm	6mm	8mm	8mm	8mm
MDF	3mm	6mm	8mm	10mm	10mm
Plywood	6mm	10mm	12mm	15mm	18mm

Specifications:

Model	FLC1325D
Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	60w-150w
Working area	1300 x 2500mm
Max Engraving speed:	0-64, 000mm/min
Max cutting speed	0-30, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, JPEG, BMP, PLT, DST, DXF, and AI ...
Driving system	Stepper
Cooling mode	Water-cooling and protection system
Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, water pump
Controller	DSP
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser power

Samples Diaplay:
