• Model NO.：PE-100J
• Focus Length：254mm
• Max Power Consumptioneld：<450 Watts
• Storage Temperature Range：-10 - 60ºC
• Voltage：220V-50,60Hz
• Average Output Power：>100 Watts
• Output Fiber Cable Length：5 Meters
• Laser Power：100W
• Scanning Speed：10000 mm,S
• Transport Package：Export Wooden Case
• Specification：780*450*760mm
• Trademark：Perfect Laser
• Origin：Wuhan China
• HS Code：8456110090
• Production Capacity：5000PC Per Year

Basic Info.

Model NO. PE-100J Focus Length 254mm Max Power Consumptioneld <450 Watts Storage Temperature Range -10 - 60ºC Voltage 220V-50/60Hz Average Output Power >100 Watts Output Fiber Cable Length 5 Meters Laser Power 100W Scanning Speed 10000 mm/S Transport Package Export Wooden Case Specification 780*450*760mm Trademark Perfect Laser Origin Wuhan China HS Code 8456110090 Production Capacity 5000PC Per Year

Product Description

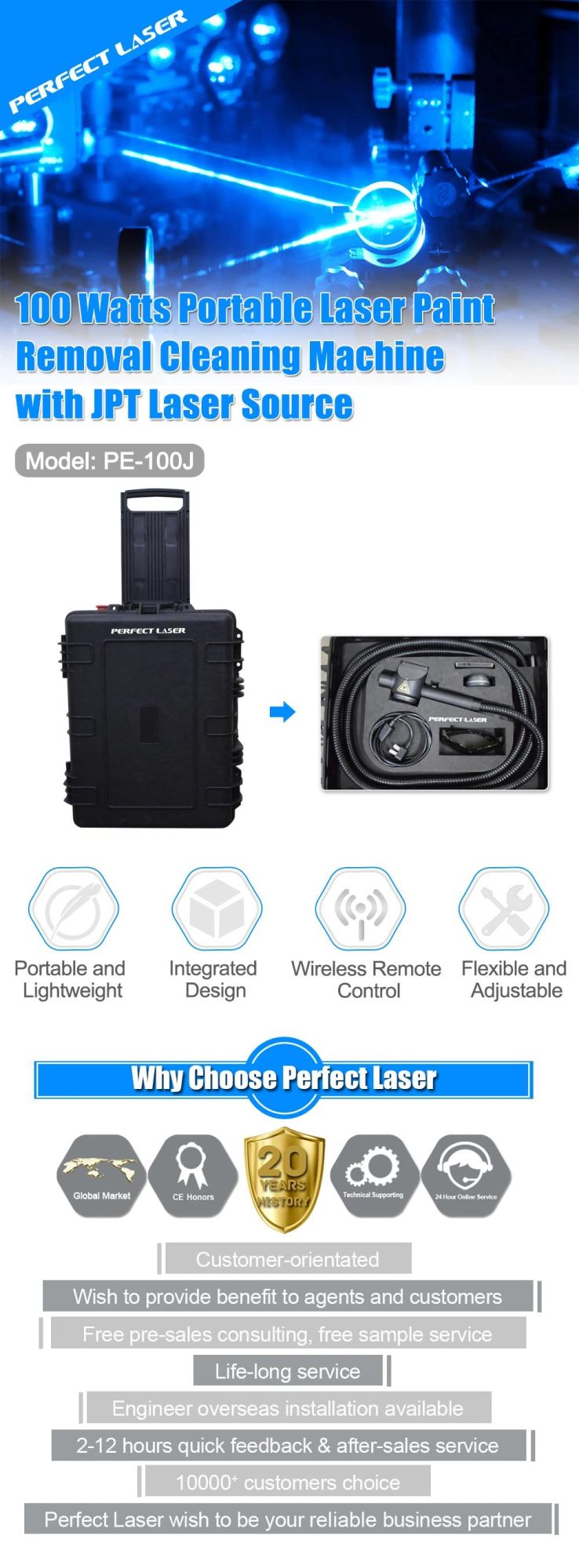

100 Watts Portable Paint Laser Removal Cleaning Machine
(PE-100J)
Contact: Emily

Product Description:

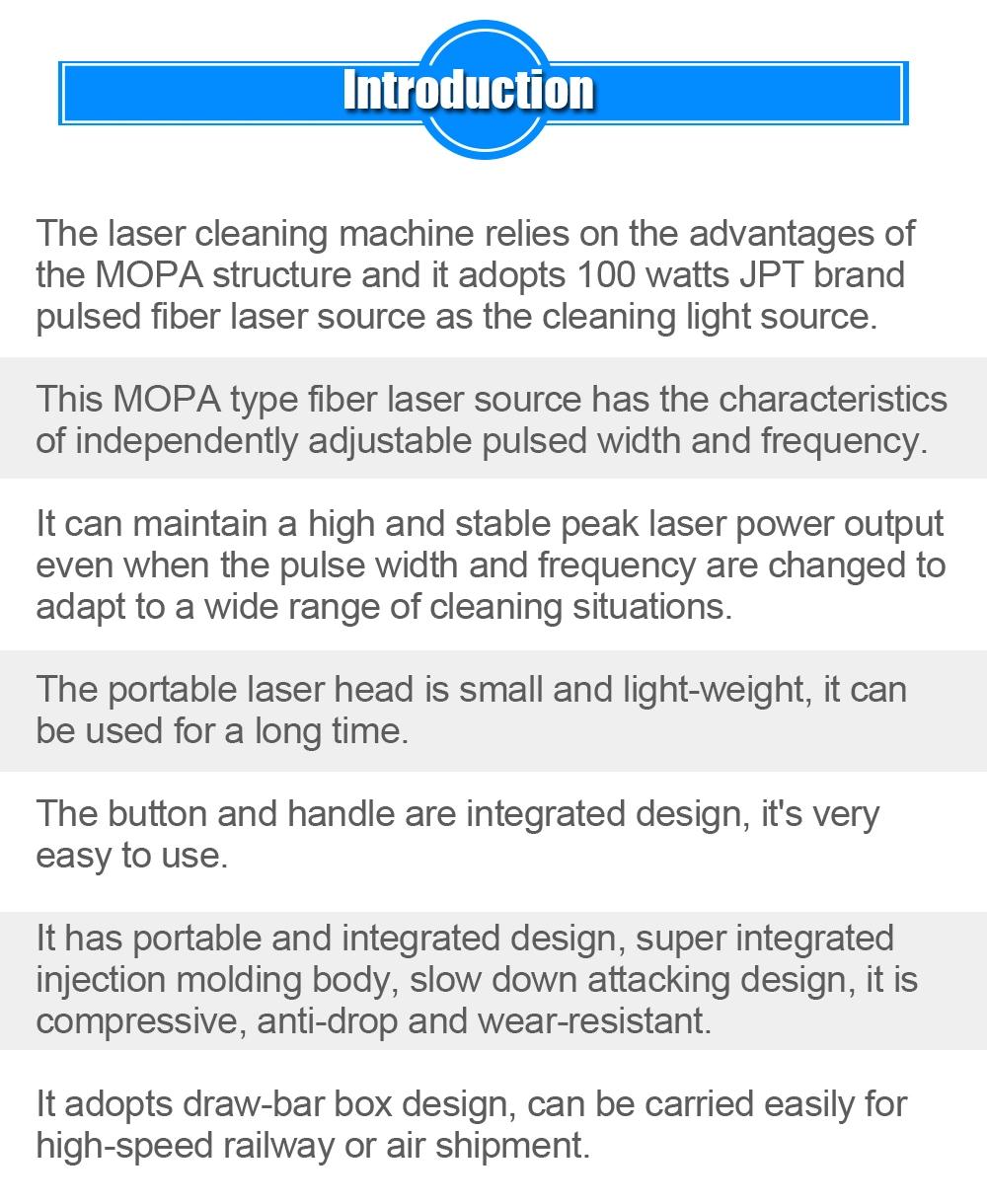

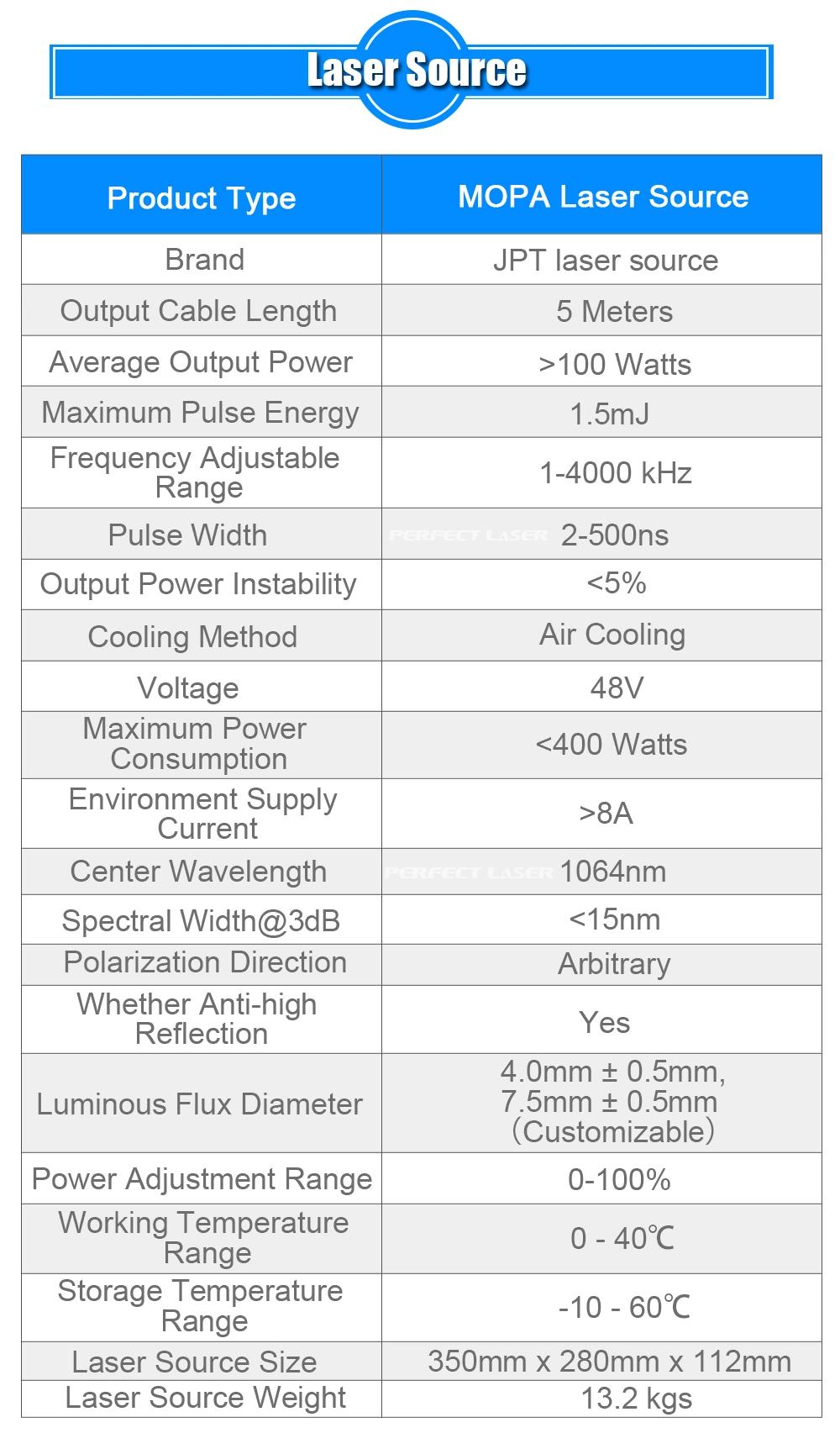

The 100 Watts Portable Paint Laser Removal Cleaning Machine relies on the advantages of the MOPA structure and it adopts 100 watts JPT brand pulsed fiber laser source as the cleaning light source.
This MOPA type fiber laser source has the characteristics of independently adjustable pulsed width and frequency.
It can maintain a high and stable peak laser power output even when the pulse width and frequency are changed to adapt to a wide range of cleaning situations.
The portable laser head is small and light, and the machine can be used for a long time. The button and handle are integrated design, which is simple and easy to use.
This laser paint removal machine with portable and integrated design, super integrated injection molding body, slow down attacking design, it is compressive, anti-drop and wear-resistant.
The laser cleaning equipment adopts draw-bar box design, can be carried easily for high-speed railway or air shipment.

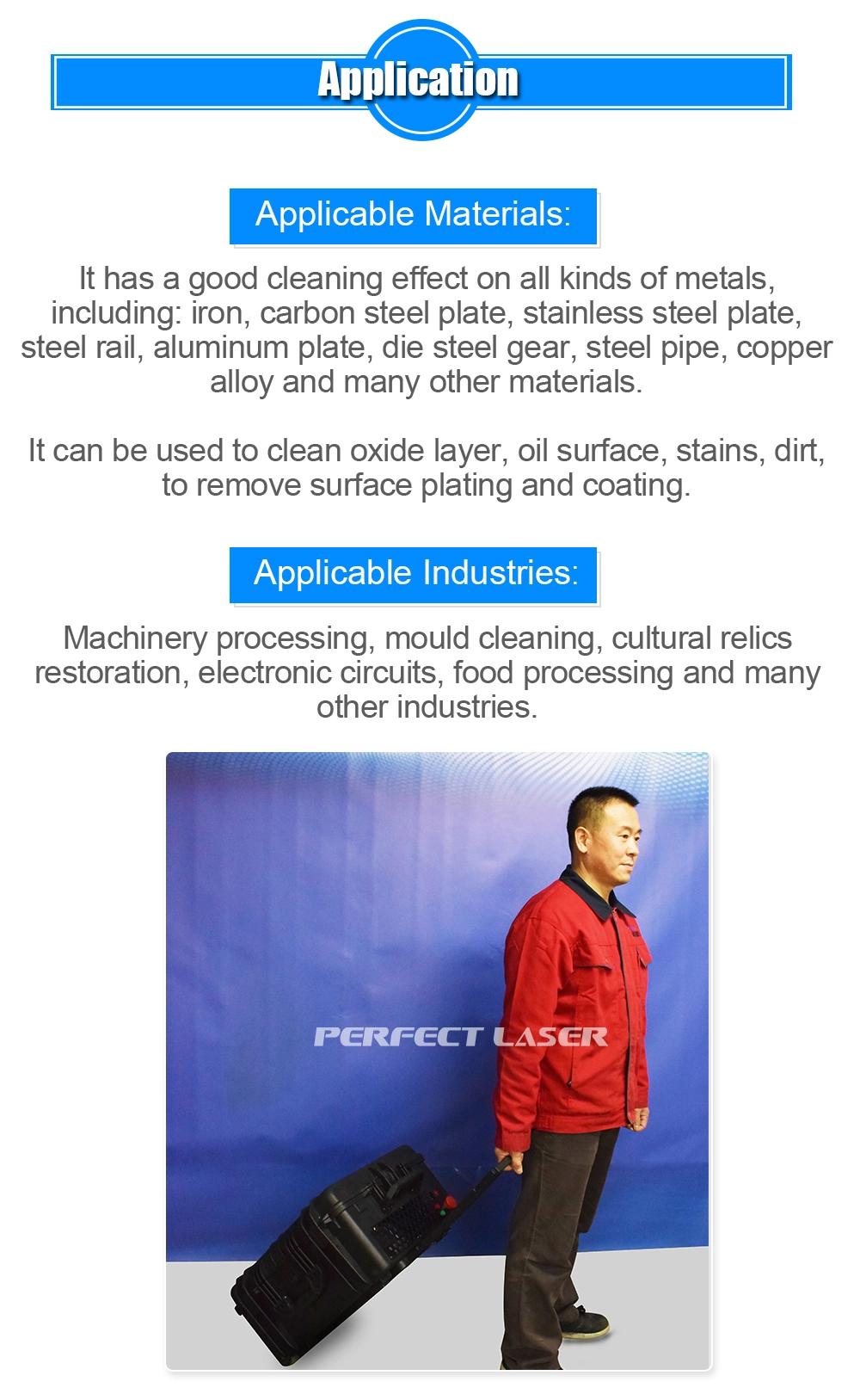

Application:

Applicable Materials:
This laser paint removal machine has a good cleaning effect on all kinds of metals, including: iron, carbon steel plate, stainless steel plate, steel rail, aluminum plate, die steel gear, steel pipe, copper alloy and many other materials.

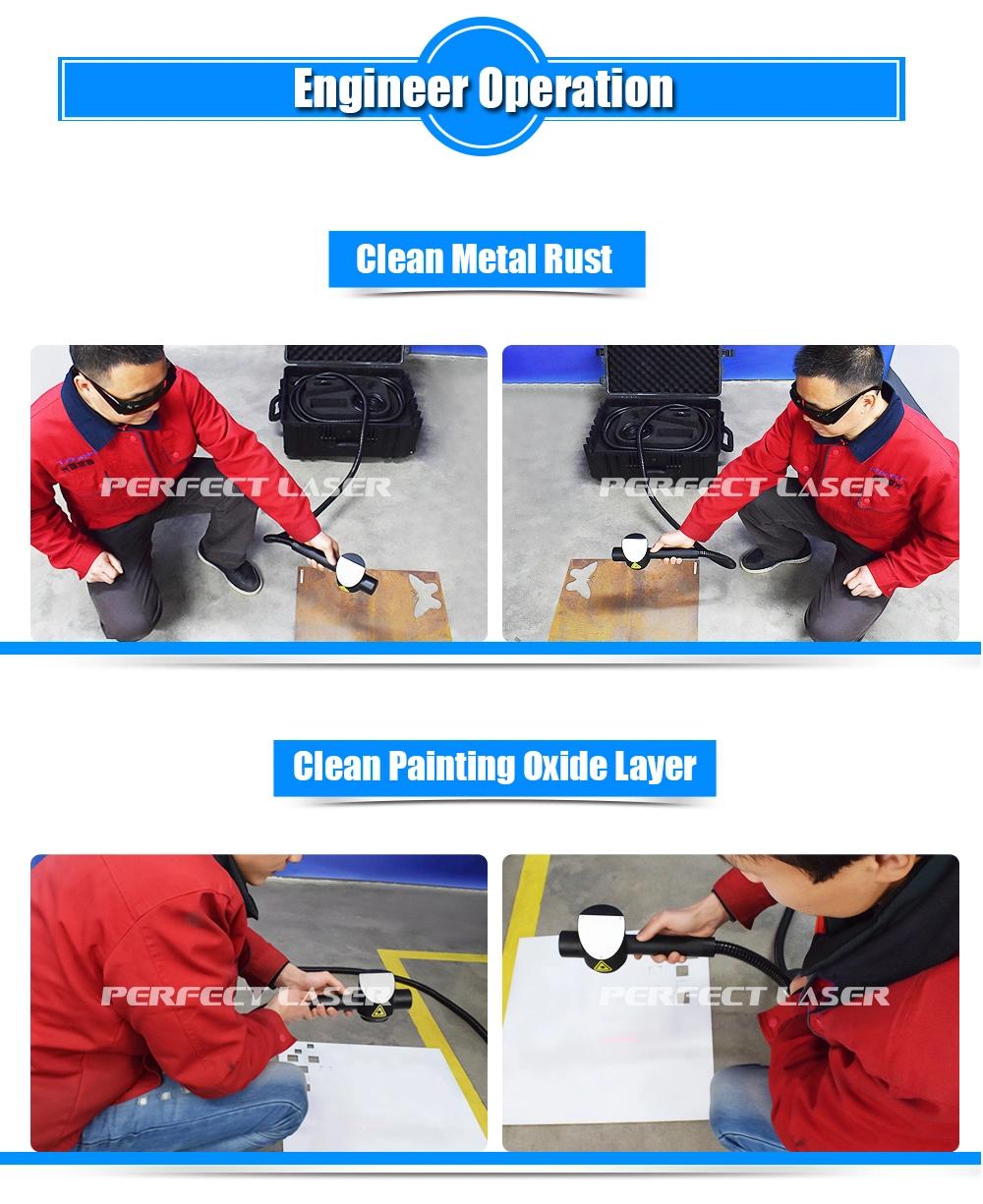

It can be used to clean oxide layer, oil surface, stains, and dirt, to remove surface plating and coating.

Applicable Industries:
Machinery processing, mould cleaning, cultural relics restoration, electronic circuits, food processing and other industries.

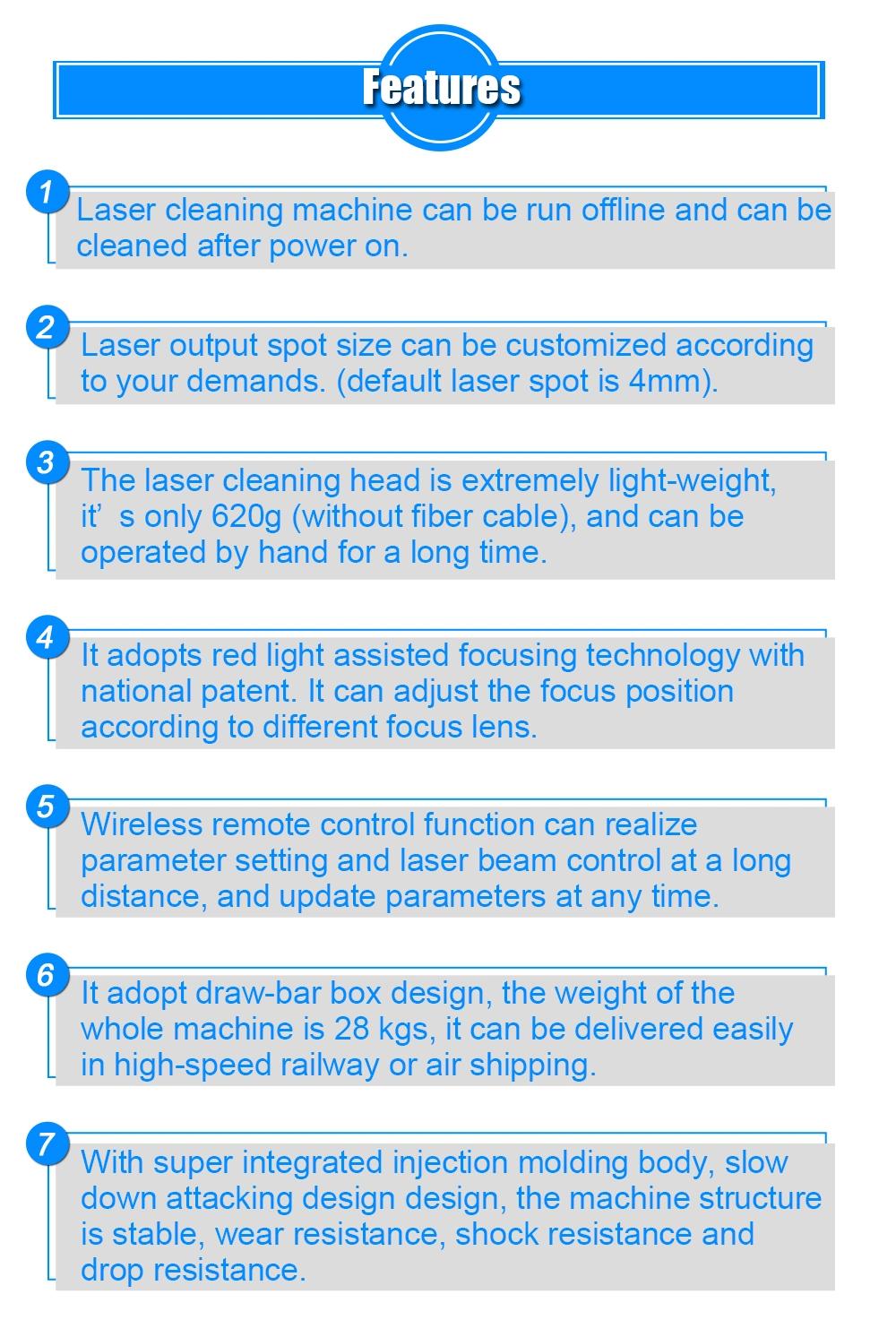

Product Features:
1. The laser metal cleaner can be run offline and can be cleaned after power on.
2. Laser output spot size can be customized according to your demands. (default laser spot is 4mm).
3. The laser cleaning head is extremely lightweight, it's only 620g (without fiber cable), and can be operated by hand for a long time.
4. The laser metal cleaner adopts red light assisted focusing technology with national patent. It can adjust the focus position according to different focus lens.
5. Wireless remote control function can realize parameter setting and laser beam control at a long distance, and update parameters at any time.
6. It adopt draw-bar box design, the weight of the whole machine is 28 kgs, it can be delivered easily in high-speed railway or air shipping.
7. With super integrated injection molding body, slow down attacking design design, the machine structure is stable, wear resistance, shock resistance and drop resistance.

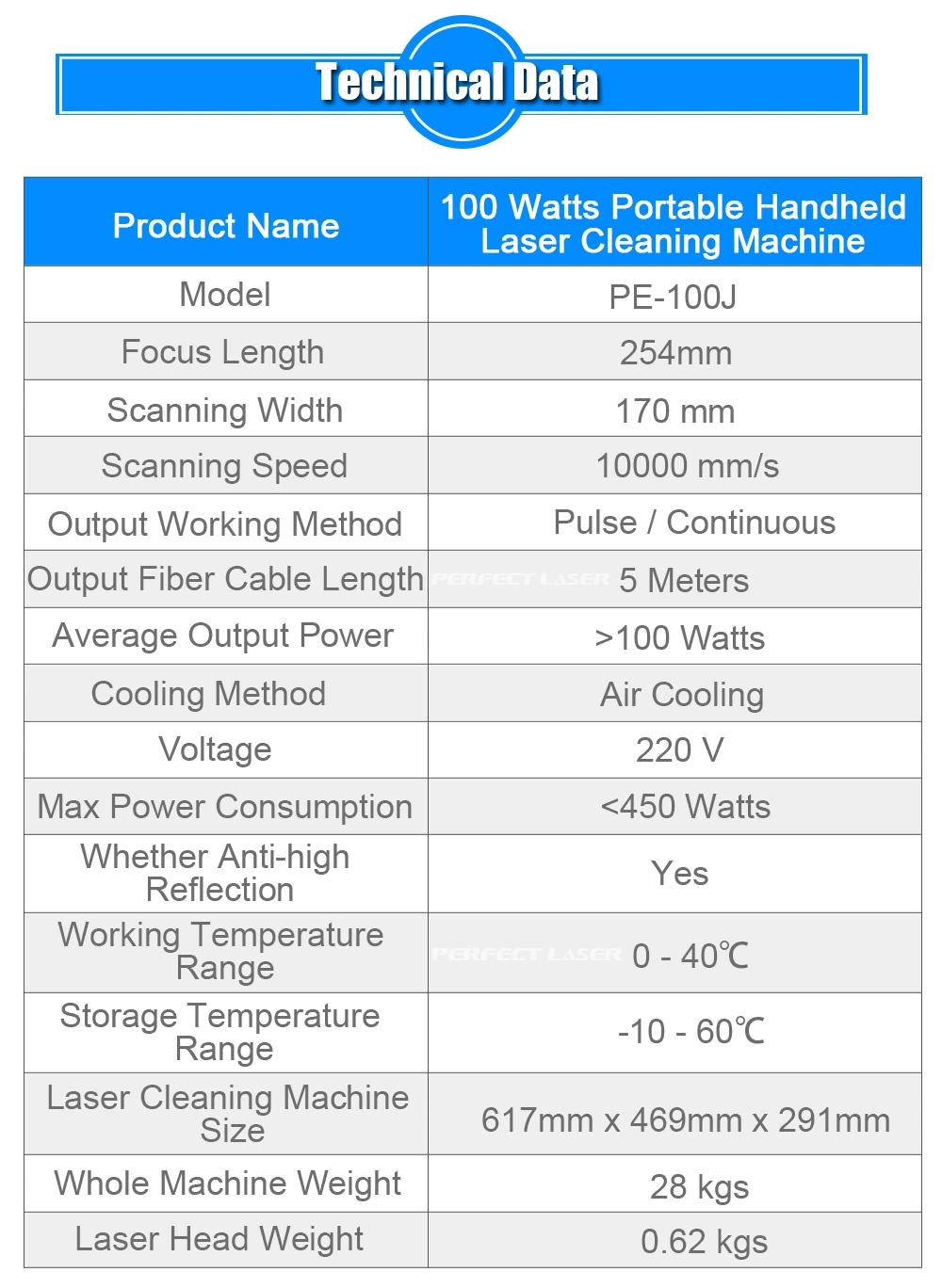

Technical Parameters:

Product Name	100 Watts Portable Handheld Laser Paint Removal Machine
Model	PE-100J
Focus Length	254mm
Scanning Width	170 mm
Scanning Speed	10000 mm/s
Output Working Method	Pulse / Continuous
Output Fiber Cable Length	5 Meters
Average Output Power	>100 Watts
Cooling Method	Air Cooling
Voltage	220 V
Max Power Consumption	<450 Watts
Whether Anti-high Reflection	Yes
Working Temperature Range	0 - 40ºC
Storage Temperature Range	-10 - 60ºC
Laser Cleaning Machine Size	617mm x 469mm x 291mm
Whole Machine Weight	28 kgs
Laser Head Weight	0.62 kgs

 After-sale Service
1. 3-year guarantee for laser source.
2. Full technical support by e-mail, call, and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staff.
