Paint Removal Rust Removal Machine 100W 200W 300W

Fortune Laser Technology Co., Ltd.
  • After-sales Service：Online Support, Video Technical Support
  • Power：100w
  • Control Type：Handheld
  • Warranty：1 Year
  • Laser Power：50W 100W 200W Optional
  • Laser Source：Jpt,Max,Raycus Optional

Base Info

  • Model NO.：FL-C100
  • Fiber Cable Length：1.5m-3m, 2-5m
  • Laser Wavelength：1060nm
  • Pulse Energy：1mj, 1.5mj
  • Pulse Frequency：1-3000kHz
  • Cooling：Air Cooling
  • Dimension：300*160*450mm, 500*300*650 mm
  • Transport Package：Standard Wooden Case
  • Trademark：FORTUNE LASER
  • Origin：China
  • HS Code：8456110090

Description

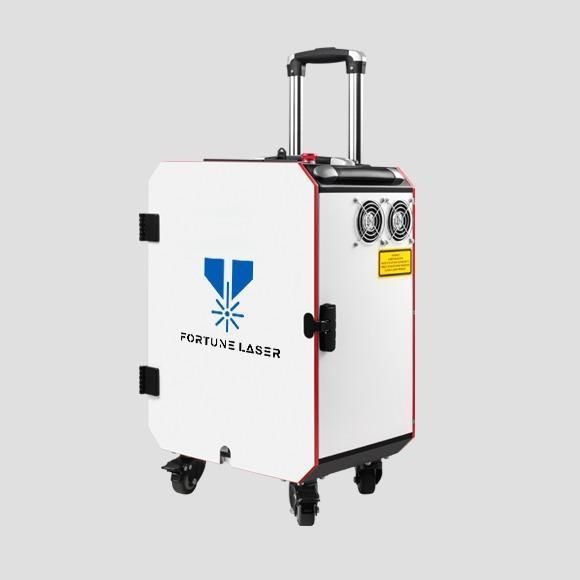

Suitcase type is same as a travel case, very easy to take along and move.

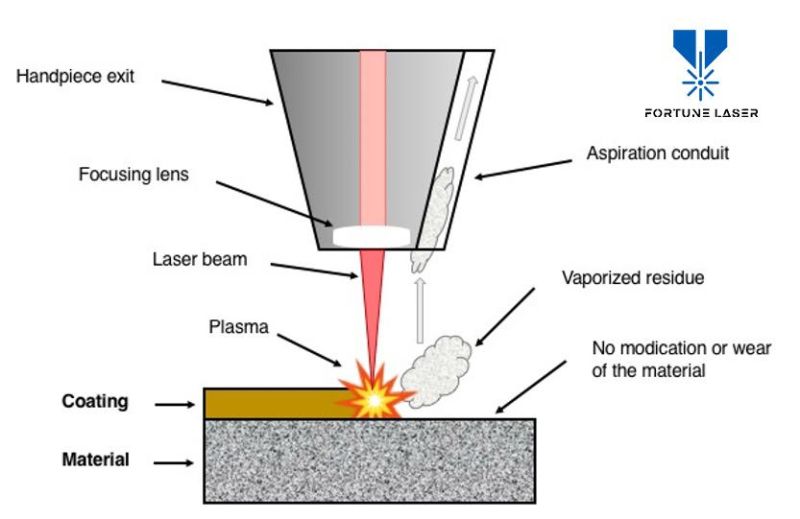

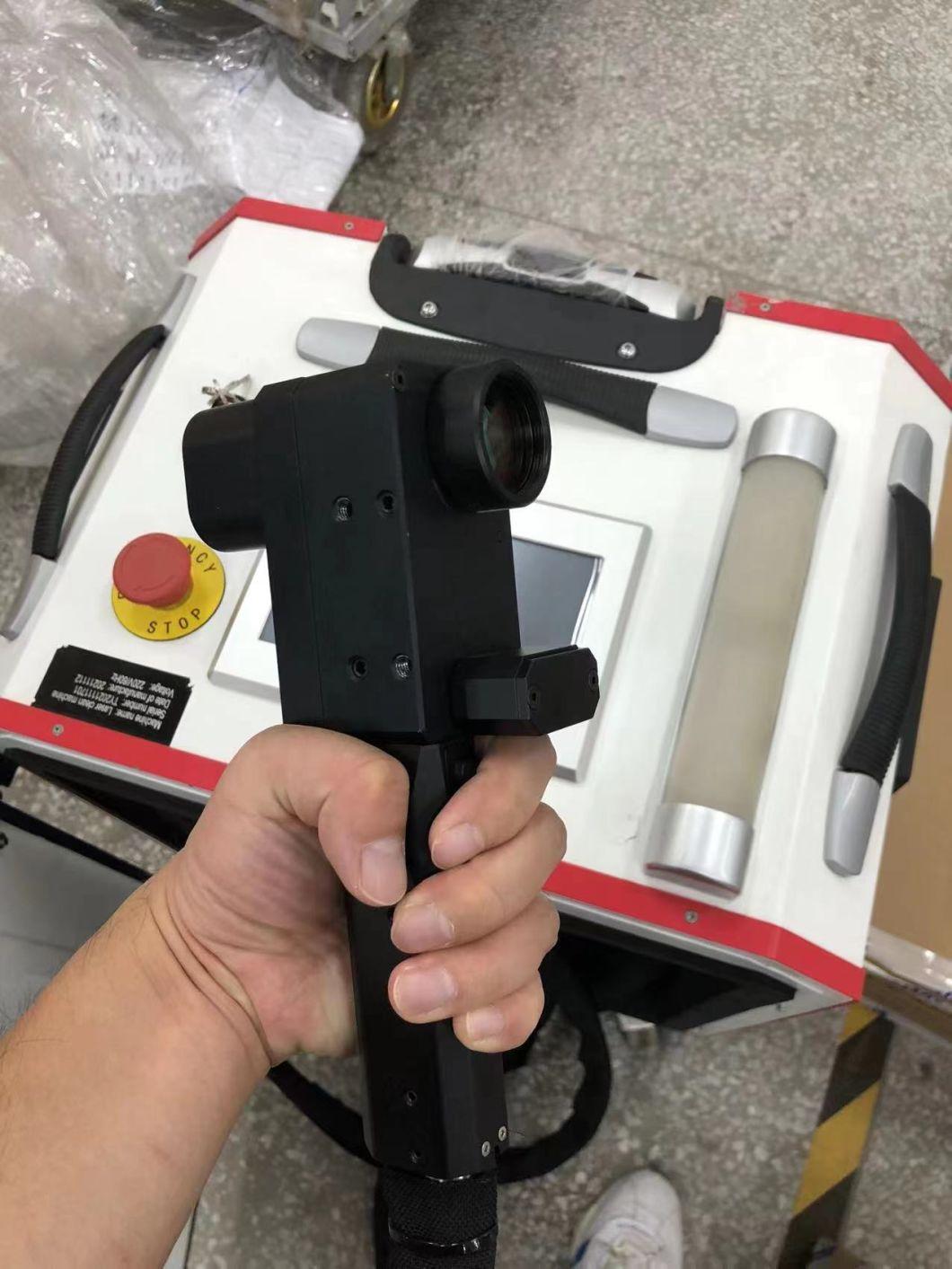

 Paint Removal Rust Removal Machine 100W 200W 300WLaser head, lightweight to carry, easy to operate, output different share laser beam, like wave, circle and square.
 Paint Removal Rust Removal Machine 100W 200W 300W

Machine Parameters
ModelRL-C200SRL-C100SRL-C50S
Laser sourceFiberFiberFiber
Laser Power200W100W50W
Fiber cable length2-5M2-5M1.5-3M
Laser Wavelength1064nm1064nm1064nm
Pulse Energy1.5 mJ1.5 mJ1mJ
Pulse frequency1-4000KHz1-4000KHz1-1000KHz
Scanning speed0-7000mm/s0-7000mm/s0-7000mm/s
CoolingAir coolingAir coolingAir cooling
Dimension600*350*800mm500*300*650 mm300*160*450mm
Net Weight60KG33KG18KG
G.W.87KG37KG21KG
Beamwidth10-170mm10-100mm10-70mm
OptionalManual/AutoManualManual
Cleaning HeadDual AxisDual / Single AxisSingle Axis
Temperature5-40 ºC5-40 ºC5-40 ºC
VoltageSingle Phase AC 220V,50/60HZSingle Phase AC 220V, 50/60HZSingle Phase AC 220V, 50/60HZ
