Laser Cleaning Machine 100W Pulse Laser Cleaning Machine

Fortune Laser Technology Co., Ltd.
  • Control Type：Handheld
  • Warranty：1 Year
  • Laser Power：50W 100W 200W Optional
  • Laser Source：Jpt,Max,Raycus Optional
  • Fiber Cable Length：1.5m-3m, 2-5m
  • Laser Wavelength：1060nm

Base Info

  • Model NO.：FL-C100
  • Pulse Energy：1mj, 1.5mj
  • Pulse Frequency：1-3000kHz
  • Cooling：Air Cooling
  • Dimension：300*160*450mm, 500*300*650 mm
  • Transport Package：Standard Wooden Case
  • Trademark：FORTUNE LASER
  • Origin：China
  • HS Code：8456110090

Description

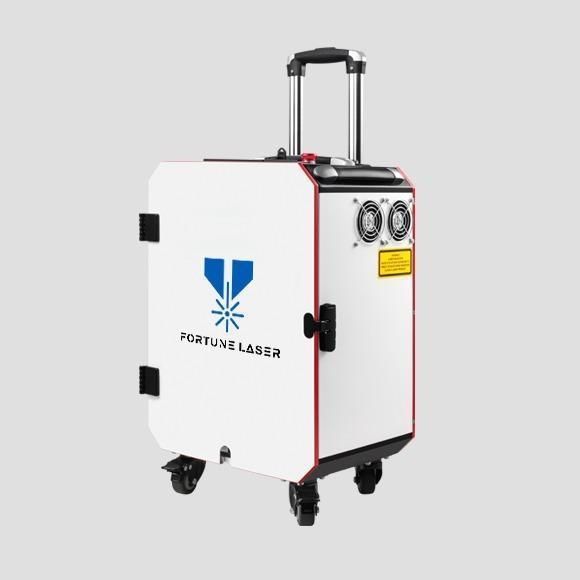

Suitcase type is same as a travel case, very easy to take along and move.

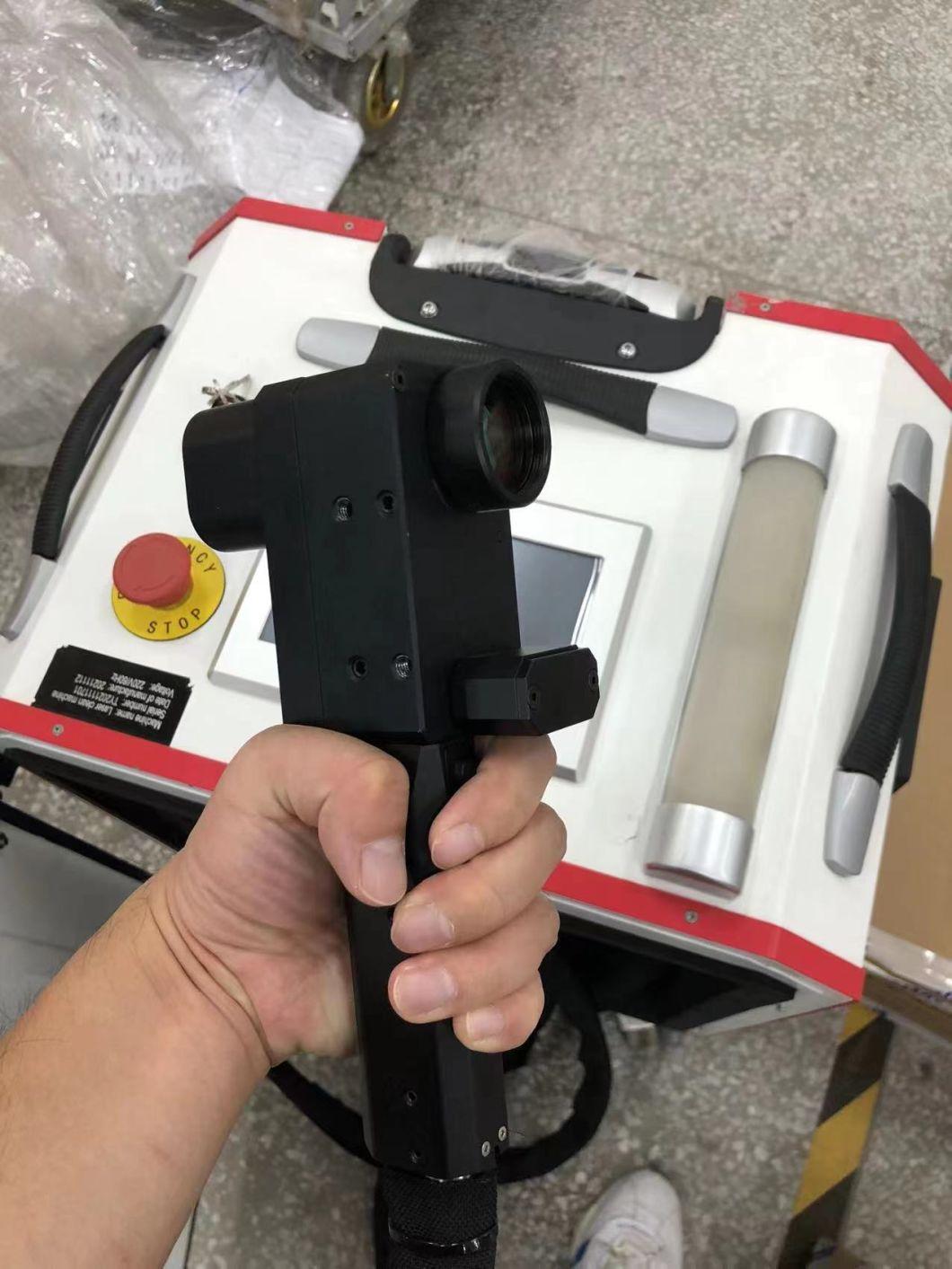

 Laser Cleaning Machine 100W Pulse Laser Cleaning MachineLaser head, lightweight to carry, easy to operate, output different share laser beam, like wave, circle and square.
 Laser Cleaning Machine 100W Pulse Laser Cleaning Machine

Machine Parameters
ModelRL-C200SRL-C100SRL-C50S
Laser sourceFiberFiberFiber
Laser Power200W100W50W
Fiber cable length2-5M2-5M1.5-3M
Laser Wavelength1064nm1064nm1064nm
Pulse Energy1.5 mJ1.5 mJ1mJ
Pulse frequency1-4000KHz1-4000KHz1-1000KHz
Scanning speed0-7000mm/s0-7000mm/s0-7000mm/s
CoolingAir coolingAir coolingAir cooling
Dimension600*350*800mm500*300*650 mm300*160*450mm
Net Weight60KG33KG18KG
G.W.87KG37KG21KG
Beamwidth10-170mm10-100mm10-70mm
OptionalManual/AutoManualManual
Cleaning HeadDual AxisDual / Single AxisSingle Axis
Temperature5-40 ºC5-40 ºC5-40 ºC
VoltageSingle Phase AC 220V,50/60HZSingle Phase AC 220V, 50/60HZSingle Phase AC 220V, 50/60HZ
