• Model NO.：FLC1512D
• Laser Technology：Laser Control Fault Cutting
• Control Mode：CNC
• Cutting Mode：Laser
• Type：Laser
• Working Area：1500*1200mm
• Laser Power：60W-150W
• Transport Package：Plywood
• Specification：CE
• Trademark：FLYING
• Origin：China
• HS Code：8456110090
• Production Capacity：100PC,Month

Basic Info.

Model NO. FLC1512D Laser Technology Laser Control Fault Cutting Control Mode CNC Cutting Mode Laser Type Laser Working Area 1500*1200mm Laser Power 60W-150W Transport Package Plywood Specification CE Trademark FLYING Origin China HS Code 8456110090 Production Capacity 100PC/Month

Product Description

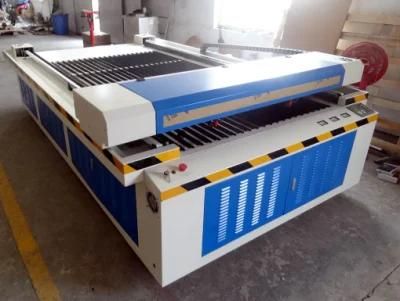

CNC laser wood acrylic cutting marble glass engraving machine 1512Features:
    This laser cutter adopts the most advanced DSP control technology, it is the pioneer to faster continuously curing-out and shortcut processing pathway optimizing function, accordingly increase greatly the efficiency. It automatically equalize the diminishing of light during the whole operating to ensure the same cutting effect in different area. High-speed cutting control software and buffer function in high-speed movement can improve production efficiency. The new software provides the direct output of original pictures, completely fit the graph formats such as CAD, CAM of CAD, Coreldraw software, to meet the practical design requirements of the end users. The advanced colors and the turns of the cutting, can realize the one-time output completely or partially.

Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc

Applicable Materials:
Non-metal materials such as double color boards, acrylic, glass, crystal, wood, foam, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc...


Extra Features:
1) Materials can extend through the front and rear doors to allow for a larger work product.
2) Following LED Work light to help see products during laser processing.
3) Red-Dot pointer to help you see the expected laser beam position.
4) AutoFocus touch sensor to easily set the right height for best engraving and cutting.
5) Parts tray for removing small parts or scrap from under the workbed.
6) Fully enclosed laser case yields a class I (user friendly) laser product.


Specifications:

Model	FLC1512
Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	60w-150w
Working area	1500*1200mm
Max Engraving speed:	0-60, 000mm/min
Max cutting speed	0-36, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, BMP, PLT, DST, DXF, and AI ...
Driving system	Stepper(Optional: Servo)
Cooling mode	Water-cooling and protection system
Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, water pump
Controller	DSP
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser power

Samples Show:
