• Model NO.：HSCO2-30W
• Type：CO2 Laser Marking Machine
• Marking Method：Scanning Marking
• Power：High Power
• Drive Type：Stepper Drive
• Current：AC
• Laser Type：CO2
• Usage：Plastic,Wood,Leather
• Certification：SGS, Ce, FDA, TUV
• Transport Package：Wooden Case
• Specification：CE, FCC, FDA, SGS, ISO
• Trademark：holylaser
• Origin：Yiwu Zhejiang China
• HS Code：8456100090
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. HSCO2-30W Type CO2 Laser Marking Machine Marking Method Scanning Marking Power High Power Drive Type Stepper Drive Current AC Laser Type CO2 Usage Plastic,Wood,Leather Certification SGS, Ce, FDA, TUV Transport Package Wooden Case Specification CE, FCC, FDA, SGS, ISO Trademark holylaser Origin Yiwu Zhejiang China HS Code 8456100090 Production Capacity 1000PCS/Year

Product Description

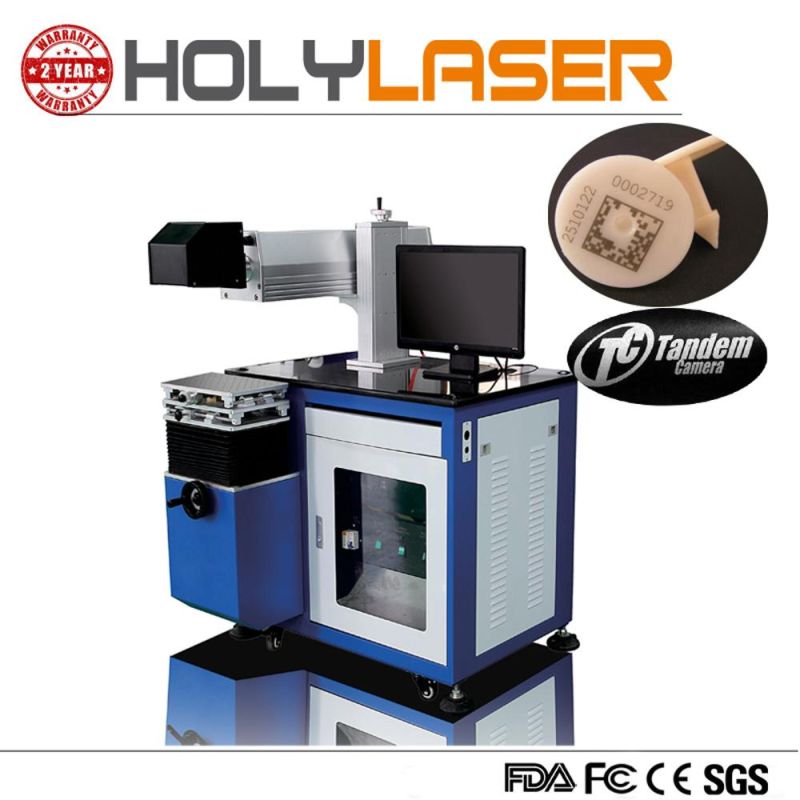

 CO2 Laser Marking Machine Nonmetal Laser Markigng machine HSCO2-30WDescription
CO2 laser nonmetal laser marking engrave machine HSCO2-30W is a gas laser marking machine whose frequency band wave length of infrared light is 10.64nm, CO2 gas is filled in the discharge tube as the medium to produce laser, when high voltage is added to the electrode, it will produce glow discharge in the discharge tube and then the gas molecule will discharge laser, after the energy of laser is strengthened it will form the laser beam to produce. Then computer controlled resonance mirror can change the path of the laser beam so that automatic marking can be accomplished.



Applicable Industry:
CO2 laser nonmetal laser marking engrave machine HSCO2-100W can mark a variety of non-metal materials. Widely Used in clothing accessories, medicine packaging, building ceramics, beverage packaging, rubber products, shell nameplates, craft gifts, electronic components, leather and other industries.

Available material:
CO2 laser nonmetal laser marking engrave machine HSCO2-100W can marking logo, brand, name, letter, picture, design on the surface of all nonmetal materials, like plastic, acrylic, wood, bamboo, paper, leather, glass, cloth, epoxy, etc. It can also cut nonmetal materials, cutting depth no more than 5mm. CO2 laser nonmetal laser marking engrave machine HSCO2-100W not only can mark on the surface of plane object also can mark on the round object with our rotary.

Machine Advantages:
1.All laser source coherent is imported from USA. Low power consumption, cost effective and long lifespan, maintenance-free. Can continue work more than 20000, the machine can be used 5-10 years if keep the environment cool and clean.
2. Stable laser output and good laser beam quality
3. Be compatible with AUTOCAD, CORELDRAW, PHOTOSHOP, Support PLT, PCW, DXF, BMP, PCX, JPG.
4. The machine can be used to mark common picture, bitmap graphics, date, serial number, bar code, letter, 2D code, automatic jump codes, etc.
5. Cooling way: Water cooling.
6. Can not only mark plane surface, but also roll materials and such as cylinders, pencil, vase, flute, bottle and so on

Product performance

marking scope (mm)	110*110,  175*175,  300*300 mm
response time	0.8ms
Extender lens	optional
laser wavelength	10.64mm±10mm
output power	100w
min. line width	0.1mm
marking speed	≤7000mm/s
repeatability precision	±0.01mm
marking depth	≤5mm
min. character	0.8ms
pulse frequency	20khz
highest resolution	65525
weight	100kg
Cooling way	Water cooling

Samples showing

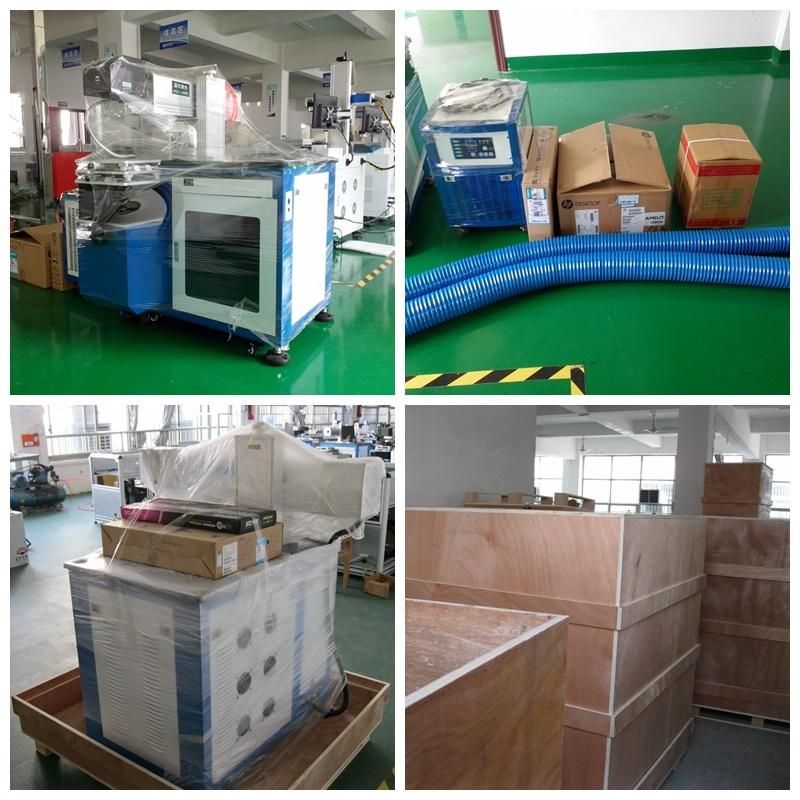

Packaging and shipping:



Company Information
ZheJiang Holy Laser technology Co.LTD has worked hard to become the global leader in manufacturing of laser equipment. All our products has passed the CE, FCC, SGS, TUV and FDA special for American market. 2012, company has obtained 6 patents certificate for computer software technology. Holy laser has been in the laser business since established. We strive to update our technology in the direction of green, environment-friendly and energy saving. review the past Holy Laser won market recognition step by step.looking for ward the future, Holy Laser will continue to dedicate our company mission and ethnic spirit with you to open a new chapter in history.



After-sale service:
1. One year guarantee period for product quality.
2. Lifelong maintenance and spare parts supply.
3. Free design of fixtures as customers required.
4. Free training for machines installation and operation of the staffs.
