Laser Cutting Machine Specially for Ornament Industry
Zhejiang Holy Laser Technology Co., Ltd.- Application:Automotive Industry, Advertising Industry, Iron, Stainless Steel, Aluminum, Gold, etc.
- Cooling System:Water Cooling
- Technical Class:Pulse Laser
- Applicable Material:Metal
- Structure Type:Gantry Type
- Laser Classification:Free Electron Laser
Base Info
- Model NO.:HSGQ-3050-Z-500W,800W,1000W
- Laser Technology:Laser Vapor Cutting
- Working Area:200X400mm,500X500mm
- Cutting Thickness:0.15-5mm Carbon Steel
- Maximum Output:500W
- Laser Type:YAG
- Wave Length:1064mm
- Min Line Width:0.15mm
- Power Configuration:380V,50Hz,100A
- Location Accuracy:≤±0.08mm
- Cooling:Water Cooling
- Max Cutting Speed:2000mm,Min
- Specification:CE, FDA, FCC, SGS, TUV
- Trademark:Holy Laser
- Origin:Yiwu, Zhejiang, China
- HS Code:8456100090
- Production Capacity:1000
Description
Basic Info.
Model NO. HSGQ-3050-Z-500W/800W/1000W Laser Technology Laser Vapor Cutting Working Area 200X400mm/500X500mm Cutting Thickness 0.15-5mm Carbon Steel Maximum Output 500W Laser Type YAG Wave Length 1064mm Min Line Width 0.15mm Power Configuration 380V/50Hz/100A Location Accuracy ≤±0.08mm Cooling Water Cooling Max Cutting Speed 2000mm/Min Specification CE, FDA, FCC, SGS, TUV Trademark Holy Laser Origin Yiwu, Zhejiang, China HS Code 8456100090 Production Capacity 1000Product Description

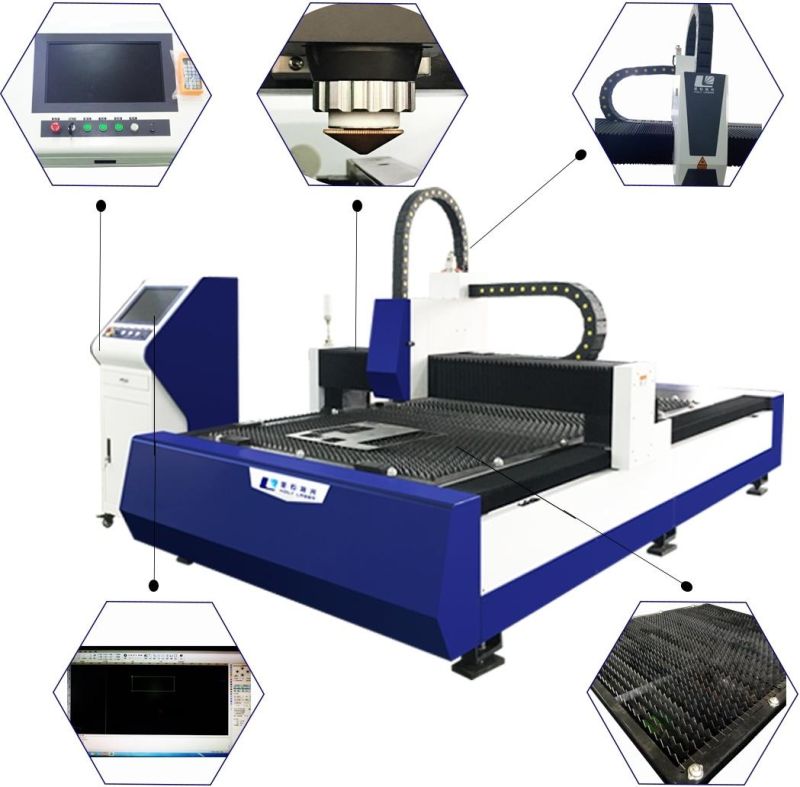

Features of Holy laser's Fiber Laser Cutting Machine:GQ-3050 series is a kind of enclosed and high-precision fiber laser cutting machines designed by Holy Laser especially for ornaments, artworks and gifts manufactures. The moving structure picks up the most advanced linear motor in the laser cutting industry. The coopertation between the high precision and high speed motor cooperat and the follow-up cutting head will make sure the machine will run with a high precision in a high speed. Benefiting from its brilliant ability of cutting, the machine has been widely used in many cutting and marking area that need high-precision manufacturing requirements. For example the manufacturing of hardware, micro-electronics, ornaments etc. This machine also is good at cutting metals, such as carbon steel, silicon steel, stainless steel, titanium alloy, aluminum, galvanized sheet, etc. Integrating the most advanced technologies around the world, the machine came up with the advantages of low cost, high quanlity and high efficiency.
Application Industry of Our Metal Laser Cutting Machine:
This series is suitable to be used in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances
Application Material:
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on

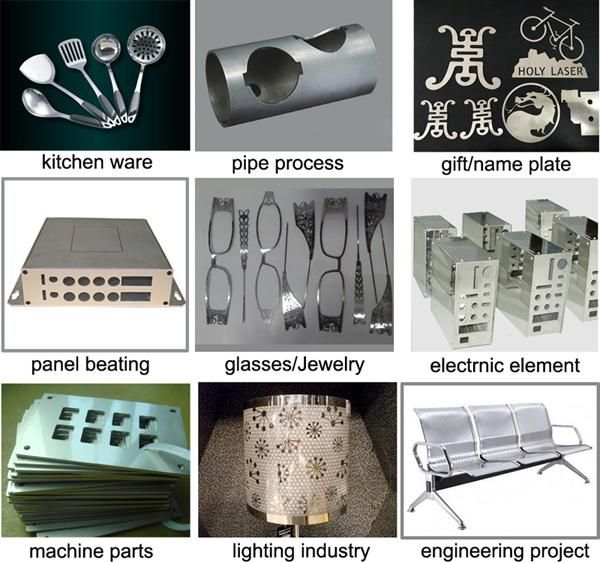

Sample Show:
Techinical Parameter:
Type | HAGQ-3050-Z-500W | HAGQ-3050-Z-800W | HAGQ-3050-Z-1000W |
laser power | 500W | 800W | 800W |
laser wavelength | 1080nm | 1080nm | 1080nm |
laser medium | YVO4 | YVO4 | YVO4 |
beam quality | <0.373mrad | <0.373mrad | <0.373mrad |
min line width | ≤0.15mm | ≤0.15mm | ≤0.15mm |
max idle speed | 180m/min | 180m/min | 180m/min |
X axle stroke | 300mm | 300mm | 300mm |
Y axle stroke | 500mm | 500mm | 500mm |
Z axle stroke | 100mm | 100mm | 100mm |
processing surface (X*Y) | 300x500mm | 300x500mm | 300x500mm |
positioning accuracy of X,Y and Z | ≤±0.03mm/m | ≤±0.03mm/m | ≤±0.03mm/m |
Max cutting thickness (carbon steel) | 0.5-5mm | 0.5-6mm | 0.5-12mm |
Max cutting thickness (stainless steel) | 0.5-3mm | 0.5-4mm | 0.5-6mm |
power supply | 380v/50hz | 380v/50hz | 380v/50hz |
Packing and delivery:

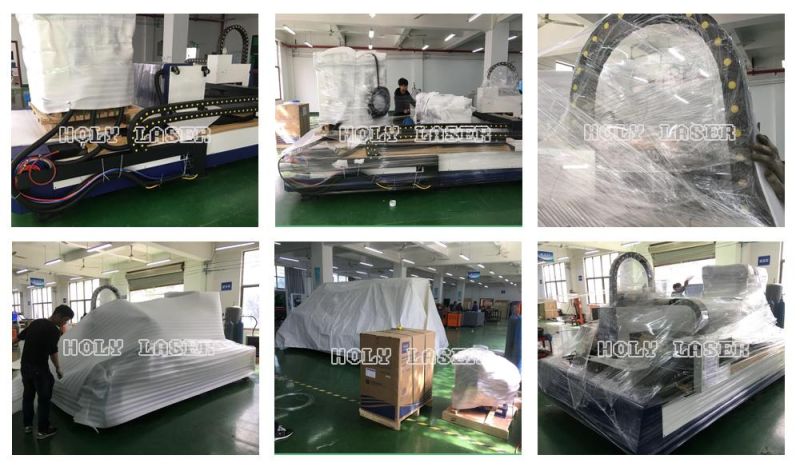

Packing: Packed in wooden case with waterproof felt inside, keeping machine safe
Delivery: 3-5 days upon receipt of your payment
After-sale service:
One year warranty for product quality
Free training for machines installation and operation
Free design of machine as you required
Lifelong maintenance and spare parts supply
Free marking samples as you required

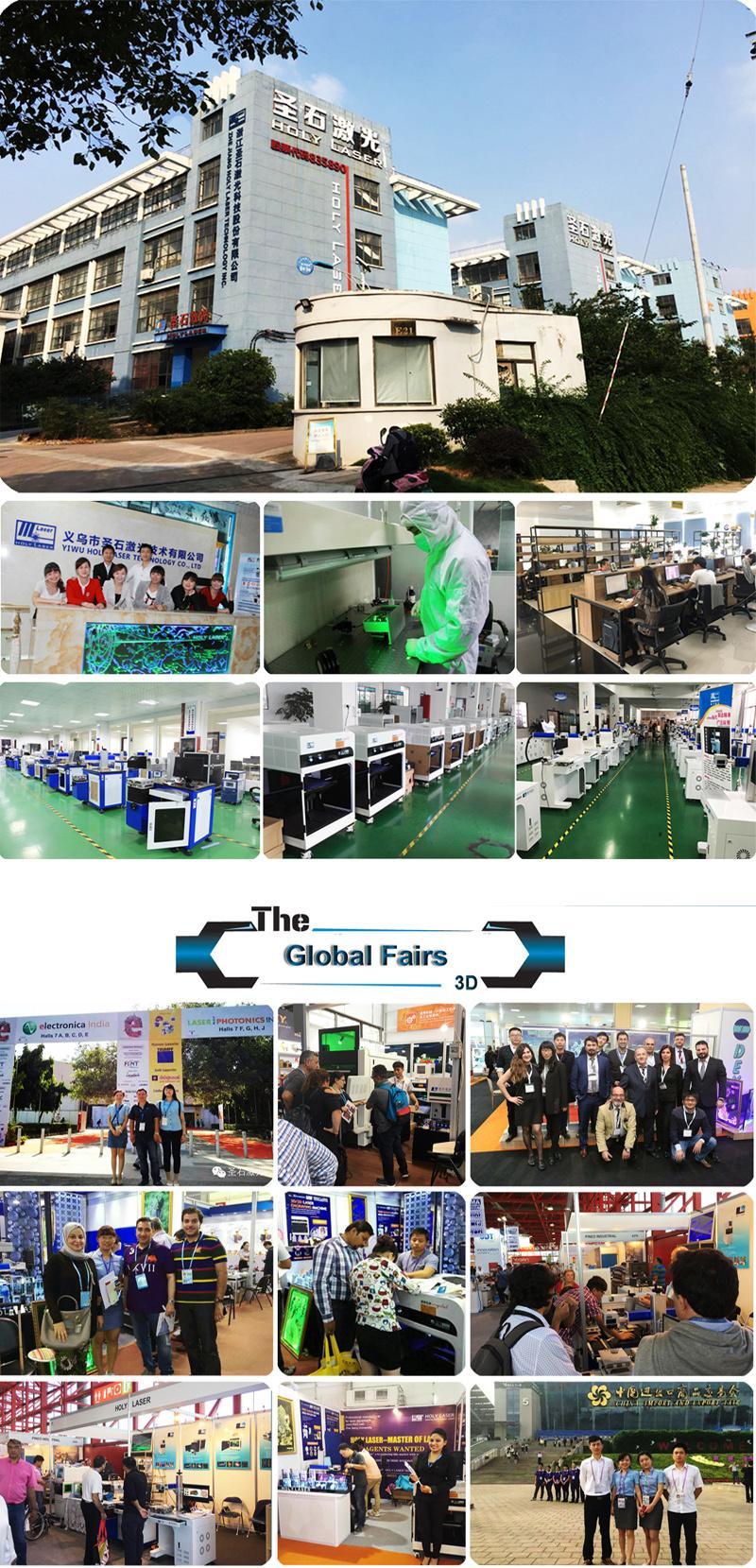

Factory Profile:
We are the manufacturer with 17 years' history on researching and producing all kinds of Lasers
Cooperated with the Zhejiang University and update new technology in-time
Key enterprise supported by the government of Yiwu City
For more detailed information, please feel to contact with me or check our website: http://holylaser.en.made-in-china.com
