• Model NO.：FLC1610D
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Metal
• Structure Type：Gantry Type
• Laser Classification：Gaseous Laser
• Laser Technology：Laser Control Fault Cutting
• Laser Power：100W-500W
• Working Area：1600*1000mm
• Transport Package：Wood Crate
• Specification：1610
• Trademark：flying
• Origin：China
• HS Code：8456110090
• Production Capacity：100PCS,Month
• Package size per unit product：223.00cm * 153.00cm * 132.00cm
• Gross weight per unit product：480.000kg

Basic Info.

Model NO. FLC1610D Cooling System Water Cooling Technical Class Continuous Wave Laser Applicable Material Metal Structure Type Gantry Type Laser Classification Gaseous Laser Laser Technology Laser Control Fault Cutting Laser Power 100W-500W Working Area 1600*1000mm Transport Package Wood Crate Specification 1610 Trademark flying Origin China HS Code 8456110090 Production Capacity 100PCS/Month

Packaging & Delivery

Package size per unit product 223.00cm * 153.00cm * 132.00cm Gross weight per unit product 480.000kg

Product Description

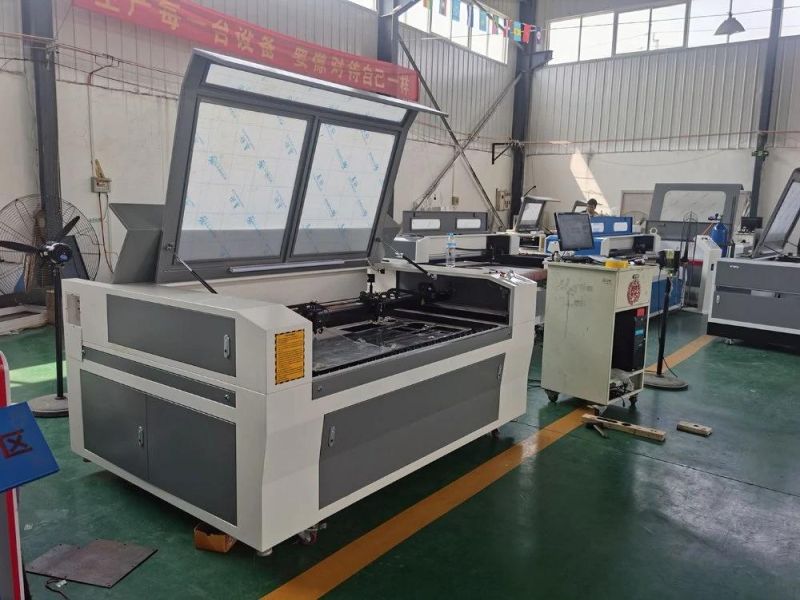

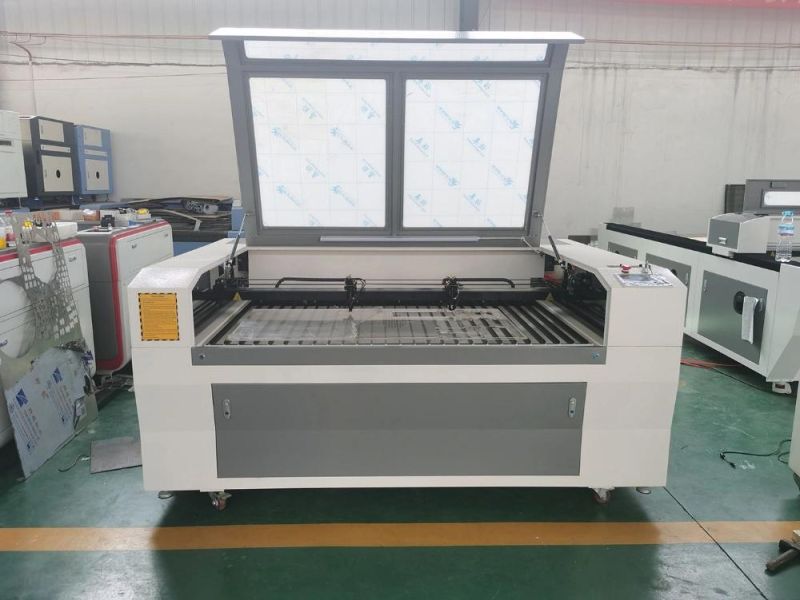

CNC Co2 laser cutter engraver for wood acrylic leather



Features:
    Adopts new high-efficiency laser tube, the laser beam is more stable than the traditional type,and the lifespan of the laser tube can be over 10000 hours. Materials can extend through the front and rear doors to allow for a larger work product,the humanized and modern appearance shows Flying's consistent humanity idea, and it also makes the operation and maintenance quite easy.

Extra Features:
1) Materials can extend through the front and rear doors to allow for a larger work product.
2) Work light to help see products during laser processing.
3) Red-DOT pointer to help you see the expected laser beam position.
4) AutoFocus touch sensor to easily set the right height for best engraving and cutting.
5) Parts tray for removing small parts or scrap from under the workbed.
6) Fully enclosed laser case yields a class I (user friendly) laser product.

Specifications:

Model	FLC1610
Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	Dual 100w-300w
Working area	1600*1000mm
Max Engraving speed:	0-60, 000mm/min
Max cutting speed	0-36, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, BMP, PLT, DST, DXF, and AI ...
Driving system	Stepper(Optional: Servo)
Cooling mode	Water-cooling and protection system
Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, chiller
Controller	DSP
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser power

Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc

Applicable Materials:
Double color boards, acrylic, glass, crystal, wood, foam, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc...

Cutting Thickness on partial materials:

Materials	60w	80w	100w	130w	150w
Acrylic	8mm	15mm	15mm	20mm	20mm
Leather Cloth	One layer	Two layer	Two layer	Three layer	Three layer
Wood	5mm	8mm	10mm	15mm	15mm
Paper	3mm	6mm	8mm	8mm	8mm
Plastic	4mm	5mm	5mm	7mm	7mm
Rubber	2mm	2mm	2mm	2mm	2mm
PVC	3mm	6mm	8mm	8mm	8mm
MDF	3mm	6mm	8mm	10mm	10mm
Plywood	6mm	10mm	12mm	15mm	18mm

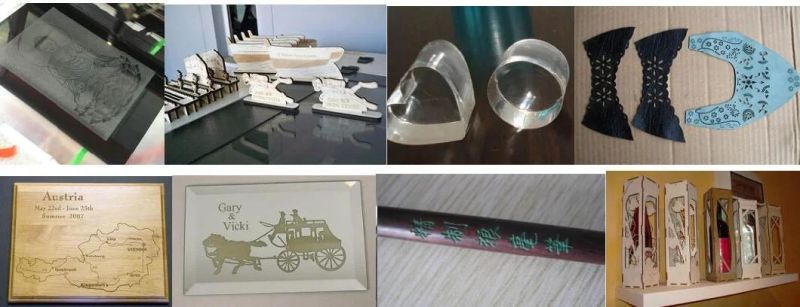

Samples:
