• Model NO.：FLC1325B
• Laser Technology：Laser Control Fault Cutting
• Working Area：1300*2500mm
• Laser Type：CO2
• Laser Power：60W-150W
• Transport Package：Plywood Crate
• Specification：1325
• Trademark：flying
• Origin：China
• HS Code：8456100090
• Production Capacity：100PCS,Month

Basic Info.

Model NO. FLC1325B Laser Technology Laser Control Fault Cutting Working Area 1300*2500mm Laser Type CO2 Laser Power 60W-150W Transport Package Plywood Crate Specification 1325 Trademark flying Origin China HS Code 8456100090 Production Capacity 100PCS/Month

Product Description

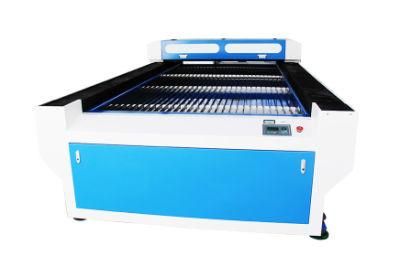

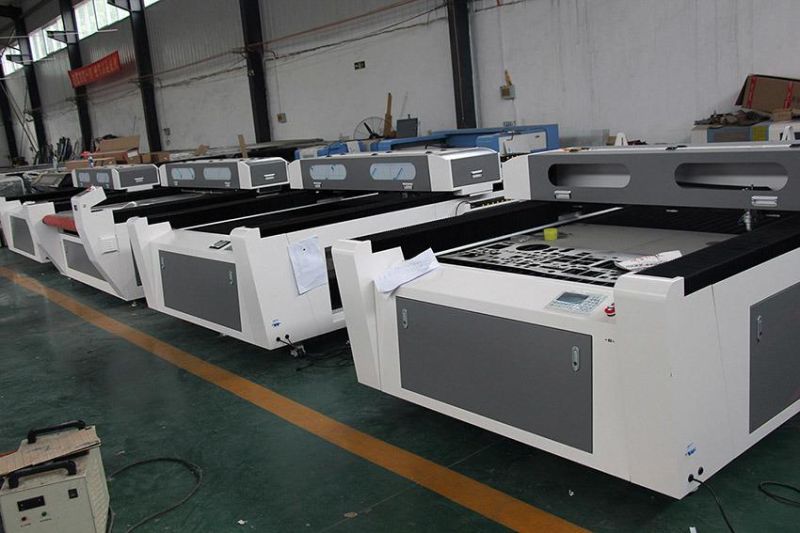

Professional Co2 Laser CNC Cutter for Cutting Wood Plexiglass 1325


Features:
    This laser machine has big working area of 1300*2500mm, this can meet demands of work on large scale garments and cloth, leather, wood, acrylic and paper industry. It is equipped with 3-phrased motors and drivers, high laser power, special cutting nozzle and oxygen assistance device, which can also cut metal well such as stainless steel, carbon steel.

Specifications:

Model	FLC1325B
Laser-type	10.6um CO2 glass laser tube w/ water-cooling
Laser power	130W-300W
Working area	1300*2500mm
Max Engraving speed:	0-50, 000mm/min
Max cutting speed	0-24, 000mm/min
Laser output control	1-100% software setting
Location precision	Less than 0.01mm
Highest scanning precision	2500DPI
Operating temperature	0 - 45
Operating humidity	5- 95% non-condensing
Minimum shaping character	English 1.0 x 1.0mm
Graphic format supported	HPGL, BMP, JPEG, PLT, DST, DXF, and AI ...
Driving system	Stepper(Optional: Servo)
Cooling mode	Water-cooling and protection system
Auxiliary equipments	Exhaust-fans, air-exhaust pipe, air pump, chiller
Controller	DSP
Compatible Software	CorelDraw, AutoCAD, Photoshop, TAJIMA
Slope Engraving	Can be easily designed within the "Grade Engrave" function.
Color separation	Uses color property to set function, speed, and laser po

Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc.

Applicable Materials:
Double color boards, acrylic, glass, wood planks, bamboo, foam, MDF,  rubber, plastic, garments, paper, leather, marble, granite, tiles, carbon steel, stainless steel and etc...

Cutting Thickness For Partial Materials:

Materials	60w	80w	100w	130w	150w
Acrylic	8mm	15mm	15mm	20mm	20mm
Leather Cloth	One layer	Two layer	Two layer	Three layer	Three layer
Wood	5mm	8mm	10mm	15mm	15mm
Paper	3mm	6mm	8mm	8mm	8mm
Plastic	4mm	5mm	5mm	7mm	7mm
Rubber	2mm	2mm	2mm	2mm	2mm
PVC	3mm	6mm	8mm	8mm	8mm
MDF	3mm	6mm	8mm	10mm	10mm
Plywood	6mm	10mm	12mm	15mm	18mm

Samples Shown:
