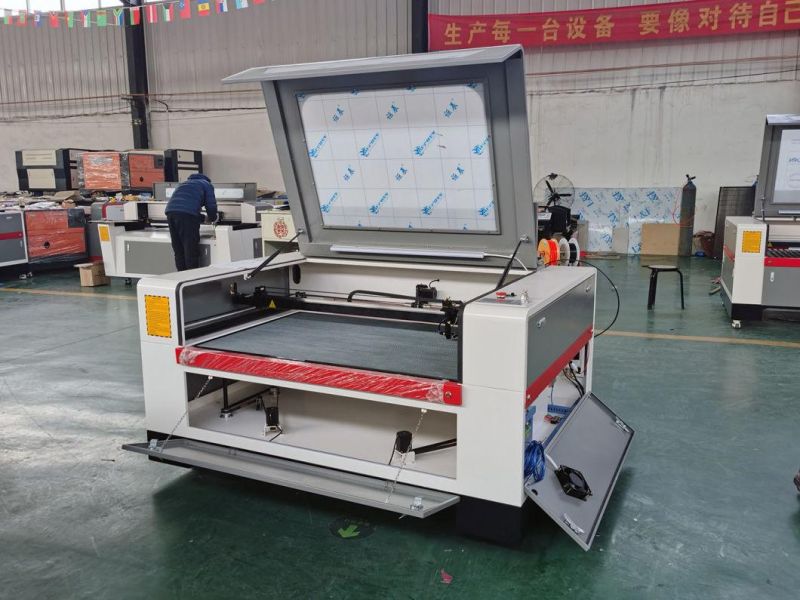

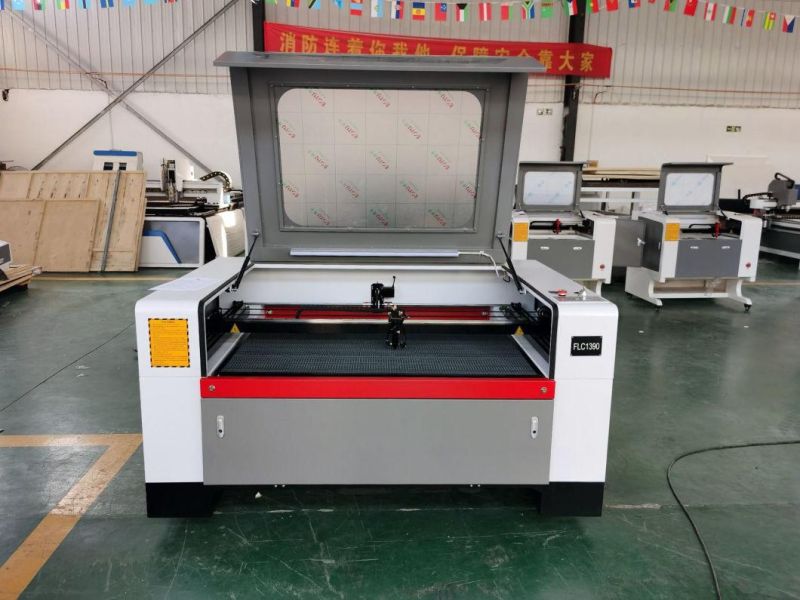

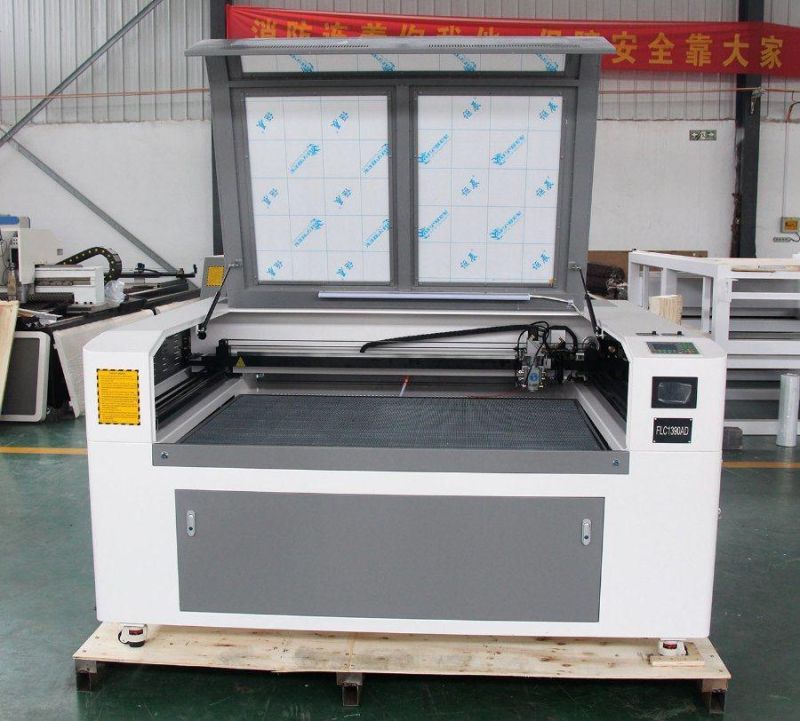

CO2 Laser Engraving Cutting Machine for Wood MDF Leather Acrylic
Shandong Ruby CNC Equipment Co., Ltd.- After-sales Service：Whole Life
- Warranty：2 Years
- Application：Home Appliance, Textile Machinery, Shoemaking Industry, Woodwork Industry, Advertising Industry
- Cooling System：Water Cooling
- Technical Class：Continuous Wave Laser
- Applicable Material：Nonmetal
Base Info
- Model NO.：FLC1390
- Structure Type：Gantry Type
- Laser Classification：Gaseous Laser
- Laser Technology：Laser Control Fault Cutting
- Working Area：1300*900mm
- Laser Power：60W-150W
- Delivery Time：in 7 Days
- Transport Package：Wood Crate
- Specification：1390
- Trademark：FLYING
- Origin：China
- HS Code：8456110090
- Production Capacity：100PCS,Month
Description
Features:
This machine can be applied to many kinds of materials, and has many advantages, such as smooth cutting edges, free from polishing, less noise, less dust, faster processing speed, higher precision, less waste and higher efficiency. It is the best option for upgrading traditional equipments in various industries.
Specifications:
| Model | FLC1390 |
| Laser-type | 10.6um CO2 glass laser tube w/ water-cooling |
| Laser power | 60W-180W |
| Working area | 1300 x900mm |
| Max Engraving speed: | 0-64, 000mm/min |
| Max cutting speed | 0-30, 000mm/min |
| Laser output control | 1-100% software setting |
| Location precision | Less than 0.01mm |
| Highest scanning precision | 2500DPI |
| Operating temperature | 0 - 45 |
| Operating humidity | 5- 95% non-condensing |
| Minimum shaping character | English 1.0 x 1.0mm |
| Graphic format supported | HPGL, BMP, JPEG, PLT, DST, DXF, and AI ... |
| Driving system | Stepper(Optional: Servo) |
| Cooling mode | Water-cooling and protection system |
| Auxiliary equipments | Exhaust-fans, air-exhaust pipe, air pump, chiller |
| Controller | DSP |
| Compatible Software | CorelDraw, AutoCAD, Photoshop, TAJIMA |
| Slope Engraving | Can be easily designed within the "Grade Engrave" function. |
| Color separation | Uses color property to set function, speed, and laser power |
Extra Features:
1) Materials can extend through the front and rear doors to allow for a larger work product.
2) Red-DOT pointer to help you see the expected laser beam position.
3) Fully enclosed laser case yields a class I (user friendly) laser product.
4) Wifi receiver is more convenient for the operator to transmit the files to the machine.
5) Top-brand laser tube have perfect laser beam, and much longer lifespan (more than 10000 working hours).
6) The Y-axis transmission structure adopts the intermediate design, and the force on both sides is more balanced; the deceleration design greatly enhances the output torque and the power is more powerful; the design of the coupling makes the verticality of the horizontal and vertical axes more perfect and precise.
8) New advantaged laser power souce with voltage regulator functions.
Applicable Industries:
Suitable for industries such as billboards, artistic gifts, crystal ornaments, paper cut engraving, bamboo embossment, printing, garments and leather industries, embroidery, interior decoration, frame fabrication and etc.
Applicable Materials:
Double color boards, acrylic, glass, wood planks, bamboo, rubber, plastic, garments, paper, leather, marble, granite, tiles and etc..
Some of the Cutting Materials and cutting thickness:
| Materials | 60w | 80w | 100w | 130w | 150w |
| Acrylic | 8mm | 15mm | 15mm | 20mm | 20mm |
| Leather Cloth | One layer | Two layer | Two layer | Three layer | Three layer |
| Wood | 5mm | 8mm | 10mm | 15mm | 15mm |
| Paper | 3mm | 6mm | 8mm | 8mm | 8mm |
| Plastic | 4mm | 5mm | 5mm | 7mm | 7mm |
| Rubber | 2mm | 2mm | 2mm | 2mm | 2mm |
| PVC | 3mm | 6mm | 8mm | 8mm | 8mm |
| MDF | 3mm | 6mm | 8mm | 10mm | 10mm |
| Plywood | 6mm | 10mm | 12mm | 15mm | 18mm |

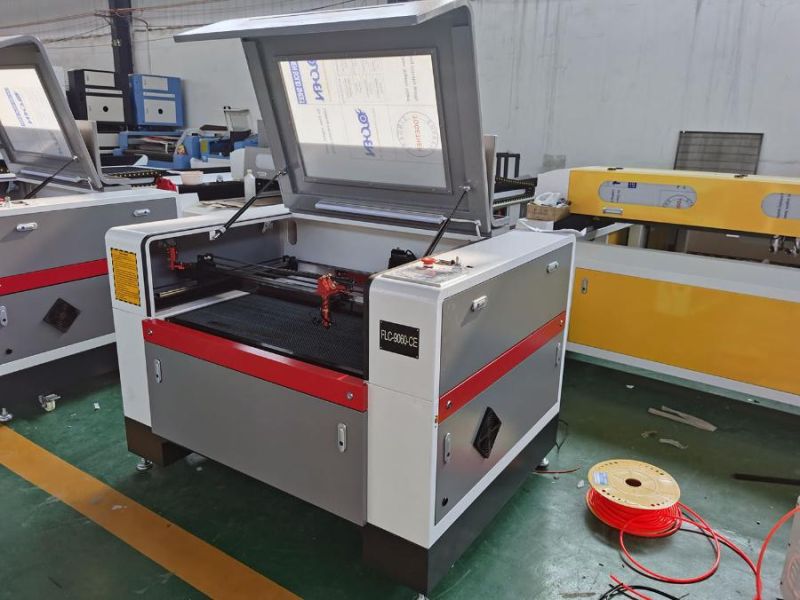

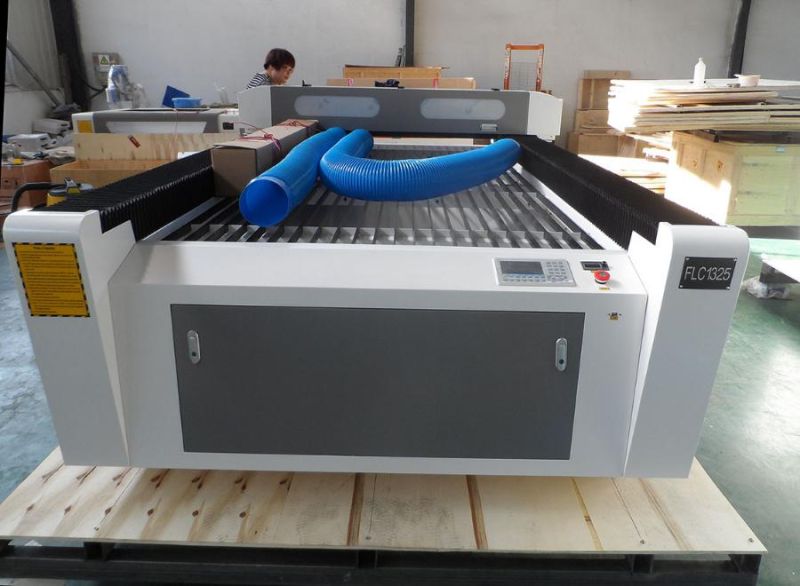

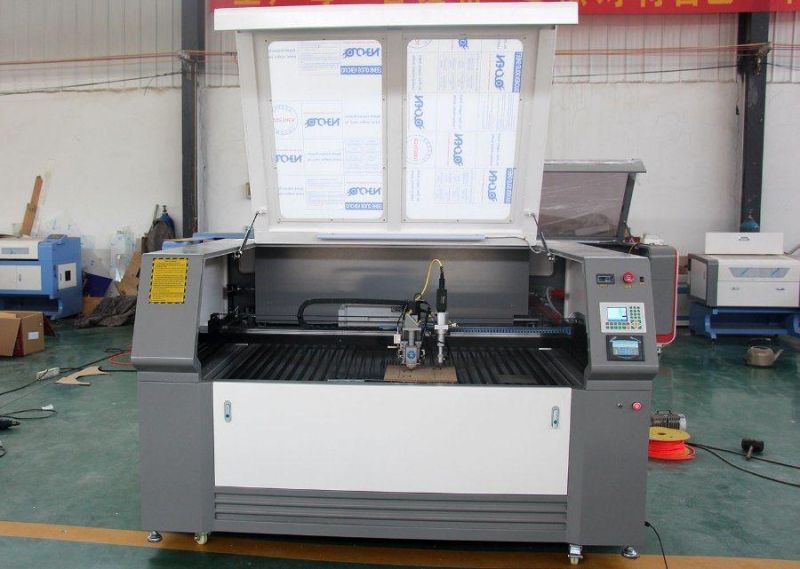

Some other models for choice:
Packages and Delivery:
