• Model NO.：LK-WF
• Laser Wavelength：1064um
• Laser Width：0.5-20ms
• Laser Welding Depth：0.1-0.5mm
• Adjustment Range of Light Spot：1.8mm
• Transport Package：Wooden Case
• Specification：650*1220*1160mm
• Trademark：LK
• Origin：China
• HS Code：8515809010
• Production Capacity：500sets , Month

Basic Info.

Model NO. LK-WF Laser Wavelength 1064um Laser Width 0.5-20ms Laser Welding Depth 0.1-0.5mm Adjustment Range of Light Spot 1.8mm Transport Package Wooden Case Specification 650*1220*1160mm Trademark LK Origin China HS Code 8515809010 Production Capacity 500sets / Month

Product Description

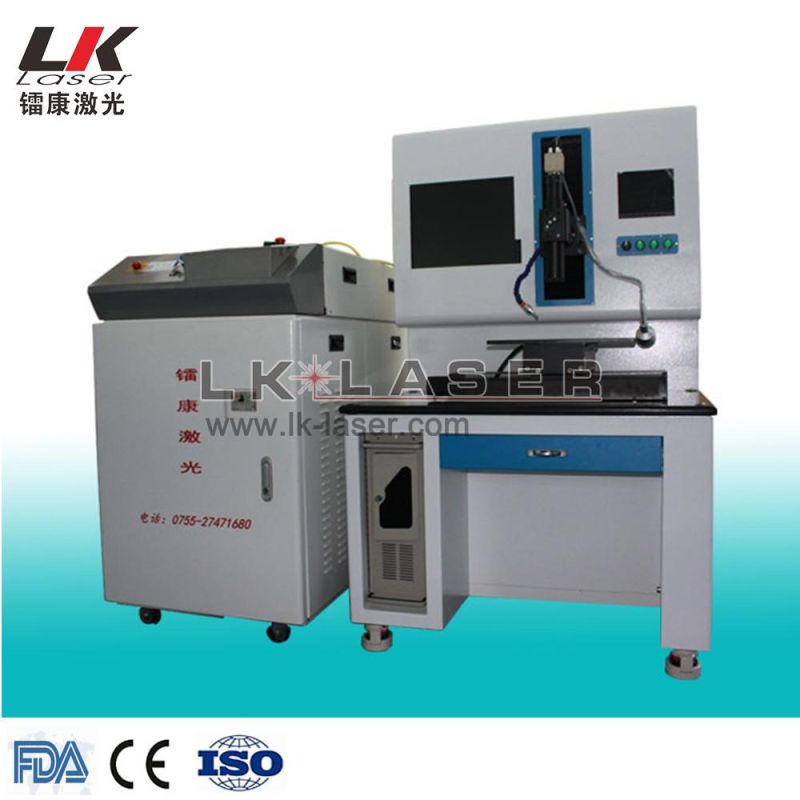

200W 300W 500W metal aluminum optical fiber transmission laser welding equipment




Feature
Greater flexibility the system can install 1-4 fiber optical laser head
High-energy laser beam with power energy feedback
Flexible welding for difficult welding parts
Stable laser welding system with long working hours

Application & Material
This machine is fit for optical fiber communication ,battery, jewellery ,watch , mold , astronautics and aviation
It is widely used in IT, Electronics ,Automobile industry, Hardware industry, Tools ,Instrument measuring appliances ,etc.


Technical Parameters

Model	LK-WF200	LK-WF300
Max.Laser Power	200W	300W
Laser type	Optical fiber	Optical fiber
Laser Wavelength	1064um	1064um
Pulse-Width(ms)	0.1-45ms	0.1-45ms
Pulse Energy	80J	120J
Pulse Frequency	100HZ	100HZ
Laser Welding Area	200*200mm	200*200mm
Size of Welding Depth	0.1-1.0mm	0.1-1.0mm
Adjustment Range Of Light Spot	1.8mm	1.8mm
Max.Bearing Of Standard Work Bench	25KG	25KG
Sighting Positioning System	Red Light ,CCD monitor system	Red Light ,CCD monitor system
Cooling System	Water cooling	Water cooling
Max. Output Power	200W	300W
Inter Power Of Standard	5KW	5KW
Power Supply	AC220VAC/380VAC+-15%/50HZ/25A	AC220VAC/380VAC+-15%/50HZ/25A
Dimensions	1300*1100*1300mm	1300*1100*1300mm

Packing &Shipping

1.Standard plywood case, its compressive strength and bearing quality is better.
2.the board area is bit, the soil structure is good,  it is better in leakproofness and waterproof.
3.when importing, the plywood case is with fumigation-free, the procedure is simple.
4.Delivery Detail: within 3-5 days after received your payment

Our Service

1.One year quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery
