• Model NO.：LK-QW
• Laser Wavelength：1064um
• Laser Width：0.5-20ms
• Laser Welding Depth：0.1-0.5mm
• Adjustment Range of Light Spot：1.8mm
• Warranty：1 Year
• Pulse Energy：80j
• Certificate：Ce,ISO9001,FDA
• Transport Package：Wooden Case
• Specification：850*950*1350mm
• Trademark：LK
• Origin：China
• HS Code：8515809010
• Production Capacity：500sets , Month

Basic Info.

Model NO. LK-QW Laser Wavelength 1064um Laser Width 0.5-20ms Laser Welding Depth 0.1-0.5mm Adjustment Range of Light Spot 1.8mm Warranty 1 Year Pulse Energy 80j Certificate Ce,ISO9001,FDA Transport Package Wooden Case Specification 850*950*1350mm Trademark LK Origin China HS Code 8515809010 Production Capacity 500sets / Month

Product Description

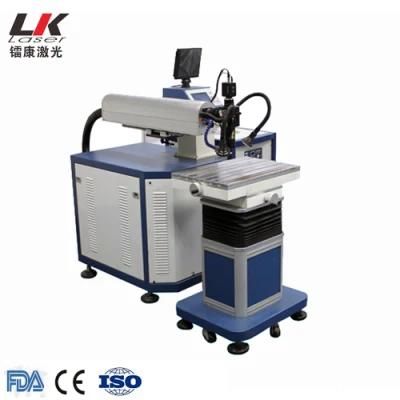

High frequency YAG scanning laser welding/ soldering machines  mobile phone case making machine

consists of YAG solid-state laser, laser power supply, optical scanning system, flat field focusing system, fiber-coupled transmission system, computer and programmable controller, refrigeration system, laser indicating system, operating cabinet and three-axis precision work platform and other components.



Technical Parameters

Model	LK-QW200	LK-QW300
Max.Laser Power	200W	300W
Laser type	YAG	YAG
Laser Wavelength	1064um	1064um
Pulse-Width(ms)	0.1-15ms	0.1-15ms
Pulse Energy	80J	120J
Pulse Frequency	100HZ	100HZ
Size of Welding Depth	0.1-1.0mm	0.1-1.0mm
Adjustment Range Of Light Spot	1.8mm	1.8mm
Max.Bearing Of Standard Work Bench	25KG	25KG
Sighting Positioning System	Red Light	Red Light
Cooling System	Water cooling	Water cooling
Max. Output Power	200W	300W
Inter Power Of Standard	5KW	5KW
Power Supply	AC220VAC/380VAC+-15%/50HZ/25A	AC220VAC/380VAC+-15%/50HZ/25A
Dimensions	850*980*1350mm	850*980*1350mm

Feature
Greater flexibility the system can install 1-4 fiber optical laser head
High-energy laser beam with power energy feedback
Flexible welding for difficult welding parts
Stable laser welding system with long working hours

Application & Material
This machine widely used in IT component, electronice component, batteries,metal capacitor shell, auto parts , precision instrument, handware,instrumentation, sensors, metal phone shell etc.





Packing &Shipping

1.Standard plywood case, its compressive strength and bearing quality is better.
2.the board area is bit, the soil structure is good,  it is better in leakproofness and waterproof.
3.when importing, the plywood case is with fumigation-free, the procedure is simple.
4.Delivery Detail: within 3-5 days after received your payment

Our Service

1.One year quality guaranty, the machine with main parts(excluding the consumables)shall be changed free of charge when if any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.24 hours on line service each day, free technical support.
5.Machine has been adjusted before delivery
