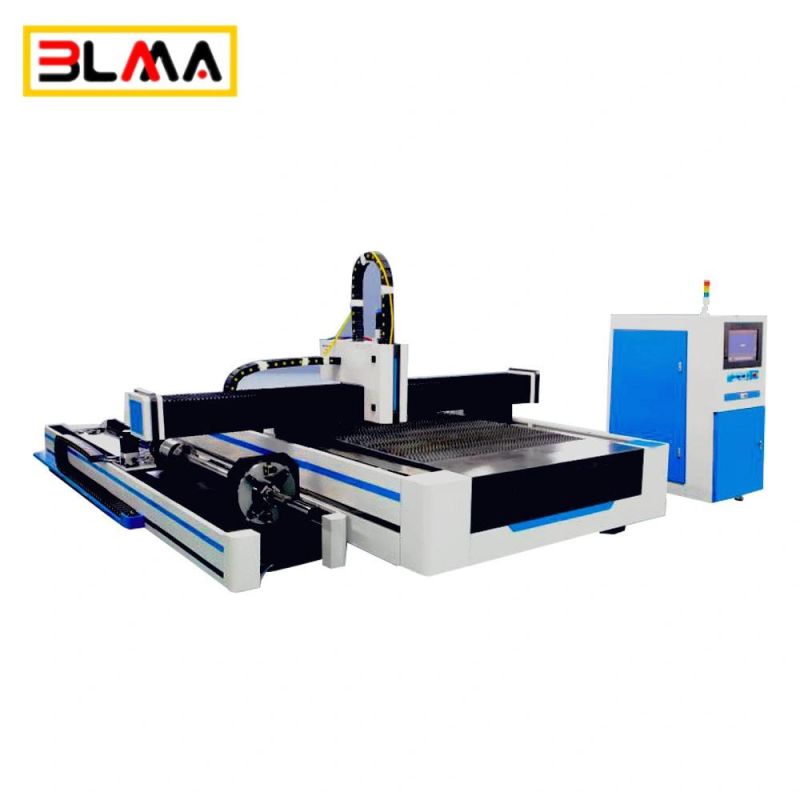

Competitive Price 3000X1500mm Plate 3000mm Tube Fiber Laser Cutting Machine

Nanjing BLMA Machinery Co., Ltd.
  • Application：Advertising Industry, Machinery & Hardware, Medical, Apparel
  • Cooling System：Water Cooling
  • Technical Class：Continuous Wave Laser
  • Applicable Material：Metal
  • Structure Type：Gantry Type
  • Laser Classification：Free Electron Laser

Base Info

  • Laser Technology：Laser Control Fault Cutting
  • Laser Generator：Reci,Raycus, Ipg(Optional) Fiber Laser
  • Laser Power：500W,750W,1000W,1500W,2000W,3300W,4000W
  • Laser Wavelength：1070nm~1080nm
  • Cutting Table Size：3000mm*1500mm
  • Max Positioning Speed：60m,Min
  • X/Y Axis Positioning Accuracy：+-0.03mm,M
  • X/Y Axis Repositioning：+-0.02mm
  • Transport Package：Exported Standard Wooden Case of Each Set.
  • Specification：5500*3500*1700mm
  • Trademark：BLMA
  • Origin：Jiangsu
  • HS Code：8456100090
  • Production Capacity：200 Pieces a Month

Description

ItemCompetitive Price 3000x1500mm Plate 3000mm Tube Fiber Laser Cutting MachineLaser generatorReci/Raycus/ IPG(Optional) fiber laserLaser power500W/750W/1000W/1500W/2000W/3300W/4000WLaser wavelength1070nm~1080nmCutting table size3000mm*1500mmAlarm positioningRed light instructionMax positioning speed60m/minX/Y axis positioning accuracy±0.03mm/mX/Y axis repositioning accuracy±0.02mmSupport graphic formatDXF,PLT,DWG etc Max cutting thicknessStainless steel :≤12 mm
Carbon steel: ≤ 25 mmTotal power≤10KWPower supply requirement3 phase 380V, 50Hz, 60AMain machine dimension5500*3500*1700mm
Competitive Price 3000X1500mm Plate 3000mm Tube Fiber Laser Cutting Machine
Competitive Price 3000X1500mm Plate 3000mm Tube Fiber Laser Cutting Machine


FAQ

Fiber Laser cutting machine Function:
Fiber laser cutting is only used to process on metal like Stainless Steel,Carbon Steel,Mild Steel,Alloy,Aluminum,Copper,Brass,Iron etc.

Cypcut CNC control software
Besides English, we have professional Russian, Spanish,German language.

Laser source option
Raycus: 500W, 750W, 1000W, 1500W,2200w,3300W,4400W
IPG: 500W,700W, 1000W, 1500W, 2000W, 3000W, 4000W,
Diffrent laser power due to the different laser cutting thickness,materials and the production quantity.

Machine size:
3000*1500mm ,4000*1500mm, 4000*2000mm,6000*2000mm
Single cutting table & exchange cutting table, auto feeding shuttle table,Enclosed table, open table all available, plate and tube cutting table, tube cutting machine available.

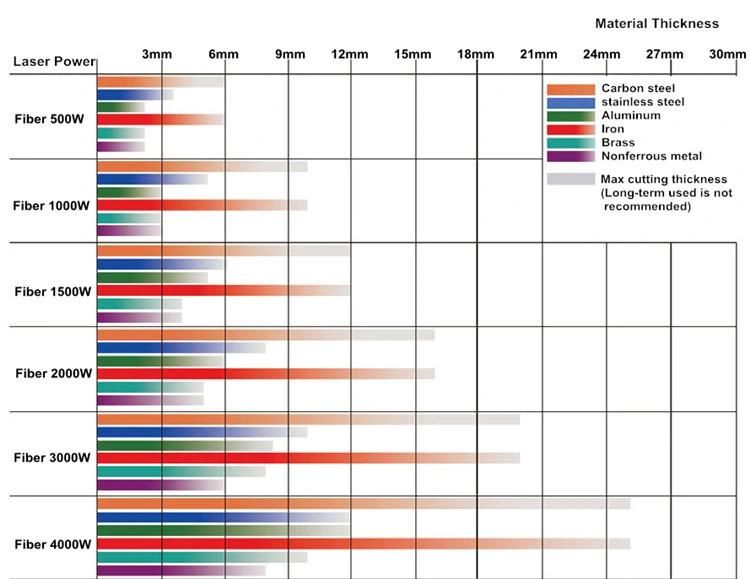

Cutting thickness as reference :
Competitive Price 3000X1500mm Plate 3000mm Tube Fiber Laser Cutting Machine

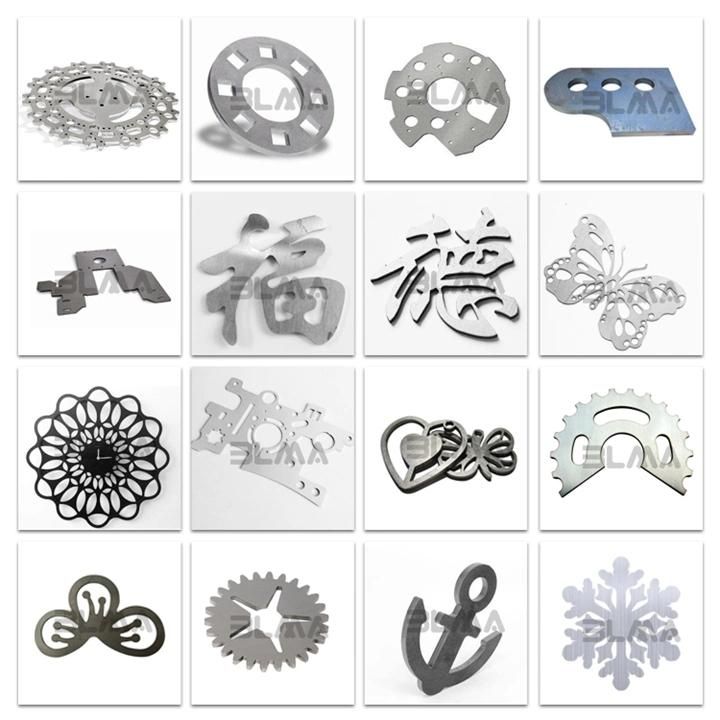

Laser Cutting Samples

Competitive Price 3000X1500mm Plate 3000mm Tube Fiber Laser Cutting Machine
Our Service
Competitive Price 3000X1500mm Plate 3000mm Tube Fiber Laser Cutting Machine
Pre-Sales service

1. We will help you confirm the model of our machine according to your offered pipe information.

2. You are very welcome to see our machine how to work in the factory before you place an order with us.

After-Sales service

1. Free installation, trial start and adjustment, training.

2. We guarantee machine quality for one year. During this year, if spare parts of the machine were damaged, we can send the components to the customer by DHL, TNT freely.

3. Our factory provide the service for the customer forever, if the customer need operation help,we provide 24 hours on-line reply service.
