• Model NO.：CK1325
• Cooling System：Water Cooling
• Technical Class：Continuous Wave Laser
• Applicable Material：Metal and Nonmetal
• Structure Type：Gantry Type
• Laser Classification：Gaseous Laser
• Laser Technology：CO2 Laser
• Rail：Hiwin Square Rail
• Transmission：Belt Transmission or Ball Screw Transmission
• Driver：Leadshine Stepper Driver or Servo
• Motor：Leadshine Stepper Motor or Servo Motor
• Working Size：1300X2500mm
• Software：Rdcam6442g
• Auto Focus：Yes
• Laser Head：Automatclly
• Machine Colour：as Your Choice
• Rotary：as You Choice with up and Down Table
• Transport Package：Plywood Packing
• Specification：ce, FDA,SGS
• Trademark：chanke
• Origin：Shandong
• HS Code：845610009
• Production Capacity：50sets,Month
• Package size per unit product：3190.00cm * 2200.00cm * 1900.00cm
• Gross weight per unit product：1600.000kg

Basic Info.

Model NO. CK1325 Cooling System Water Cooling Technical Class Continuous Wave Laser Applicable Material Metal and Nonmetal Structure Type Gantry Type Laser Classification Gaseous Laser Laser Technology CO2 Laser Rail Hiwin Square Rail Transmission Belt Transmission or Ball Screw Transmission Driver Leadshine Stepper Driver or Servo Motor Leadshine Stepper Motor or Servo Motor Working Size 1300X2500mm Software Rdcam6442g Auto Focus Yes Laser Head Automatclly Machine Colour as Your Choice Rotary as You Choice with up and Down Table Transport Package Plywood Packing Specification ce/ FDA/SGS Trademark chanke Origin Shandong HS Code 845610009 Production Capacity 50sets/Month

Packaging & Delivery

Package size per unit product 3190.00cm * 2200.00cm * 1900.00cm Gross weight per unit product 1600.000kg

Product Description

This 1300x2500mm with 130w RECI (Z6) Laser tube 1.5mm sheet metal and nonmetal laser cutter machine is belongs the laser machine type-metal and nonmetal cutting machine .

So its meaning is: It can cut metal and aslo can cut on the nonemtal: like acylic/paper/wood board /fabic .. and other materiasl.

It aslo can engraving . so don't think it not engraving . most of my customer, ask me : Can it engraving ? ..... My answer is: Yes!!!.

I think you are interested in how many thickness it can cut on each materials. Now let me answer you:

1. ,Metal it can cut : 1.2 mm.
2. Acrylic it can cut: 25mm.
3. Wood board it can cut:10-15mm. You know our 90W RECI brand (Z2) Laser tube can cut : 5-8mm hard wood, like MDF...
4. By the way, it can engrave on the glass, but can't cut glsss. if you want to cut glass, please choose our CK6090 small cnc router or the special machine to cut glass, but I promise it can do a good work engraving on glass.

So if you have any questions, please contact me, My name is vera, I am vera glad to help you choose a good machine for you.
1300x2500mm 130w 1.5mm sheet metal and nonmetal laser cutter

Specifications:
Features
Imported linear guide rail and step motor with reduce speed driver system to  assure cutting incision more smooth.
Imported focus lens and metal reflect mirror from America have strong cutting ability and high precision
We can supply different colour shapes for your need

Applicable materials
Non-metal materials such as double colour board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc

Applicable industry
Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry etc


Model	1300x2500mm 130w 1.5mm sheet metal and nonmetal laser cutter
Working area	130cm*25cm / 47in*35in (L*W)
Laser power	130W/150W/180W As your choice
Laser type	CO2 sealed laser tube,water-cooled
Engraving speed	25-24000mm/min
Cutting speed	50-5000mm/min
Power supply	220V±10% /50HZ , 110V±10%//60HZ
Min. shaping character	Letter 1.0 x 1.0mm
Graphic format supported	BMP, PLT, DST, DXF, AI,CDR
Software supported	CorelDraw, PhotoShop, AutoCAD
Laser Output Control	1-100% software setting
Highest Scanning Precision	2000DPI
Resolution ratio	<0.01mm
Location precision	<0.01mm
Working temperature	5°C-40°C
Operating humidity	5%-95%(without condensed water)
Equipment Dimension	1650mm*1250mm*970mm/65in*49in*38 in (L*W*H)
Net Weight	650KG
Optional parts	Up-down worktable, Red light pointer, Auto focus, Rotary device, Industry chiller, DSP off-line operation with USB flash

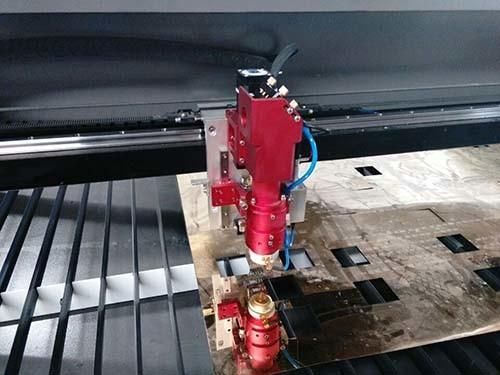

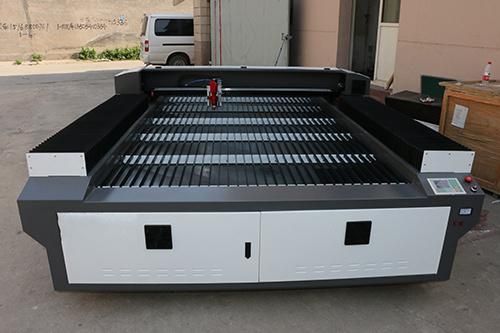

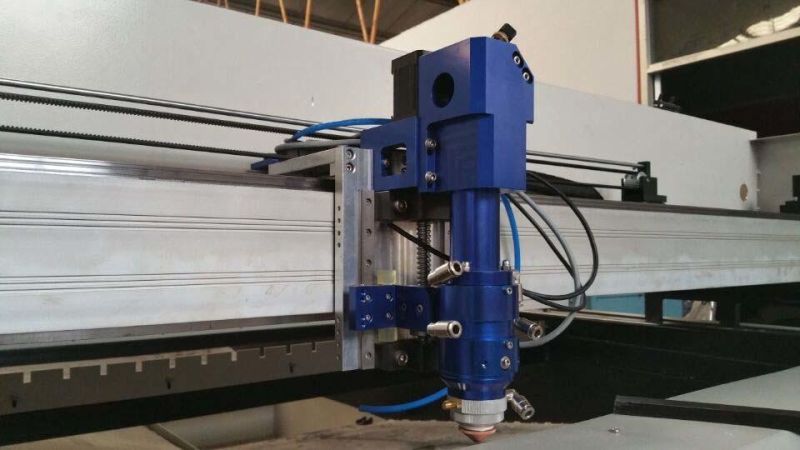

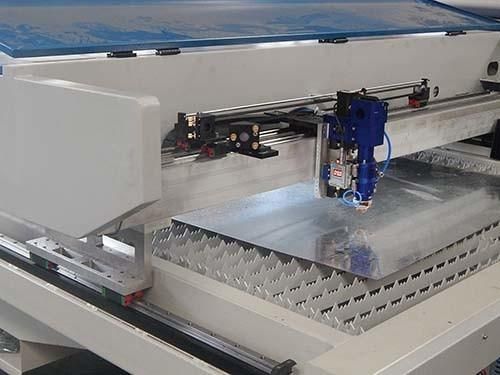

Machine photos:

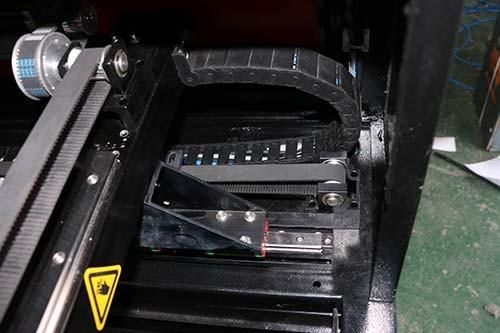

spare parts photos:


samples:


packing:
All laser engraving machine are packed with standard inner plastic wrap and steel structure and outer plywood case, inner package would be help to tight all the Small parts in the package. and the plywood is firm enough to protect the laser machine during shipping.

The advantages of plywood case package:

Firstly, plywood case, its compressive strength and bearing quality is better, is the market of choice for the goods of high weight packing.

Secondly, the board area is big, the soil structuer is good and operational process is simple, so its is better in leakproof ness and waterproof.

Thirdly, when importing, the plywood case is with fumigation-free, the produre is simple.

after sale service:

Guarantee & After Sales Service
1. For the whole machine we give the warranty for 2 years.
2. For the RECI laser tubes,we give the warranty for 9 months.
3.For the focus lens and mirrors, we will give the warranty for 9 months too.
4.Any parts is broken during the warranty period( without human damage),we will change for you for free within2 years .
5.Engineer can go to your country to provide the technical support. and 24 hours after sale service worker is online.
Professional Service
From producing in our factory to shipping the goods directly to your port or company, we supply all-in-one service for our customers. With the rich experience of dealing with shipping issue and custom clearance, we can make the most economical delivery plan for you and ensure the quick leading time. No matter your quantity is our MOQ or very big, we take each customer as the only one.
packing :

All laser engraving machine are packed with standard inner plastic wrap and steel structure and outer plywood case, inner package would be help to tight all the Small parts in the package. and the plywood is firm enough to protect the laser machine during shipping.



The advantages of plywood case package:



Firstly, plywood case, its compressive strength and bearing quality is better, is the market of choice for the goods of high weight packing.



Secondly, the board area is big, the soil structuer is good and operational process is simple, so its is better in leakproof ness and waterproof.



Thirdly, when importing, the plywood case is with fumigation-free, the produre is simple.

machine photos :
