• Model NO.：LU10F
• Type：UV
• Marking Method：Scanning Marking
• Name：Laser Marking Machine
• Application：Bottle Caps, Bottle
• System Language：English
• Cooling：Air
• Pulse Frequency：20 kHz - 100 kHz
• Marking Range：110 mm X 110 mm (Can Be Customized)
• Standard Package：Wooden Case
• Weight：110kgs
• Transport Package：Wooden Case with Foam
• Specification：155X55X56cm
• Trademark：CYCJET
• Origin：Shanghai
• HS Code：8456110090
• Production Capacity：300units,Month

Basic Info.

Model NO. LU10F Type UV Marking Method Scanning Marking Name Laser Marking Machine Application Bottle Caps, Bottle System Language English Cooling Air Pulse Frequency 20 kHz - 100 kHz Marking Range 110 mm X 110 mm (Can Be Customized) Standard Package Wooden Case Weight 110kgs Transport Package Wooden Case with Foam Specification 155X55X56cm Trademark CYCJET Origin Shanghai HS Code 8456110090 Production Capacity 300units/Month

Product Description

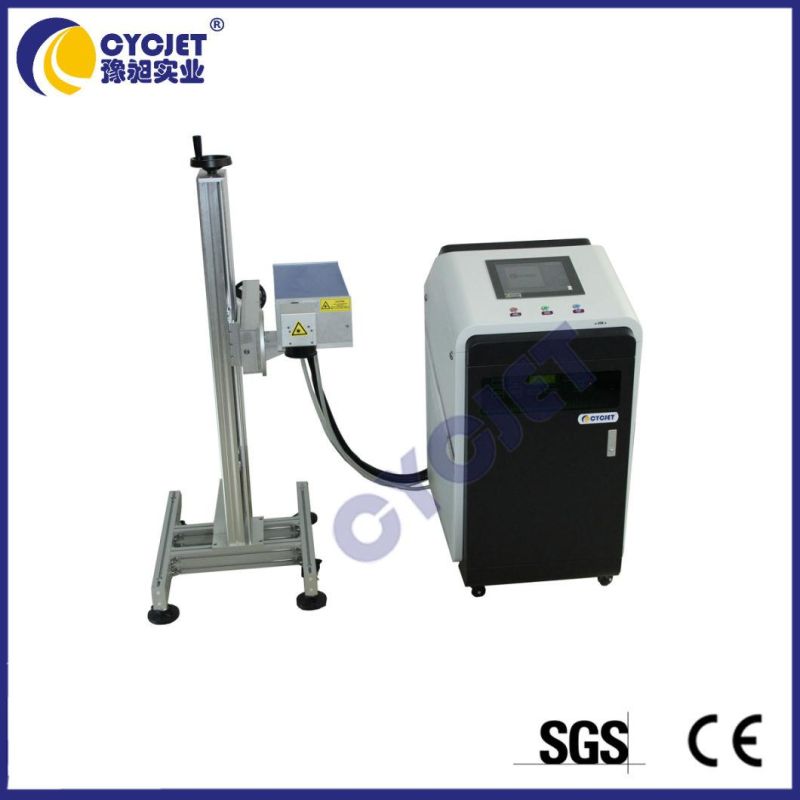

Product Picture:







Application Scope:

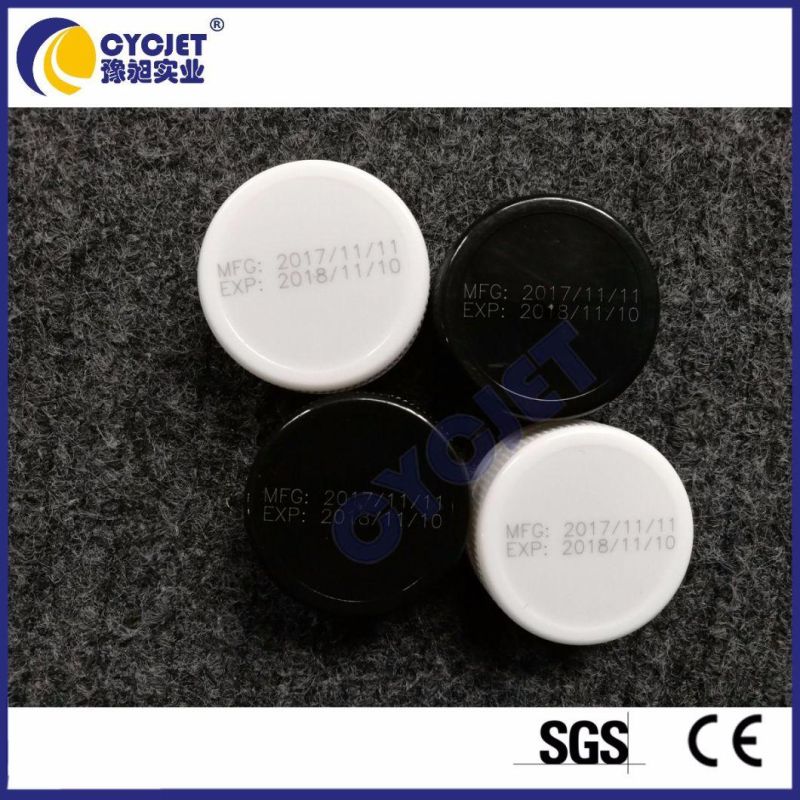

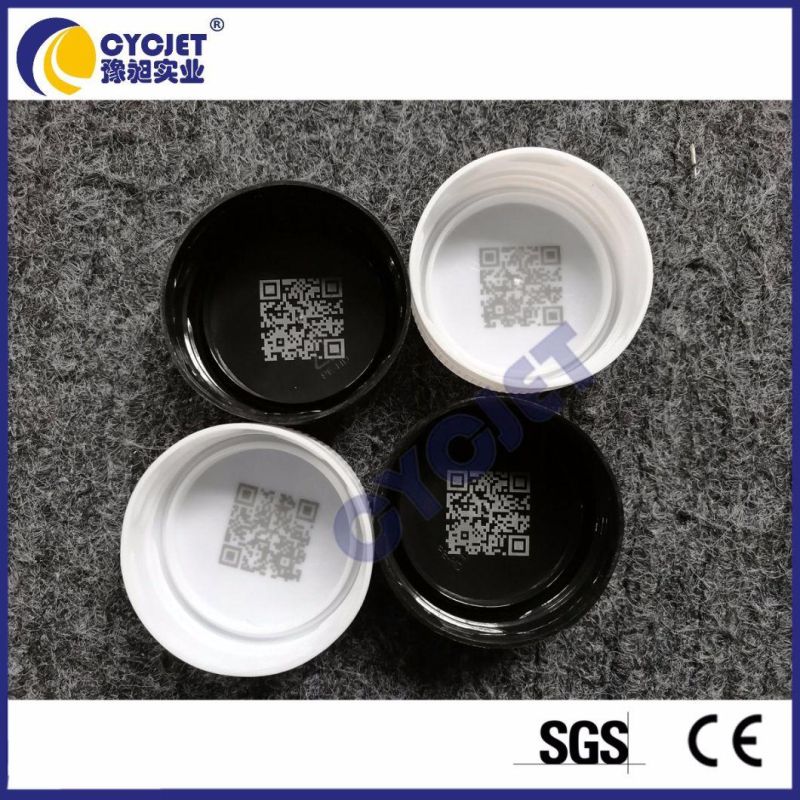

Suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.

Advantage:

1, Perfect design software, easy to learn and operation
2, Less Mechanical Faliure
3, Operation Status: Fly and Standstill
4, The PVC, PPR,PE Pipe Code will change color after mark,the demonstration of effects is better than ink priter.
5, The code can not move or erase it
6, No consumer goods, less production cost

Terms Of Payment:
T/T, LC

After-sale Service
1, Warranty Valid: 18 Month
2, Online or Spot Training

Details and Specifications:

Specifications

Output Power: 10W Beam quality M2: <2 Laser wavelength: 355 nm Air cooling Pulse frequency: 20 KHZ - 100 KHZ Marking range: 110 mm x 110 mm (can be customized) MarkingSpeed:7000mm/s Marking Depth: ≤0.3mm Marking Line Width: 0.01-0.2mm (based on difference material) Min character Size: 0.015mm. Repeat accuracy: + / - 0.003 mm Marking area locating: Red-light locating system. Power supply: AC 100-260 v 50/60 hz Power: ≤800W

Delivery&Package

Delivery Time: 3-7 days after received Advance Payment By Vessel or Air Plane Standard Package: Wood Carton, Carton Box
