New Combined Handheld Fiber Laser Welding Cleaning Machine 2000W
Jinan Upgoal Mechanical Equipment Co., Ltd.- Warranty：1-2 Years
- Application：Biomedicine, Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry
Base Info
- Model NO.：UG-2000LW
- Technical Class：Continuous Wave Laser
- Control：Automatic
- Power Density：Heat Conduct Welding
- Laser Classification：Optical Fiber Laser
- Type：Portable Combined Laser Welding Cleaning Machine
- Laser Power：2000W Fiber Laser, Raycus Brand
- Laser Wave Length：1070 Nm
- Fiber Length：Standard10m Maximum 15m
- Pulse Width：0.1-20ms
- Gas Source：Argon or Nitrogen
- Working Mode：Continuous or Modulate
- Cooling System：Water Cooling, Industrial Water Chiller
- Welding Speed Range：0~120 mm,S
- Welding Thickness Recommendations：0.5-4mm
- Scan Length：80mm
- Laser Head：Wobble Combined Laser Welding & Cleaning Head
- Working Voltage：AC380V, 50,60Hz, Three Phases
- Wire Feeder：for Wire Diameter 0.8,1.0,1.2,1.6mm
- Transport Package：Plywood Case
- Specification：1650*720*1450mm, 341KGS
- Trademark：UPGOAL
- Origin：China
- HS Code：8515809090
- Production Capacity：300set Per Month
- Package size per unit product：162.00cm * 71.00cm * 145.00cm
- Gross weight per unit product：341.000kg
Description
Special laser welding system(RelFar) : Welding software is easily operated as the mode of human-computer interface. Strong software function can be realized by simple touch screen.It has editable and memory functions. and welding width of the processing parts, and solve the disadvantage of minor laser welding spot, and provide better welding forming.
Industrial Water chiller( Teyu S&A RMFL-1000/2000): One of the biggest convenience of the machine is the inside water chiller. It saves a lot of the machine's dimension.It is constant temperature industrial type.

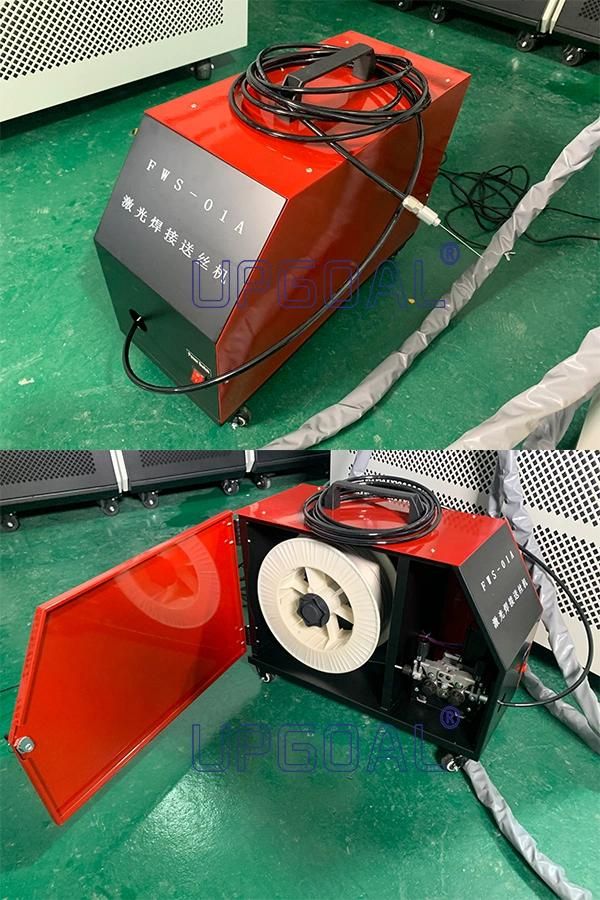

Wire Feeder Machine, suitable for wire diameter 0.8/1.0/1.2/1.6mm, make the welding joint full and level and to meet the required mechanical strength requirements.
Connect with the Argon gas or Nitrogen gas before welding
Technical Parameters
Laser Power | 2000W (Raycus brand,RFL-C2000 model) |
Laser Wave Length | 1070 NM±20nm |
Fiber Length | standard10M Maximum 15M |
Laser Pulse Frequency | 1-20HZ |
Pulse Width | 0.1-20ms |
Adjusted spot range | 0.1-3mm |
Minimum Welding pool | 0.1mm |
Collimating focal length | 50mm |
Focus length | 150mm |
Focus adjustment range | -10mm~+10mm |
Spot adjustment range | 0~5mm |
Gas source | Argon or Nitrogen,≤1Mpa |
Working mode | Continuous or modulate |
Welding cleaning head | Portable single wobble combined handheld welding cleaning head(RelFar, model: FWH20-S10A,0.72kgs) |
Welding cleaning system | Touch screen control panel(RelFar ) |
Beam quality | M2<1.2 |
Line width | <5nm |
Straight modulate | 0-5KHZ |
Welding speed range | 0~120 mm/s |
Cooling system | Water cooling, industrial water chiller,Teyu S& A brand, RMFL-2000 |
Welding thickness recommendations | 0.5-4mm |
Welding gap requirements | ≤0.5mm |
Working environment temperature | 15~35 ºC |
Humidity range of working environment | < 70%No condensation |
Working Voltage | AC380V, 50/60Hz, three phases |
Reference Welding Cleaning Sample Photos
Accessories
Working videos:
https://youtu.be/4jWGycBWafE
For more information, just feel free to contact us!
