• Model NO.：fiber laser 1530
• Structure Type：Desktop
• Laser Classification：Solid Laser
• Laser Technology：Fiber
• Working Size：1500*3000mm,2000*3000mm,2000*6000mm

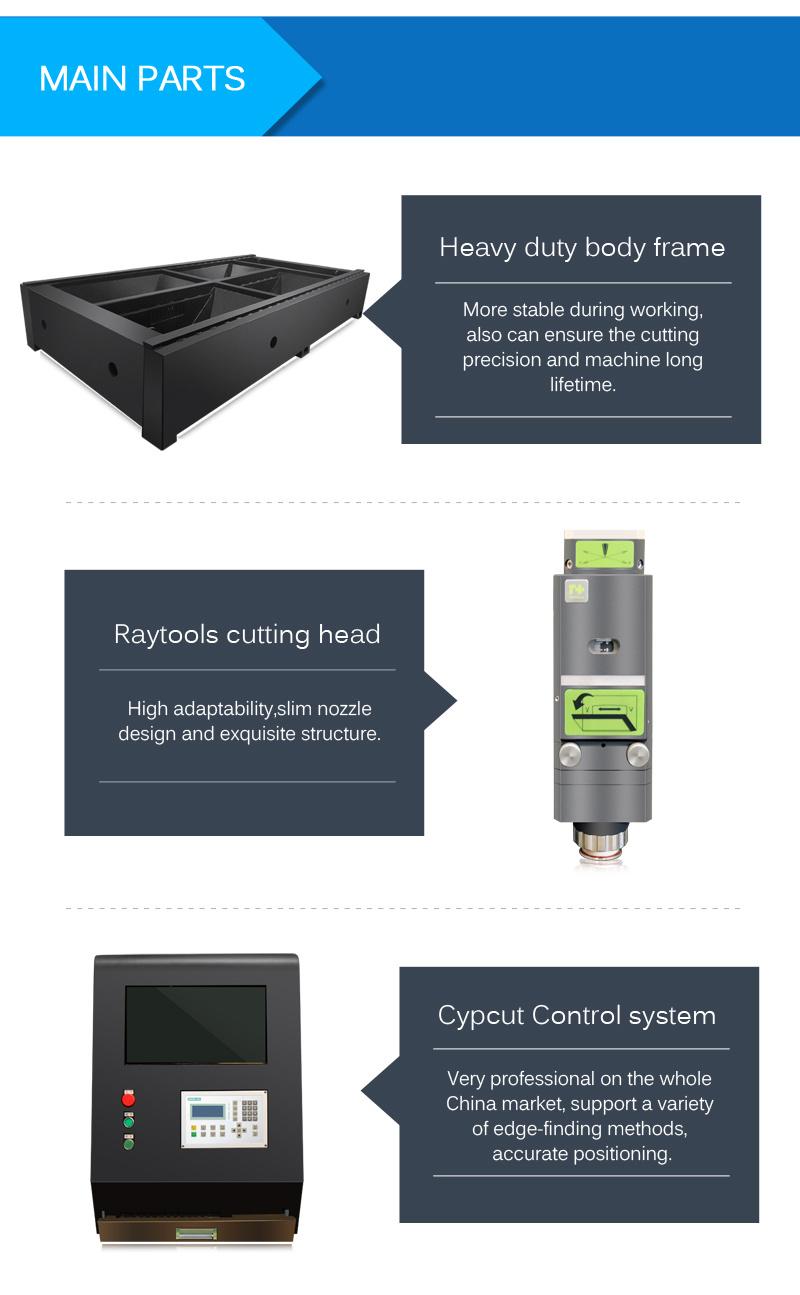

• Control System：Cypcut System
• Laser Head：Raytool

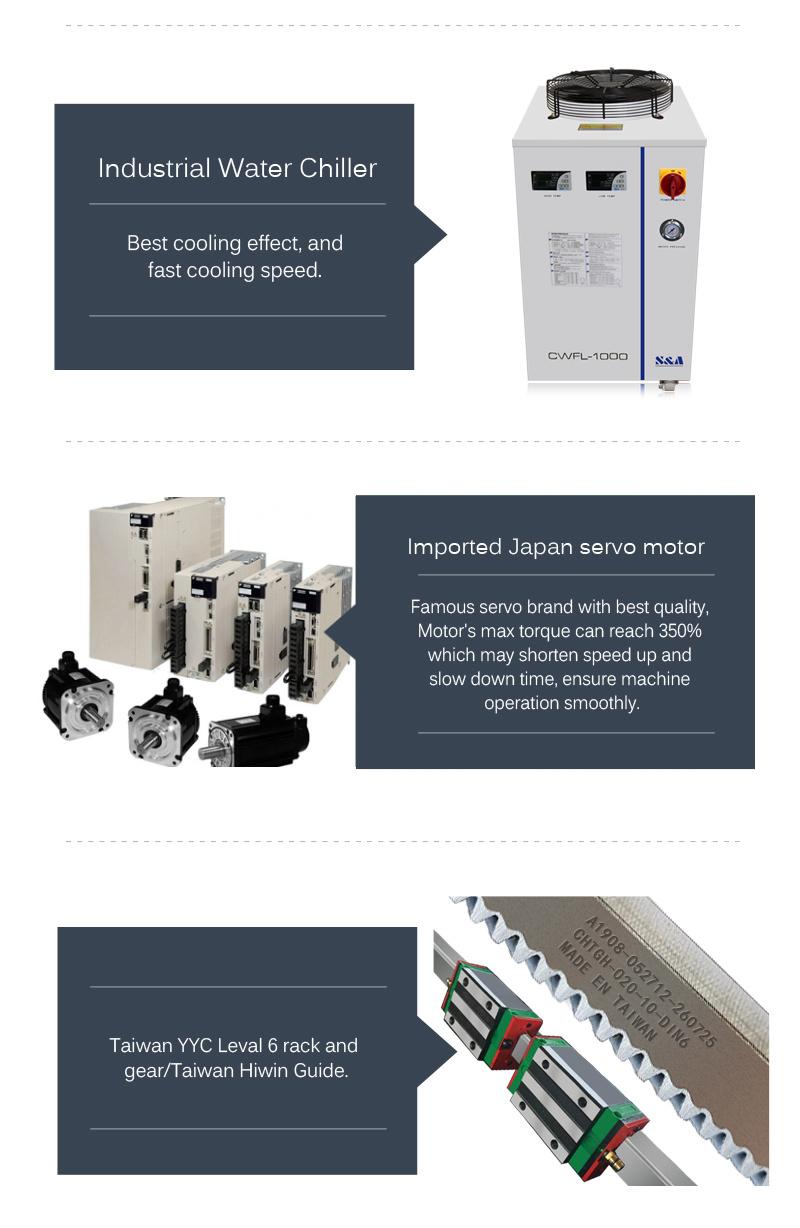

• Motor and Driver：Yaskawa Servo Motor
• Gear and Rack：Taiwan Yyc Level 6
• Guide：Taiwan Hiwin Guide
• Speed：140m,Min
• Working Table：Serrated Working Table
• Water Chiller：Cwfl Industrial Water Chiller
• X.Y Axis Location Accuracy：0.01mm
• X.Y Axis Max Moving Speed：30m,Min
• Application Material：Metal Sheet Iron,CS,Ss,Aluminum,Copper
• Laser Wave Length：1064nm
• Laser Power：1000W 2000W 3000W
• Engineer Overseas Service：Yes
• Transport Package：Plywood Packaging
• Specification：4000*2270*1850mm
• Trademark：Baokun
• Origin：China
• HS Code：8456110090
• Production Capacity：100sets,Month

Basic Info.

Model NO. fiber laser 1530 Structure Type Desktop Laser Classification Solid Laser Laser Technology Fiber Working Size 1500*3000mm/2000*3000mm/2000*6000mm Control System Cypcut System Laser Head Raytool Motor and Driver Yaskawa Servo Motor Gear and Rack Taiwan Yyc Level 6 Guide Taiwan Hiwin Guide Speed 140m/Min Working Table Serrated Working Table Water Chiller Cwfl Industrial Water Chiller X.Y Axis Location Accuracy 0.01mm X.Y Axis Max Moving Speed 30m/Min Application Material Metal Sheet Iron/CS/Ss/Aluminum/Copper Laser Wave Length 1064nm Laser Power 1000W 2000W 3000W Engineer Overseas Service Yes Transport Package Plywood Packaging Specification 4000*2270*1850mm Trademark Baokun Origin China HS Code 8456110090 Production Capacity 100sets/Month

Product Description

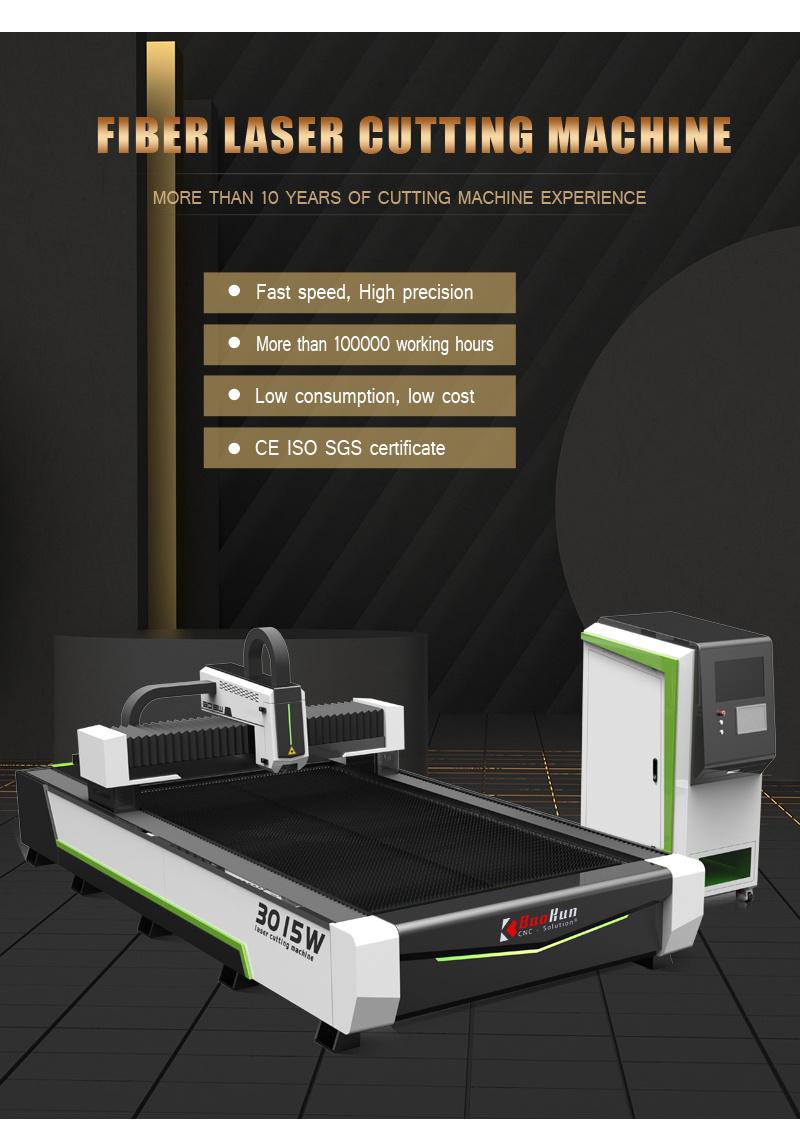

Exchanged tables laser machinery high efficiency laser cutter 1kw 2kw 3kw 6kw 12kw cnc metal cutting fiber laser for mild steel aluminum galvanized sheet


Material :

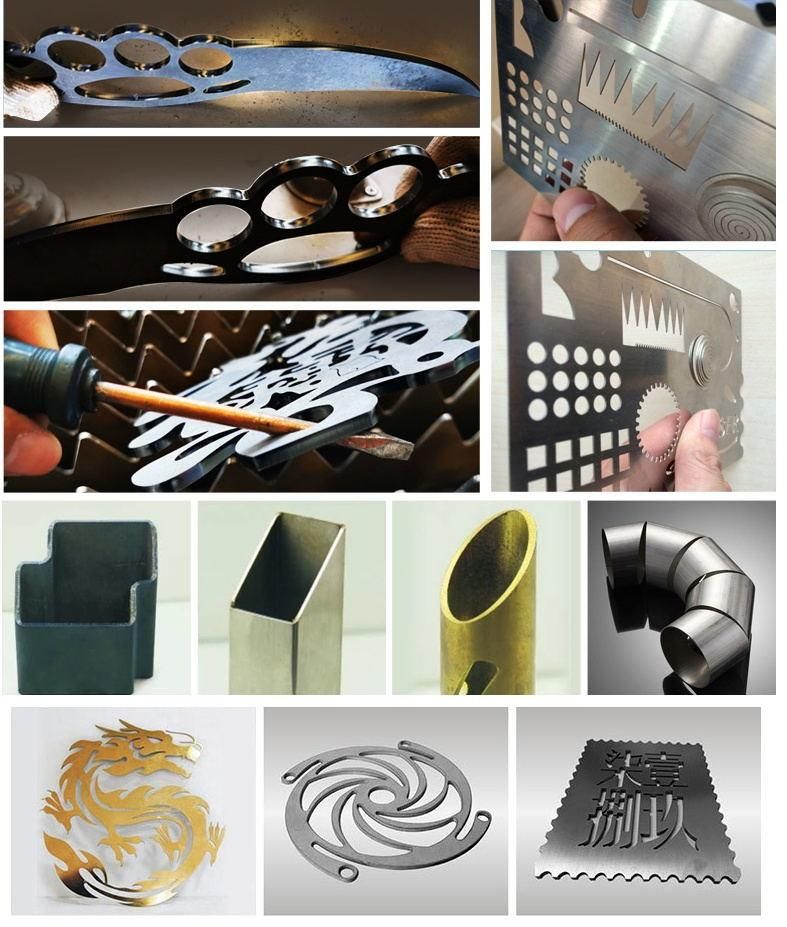

Fiber laser is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc

Industry :
Fiber laser cutting machine are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc

1	Machine Name	Fiber laser
2	Model	BKJ3015
3	Laser machine cutting area	3000x1500mm (Other size can be customized,such as 4500x1500/6000x1500/6000x2000mm)
4	Fiber Laser Power	1000/1500/2200/3300/4000/6000/8000/12000/25000W
5	Laser wave length	1064nm
6	Control system	Cypcut  professional control system
7	Motor and driver	Servo motor and driver
8	Laser head	Raytools laser head
9	Transmission system	Gear + rails
10	X.Y axis location accuracy	±0.01mm
11	X.Y axis repeat location accuracy	±0.01mm
12	X.Y axis max moving speed	140m/min
13	Max cutting speed	1--140m/min (it will according to metal material and laser power and machine configuration)
14	Cutting thickness	Detailed in the following cutting thickness
15	Application Material	Metal sheet Iron/CS/SS/Aluminum/Copper
16	Gross weight	4000KG
17	Net weight	3800KG

1.Welded structure lathe bed, after quenching, tempering and stress relief treatment, the platform and mounting hole position are processed by CNC machining center at once time to ensure machine strength and precision.

2. Imported grinding grade ball screw and high-precision linear guide rail, rack, with high processing precision.

3. Equipment with servo motor and driver, the torque is stronger and the running speed is faster and smoother.

4. Follow-up smoking system, smoking effect is better, saving energy.

5.Adopting advanced laser cutting head and lens, focusing spot is smaller, cutting line is finer, work efficiency is higher and processing quality is better.



1. Warranty

24 Months warranty for fiber cnc laser machine, Our customer will be fully trained for the operation and maintaining technology after the order confirmed.Our engineer could train you on at our factory for free hour full after sales service: our skilled engineer will help customer to solve the problem by MSN, SKYPE, QQ etc in time when problems happen,if necessary, overseas service is available.

2.Quality Control

Skilled and strict Quality Inspection Team is available during the material purchasing and production procedure.All finished machine we delivered are 100% strictly tested by our QC department and engineering department.

3.Payment terms

30% T/T paid in advance as deposit, the balance paid before shipment.







Q: There are so many fiber cnc laser cutting machine, which one should I choose?

A:  after we realized your work, we will choose the most suitable one for you with the cutting parameter, It is important to compare all data before choose the best prototype. Also, our sales team provides online services to resolve your confusion, feel free to contact us.

Q: This is my first time buying your machine; I have no ideas about your fiber laser  quality?

A: Each machine is strictly produced based on the standard of ISO9000-2000, ISO14001-2004, GMC global manufacturer and CE certifications. Our products have CE certifications As china high-power laser cutting machine provider, more than 10,000 machines have been sold in the past ten years. Customer is our first priority. We are confident to tell customers that there is no need to worry about our quality. welcome you visit our factory anytime

Q: When I got this machine, but I don't know how to use it. What should I do?

A:There are video and English manual with the machine. If you still have some doubts, we can talk by telephone. we supply 24 hours onlince service.

Q: If some problems happen to this machine during warranty period, what should I do?

A: We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service.

Q: Machine delivery time ?
 A: Within 20 working days after get your payment.

Any Interested, Welcome inquiry anytime!!
