Hand Held Handheld Continuous Jewelry/Aluminum Spot CNC Fiber Laser Welding Marking Machine Price Manufacturer (CE FDA ISO9001 certification)

Zhejiang Innovation Laser Equipment Co., Ltd.
  • After-sales Service：Video Tutorial & Remote Guidance
  • Warranty：One Year
  • Application：Biomedicine, Electronic Industry, Automotive Industry, Powder Metallurgy, Manufacturing Industry, Cabinet, Kitchen, Stair, Elevator, Shelf, Door etc
  • Technical Class：Continuous Wave Laser
  • Control：Manual
  • Power Density：Heat Conduct Welding

Base Info

  • Model NO.：CS1000 CS1500 CS2000
  • Laser Classification：Optical Fiber Laser
  • Type：Optical Fiber Transmission Laser Welding Machine
  • Laser Power：1000W 1500W 2000W
  • Pulse Width：Continuous Fiber Laser Welding
  • Welding Depth：0.2-1.5mm 0.2-2mm 0.2-3mm
  • Input Power：AC220V,380V
  • Cooling Type：Water Cooling
  • Optical Fiber Type：Qbh
  • Fiber Diameter：50um
  • Fiber Length：10m
  • Certification：CE FDA ISO9001
  • Transport Package：Wooden Box
  • Specification：600mm*1200mm*1200mm
  • Trademark：ChuangXin
  • Origin：China
  • HS Code：8515809090

Description

Hand Held Handheld Continuous Jewelry/Aluminum Spot CNC Fiber Laser Welding Marking Machine Price Manufacturer (CE FDA ISO9001 certification)Operation mode:
Manual welding, with simple fixture, flexible and simple operation

Electricity demand:
220/380VAC, 50/60Hz

Machine overall size:
650mm×800mm×1300mm

Scope of application

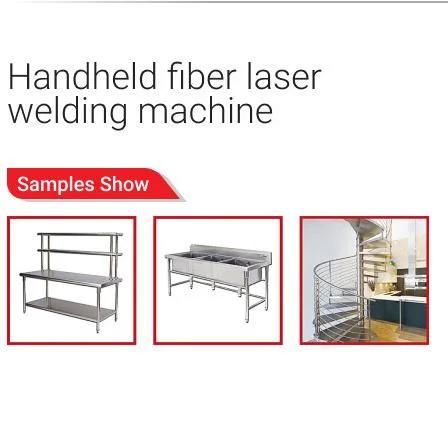

Cabinet, kitchen, stair, elevator, shelf, door and window guardrail, communication sheet metal shell, fan, stainless steel fixture and other industries have complex and irregular welding procedures. The welding of thin stainless steel plate, iron plate, galvanized plate and other metal materials can perfectly replace the traditional argon arc welding, secondary arc welding, electric welding and other processes.

 advantages
Hand held laser welding machine has the advantages of simple operation, beautiful welding, fast welding speed and less consumables, which greatly improves the work efficiency. It can perfectly replace the traditional argon arc welding, electric welding and other processes in the welding of thin stainless steel plate, iron plate, galvanized plate, aluminum plate and other metal materials.

System composition:

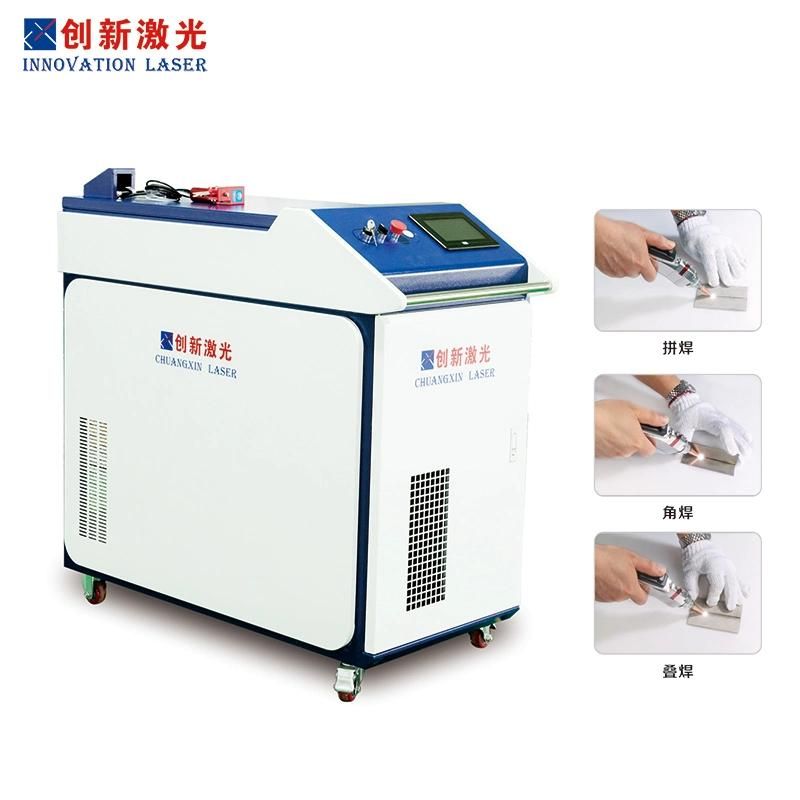

Hand laser welding machine (optional 1000W, 1500W, 2000W), self-developed wobble welding joint, adjustable spot width, strong welding fault tolerance, can be equipped with automatic wire feeding system, expand the welding requirements of processing parts, reduce the technical requirements for operators.Hand Held Handheld Continuous Jewelry/Aluminum Spot CNC Fiber Laser Welding Marking Machine Price Manufacturer (CE FDA ISO9001 certification)


 CS1000CS1500CS2000
Maximum laser power1000W1500W2000W
Laser working mediumRare earth doped fiberRare earth doped fiberRare earth doped fiber
Laser wavelength1070±10nm1070±10nm1070±10nm
Pulse widthContinuous light outputContinuous light outputContinuous light output
Number of optical fiber output1 line1 line1 line
Welding depth0.2-1.5mm0.2-2mm0.2-3mm
Total power<6KW<8KW<10KW
Power inputAC220V+10%/3P+PEAC220V+10%/3P+PEAC380V+10%/3P+PE
Host size(mm)480W*850D*224H600W*1400D*1050H600W*1400D*1050H
Cooling modewater-coolingwater-coolingwater-cooling
Optical fiber modelQBHQBHQBH
Fiber diameter50um50um50um
Fiber length10m10m10m
