• Model NO.：Super10
• Structure Type：Gantry Type
• Laser Classification：CO2 Laser Engraving Machine
• Laser Technology：Laser Vapor Cutting
• Safety Level：Class 1
• Fastest in Its Class：Scan Speeds of up to 2000 mm,Second

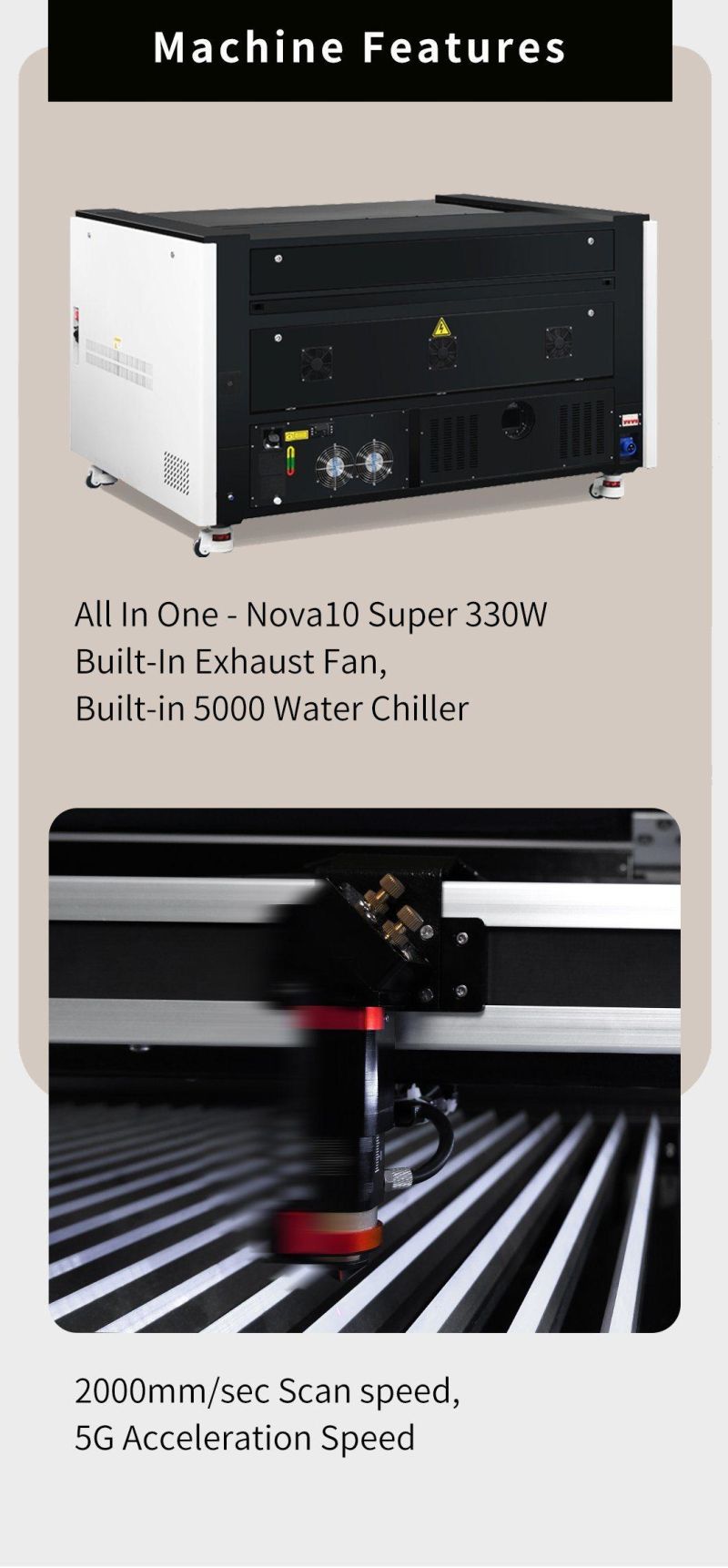

• All-in-One System：330W Built-in Exhaust Fan, Built-in 5000 Water Chi
• Laser Tube：Glass Tube 80-150W &RF 30,60W
• Super Clean Pack Design：Enclose The Linear Rails and Bearing Blocks
• Dual Worktable：Blade+Honeycomb for Laser Cutting and Engraving

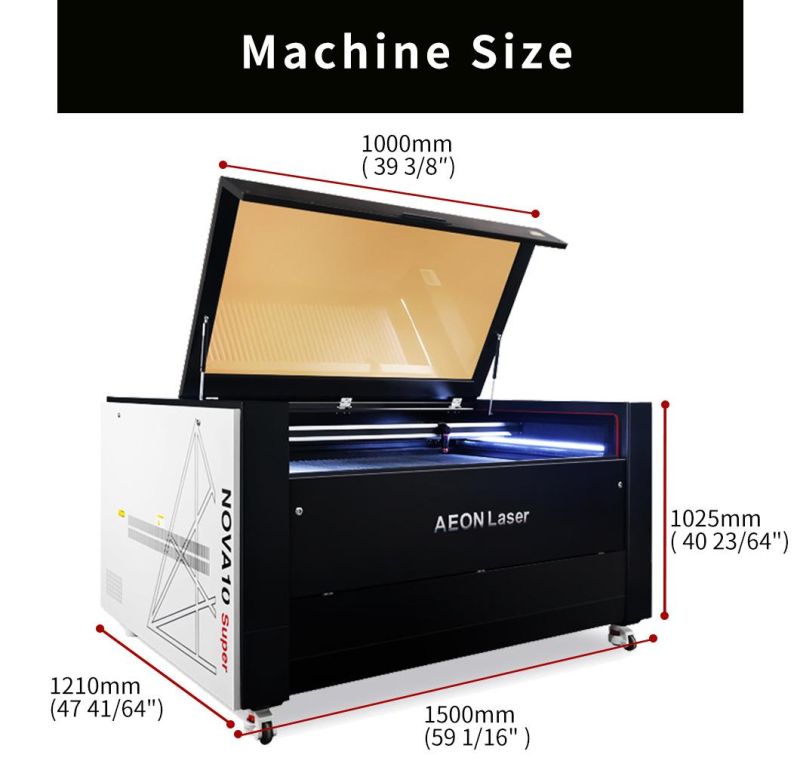

• Working Area：1000mm*700mm
• Multiple Interfaces：USB, Ethernet, and WiFi
• Graphic Format Supported：Ai,Pdf,Sc,Dxf,Hpgl,Plt,Rd,Scpro2,Svg,Lbrn,BMP,JPG,
• Software：Ruida or Lightburn
• Transport Package：Wood Box
• Trademark：Aeon Laser
• Origin：China
• HS Code：8456110090
• Production Capacity：4800,Year

Basic Info.

Model NO. Super10 Structure Type Gantry Type Laser Classification CO2 Laser Engraving Machine Laser Technology Laser Vapor Cutting Safety Level Class 1 Fastest in Its Class Scan Speeds of up to 2000 mm/Second All-in-One System 330W Built-in Exhaust Fan, Built-in 5000 Water Chi Laser Tube Glass Tube 80-150W &RF 30/60W Super Clean Pack Design Enclose The Linear Rails and Bearing Blocks Dual Worktable Blade+Honeycomb for Laser Cutting and Engraving Working Area 1000mm*700mm Multiple Interfaces USB, Ethernet, and WiFi Graphic Format Supported Ai/Pdf/Sc/Dxf/Hpgl/Plt/Rd/Scpro2/Svg/Lbrn/BMP/JPG/ Software Ruida or Lightburn Transport Package Wood Box Trademark Aeon Laser Origin China HS Code 8456110090 Production Capacity 4800/Year

Product Description

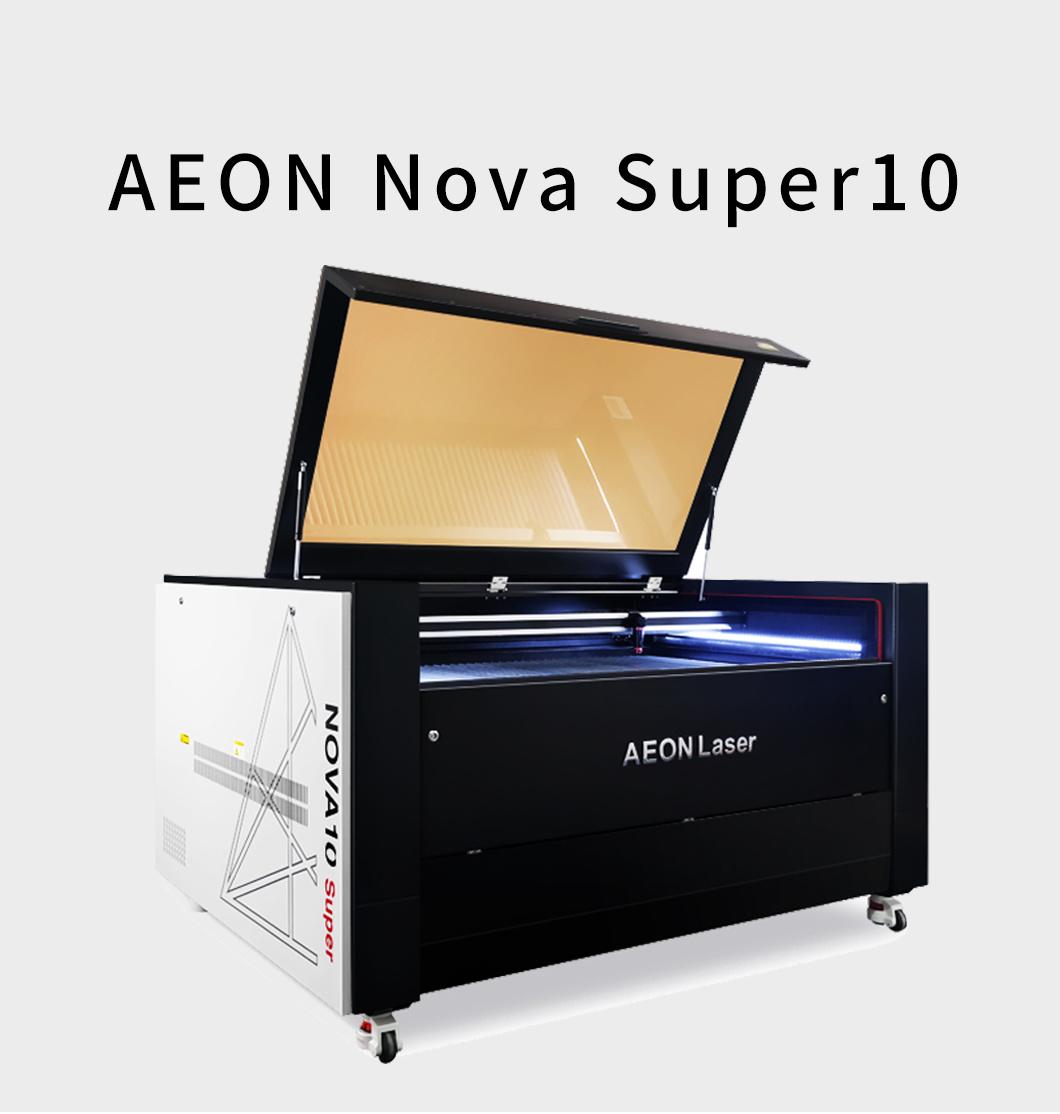

Aeon Laser Super Nova10 is a professional co2 laser engraving and cutting machine. The working area is 700*1000mm. Super Nova10 offers the Metal RF & Glass DC in one machine. Nova10 Super's engraving speed is as fast as MIRA series machines. Also can go 2000mm/sec, the acceleration speed is 5G, has the fastest speed in its class.

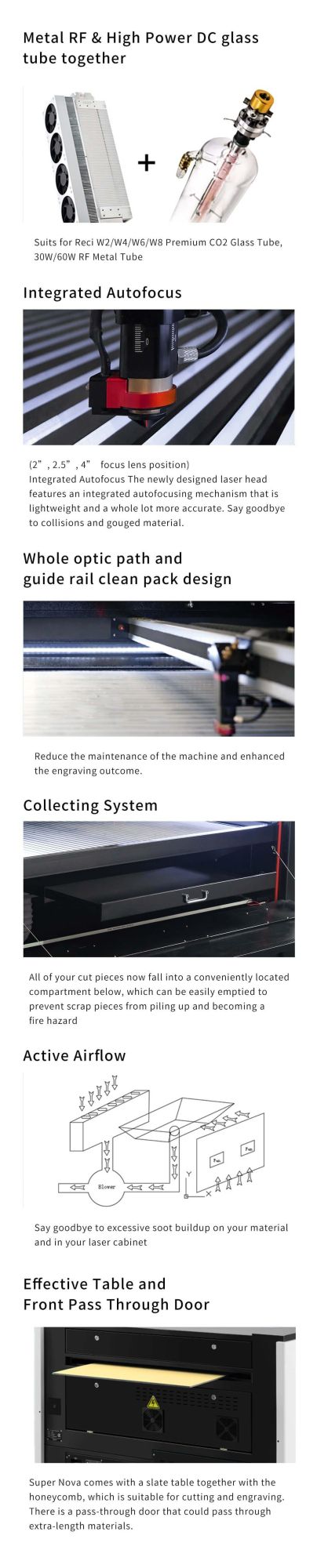

The structure of the Nova10 super is very strong, which makes it more steady. The machine equipped with honeycomb and blade worktable and with model 5200 chiller, makes it possible to install 100W or even 130W laser tube. The Z-axis now increased to 200mm, so it can fit in higher products. The air assists system got pressure gauge and regulator to give the users option to add a more powerful compressor to cut thicker materials. The front and back material pass-through door makes it possible to cut long materials

FAQ

1 Q: Can the machine engrave and cut?

A. Yes, even on the same Job, you can do settings with different colors in the software and also can make holes.

2. Q. Is the machine must work with computers?

A. Must connect with computer with USB cable when you change the settings of the machine. for the design files, you can transfer the file with a USB memory stick to the machine, Or can download it to the machine directly with a USB cable from the computer.

3. Q. Can the machine be split so it can fit into my doors?

A. Such as laser engraving cutting machine model of WHL3050, WHL4060, which can the legs separate from the main body of the machine.

4. Q. How long has the laser tube been working well?

A. Unfortunately we cannot confirm this.

it is about 4000+ hours for ordinary co2 laser tube 10,000+ hours for Reci brand co2 laser tube 6000+ hours for Pomelo Laser co2 laser tube

5. Q. Can you explain what the differences are between the different watt laser tubes?

A: Usually, the power of the laser tube is decided by two parameters:

1. The length of the laser tube( The longer the laser tube, is the more powerful).

2. The Diameter of the Laser tube (The bigger the laser tube, the more powerful).

AND bigger watt laser tube can cut thicker materials, however, a bigger watt has a big laser beam, therefore, For engraving, It's. better to use small watt laser tube-like 60watt or 80watt.)

6. Q.How do I know the laser tube is nearly used up?

A: The normal color of the laser beam is purple while working. When a laser tube is dying the color will become white
