• Model NO.：KT-LF
• Type：Optical Fiber Laser Marking Machine
• Marking Method：Scanning Marking
• Usage：Metal Plastic PCB
• Whole Machine Power：Below 800W
• Marking Content：Letter, Date, Code, Number, Graphic, Logo, etc
• Certification：Ce, RoHS, FDA
• Laser Type：Fiber Laser
• Computer：Yes, Provided
• Max Marking Speed：9000mm,S
• Condition：New
• Laser：20W 30W 50W 100W Fiber Laser
• Marking Area：100X100mm
• Transport Package：Plywood Case
• Specification：CE ROHS
• Trademark：KUNTAI
• Origin：Wuxi, Jiangsu, China
• HS Code：8456110090
• Production Capacity：300unit,Month

Basic Info.

Model NO. KT-LF Type Optical Fiber Laser Marking Machine Marking Method Scanning Marking Usage Metal Plastic PCB Whole Machine Power Below 800W Marking Content Letter, Date, Code, Number, Graphic, Logo, etc Certification Ce, RoHS, FDA Laser Type Fiber Laser Computer Yes, Provided Max Marking Speed 9000mm/S Condition New Laser 20W 30W 50W 100W Fiber Laser Marking Area 100X100mm Transport Package Plywood Case Specification CE ROHS Trademark KUNTAI Origin Wuxi, Jiangsu, China HS Code 8456110090 Production Capacity 300unit/Month

Product Description

China marking machine factory! CE ROHS FDA
Factory great promotion!

fiber laser marking engraving machine,20w 30w 50w 100w 120w laser
Durable marking fiber laser marking machine on metals

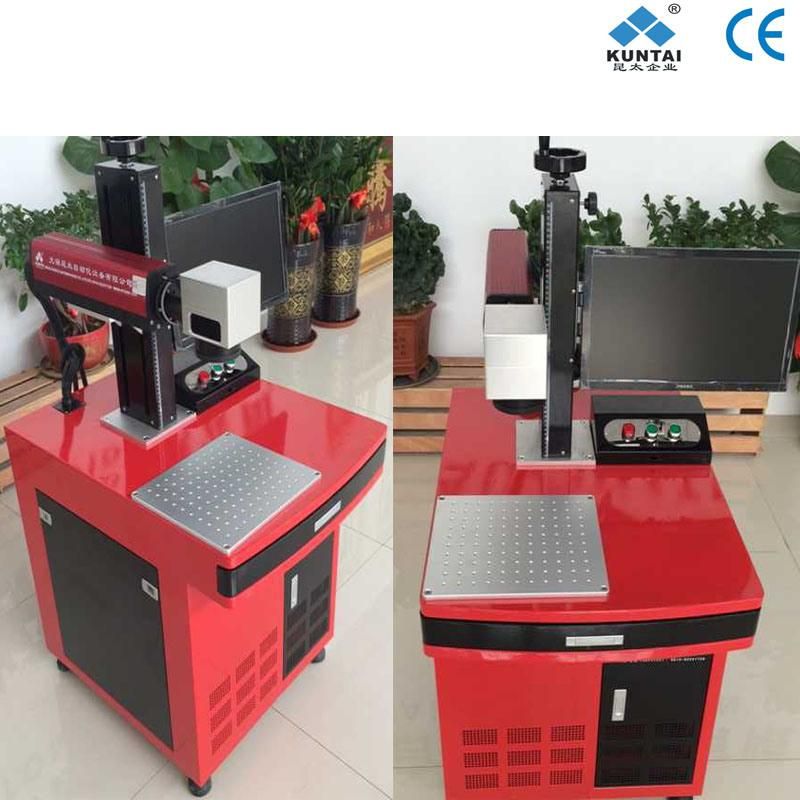

KT-series high quality laser marking machine is a new generation laser marking system made with newest laser technique in the world,
It design with fiber laser maker as laser source, and thru high-speed vibration-mirror scan system to actualize marking function,
The fiber laser making machine have high conversion efficiency of electric-light, mainly used to the field which request high quality to deepness, smoothness and precision, such as horologe, communication products images marking etc.


Specification:

Item no	KT-LF
Laser output	20w 30w 50w 100w 120w
Max marking speed	800 characters/s, height of cahrater 1mm
Laser wavelength	1064nm
Beam quality(m2)	< 1.8 square metres
Standard marking area	100mm× 100mm
Marking depth	< 0.1mm, according to different materials
Whole machine power	800W
Min line width	0.01mm
Repeatabilityprecision	± 0.001mm
Out package size	900X700X1150mm
Cooling system	Air cooling

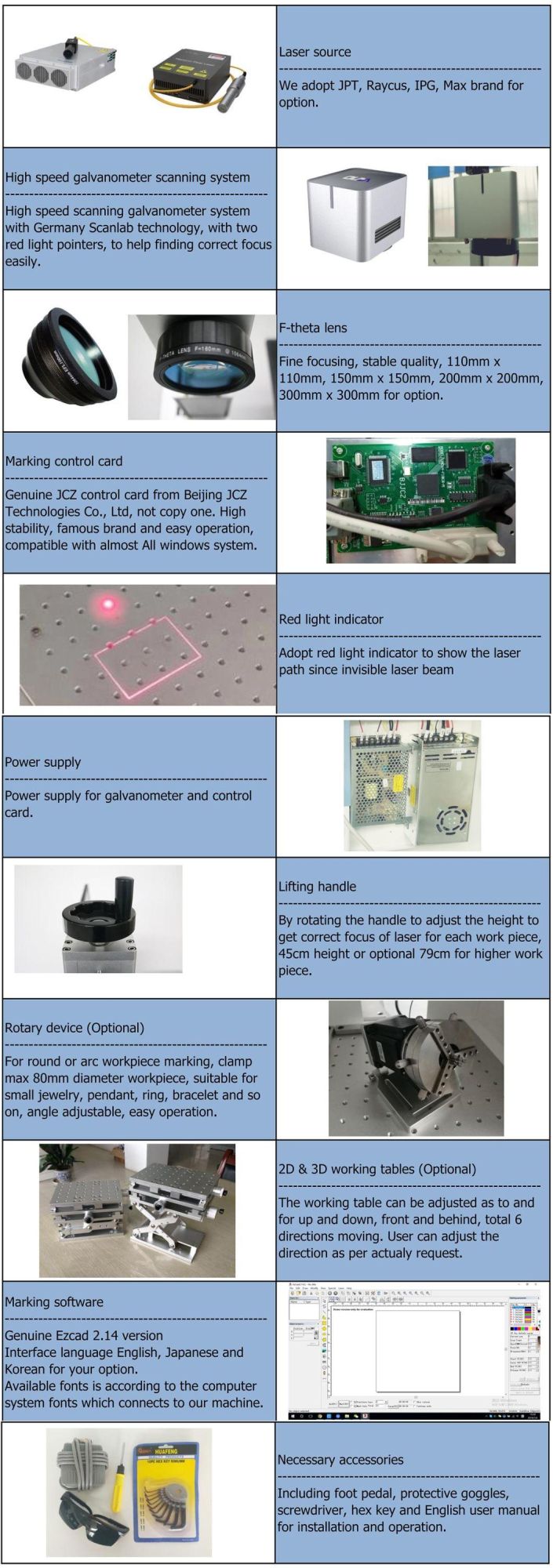

Main spare parts and Packing list:

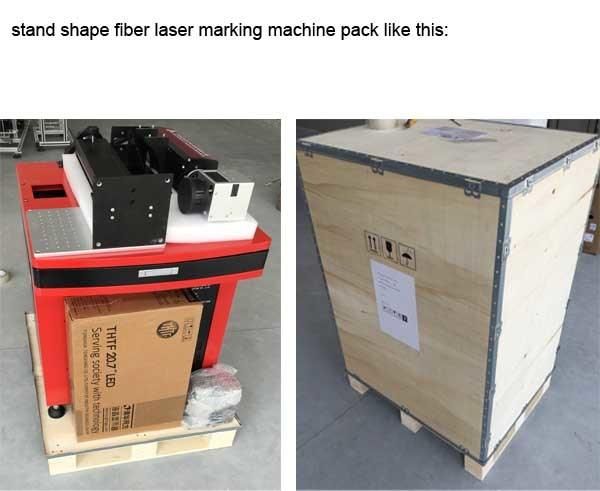

Packaging and shipping

Model: KT-LF

Each unit per plywood case

Outer dimension: 90x70x115cm

Gross weight: 150kg

Delivery date: Within 15 days after payment received

Shipping: By sea/by air/international express posting


 Advantages

1) USB interface connection: Will work with a Laptop or computer.

2) Small and compact: The dimension of fiber marker is very small, convenient to be taken away.

3) High Precision, bring you the fantastic and satisfied marking effect.

4) Superior Laser Beam: The definition is 1 micron, 10 times as that of traditional products.

5) No Consumables: One Fiber marker can work for many years without any consumables.

6) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.

7) No need to adjust the laser optical path.

8) With Up/Down Focus and scale plate, capable to make location precisely, it is convenient and swift.


Applicable material:

Metals and a variety of non-metallic materials, such as

Hard alloys, oxides, plating, coating, ABS, epoxy resin, ink, engineering plastics and so on. Especially the area which need high request of Deep, smooth, fine degrees such as watches and clocks, the mold industry, bitmap marking and so on

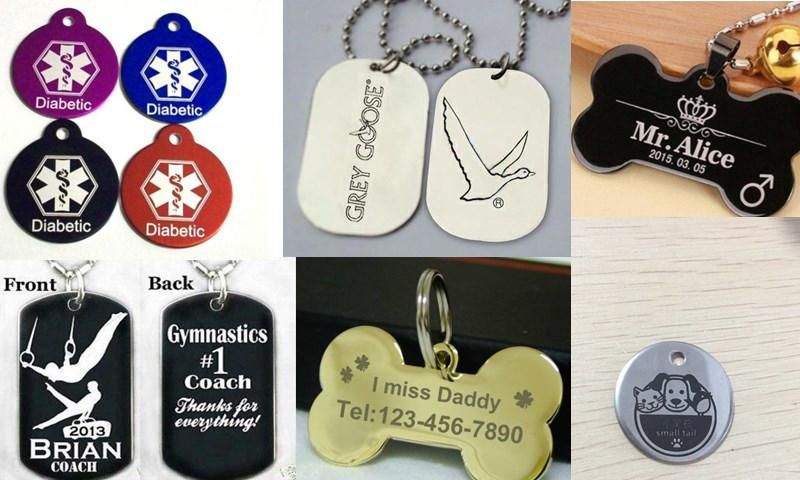

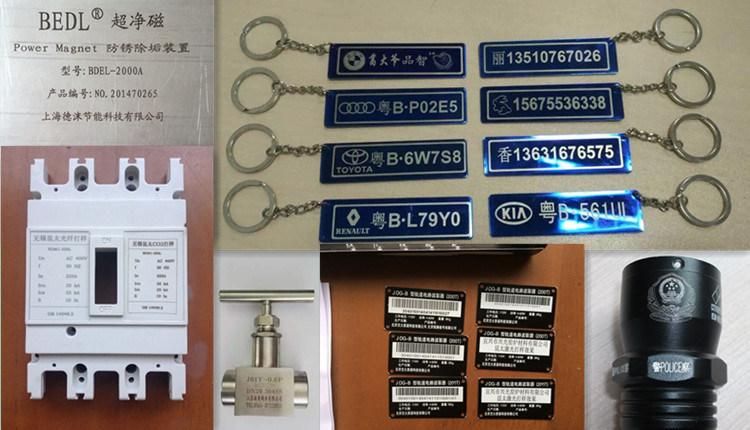

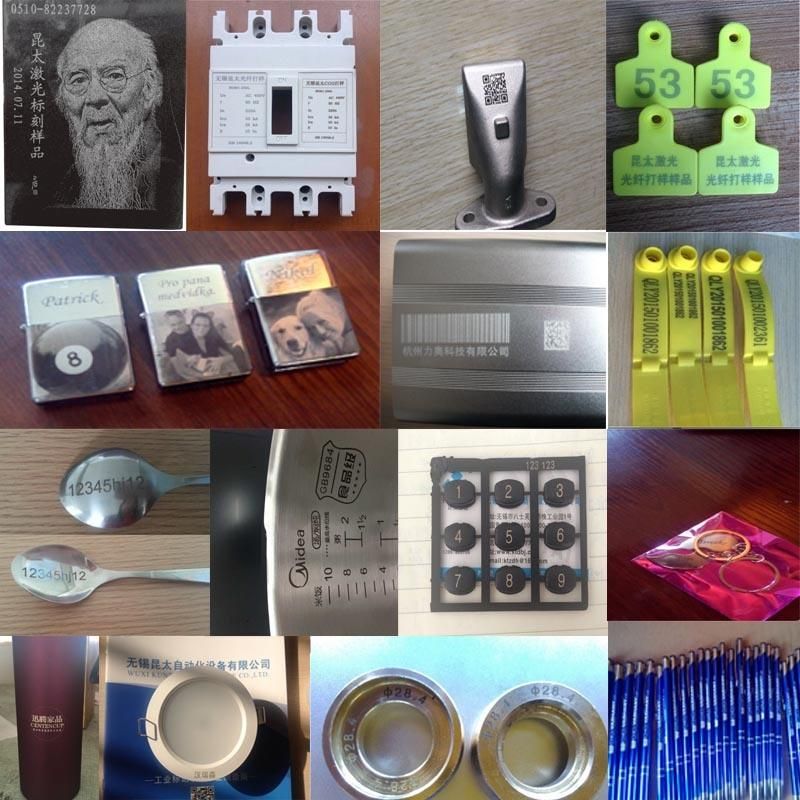

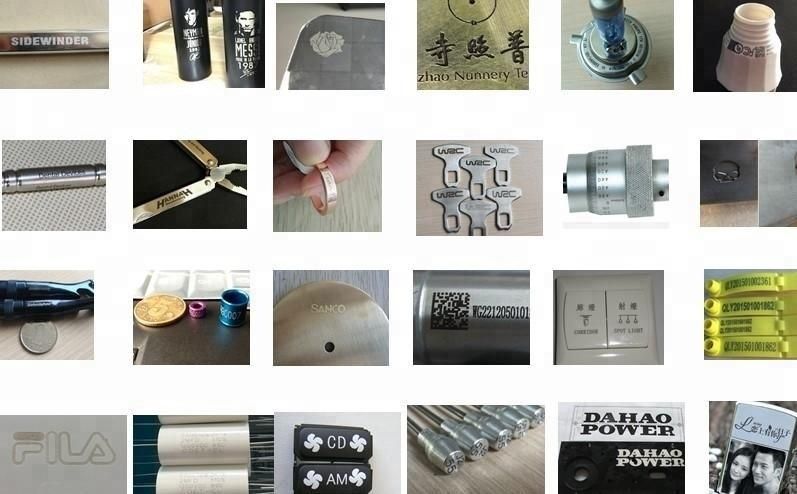

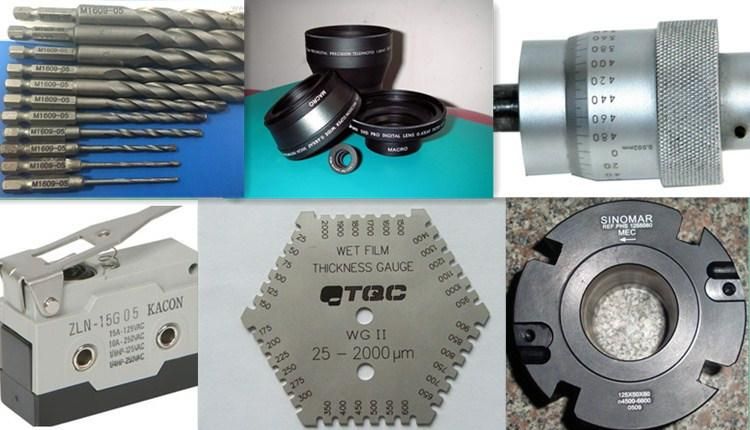

marking samples:








warranty:
1,We supply the software which can assist the marking machine
2,Free design of fixtures as customers required and technical support.
3,We guarantee delivery time within 7 days
4,We can produce the marking machine as your request.
5,TWO years for laser source,one year for other spare parts

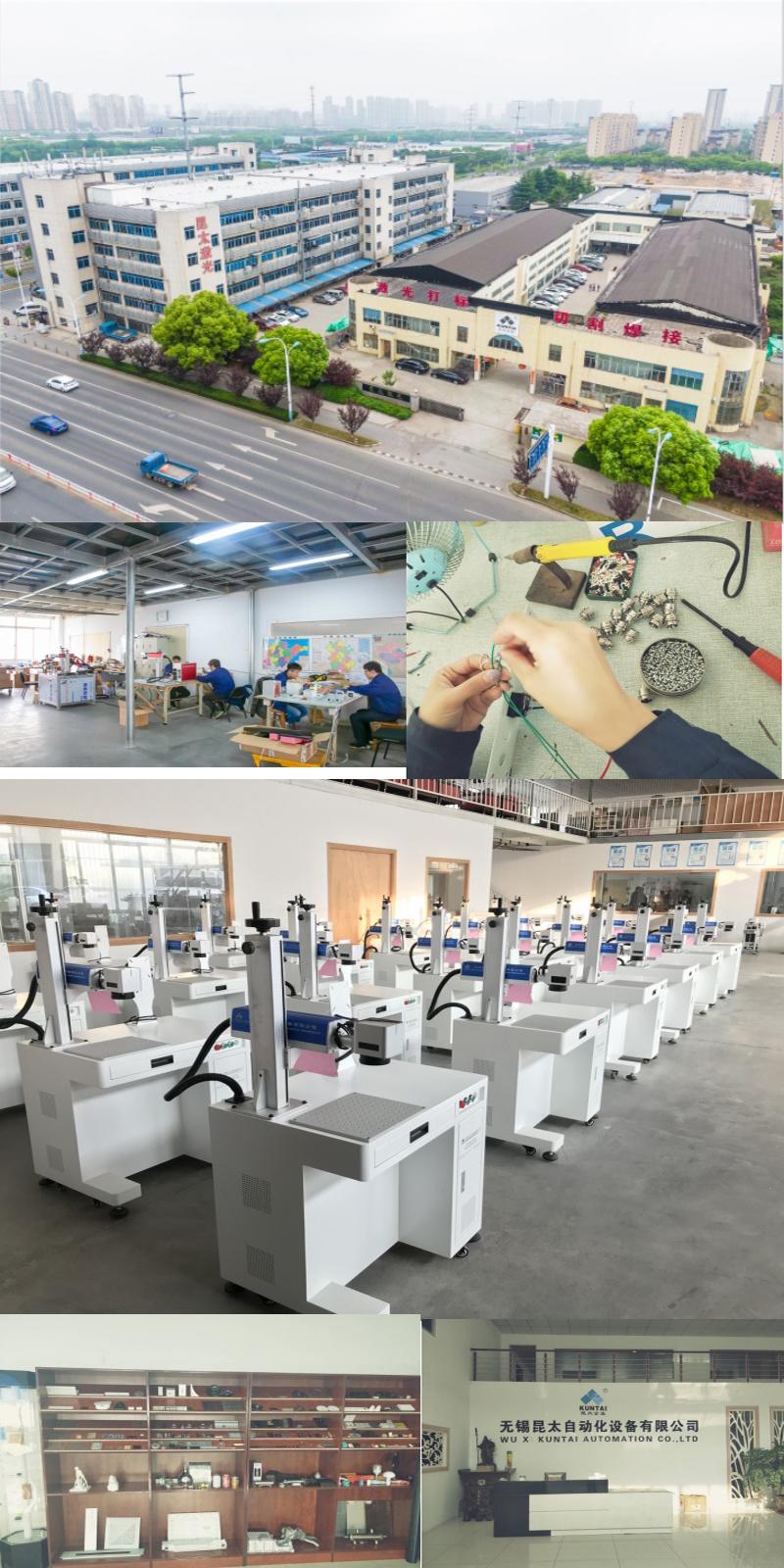

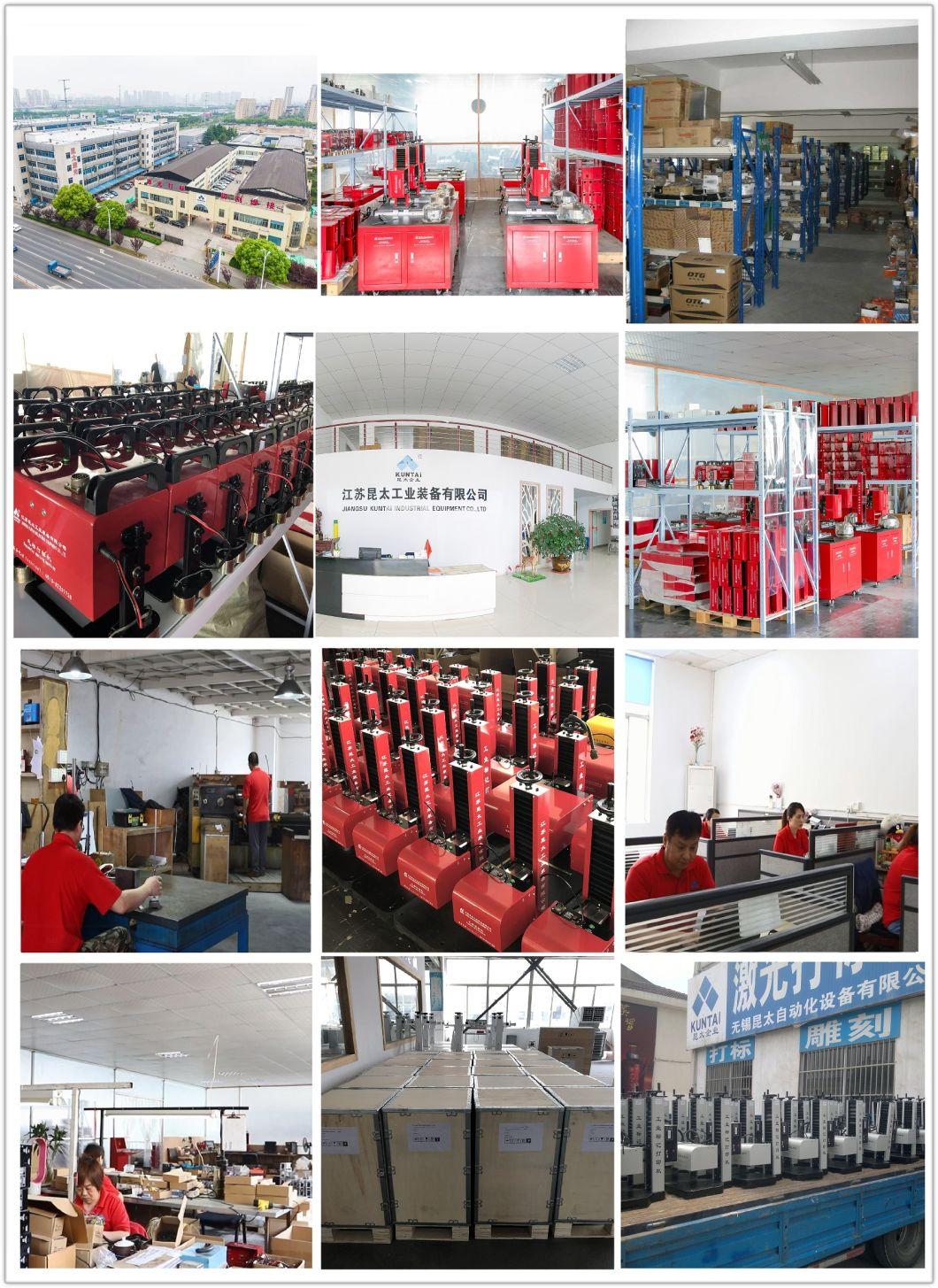

Certificate and Our company:
Wuxi Kuntai Automation Co., Ltd has more than 10 years manufacturing experience

Our products were all passed CE ROHS FDA ISO, and were exported to Europe, North America, Latin America, Middle East, and South-east Asia.We have a Design group, specilized in constantly improve the existing products and design new Laser products.
